AnimPhysCommandScripted Interface Reference

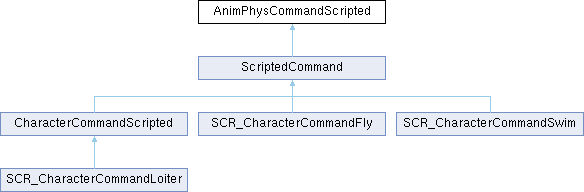

Inheritance diagram for AnimPhysCommandScripted:

Public Member Functions
void	OnActivate ()
	virtual to be overridden called when command starts
void	OnDeactivate ()
	called when command ends
proto native bool	IsFlagAutoDelete ()
	autodelete flag (when set, agent will delete the command after returning PreAnimUpdate or PostPhysicsUpdate automaticaly) usable for additive commands
proto native void	SetFlagAutoDelete (bool pV)
proto native void	SetFlagFinished (bool pFinished)
	this terminates human command script and shows CommandHandler( ... pCurrentCommandFinished == true );
proto native bool	IsFlagFinished ()
void	PreAnimUpdate (float pDt)
	override this ! called before any animation is processed here change animation values, add animation commands
proto native void	PreAnim_CallCommand (int pCommand, int pParamInt, float pParamFloat)
proto native void	PreAnim_CallCommand4I (int pCommand, int pParamInt1, int pParamInt2, int pParamInt3, int pParamInt4, float pParamFloat)
proto native void	PreAnim_SetFloat (int pVar, float pFlt)
proto native void	PreAnim_SetInt (int pVar, int pInt)
proto native void	PreAnim_SetBool (int pVar, bool pBool)
proto native void	PreAnim_SetAttachment (string bindingName, string animGraphResourceName, string animInstanceResourceName, string startingNodeName)
void	PrePhysUpdate (float pDt)
	override this ! after animation is processed, before physics is processed
proto native bool	PrePhys_IsEvent (int pEvent)
	script function usable in PrePhysUpdate
proto native bool	PrePhys_IsTag (int pTag)
proto bool	PrePhys_GetPredictionEval (int pPrediction, out int pGlobalBoneIndex, out bool pIsTranslation, out bool pIsRotation, out vector pOutTransl, out float pOutRot[4], out float pTimeToPrediction, out float pNormTimeInAnims)
proto native bool	PrePhys_GetTranslation (out vector pOutTransl)
proto native bool	PrePhys_GetRotation (out float pOutRot[4])
proto native void	PrePhys_SetTranslation (vector pInTransl)
proto native void	PrePhys_SetRotation (float pInRot[4])
bool	PostPhysUpdate (float pDt)
	override this ! final adjustment of physics state (after physics was applied) returns true if command continues running / false if command should end (or you can use SetFlagFinished(true))
proto native void	PostPhys_GetPosition (out vector pOutTransl)
	script function usable in PostPhysUpdate
proto native void	PostPhys_GetRotation (out float pOutRot[4])
proto native void	PostPhys_SetPosition (vector pInTransl)
proto native void	PostPhys_SetRotation (float pInRot[4])
proto native void	PostPhys_LockRotation ()

Protected Member Functions
void	AnimPhysCommandScripted ()
	constructor is protected - we don't wnat instances of this "abstract" class

Constructor & Destructor Documentation

AnimPhysCommandScripted()

void AnimPhysCommandScripted.AnimPhysCommandScripted ( )

protected

constructor is protected - we don't wnat instances of this "abstract" class

Member Function Documentation

IsFlagAutoDelete()

proto native bool AnimPhysCommandScripted.IsFlagAutoDelete

(

)

autodelete flag (when set, agent will delete the command after returning PreAnimUpdate or PostPhysicsUpdate automaticaly) usable for additive commands

IsFlagFinished()

proto native bool AnimPhysCommandScripted.IsFlagFinished

(

)

OnActivate()

void AnimPhysCommandScripted.OnActivate

(

)

virtual to be overridden called when command starts

Implemented in SCR_CharacterCommandLoiter, SCR_CharacterCommandFly, and SCR_CharacterCommandSwim.

OnDeactivate()

void AnimPhysCommandScripted.OnDeactivate

(

)

called when command ends

Implemented in SCR_CharacterCommandLoiter, SCR_CharacterCommandFly, and SCR_CharacterCommandSwim.

PostPhys_GetPosition()

proto native void AnimPhysCommandScripted.PostPhys_GetPosition

(

out vector

pOutTransl

)

script function usable in PostPhysUpdate

PostPhys_GetRotation()

proto native void AnimPhysCommandScripted.PostPhys_GetRotation

(

out float

pOutRot[4]

)

PostPhys_LockRotation()

proto native void AnimPhysCommandScripted.PostPhys_LockRotation

(

)

PostPhys_SetPosition()

proto native void AnimPhysCommandScripted.PostPhys_SetPosition

(

vector

pInTransl

)

PostPhys_SetRotation()

proto native void AnimPhysCommandScripted.PostPhys_SetRotation

(

float

pInRot[4]

)

PostPhysUpdate()

bool AnimPhysCommandScripted.PostPhysUpdate

(

float

pDt

)

override this ! final adjustment of physics state (after physics was applied) returns true if command continues running / false if command should end (or you can use SetFlagFinished(true))

Implemented in SCR_CharacterCommandFly, and SCR_CharacterCommandSwim.

PreAnim_CallCommand()

proto native void AnimPhysCommandScripted.PreAnim_CallCommand	(	int	pCommand,
		int	pParamInt,
		float	pParamFloat
	)

PreAnim_CallCommand4I()

proto native void AnimPhysCommandScripted.PreAnim_CallCommand4I	(	int	pCommand,
		int	pParamInt1,
		int	pParamInt2,
		int	pParamInt3,
		int	pParamInt4,
		float	pParamFloat
	)

PreAnim_SetAttachment()

proto native void AnimPhysCommandScripted.PreAnim_SetAttachment	(	string	bindingName,
		string	animGraphResourceName,
		string	animInstanceResourceName,
		string	startingNodeName
	)

PreAnim_SetBool()

proto native void AnimPhysCommandScripted.PreAnim_SetBool	(	int	pVar,
		bool	pBool
	)

PreAnim_SetFloat()

proto native void AnimPhysCommandScripted.PreAnim_SetFloat	(	int	pVar,
		float	pFlt
	)

PreAnim_SetInt()

proto native void AnimPhysCommandScripted.PreAnim_SetInt	(	int	pVar,
		int	pInt
	)

PreAnimUpdate()

void AnimPhysCommandScripted.PreAnimUpdate

(

float

pDt

)

override this ! called before any animation is processed here change animation values, add animation commands

Implemented in SCR_CharacterCommandFly, and SCR_CharacterCommandSwim.

PrePhys_GetPredictionEval()

proto bool AnimPhysCommandScripted.PrePhys_GetPredictionEval	(	int	pPrediction,
		out int	pGlobalBoneIndex,
		out bool	pIsTranslation,
		out bool	pIsRotation,
		out vector	pOutTransl,
		out float	pOutRot[4],
		out float	pTimeToPrediction,
		out float	pNormTimeInAnims
	)

PrePhys_GetRotation()

proto native bool AnimPhysCommandScripted.PrePhys_GetRotation

(

out float

pOutRot[4]

)

PrePhys_GetTranslation()

proto native bool AnimPhysCommandScripted.PrePhys_GetTranslation

(

out vector

pOutTransl

)

PrePhys_IsEvent()

proto native bool AnimPhysCommandScripted.PrePhys_IsEvent

(

int

pEvent

)

script function usable in PrePhysUpdate

PrePhys_IsTag()

proto native bool AnimPhysCommandScripted.PrePhys_IsTag

(

int

pTag

)

PrePhys_SetRotation()

proto native void AnimPhysCommandScripted.PrePhys_SetRotation

(

float

pInRot[4]

)

PrePhys_SetTranslation()

proto native void AnimPhysCommandScripted.PrePhys_SetTranslation

(

vector

pInTransl

)

PrePhysUpdate()

void AnimPhysCommandScripted.PrePhysUpdate

(

float

pDt

)

override this ! after animation is processed, before physics is processed

Implemented in SCR_CharacterCommandLoiter, SCR_CharacterCommandFly, and SCR_CharacterCommandSwim.

SetFlagAutoDelete()

proto native void AnimPhysCommandScripted.SetFlagAutoDelete

(

bool

pV

)

SetFlagFinished()

proto native void AnimPhysCommandScripted.SetFlagFinished

(

bool

pFinished

)

this terminates human command script and shows CommandHandler( ... pCurrentCommandFinished == true );

---

The documentation for this interface was generated from the following file:

• Game/Character/animPhysCommand.c
