Base category entry for marker selection menu. More...

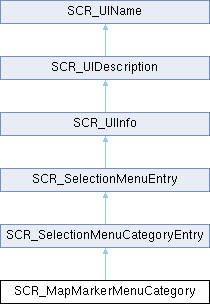

Inheritance diagram for SCR_MapMarkerMenuCategory:

Public Member Functions
SCR_EMapMarkerType	GetMarkerType ()

void	SetMarkerType (SCR_EMapMarkerType type)

void	SetColor (Color color)

void	SetSymbolProps (EMilitarySymbolIdentity faction, Color color)
	Set military symbol properties.

void	SetLayout ()
	Set custom layout based on marker type.

override void	SetEntryComponent (SCR_SelectionMenuEntryComponent entryComponent)

void	SCR_MapMarkerMenuCategory ()

Public Member Functions inherited from SCR_SelectionMenuCategoryEntry
void	PerformDefaultEntry ()

void	AddEntry (SCR_SelectionMenuEntry entry=null)

void	RemoveEntry (notnull SCR_SelectionMenuEntry entry)

int	GetDefaultAction ()

array< ref SCR_SelectionMenuEntry >	GetEntries ()

Public Member Functions inherited from SCR_SelectionMenuEntry
ScriptInvoker	GetOnPerform ()

ScriptInvoker	GetOnPerformFail ()

ScriptInvoker	GetOnIconChange ()

void	Update ()
	Public method to make entry update itself.

void	Perform ()
	Public method to call entry perform Don't override! To define entry perform behavior override OnPerform() below.

void	Enable (bool enable)

void	SetId (string id)

string	GetId ()

void	SetName (string name)

void	SetDescription (string description)

void	SetIcon (ResourceName iconPath, string imageSetName="")
	Set icon and invoke change.

void	SetIconFromDeafaultImageSet (string imageSetName="")

ResourceName	GetCustomLayout ()

void	SetCustomLayout (ResourceName layout)

void	SetEntryComponent (SCR_SelectionMenuEntryComponent entryComponent)

SCR_SelectionMenuEntryComponent	GetEntryComponent ()

bool	IsEnabled ()

void	SetInputAction (string action)

string	GetInputAction ()

void	SCR_SelectionMenuEntry ()

Public Member Functions inherited from SCR_UIInfo
ResourceName	GetIconPath ()
	Get icon.

string	GetIconSetName ()
	Returns Icon Set name if imageset.

bool	HasIcon ()
	Check if the info has an icon defined.

bool	SetIconTo (ImageWidget imageWidget)
	Set icon to given image widget.

override void	Log (string prefix=string.Empty, LogLevel logLevel=LogLevel.VERBOSE)

Public Member Functions inherited from SCR_UIDescription
LocalizedString	GetUnformattedDescription ()
	Get the unformatted description from SCR_HintUIInfo instance.

void	SetDescription (LocalizedString description)
	Change the description from SCR_HintUIInfo instance.

LocalizedString	GetDescription ()
	Get description.

bool	HasDescription ()
	Check if the info has a description defined.

bool	SetDescriptionTo (TextWidget textWidget)
	Set description to given text widget.

override void	Log (string prefix=string.Empty, LogLevel logLevel=LogLevel.VERBOSE)

Public Member Functions inherited from SCR_UIName
LocalizedString	GetUnformattedName ()
	Get The unformatted Name from SCR_HintUIInfo instance.

void	SetName (LocalizedString name)
	Change the Name from SCR_HintUIInfo instance.

LocalizedString	GetName ()
	Get name.

bool	HasName ()
	Check if the info has a name defined.

bool	SetNameTo (TextWidget textWidget)
	Set name to given text widget.

void	Log (string prefix=string.Empty, LogLevel logLevel=LogLevel.VERBOSE)
	Print out contents of this UI info.

Static Public Attributes
const string	WIDGET_SYMBOL = "SymbolOverlay"

Protected Attributes
SCR_EMapMarkerType	m_eMarkerType

ref Color	m_Color = GUIColors.DEFAULT

ref SCR_MilitarySymbol	m_MilSymbol = new SCR_MilitarySymbol()

SCR_MilitarySymbolUIComponent	m_SymbolComp

Protected Attributes inherited from SCR_SelectionMenuCategoryEntry
int	m_iDefaultEntry

ref array< ref SCR_SelectionMenuEntry >	m_aEntries

Protected Attributes inherited from SCR_SelectionMenuEntry
string	m_sId

bool	m_bEnabled

string	m_sInputAction

ResourceName	m_sCustomLayout

ref SCR_SelectionMenuEntryComponent	m_EntryComponent

ref ScriptInvoker< SCR_SelectionMenuEntry >	m_OnPerform

ref ScriptInvoker< SCR_SelectionMenuEntry >	m_OnPerformFail

ref ScriptInvoker< SCR_SelectionMenuEntry, ResourceName, string >	m_OnIconChange

Protected Attributes inherited from SCR_UIInfo
ResourceName	Icon

string	IconSetName

Protected Attributes inherited from SCR_UIDescription
LocalizedString	Description

Protected Attributes inherited from SCR_UIName
LocalizedString	Name

Additional Inherited Members
Static Public Member Functions inherited from SCR_UIInfo
static SCR_UIInfo	GetInfo (BaseContainer source, string varName)
	Get UIInfo from a source object.

static SCR_UIInfo	CreateInfo (UIInfo source)
	Create SCR_UIInfo from engine UIInfo.

static SCR_UIInfo	CreateInfo (LocalizedString name, LocalizedString description=LocalizedString.Empty, ResourceName icon=ResourceName.Empty, string iconSetName=string.Empty)
	Create SCR_UIInfo from basic params.

static SCR_UIInfo	CreatePlaceholderInfo (TypeName type)
	Get placeholder info.

Protected Member Functions inherited from SCR_SelectionMenuCategoryEntry
override void	OnPerform ()
	Empty methods for deifinition of perform behavior.

Protected Member Functions inherited from SCR_SelectionMenuEntry
void	InvokeOnPerform ()

void	InvokeOnPerformFail ()

void	InvokeOnIconChange (ResourceName icon, string imageSetImage)

void	OnPerform ()
	Empty methods for deifinition of perform behavior.

void	OnEntryClick (SCR_SelectionMenuEntryComponent entryComponent)

Protected Member Functions inherited from SCR_UIInfo
override void	CopyFrom (SCR_UIName source)

override void	CopyFrom (SCR_UIName source)

void	CopyFrom (SCR_UIName source)

Detailed Description

Base category entry for marker selection menu.

Constructor & Destructor Documentation

◆ SCR_MapMarkerMenuCategory()

void SCR_MapMarkerMenuCategory.SCR_MapMarkerMenuCategory ( )

Member Function Documentation

◆ GetMarkerType()

SCR_EMapMarkerType SCR_MapMarkerMenuCategory.GetMarkerType ( )

◆ SetColor()

void SCR_MapMarkerMenuCategory.SetColor ( Color color )

◆ SetEntryComponent()

override void SCR_MapMarkerMenuCategory.SetEntryComponent ( SCR_SelectionMenuEntryComponent entryComponent )

Implements SCR_SelectionMenuEntry.

◆ SetLayout()

void SCR_MapMarkerMenuCategory.SetLayout ( )

Set custom layout based on marker type.

◆ SetMarkerType()

void SCR_MapMarkerMenuCategory.SetMarkerType ( SCR_EMapMarkerType type )

◆ SetSymbolProps()

void SCR_MapMarkerMenuCategory.SetSymbolProps	(	EMilitarySymbolIdentity	faction,
		Color	color
	)

Set military symbol properties.

Member Data Documentation

◆ m_Color

ref Color SCR_MapMarkerMenuCategory.m_Color = GUIColors.DEFAULT

protected

◆ m_eMarkerType

SCR_EMapMarkerType SCR_MapMarkerMenuCategory.m_eMarkerType

protected

◆ m_MilSymbol

ref SCR_MilitarySymbol SCR_MapMarkerMenuCategory.m_MilSymbol = new SCR_MilitarySymbol()

protected

◆ m_SymbolComp

SCR_MilitarySymbolUIComponent SCR_MapMarkerMenuCategory.m_SymbolComp

protected

◆ WIDGET_SYMBOL

const string SCR_MapMarkerMenuCategory.WIDGET_SYMBOL = "SymbolOverlay"

static

The documentation for this interface was generated from the following file:

Game/Map/Markers/SCR_MapMarkerMenuCategory.c
