SCR_SpawnRequestComponent <-> SCR_SpawnHandlerComponent. More...

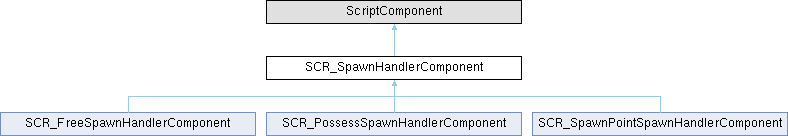

Inheritance diagram for SCR_SpawnHandlerComponent:

Public Member Functions
SCR_ESpawnResult	CanHandleRequest_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data)
	Can a player be spawned with provided data?

SCR_ESpawnResult	HandleRequest_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data, out IEntity spawnedEntity)
	Handle request - validate resources, try to spawn, prepare and pass ownership to player.

void	OnFinalizeBegin_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data, IEntity entity)
	Called when the finalisation process begins.

bool	CanFinalize_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data, IEntity entity)
	Called periodically to ask whether finalization can be finished.

SCR_ESpawnResult	FinalizeRequest_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data, IEntity entity)
	Finalise request - validate resources, try to spawn, prepare and pass ownership to player.

void	OnFinalizeDone_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data, IEntity entity)
	Request finalized (player spawned).

bool	CanRequestSpawn_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data, out SCR_ESpawnResult result)
	Can a player spawn, based on the provided data?

Protected Member Functions
SCR_RespawnSystemComponent	GetRespawnSystemComponent ()

override void	OnPostInit (IEntity owner)
	Initialises the handler by finding necessary dependencies.

bool	ValidateData_S (SCR_SpawnRequestComponent requestComponent, SCR_SpawnData data)
	Verifies provided data.

SCR_ESpawnResult	SpawnEntity_S (SCR_SpawnRequestComponent requestComponent, notnull SCR_SpawnData data, out IEntity spawnedEntity)

bool	ValidatePrefab_S (ResourceName resourceName)
	Verifies provided prefab.

bool	PrepareEntity_S (SCR_SpawnRequestComponent requestComponent, IEntity entity, SCR_SpawnData data)
	Prepare an entity on the server side prior to passing ownership.

bool	AssignEntity_S (SCR_SpawnRequestComponent requestComponent, IEntity entity, SCR_SpawnData data)
	Assign the entity ownership and set is as the controlled entity of provided player.

void	HandleSpawnEntityFailure_S (SCR_SpawnRequestComponent requestComponent, IEntity entity, SCR_SpawnData data, SCR_ESpawnResult reason)
	In cases where an entity is spawned, it might be desirable to dispose of it if it e.g.

bool	ShouldDeleteEntityOnSpawnFailure_S (SCR_SpawnRequestComponent requestComponent, IEntity entity, SCR_SpawnData data, SCR_ESpawnResult reason)
	Check whether spawned entity should be deleted if the spawn process failed.

void	HandleEntityChange_S (SCR_SpawnRequestComponent requestComponent, IEntity previousEntity, IEntity newEntity, SCR_SpawnData data)
	Called after new entity is assigned to the player.

Protected Attributes
bool	m_bDestroyPreviousControlledEntity

bool	m_bDeletePreviousControlledEntity

Detailed Description

SCR_SpawnRequestComponent <-> SCR_SpawnHandlerComponent.

SCR_SpawnRequestComponent allows communication between client and the authority, SCR_SpawnHandlerComponent handles the requests on authority as desired.

The handler is the authority component of the respawn process which handles client (or authority-issued) request to respawn from a specific player controller and ensures that the spawning process is handled and streamlined. The process is further streamlined via the usage of a unified parent manager, the SCR_RespawnSystemComponent.

Member Function Documentation

◆ AssignEntity_S()

bool SCR_SpawnHandlerComponent.AssignEntity_S	(	SCR_SpawnRequestComponent	requestComponent,
		IEntity	entity,
		SCR_SpawnData	data
	)

protected

Assign the entity ownership and set is as the controlled entity of provided player.

Parameters

[in]	requestComponent
[in]	entity
[in]	data

Returns

◆ CanFinalize_S()

bool SCR_SpawnHandlerComponent.CanFinalize_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data,
		IEntity	entity
	)

Called periodically to ask whether finalization can be finished.

Parameters

[in]	requestComponent
[in]	data
[in]	entity

Returns: True to finalize request, resulting in FinalizeRequest_S call, false to await further.

Implemented in SCR_SpawnPointSpawnHandlerComponent.

◆ CanHandleRequest_S()

SCR_ESpawnResult SCR_SpawnHandlerComponent.CanHandleRequest_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data
	)

Can a player be spawned with provided data?

Parameters

[in]	requestComponent	Instigator of this request
[in]	data	Request/ask data

Implemented in SCR_PossessSpawnHandlerComponent.

◆ CanRequestSpawn_S()

bool SCR_SpawnHandlerComponent.CanRequestSpawn_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data,
		out SCR_ESpawnResult	result
	)

Can a player spawn, based on the provided data?

Handle game logic, ask game mode, respawn timers -> anything relevant for proper evaluation.

Parameters

[in]	requestComponent
[in]	data
[out]	result

Returns: true if spawn is possible, false otherwise.

Implemented in SCR_PossessSpawnHandlerComponent, and SCR_SpawnPointSpawnHandlerComponent.

◆ FinalizeRequest_S()

SCR_ESpawnResult SCR_SpawnHandlerComponent.FinalizeRequest_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data,
		IEntity	entity
	)

Finalise request - validate resources, try to spawn, prepare and pass ownership to player.

Parameters

[in]	requestComponent
[in]	data
[in]	entity

Returns

◆ GetRespawnSystemComponent()

SCR_RespawnSystemComponent SCR_SpawnHandlerComponent.GetRespawnSystemComponent ( )

protected

Returns: parent handler manager component.

◆ HandleEntityChange_S()

void SCR_SpawnHandlerComponent.HandleEntityChange_S	(	SCR_SpawnRequestComponent	requestComponent,
		IEntity	previousEntity,
		IEntity	newEntity,
		SCR_SpawnData	data
	)

protected

Called after new entity is assigned to the player.

Parameters

[in]	requestComponent
[in]	previousEntity	Last controlled entity or null if none.
[in]	newEntity	New controlled entity.
[in]	data

◆ HandleRequest_S()

SCR_ESpawnResult SCR_SpawnHandlerComponent.HandleRequest_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data,
		out IEntity	spawnedEntity
	)

Handle request - validate resources, try to spawn, prepare and pass ownership to player.

Parameters

[in]	requestComponent
[in]	data
[out]	spawnedEntity

Returns

Implemented in SCR_SpawnPointSpawnHandlerComponent.

◆ HandleSpawnEntityFailure_S()

void SCR_SpawnHandlerComponent.HandleSpawnEntityFailure_S	(	SCR_SpawnRequestComponent	requestComponent,
		IEntity	entity,
		SCR_SpawnData	data,
		SCR_ESpawnResult	reason
	)

protected

In cases where an entity is spawned, it might be desirable to dispose of it if it e.g.

cannot be prepared, or assigned to the target player. Such cases can be handled by overriding this method. By default, the entity is deleted.

Parameters

[in]	requestComponent
[in]	entity	The entity that should be spawned, but could not be given over (prepared, assigned, ..)
[in]	data
[in]	reason

◆ OnFinalizeBegin_S()

void SCR_SpawnHandlerComponent.OnFinalizeBegin_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data,
		IEntity	entity
	)

Called when the finalisation process begins.

◆ OnFinalizeDone_S()

void SCR_SpawnHandlerComponent.OnFinalizeDone_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data,
		IEntity	entity
	)

Request finalized (player spawned).

Parameters

[in]	requestComponent
[in]	data
[in]	entity

Implemented in SCR_PossessSpawnHandlerComponent, and SCR_SpawnPointSpawnHandlerComponent.

◆ OnPostInit()

override void SCR_SpawnHandlerComponent.OnPostInit ( IEntity owner )

protected

Initialises the handler by finding necessary dependencies.

Parameters

[in] owner

Implemented in SCR_SpawnPointSpawnHandlerComponent.

◆ PrepareEntity_S()

bool SCR_SpawnHandlerComponent.PrepareEntity_S	(	SCR_SpawnRequestComponent	requestComponent,
		IEntity	entity,
		SCR_SpawnData	data
	)

protected

Prepare an entity on the server side prior to passing ownership.

For example in this case character can have items added, can be seated in vehicle, etc.

Parameters

[in]	requestComponent
[in]	entity
[in]	data

Returns

Implemented in SCR_SpawnPointSpawnHandlerComponent.

◆ ShouldDeleteEntityOnSpawnFailure_S()

bool SCR_SpawnHandlerComponent.ShouldDeleteEntityOnSpawnFailure_S	(	SCR_SpawnRequestComponent	requestComponent,
		IEntity	entity,
		SCR_SpawnData	data,
		SCR_ESpawnResult	reason
	)

protected

Check whether spawned entity should be deleted if the spawn process failed.

Parameters

[in]	requestComponent
[in]	entity
[in]	data
[in]	reason

Returns

Implemented in SCR_PossessSpawnHandlerComponent.

◆ SpawnEntity_S()

SCR_ESpawnResult SCR_SpawnHandlerComponent.SpawnEntity_S	(	SCR_SpawnRequestComponent	requestComponent,
		notnull SCR_SpawnData	data,
		out IEntity	spawnedEntity
	)

protected

Validate prefab on server
Validate input data on server
Spawn entity on server
Prepare entity on server (e.g. seat in vehicle) On success next step is to Finalise.
Parameters

[in] requestComponent

[in] data

[out] spawnedEntity

Returns

Implemented in SCR_PossessSpawnHandlerComponent, and SCR_SpawnPointSpawnHandlerComponent.

◆ ValidateData_S()

bool SCR_SpawnHandlerComponent.ValidateData_S	(	SCR_SpawnRequestComponent	requestComponent,
		SCR_SpawnData	data
	)

protected

Verifies provided data.

Parameters

[in]	requestComponent
[in]	data

Returns

Implemented in SCR_PossessSpawnHandlerComponent, and SCR_SpawnPointSpawnHandlerComponent.

◆ ValidatePrefab_S()

bool SCR_SpawnHandlerComponent.ValidatePrefab_S ( ResourceName resourceName )

protected

Verifies provided prefab.

Parameters

[in] resourceName

Returns: true if provided prefab is a valid and has a controller component.

Member Data Documentation

◆ m_bDeletePreviousControlledEntity

bool SCR_SpawnHandlerComponent.m_bDeletePreviousControlledEntity

protected

◆ m_bDestroyPreviousControlledEntity

bool SCR_SpawnHandlerComponent.m_bDestroyPreviousControlledEntity

protected

The documentation for this interface was generated from the following file:

Game/Respawn/RequestHandling/Base/SCR_SpawnHandlerComponent.c
