Widget Interface Reference

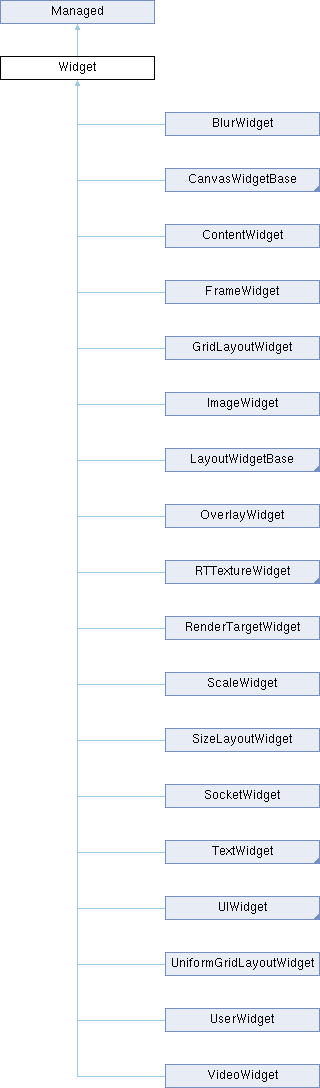

Inheritance diagram for Widget:

Public Member Functions
proto external void	Update ()
proto external Widget	GetParent ()
	Returns parent in hierarchy, or nullptr.
proto external Widget	GetChildren ()
	Returns children in hierarchy, or nullptr.
proto external Widget	GetSibling ()
	Returns next sibling in hierarchy, or nullptr.
proto external void	SetName (string name)
proto external string	GetName ()
proto external void	SetUserID (int id)
	Sets user ID.
proto external int	GetUserID ()
	Gets user ID.
proto external bool	IsFocusable ()
proto external void	AddChild (notnull Widget child)
	Adds given widget as a child. Possible only if this widget accepts more children.
proto external void	AddHandler (ScriptedWidgetEventHandler eventHandler)
	Add (hook) handler to widget. Adds reference to the handler.
proto external void	RemoveHandler (ScriptedWidgetEventHandler eventHandler)
	Unhook handler from widget. Release reference to the handler.
proto external int	GetNumHandlers ()
	Return number of all handlers attached to widget (C++ & scripted)
proto external ScriptedWidgetEventHandler	GetHandler (int index)
	return widget event handler on given index, when the event handler is not inherited from ScriptedWidgetEventHandler, null is returned
proto external ScriptedWidgetEventHandler	FindHandler (TypeName type)
	return first widget event handler of given type, when none of event handlers has the type null is returned
proto external void	RemoveChild (notnull Widget child)
proto external void	SetVisible (bool show)
	Sets visibility of this widget (VISIBLE flag)
proto external void	SetEnabled (bool enable)
	Sets enabled state of this widget (DISABLED flag)
proto external bool	IsVisible ()
	Returns whether is this widget visible (VISIBLE flag is set)
proto external bool	IsVisibleInHierarchy ()
	Returns whether are this widget and all its ancesstors visible (VISIBLE flag is set)
proto external bool	IsEnabled ()
	Returns whether is this widget enabled (DISABLED flag is not set)
proto external bool	IsEnabledInHierarchy ()
	Returns whether are this widget and all its ancesstors enabled (DISABLED flag is not set)
proto external bool	IsClippingChildren ()
	Returns wheter this widget clips its children.
proto external bool	GetIsColorInherited ()
proto external void	SetIsColorInherited (bool isColorInherited)
	Sets whether this widget inherits color from its parent.
proto external void	SetColor (notnull Color color)
	Sets color of this widget.
proto external void	SetColorInt (int color)
	Set ARGB color.
proto external int	GetColorInt ()
proto external void	SetOpacity (float alpha)
	Sets opacity which applies to this widget and all its descendants.
proto external float	GetOpacity ()
proto external void	SetZOrder (int zOrder)
	Changes z-order value.
proto external int	GetZOrder ()
	Higher values mean more in front.
proto external void	RemoveFromHierarchy ()
	Removes this widget from its parent and from the WidgetManager.
proto external Widget	FindWidget (string pathname)
	Find Widget by path. e.g FindWidget("widget1.widget2.widget3.mywidget")
proto external Widget	FindAnyWidget (string pathname)
	Looks for a widget with given name in this widget's children.
proto external Widget	FindAnyWidgetById (int user_id)
	Find Widget by userID.
proto external string	GetStyleName ()
proto external WorkspaceWidget	GetWorkspace ()
proto ref Color	GetColor ()
	Returns color of this widget.
proto string	GetNavigation (WidgetNavigationDirection direction, out WidgetNavigationRuleType rule)
	Gets navigation rule for given direction.
proto external void	SetNavigation (WidgetNavigationDirection direction, WidgetNavigationRuleType rule, string explicitTarget=string.Empty)
	Sets navigation rule for given direction.
proto external string	GetTypeName ()
proto external int	GetFlags ()
proto external int	SetFlags (int flags)
	Changes flags of widget.
proto external int	ClearFlags (int flags)
	Clears flags of widget.
proto external WidgetType	GetTypeID ()
proto void	GetScreenPos (out float x, out float y)
	Returns position of this widget's top left corner in physical resolution.
proto void	GetScreenSize (out float width, out float height)
	Returns size of this widget in physical resolution.
proto external bool	EmitCustomEvent (int iData, Managed pData)
	Emits custom widget event (called over hierarchy like other widget events).
Public Member Functions inherited from Managed
proto external ref Managed	Clone ()
	Return shallow copy of object, or null if it is not allowed (not public constructor)

Member Function Documentation

AddChild()

proto external void Widget.AddChild

(

notnull Widget

child

)

Adds given widget as a child. Possible only if this widget accepts more children.

AddHandler()

proto external void Widget.AddHandler

(

ScriptedWidgetEventHandler

eventHandler

)

Add (hook) handler to widget. Adds reference to the handler.

ClearFlags()

proto external int Widget.ClearFlags

(

int

flags

)

Clears flags of widget.

Clears the specified flags for the widget, leaving other flags unchanged.

See also

WidgetFlags

Parameters

flags

Flags to be cleared

Returns

Old flags.

void Example(Widget w)
{
    w.ClearFlags(WidgetFlags.VISIBLE); // hide widget
}

EmitCustomEvent()

proto external bool Widget.EmitCustomEvent	(	int	iData,
		Managed	pData )

Emits custom widget event (called over hierarchy like other widget events).

See also

ScriptedWidgetEventHandler

Parameters

iData	User parameter passed to event listener.
pData	User parameter passed to event listener.

Returns

Returns true when event is processed by any listener.

FindAnyWidget()

proto external Widget Widget.FindAnyWidget

(

string

pathname

)

Looks for a widget with given name in this widget's children.

FindAnyWidgetById()

proto external Widget Widget.FindAnyWidgetById

(

int

user_id

)

Find Widget by userID.

FindHandler()

proto external ScriptedWidgetEventHandler Widget.FindHandler

(

TypeName

type

)

return first widget event handler of given type, when none of event handlers has the type null is returned

FindWidget()

proto external Widget Widget.FindWidget

(

string

pathname

)

Find Widget by path. e.g FindWidget("widget1.widget2.widget3.mywidget")

GetChildren()

proto external Widget Widget.GetChildren

(

)

Returns children in hierarchy, or nullptr.

GetColor()

proto ref Color Widget.GetColor

(

)

Returns color of this widget.

GetColorInt()

proto external int Widget.GetColorInt

(

)

Returns

ARGB color

GetFlags()

proto external int Widget.GetFlags

(

)

Returns

WidgetFlags which are set for this widget

GetHandler()

proto external ScriptedWidgetEventHandler Widget.GetHandler

(

int

index

)

return widget event handler on given index, when the event handler is not inherited from ScriptedWidgetEventHandler, null is returned

GetIsColorInherited()

proto external bool Widget.GetIsColorInherited

(

)

Returns

Whether this widget inherits color from its parent (INHERIT_COLOR flag)

GetName()

proto external string Widget.GetName

(

)

GetNavigation()

proto string Widget.GetNavigation	(	WidgetNavigationDirection	direction,
		out WidgetNavigationRuleType	rule )

Gets navigation rule for given direction.

Parameters

rule	Out value of rule in given direction

Returns

Explicit target if rule is EXPLICIT. Otherwise undefined.

GetNumHandlers()

proto external int Widget.GetNumHandlers

(

)

Return number of all handlers attached to widget (C++ & scripted)

GetOpacity()

proto external float Widget.GetOpacity

(

)

Returns

Opacity which applies to this widget and all its descendants

GetParent()

proto external Widget Widget.GetParent

(

)

Returns parent in hierarchy, or nullptr.

GetScreenPos()

proto void Widget.GetScreenPos	(	out float	x,
		out float	y )

Returns position of this widget's top left corner in physical resolution.

GetScreenSize()

proto void Widget.GetScreenSize	(	out float	width,
		out float	height )

Returns size of this widget in physical resolution.

GetSibling()

proto external Widget Widget.GetSibling

(

)

Returns next sibling in hierarchy, or nullptr.

GetStyleName()

proto external string Widget.GetStyleName

(

)

GetTypeID()

proto external WidgetType Widget.GetTypeID

(

)

GetTypeName()

proto external string Widget.GetTypeName

(

)

GetUserID()

proto external int Widget.GetUserID

(

)

Gets user ID.

Returns

User ID

GetWorkspace()

proto external WorkspaceWidget Widget.GetWorkspace

(

)

Returns

Workspace which this widget belongs to. nullptr if there is no workspace in ancestors

GetZOrder()

proto external int Widget.GetZOrder

(

)

Higher values mean more in front.

Returns

Current ZOrder value.

IsClippingChildren()

proto external bool Widget.IsClippingChildren

(

)

Returns wheter this widget clips its children.

IsEnabled()

proto external bool Widget.IsEnabled

(

)

Returns whether is this widget enabled (DISABLED flag is not set)

IsEnabledInHierarchy()

proto external bool Widget.IsEnabledInHierarchy

(

)

Returns whether are this widget and all its ancesstors enabled (DISABLED flag is not set)

IsFocusable()

proto external bool Widget.IsFocusable

(

)

IsVisible()

proto external bool Widget.IsVisible

(

)

Returns whether is this widget visible (VISIBLE flag is set)

IsVisibleInHierarchy()

proto external bool Widget.IsVisibleInHierarchy

(

)

Returns whether are this widget and all its ancesstors visible (VISIBLE flag is set)

RemoveChild()

proto external void Widget.RemoveChild

(

notnull Widget

child

)

RemoveFromHierarchy()

proto external void Widget.RemoveFromHierarchy

(

)

Removes this widget from its parent and from the WidgetManager.

When there are no more strong references to this widget, it will be destroyed.

RemoveHandler()

proto external void Widget.RemoveHandler

(

ScriptedWidgetEventHandler

eventHandler

)

Unhook handler from widget. Release reference to the handler.

SetColor()

proto external void Widget.SetColor

(

notnull Color

color

)

Sets color of this widget.

SetColorInt()

proto external void Widget.SetColorInt

(

int

color

)

Set ARGB color.

SetEnabled()

proto external void Widget.SetEnabled

(

bool

enable

)

Sets enabled state of this widget (DISABLED flag)

SetFlags()

proto external int Widget.SetFlags

(

int

flags

)

Changes flags of widget.

Sets the specified flags for the widget, leaving other flags unchanged.

See also

WidgetFlags

Parameters

flags

Flags to set.

Returns

Old flags.

void Example(Widget w)
{
    w.SetFlags(WidgetFlags.VISIBLE); // set widget visible
}

SetIsColorInherited()

proto external void Widget.SetIsColorInherited

(

bool

isColorInherited

)

Sets whether this widget inherits color from its parent.

SetName()

proto external void Widget.SetName

(

string

name

)

SetNavigation()

proto external void Widget.SetNavigation	(	WidgetNavigationDirection	direction,
		WidgetNavigationRuleType	rule,
		string	explicitTarget = string.Empty )

Sets navigation rule for given direction.

Parameters

explicitTarget

Used only when rule is set to EXPLICIT

SetOpacity()

proto external void Widget.SetOpacity

(

float

alpha

)

Sets opacity which applies to this widget and all its descendants.

SetUserID()

proto external void Widget.SetUserID

(

int

id

)

Sets user ID.

Parameters

id

User ID

SetVisible()

proto external void Widget.SetVisible

(

bool

show

)

Sets visibility of this widget (VISIBLE flag)

SetZOrder()

proto external void Widget.SetZOrder

(

int

zOrder

)

Changes z-order value.

Widget will be moved into appropriate order. Higher values put the widget more to the in front.

Parameters

zOrder

ZOrder value

Update()

proto external void Widget.Update

(

)

---

The documentation for this interface was generated from the following file:

• Core/generated/UI/Widget.c
