ScriptedCommand Interface Reference

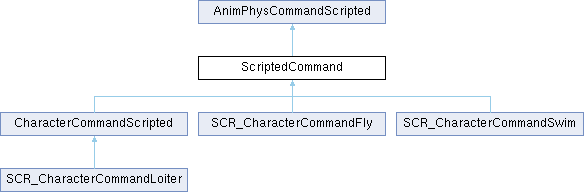

Inheritance diagram for ScriptedCommand:

Protected Member Functions
void	ScriptedCommand (BaseAnimPhysComponent pAnimPhysComponent)
Protected Member Functions inherited from AnimPhysCommandScripted
void	AnimPhysCommandScripted ()
	constructor is protected - we don't wnat instances of this "abstract" class

Additional Inherited Members
Public Member Functions inherited from AnimPhysCommandScripted
void	OnActivate ()
	virtual to be overridden called when command starts
void	OnDeactivate ()
	called when command ends
proto native bool	IsFlagAutoDelete ()
	autodelete flag (when set, agent will delete the command after returning PreAnimUpdate or PostPhysicsUpdate automaticaly) usable for additive commands
proto native void	SetFlagAutoDelete (bool pV)
proto native void	SetFlagFinished (bool pFinished)
	this terminates human command script and shows CommandHandler( ... pCurrentCommandFinished == true );
proto native bool	IsFlagFinished ()
void	PreAnimUpdate (float pDt)
	override this ! called before any animation is processed here change animation values, add animation commands
proto native void	PreAnim_CallCommand (int pCommand, int pParamInt, float pParamFloat)
proto native void	PreAnim_CallCommand4I (int pCommand, int pParamInt1, int pParamInt2, int pParamInt3, int pParamInt4, float pParamFloat)
proto native void	PreAnim_SetFloat (int pVar, float pFlt)
proto native void	PreAnim_SetInt (int pVar, int pInt)
proto native void	PreAnim_SetBool (int pVar, bool pBool)
void	PrePhysUpdate (float pDt)
	override this ! after animation is processed, before physics is processed
proto native bool	PrePhys_IsEvent (int pEvent)
	script function usable in PrePhysUpdate
proto native bool	PrePhys_IsTag (int pTag)
proto bool	PrePhys_GetPredictionEval (int pPrediction, out int pGlobalBoneIndex, out bool pIsTranslation, out bool pIsRotation, out vector pOutTransl, out float pOutRot[4], out float pTimeToPrediction, out float pNormTimeInAnims)
proto native bool	PrePhys_GetTranslation (out vector pOutTransl)
proto native bool	PrePhys_GetRotation (out float pOutRot[4])
proto native void	PrePhys_SetTranslation (vector pInTransl)
proto native void	PrePhys_SetRotation (float pInRot[4])
bool	PostPhysUpdate (float pDt)
	override this ! final adjustment of physics state (after physics was applied) returns true if command continues running / false if command should end (or you can use SetFlagFinished(true))
proto native void	PostPhys_GetPosition (out vector pOutTransl)
	script function usable in PostPhysUpdate
proto native void	PostPhys_GetRotation (out float pOutRot[4])
proto native void	PostPhys_SetPosition (vector pInTransl)
proto native void	PostPhys_SetRotation (float pInRot[4])
proto native void	PostPhys_LockRotation ()

Constructor & Destructor Documentation

ScriptedCommand()

void ScriptedCommand.ScriptedCommand ( BaseAnimPhysComponent  pAnimPhysComponent )

protected

---

The documentation for this interface was generated from the following file:

• Game/generated/Base/ScriptedCommand.c
