BaseSystem Interface Reference

To create a system, you just need to create a class which inherits from BaseSystem, and then specify GetSystemPoint to your need. More...

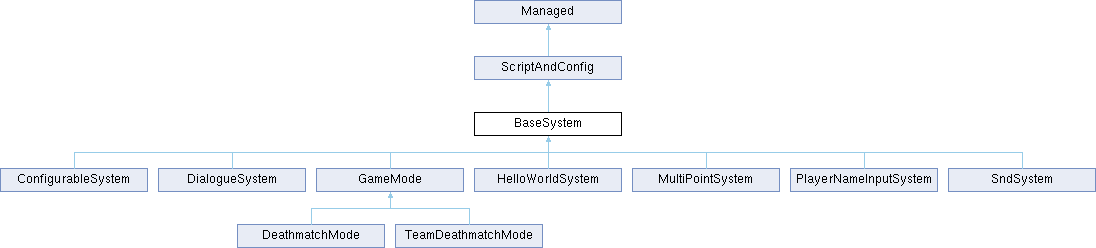

Inheritance diagram for BaseSystem:

Public Member Functions
proto external World	GetWorld ()
	Get the world associated to this system.
proto external void	Enable (bool enable)
proto external bool	IsEnabled ()
proto void	Rpc (func method, void p0=NULL, void p1=NULL, void p2=NULL, void p3=NULL, void p4=NULL, void p5=NULL, void p6=NULL, void p7=NULL)
	Attempts to run a remote procedure call (RPC) of this instance with parameters specified in method RplRpc attribute.
Public Member Functions inherited from Managed
proto external ref Managed	Clone ()
	Return shallow copy of object, or null if it is not allowed (not public constructor)

Static Public Member Functions
static void	InitInfo (WorldSystemInfo outInfo)

Protected Member Functions
proto external void	BeginUpdate ()
	The 4 functions below are designed so scripters can handle a batch update of multiple entities in a performant way.
proto external void	Update ()
proto external void	EndUpdate ()
proto external void	AddEntity (notnull IEntity entity)
bool	DependsOn (ESystemPoint point, BaseSystem system)
	Should return true for systems this system depends on. False otherwise.
void	OnInit ()
	Called when system are to be intialized.
void	OnCleanup ()
	Called when system are to be cleaned up.
void	OnStarted ()
	Called every time system is started (before the first run and after Enable(true) is called.
void	OnStopped ()
	Called every time system is stopped (after Enable(false) is called and before the system is being destroyed.
void	OnUpdate (ESystemPoint point)
	Called every time system is allowed to tick.
void	OnDiag (float timeSlice)

Detailed Description

To create a system, you just need to create a class which inherits from BaseSystem, and then specify GetSystemPoint to your need.

Member Function Documentation

AddEntity()

proto external void BaseSystem.AddEntity ( notnull IEntity  entity )

protected

BeginUpdate()

proto external void BaseSystem.BeginUpdate ( )

protected

The 4 functions below are designed so scripters can handle a batch update of multiple entities in a performant way.

Example: override void OnUpdate() { BeginUpdate(); foreach (IEntity ent: myents) { ent.SetWorldTransform(myNewTransform); AddEntity(ent); } Update(); //< This is the call where entities are updated in batch EndUpdate(); }

DependsOn()

bool BaseSystem.DependsOn ( ESystemPoint  point, BaseSystem  system  )

protected

Should return true for systems this system depends on. False otherwise.

Enable()

proto external void BaseSystem.Enable

(

bool

enable

)

EndUpdate()

proto external void BaseSystem.EndUpdate ( )

protected

GetWorld()

proto external World BaseSystem.GetWorld

(

)

Get the world associated to this system.

InitInfo()

static void BaseSystem.InitInfo ( WorldSystemInfo  outInfo )

static

IsEnabled()

proto external bool BaseSystem.IsEnabled

(

)

OnCleanup()

void BaseSystem.OnCleanup ( )

protected

Called when system are to be cleaned up.

This always happens at any point when simulation decides to bring the system back to the initial state without actually destroying it.

OnDiag()

void BaseSystem.OnDiag ( float  timeSlice )

protected

OnInit()

void BaseSystem.OnInit ( )

protected

Called when system are to be intialized.

This always happens at any point when simulation decides to reinitialize the system without actually destroying it.

OnStarted()

void BaseSystem.OnStarted ( )

protected

Called every time system is started (before the first run and after Enable(true) is called.

OnStopped()

void BaseSystem.OnStopped ( )

protected

Called every time system is stopped (after Enable(false) is called and before the system is being destroyed.

OnUpdate()

void BaseSystem.OnUpdate ( ESystemPoint  point )

protected

Called every time system is allowed to tick.

Rpc()

proto void BaseSystem.Rpc	(	func	method,
		void	p0 = NULL,
		void	p1 = NULL,
		void	p2 = NULL,
		void	p3 = NULL,
		void	p4 = NULL,
		void	p5 = NULL,
		void	p6 = NULL,
		void	p7 = NULL
	)

Attempts to run a remote procedure call (RPC) of this instance with parameters specified in method RplRpc attribute.

Parameters

method

Member function to be invoked as an RPC.

Update()

proto external void BaseSystem.Update ( )

protected

---

The documentation for this interface was generated from the following file:

• GameLib/generated/System/BaseSystem.c
