DotDamageEffect Interface Reference

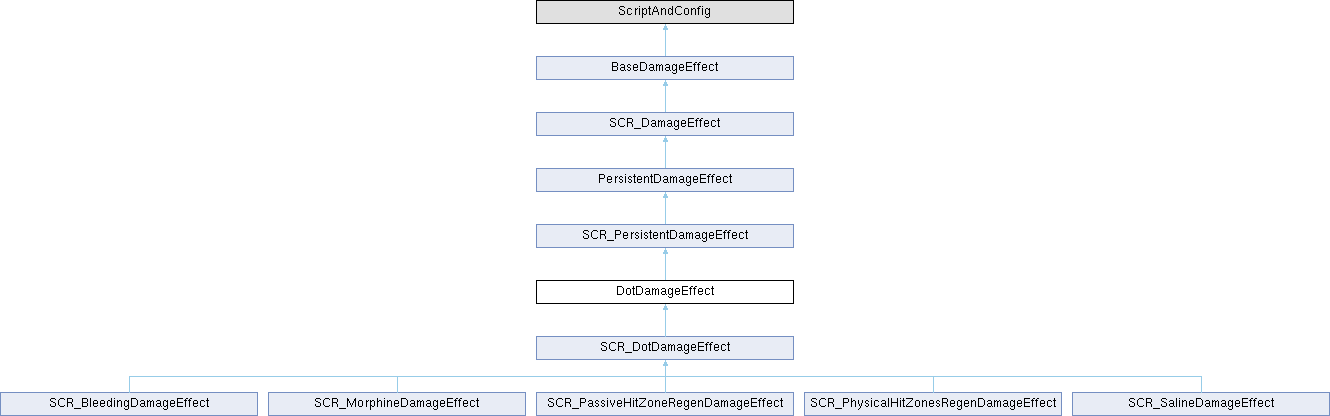

Inheritance diagram for DotDamageEffect:

Public Member Functions
proto external void	DealDot (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
	Applies DOT equivalent to timeSlice seconds.
proto external void	DealCustomDot (notnull HitZone hitzone, float dotAmount, notnull DotDamageEffectTimerToken token, SCR_ExtendedDamageManagerComponent dmgManager)
proto external void	SetDPS (float dps)
	set amount of damage per second.
proto external void	SetMaxDuration (float newMaxduration)
	Set max duration for this DOT effect.
proto external void	ExtendMaxDuration (float amount)
	Increases the max duration of this damage effect.
proto external DotDamageEffectTimerToken	UpdateTimer (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
	Updates current duration of this damage effect by timeSlice and returns a token to be used for DealCustomDot.
proto external float	GetAccurateTimeSlice (float timeSlice)
	timeSlice can exceed the remaining time for DOT, this will return the accurate amount of DOT time left that can be applied.
proto external float	GetDPS ()
	Returns amount of Damage Per Second applied by this DamageEffect.
proto external float	GetCurrentDuration ()
	Returns amount of time this effect has been running.
proto external float	GetMaxDuration ()
Public Member Functions inherited from PersistentDamageEffect
proto external void	Terminate ()
	Terminates this DamageEffect.
proto external void	SetActive (bool value)
	When active, the damage effect will be updated on frame.
proto external bool	IsActive ()
	Checks if this effect is active or not.
void	EOnFrame (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
Public Member Functions inherited from SCR_DamageEffect
override bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.
override bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.
EDamageType	GetDefaultDamageType ()
Public Member Functions inherited from BaseDamageEffect
proto external void	ApplyEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called to apply a DamageEffect.
proto external float	GetTotalDamage ()
	Get total damage dealt until this point by this damage effect.
proto external EDamageType	GetDamageType ()
	Gettor for the DamageType of this DamageEffect.
proto external notnull Instigator	GetInstigator ()
	Gettor for the Instigator of this DamageEffect.
proto external HitZone	GetAffectedHitZone ()
	Gettor for which hitzone this DamageEffect was applied to.
proto external void	SetDamageType (EDamageType type)
	Settor for the DamageType of this DamageEffect.
proto external void	SetInstigator (notnull Instigator instigator)
	Settor for the instigator of the damage effect.
proto external void	SetAffectedHitZone (HitZone hitZone)
	Settor for the affected HitZone of the damage effect.
proto external bool	IsProxy ()
	Used to check if you are a proxy or not.
bool	HijackDamageEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called before the damage effect is added to the damage manager If it returns true, damage effect is hijacked/intercepted and therefore not added/applied to the damage manager Any modifications done to the damage effect will persist.
void	OnEffectAdded (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets added to a DamageManager.
void	OnEffectApplied (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets applied on a DamageManager.
void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.
void	OnEffectRemoved (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets removed from a DamageManager.
void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.
bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.
bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

Additional Inherited Members
Protected Member Functions inherited from SCR_PersistentDamageEffect
override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.
override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.
override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.
override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

Member Function Documentation

DealCustomDot()

proto external void DotDamageEffect.DealCustomDot	(	notnull HitZone	hitzone,
		float	dotAmount,
		notnull DotDamageEffectTimerToken	token,
		SCR_ExtendedDamageManagerComponent	dmgManager
	)

DealDot()

proto external void DotDamageEffect.DealDot	(	float	timeSlice,
		SCR_ExtendedDamageManagerComponent	dmgManager
	)

Applies DOT equivalent to timeSlice seconds.

Automatically increases the current duration and total damage of this damage effect That duration uses the accurate time slice (check GetAccurateTimeSlice for more info) Calling this will also terminate the damage effect if the maximum duration is reached

Parameters

float	timeSlice: amount of time that has passed.
SCR_ExtendedDamageManagerComponent	dmgManager: damage manager containing this DamageEffect

ExtendMaxDuration()

proto external void DotDamageEffect.ExtendMaxDuration

(

float

amount

)

Increases the max duration of this damage effect.

Only works on server.

Parameters

float

amount: how much the max duration should be increased by

GetAccurateTimeSlice()

proto external float DotDamageEffect.GetAccurateTimeSlice

(

float

timeSlice

)

timeSlice can exceed the remaining time for DOT, this will return the accurate amount of DOT time left that can be applied.

E.g.: Remaining time: 5s, timeSlice: 7s, this would return 5s

Parameters

float

timeSlice: current timeSlice

Returns

actual amount of time this DamageEffect will actually be applied for

GetCurrentDuration()

proto external float DotDamageEffect.GetCurrentDuration

(

)

Returns amount of time this effect has been running.

Current duration can only be increased through DealDot or UpdateTimer

GetDPS()

proto external float DotDamageEffect.GetDPS

(

)

Returns amount of Damage Per Second applied by this DamageEffect.

GetMaxDuration()

proto external float DotDamageEffect.GetMaxDuration

(

)

SetDPS()

proto external void DotDamageEffect.SetDPS

(

float

dps

)

set amount of damage per second.

Only works on server.

Parameters

float

dps: damage per second dealt by this DamageEffect.

SetMaxDuration()

proto external void DotDamageEffect.SetMaxDuration

(

float

newMaxduration

)

Set max duration for this DOT effect.

Value of 0 will make it infinite. Only works on server.

Parameters

float

newMaxduration: New max duration for this DamageEffect

UpdateTimer()

proto external DotDamageEffectTimerToken DotDamageEffect.UpdateTimer	(	float	timeSlice,
		SCR_ExtendedDamageManagerComponent	dmgManager
	)

Updates current duration of this damage effect by timeSlice and returns a token to be used for DealCustomDot.

It will also mark the effect for termination if the current duration > max duration.

Parameters

float	timeSlice: current duration will be increased by this amount of time.
SCR_ExtendedDamageManagerComponent	dmgManager: Damage manager containing this damage effect

Returns

DotDamageEffectTimerToken: Empty class that can be used as an input for DealCustomDot

---

The documentation for this interface was generated from the following file:

• Game/generated/DamageEffects/DotDamageEffect.c
