SCR_ExtendedDamageManagerComponent Interface Reference

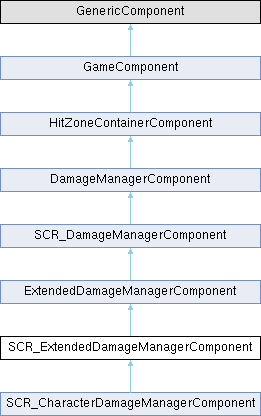

Inheritance diagram for SCR_ExtendedDamageManagerComponent:

Public Member Functions
ScriptInvoker	GetOnDamageEffectAdded ()
ScriptInvoker	GetOnDamageEffectRemoved ()
override void	OnDamageEffectAdded (notnull SCR_DamageEffect dmgEffect)
	Called when a damage effect has been added.
override void	OnDamageEffectRemoved (notnull SCR_DamageEffect dmgEffect)
	Called when a damage effect has been removed.
array< ref PersistentDamageEffect >	FilterEffectsByHitZone (array< ref PersistentDamageEffect > damageEffects, notnull HitZone hitZone)
array< ref SCR_PersistentDamageEffect >	GetAllPersistentEffectsOfType (TypeName effectTypeName, bool includeInheritedTypes=false)
array< ref SCR_PersistentDamageEffect >	FilterEffectsByType (array< ref SCR_PersistentDamageEffect > damageEffects, TypeName effectTypename)
Public Member Functions inherited from ExtendedDamageManagerComponent
proto external void	AddDamageEffect (notnull BaseDamageEffect damageEffect)
	Adds A CLONE of a DamageEffect to this DamageManager.
proto external bool	TerminateDamageEffect (notnull PersistentDamageEffect dmgEffect)
	If this persistent effect is contained on the damage manger, it will be removed.
proto external void	TerminateDamageEffectsOfType (TypeName typeName)
	Terminates all damage effects of the given type Note: Function checks PersistentDamageEffects.
proto external DamageEffectEvaluator	GetEvaluator ()
	Returns the DamageEffectEvaluator this ExtendedDamageManager is using.
proto external void	SetEvaluator (notnull DamageEffectEvaluator evaluator)
	Switches the DamageEffectEvaluator this ExtendedDamageManager is using.
proto external void	GetPersistentEffects (out notnull array< ref SCR_PersistentDamageEffect > persistentEffects)
	Clears passed array (persistentEffects) and fills it with all current PersistentEffects contained in the damage manager.
proto external bool	IsDamageEffectPresent (TypeName typeName)
	Returns true if a persistent effect of the type is currently present.
proto external SCR_PersistentDamageEffect	FindDamageEffectOfType (TypeName typeName)
	Finds a DamageEffect of the requested type contained on this ExtendedDamageManager Note: Function checks PersistentDamageEffects.
proto external int	FindAllDamageEffectsOfType (TypeName typeName, out notnull array< ref SCR_PersistentDamageEffect > damageEffects)
	Fills damageEffects array with all the DamageEffects of the given type present on this manager.
proto external void	FindDamageEffectsOnHitZone (HitZone hitzone, out notnull array< ref SCR_PersistentDamageEffect > damageEffects)
	Fills passed array with all current persistent DamageEffects affecting the chosen hitzone.
proto external SCR_PersistentDamageEffect	FindDamageEffectOnHitZone (TypeName typeName, HitZone hitzone)
	Finds a DamageEffect of the requested type contained on this ExtendedDamageManager, that is being applied to the HitZone.
proto external int	FindAllDamageEffectsOfTypeOnHitZone (TypeName typeName, HitZone hitzone, out notnull array< ref SCR_PersistentDamageEffect > damageEffects)
	Finds all the DamageEffects of the requested type contained on this ExtendedDamageManager, that is being applied to the requested HitZone Note: Function checks PersistentDamageEffects.
proto external bool	IsDamageEffectPresentOnHitZones (TypeName typeName, notnull array< HitZone > hitZones)
	Returns true if a persistent effect of the type is currently present in any of the hitzones passed Note: Function checks PersistentDamageEffects.
proto external void	GetDamageHistory (out notnull array< ref BaseDamageEffect > damageHistory)
	Clears passed array (damageHistory) and fills it with all DamageEffects stored in this damage managers damage history.
proto external void	ClearDamageHistory ()
	Clears the DamageHistory, containing all the DamageEffects applied to this DamageManager.
Public Member Functions inherited from SCR_DamageManagerComponent
void	GetPhysicalHitZones (out notnull array< HitZone > physicalHitZones)
	Return hit zones with colliders assigned.
void	GetRegeneratingHitZones (out notnull array< SCR_RegeneratingHitZone > regeneratingHitZones)
	Return hit zones with passive regeneration enabled.
void	RpcDo_SetFireState (int hitZoneIndex, SCR_EBurningState fireState)
override bool	FilterContact (IEntity owner, IEntity other, Contact contact)
	No contacts for destroyed entities.
int	GetSurroundingHitzones (vector origin, Physics physics, float maxDistance, out array< HitZone > outHitzones)
float	GetMinDestroyDamage (EDamageType damageType, array< HitZone > hitzones)
ScriptInvoker	GetOnDamage ()
ScriptInvoker	GetOnDamageOverTimeAdded ()
ScriptInvoker	GetOnDamageOverTimeRemoved ()
ScriptInvoker	GetOnDamageStateChanged ()
void	~SCR_DamageManagerComponent ()
int	GetHitZonesOfGroup (EHitZoneGroup hitZoneGroup, out notnull array< HitZone > groupHitZones, bool clearArray=true)
	Get a list of all hitzones of specific hitzone group.
int	GetHitZonesOfGroups (notnull array< EHitZoneGroup > hitZoneGroups, out notnull array< HitZone > groupHitZones)
	Get a list of all hitzones of specific hitzone group.
float	GetGroupDamageOverTime (ECharacterHitZoneGroup hitZoneGroup, EDamageType damageType)
	Get total damage over time of given hitzone group.
void	Kill (notnull Instigator instigator)
	Neutralize the entity with a specific damage type, registering the killer entity.
void	DamageRandomHitZones (float damage, EDamageType type, notnull Instigator instigator, bool onlyPhysical=true, vector outMat[3]={}, bool damageDefault=false)
	Damage random physical hit zones up to damage amount.
bool	CanBeHealed (bool ignoreHealingDOT=true)
	Return true if there is damage that can be repaired.
void	FullHeal (bool ignoreHealingDOT=true)
	Fix all the damage.
float	HealHitZones (float healthToDistribute, bool sequential=false, float maxHealThresholdScaled=1, array< HitZone > alternativeHitZones=null)
	Partially heal the hitZones of an entity.
void	ReduceSmoke ()
	Reduce smoke output based on the total health of hit zones.
float	GetHitZonesDamage (float untilThresholdScaled=1, array< HitZone > alternativeHitZones=null)
	Get all damage dealt to hitzones.
float	GetHitZonesHealthScaled (array< HitZone > alternativeHitZones=null)
	Get Health scaled of all hitzones.
float	GetSingleHitZonesHealthScaled (array< HitZone > alternativeHitZones=null, bool getLowestHealth=true)
	Get single Health scaled from hitzones.
ResourceName	GetSecondaryExplosion (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES, bool fire=false, out bool hasData=false)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.
SCR_SecondaryExplosion	GetSecondaryExplosionForScale (SCR_ESecondaryExplosionScale scale, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion scale, type and resource type if defined.
SCR_ESecondaryExplosionScale	GetSecondaryExplosionScale (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.
ResourceName	GetSecondaryFireParticle (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.
bool	IsOnFire (HitZone hitZone=null)
	Determine if provided or any hit zone from this damage manager is on fire.
bool	IsOnFire (notnull array< HitZone > hitZones)
	Determine if any hit zone from this damage manager is on fire.
void	SecondaryExplosion (ResourceName prefabName, notnull Instigator instigator, notnull EntitySpawnParams spawnParams)
	Spawn secondary explosion.
SCR_ResourceEncapsulator	GetResourceEncapsulator (EResourceType suppliesType=EResourceType.SUPPLIES)
void	SupplySecondaryExplosion (notnull Instigator instigator)
	Spawn supply secondary explosion when vehicle becomes destroyed.
vector	GetSecondaryExplosionPosition (TypeName hitZoneType, out float totalWeight=0)
	Get weighed average position of explosion for hitzones of specified type.
void	FuelSecondaryExplosion (notnull Instigator instigator)
	Spawn fuel secondary explosion when vehicle becomes destroyed.
void	UpdateFireDamage (float timeSlice)
void	UpdateFireParticles (vector position, out ParticleEffectEntity particles, SCR_ESecondaryExplosionScale state, SCR_ESecondaryExplosionType fireType, EResourceType resourceType=EResourceType.SUPPLIES)
	Update visual effects and store result in particles variable.
override void	OnDamageOverTimeAdded (EDamageType dType, float dps, HitZone hz)
	Invoked every time the DoT is added to certain hitzone.
override void	OnDamageOverTimeRemoved (EDamageType dType, HitZone hz)
	Invoked when provided damage type is removed from certain hitzone.
override bool	HijackDamageHandling (notnull BaseDamageContext damageContext)
override int	_WB_GetAfterWorldUpdateSpecs (IEntity owner, IEntitySource src)
Public Member Functions inherited from DamageManagerComponent
proto external int	ComputeStruckHitZones (out notnull array< HitZone > struckHitZones, notnull BaseDamageContext damageContext)
	Clears and fills struckHitZones array with all HZs that should get damaged by this BaseDamageContext.
proto external void	EnableDamageHandling (bool enable)
proto external bool	IsDamageHandlingEnabled ()
proto external void	EnableDamageSystemOnFrame ()
	Call to enable damage system's on frame.
proto external void	DisableDamageSystemOnFrame ()
	Call to disable damage system's on frame.
proto external void	SetMovementDamage (float damage)
	Sets the movement damage modifier.
proto external float	GetMovementDamage ()
	Returns the movement damage modifier.
proto external void	SetAimingDamage (float damage)
	Sets the aiming damage modifier.
proto external float	GetAimingDamage ()
	Returns aiming damage modifier.
proto external float	GetHealthScaled ()
proto external bool	SetHealthScaled (float health)
proto external float	GetHealth ()
proto external float	GetMaxHealth ()
proto external EDamageState	GetState ()
proto external bool	IsDestroyed ()
proto external void	SetInstigatorEntity (IEntity instigator)
proto external void	SetInstigator (notnull Instigator instigator)
proto external void	SetAndReplicateInstigator (notnull Instigator instigator)
	Sets the instigator and broadcasts the change to clients DO NOT USE THIS METHOD UNLESS YOU KNOW EXACTLY WHEN TO USE IT IF YOU ARE USING THIS YOU PROBABLY SHOULD BE DEALING DAMAGE TO THE PLAYER TO KILL THEM.
proto external notnull Instigator	GetInstigator ()
proto external int	GetAttachedColliderIDs (out notnull array< int > outAttachedColliderIDs)
	Fills colliderIDs with all the colliders attached to hitzones this dmg manager owns.
proto external void	HandleDamage (notnull BaseDamageContext damageContext)
proto external bool	IsDamagedOverTime (EDamageType dType)
proto external float	GetDamageOverTime (EDamageType dType)
proto external void	RemoveDamageOverTime (EDamageType dType)
	Removes DOT of provided damageType from all currently affected HitZones.
GameMaterial	OverrideHitMaterial (HitZone struckHitzone)
	Not all armors are physical so the surface that gets struck by projectiles will not be the one the armor, but the hitzone.
bool	ShouldCountAsHit (notnull BaseDamageContext damageContext)
	Called after HijackDamageHandling.
Public Member Functions inherited from HitZoneContainerComponent
proto external IEntity	GetOwner ()
proto external HitZone	GetDefaultHitZone ()
proto external HitZone	GetHitZoneByName (string hitZoneName)
	Get the HitZone that matches the provided collider name.
proto external HitZone	GetHitZoneByColliderID (int colliderID)
	Get the HitZone that matches the provided collider ID.
proto external int	GetHitZonesByColliderIDs (out notnull array< HitZone > outHitZones, notnull array< int > colliderIDs)
	Clears and fills the specified outHitZones array with all HZs that are attached to colliderIDs.
proto external HitZone	GetHitZone (string colliderName)
proto external int	CountAllHitZones ()
	Counts the number of hitzones in this entity.
proto external int	CountAllHitZonesInHierarchy ()
	Counts the number of hitzones in this entity and its children.
proto external int	GetAllHitZones (out notnull array< HitZone > outHitZones)
	Clears and fills the specified outHitZones array with all HZs in this entity Returns the count of elements that were filled into the array.
proto external int	GetAllHitZonesInHierarchy (out notnull array< HitZone > outHitZones)
	Clears and fills the specified outHitZones array with all HZs in this entity and its children.
proto external HitZoneContainerComponent	GetParentHitZoneContainer ()
Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Additional Inherited Members
Static Public Member Functions inherited from SCR_DamageManagerComponent
static SCR_DamageManagerComponent	GetDamageManager (notnull IEntity owner)
	Get damage manager from given owner.
Static Public Attributes inherited from SCR_DamageManagerComponent
static const int	MAX_DESTRUCTION_RESPONSE_INDEX = 10
static const string	MAX_DESTRUCTION_RESPONSE_INDEX_NAME = "HugeDestructible"
static const ref array< EDamageType >	HEALING_DAMAGE_TYPES = {EDamageType.HEALING, EDamageType.REGENERATION}
Protected Member Functions inherited from SCR_DamageManagerComponent
void	RpcDo_SetFireState_ (int hitZoneIndex, SCR_EBurningState fireState)
	Set fire rate of a flammable hitzone.
notnull SCR_DamageManagerData	GetScriptedDamageManagerData ()
override void	OnDamage (notnull BaseDamageContext damageContext)
override bool	ShouldOverrideInstigator (notnull Instigator currentInstigator, notnull Instigator newInstigator)
	Called whenever an instigator is going to be set.
float	HealHitZonesInSequence (float healthToDistribute, float maxHealThresholdScaled, array< HitZone > targetHitZones)
float	HealHitZonesInParallel (float healthToDistribute, float maxHealThresholdScaled, array< HitZone > targetHitZones)
void	ConnectToFireDamageSystem ()
void	DisconnectFromFireDamageSystem ()
override void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Invoked when damage state changes.
override void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)
Protected Member Functions inherited from DamageManagerComponent
void	DiagOnlyIfPossessedByPlayerController (notnull IEntity owner)
	Use this to run diag for the character who is currently possessed by player controller.
void	OnHandleFallDamage (EFallDamageType fallDamageType, vector velocityVector)
	Called when fall related damage is relevant.
void	OnHealthSet ()
	Called when SetHealth() is used on default hitzone.
void	OnMaxHealthChanged ()
	Called when SetMaxHealth() is used on default hitzone.
void	OnPostInit (IEntity owner)
	Called after all components are initialized.
void	OnDelete (IEntity owner)
void	OnFrame (IEntity owner, float timeSlice)
	Called during EOnFrame.
void	OnFilteredContact (IEntity owner, IEntity other, Contact contact)
	Only called if FilterContact returned true.
void	OnDiag (IEntity owner, float timeSlice)
	Called during EOnDiag.
Protected Member Functions inherited from HitZoneContainerComponent
bool	HasDataToReplicate ()
	Use it to save bandwidth in some default conditions. Use it if Save and Load are overriden.
bool	OnRplSave (ScriptBitWriter writer)
bool	OnRplLoad (ScriptBitReader reader)
Protected Attributes inherited from SCR_DamageManagerComponent
SCR_EBurningState	m_iMinimumBurningState
int	m_iTimetickInstigator = System.GetTickCount()
int	m_iTimeThresholdInstigatorReplacement = 180000
int	m_iPlayerId = 0
int	m_iDamageManagerDataIndex = -1
Static Protected Attributes inherited from SCR_DamageManagerComponent
static const int	MIN_MOMENTUM_RESPONSE_INDEX = 1
static const int	MAX_MOMENTUM_RESPONSE_INDEX = 5
static const int	MIN_DESTRUCTION_RESPONSE_INDEX = 6
const float	SIMULATION_IMPRECISION_MULTIPLIER = 1.1
static ref array< ref SCR_DamageManagerData >	s_aDamageManagerData = {}

---

The documentation for this interface was generated from the following file:

• GameCode/Components/SCR_ExtendedDamageManagerComponent.c
