InteractionHandlerComponent Interface Reference

Collects interactions by performing a sphere cast initially and then a sphere query at the end. More...

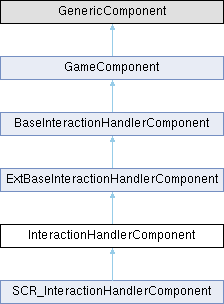

Inheritance diagram for InteractionHandlerComponent:

Protected Member Functions
override bool	CanContextChange (UserActionContext currentContext, UserActionContext newContext)
	Called before a context is set to determine whether a change can occur.
override bool	DoIntersectCheck (IEntity controlledEntity)
	Should preferred context collection use intersect checks? This will make a ray check against the context's radius.
override bool	GetIsInteractionAvailableScript ()
	Are any user actions available to interact with? Implement and return true if yes, false otherwise.
override bool	GetCanInteractScript (IEntity controlledEntity)
	Are we allowed to start collecting and processing interactions? Implement custom logic and return true if yes, false otherwise.
override BaseUserAction	GetSelectedActionScript ()
	Currently sected action or null if none.
Protected Member Functions inherited from ExtBaseInteractionHandlerComponent
proto external void	SetSelectedAction (BaseUserAction action)
	Sets currently select action.
void	OnControlledEntityChanged (IEntity from, IEntity to)
void	OnContextChanged (UserActionContext previousContext, UserActionContext newContext)
	Event called when InteractionHandlerComponent finds new target UserActionContext and a change occurs.
void	OnPostFrame (IEntity owner, IEntity controlledEntity, float timeSlice)
	Called once per frame after simulation.
bool	CanContextChange (UserActionContext currentContext, UserActionContext newContext)
	Called before a context is set to determine whether a change can occur.
bool	DoIntersectCheck (IEntity controlledEntity)
	Should preferred context collection use intersect checks? This will make a ray check against the context's radius.
bool	GetIsInteractionAvailableScript ()
	Are any user actions available to interact with? Implement and return true if yes, false otherwise.
bool	GetCanInteractScript (IEntity controlledEntity)
	Are we allowed to start collecting and processing interactions? Implement custom logic and return true if yes, false otherwise.
BaseUserAction	GetSelectedActionScript ()
	Currently sected action or null if none.
array< IEntity >	GetManualOverrideList (IEntity owner, out vector referencePoint)
	Callback whem manual collection override is enabled.

Additional Inherited Members
Public Member Functions inherited from ExtBaseInteractionHandlerComponent
proto external UserActionContext	GetCurrentContext ()
	Returns currently gathered (active-preferred) context or null if none.
proto external IEntity	GetControlledEntity ()
	Returns the controlled entity or null if none.
proto external int	GetFilteredActions (out notnull array< BaseUserAction > outActions, out notnull array< bool > outCanBePerformed)
	After collection is done, this method can be used for retrieving already checked user actions from current context.
proto external bool	IsContextAvailable ()
	Returns true when there is a gathered context available.
proto external void	SetManualCollectionOverride (bool enabled)
	If set to true, we expect a list of entities to be provided from the user instead.
proto external bool	GetManualCollectionOverride ()
	Returns whether manual collection override is set (we expect a list of entities to be provided from the user instead)
proto external void	SetNearbyCollectionEnabled (bool enabled)
	Sets whether nearby available context collection should be enabled.
proto external bool	GetNearbyCollectionEnabled ()
	Returns whether nearby available context collection is enabled.
proto external float	GetNearbyCollectionRadius ()
	Returns the radius in meters that is used for nearby available context collection.
proto external int	GetNearbyAvailableContextList (out notnull array< UserActionContext > outContexts)
	If nearby collection is enabled, fills the provided array with collected contexts nearby.
proto external int	GetNearbyShowableContextList (out notnull array< UserActionContext > outContexts)
	If nearby collection is enabled, fills the provided array with collected contexts nearby.
proto external int	GetNearbyUnavailableContextList (out notnull array< UserActionContext > outContexts)
	If nearby collection is enabled, fills the provided array with collected contexts nearby.
proto external vector	GetLastReferencePoint (float timeSlice)
	The last known interaction reference point.
Public Member Functions inherited from BaseInteractionHandlerComponent
proto external bool	IsInteractionAvailable ()
	Returns true if any interaction can be done at given moment, i.e. UI should be shown.
proto external BaseUserAction	GetSelectedAction ()
	Return currently selected user action or null if none.
proto external float	GetVisibilityRange ()
	Returns the global actions visibility range value defined by attribute in this component.
void	OnInit (IEntity owner)
	Called on initialization.
void	OnFrame (IEntity owner, float timeSlice)
	Called every frame, only for local player controller.
void	OnAfterPostSimulate (IEntity owner, float timeSlice)
	Called after post simulate, only for local player controller.
Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Detailed Description

Collects interactions by performing a sphere cast initially and then a sphere query at the end.

Iterates through hit entities and tries to find closest entity with ActionsManagerComponent that has a valid context.

Member Function Documentation

CanContextChange()

override bool InteractionHandlerComponent.CanContextChange ( UserActionContext  currentContext, UserActionContext  newContext  )

protected

Called before a context is set to determine whether a change can occur.

Implements ExtBaseInteractionHandlerComponent.

Implemented in SCR_InteractionHandlerComponent.

DoIntersectCheck()

override bool InteractionHandlerComponent.DoIntersectCheck ( IEntity  controlledEntity )

protected

Should preferred context collection use intersect checks? This will make a ray check against the context's radius.

This works well in tight places where relying on physical collisions is impossible - e.g. in vehicle interiors.

Implements ExtBaseInteractionHandlerComponent.

Implemented in SCR_InteractionHandlerComponent.

GetCanInteractScript()

override bool InteractionHandlerComponent.GetCanInteractScript ( IEntity  controlledEntity )

protected

Are we allowed to start collecting and processing interactions? Implement custom logic and return true if yes, false otherwise.

Parameters

controlledEntity

The entity that wants to be able to interact (player controlled)

Implements ExtBaseInteractionHandlerComponent.

Implemented in SCR_InteractionHandlerComponent.

GetIsInteractionAvailableScript()

override bool InteractionHandlerComponent.GetIsInteractionAvailableScript ( )

protected

Are any user actions available to interact with? Implement and return true if yes, false otherwise.

Implements ExtBaseInteractionHandlerComponent.

Implemented in SCR_InteractionHandlerComponent.

GetSelectedActionScript()

override BaseUserAction InteractionHandlerComponent.GetSelectedActionScript ( )

protected

Currently sected action or null if none.

Implement and return currently selected action.

Implements ExtBaseInteractionHandlerComponent.

Implemented in SCR_InteractionHandlerComponent.

---

The documentation for this interface was generated from the following file:

• GameCode/UserAction/InteractionHandlerComponent.c
