This component allows the player to interact with their environment. More...

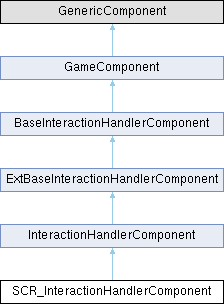

Inheritance diagram for SCR_InteractionHandlerComponent:

Public Member Functions
void	ActionPerform (float value, EActionTrigger reason)
	Callback for caching the key press.

void	ActionScroll (float value, EActionTrigger reason)

override void	OnInit (IEntity owner)
	Called on initialization.

void	GetOverrideListReferencePoint (IEntity owner, out vector referencePoint)

override array< IEntity >	GetManualNearbyOverrideList (IEntity owner, out vector referencePoint)
	Callback when manual nearby collection override is enabled.

override array< IEntity >	GetManualOverrideList (IEntity owner, out vector referencePoint)
	Callback when manual collection override is enabled.

float	GetRaycastThreshold ()

Public Member Functions inherited from ExtBaseInteractionHandlerComponent
proto external UserActionContext	GetCurrentContext ()
	Returns currently gathered (active-preferred) context or null if none.

proto external IEntity	GetControlledEntity ()
	Returns the controlled entity or null if none.

proto external int	GetFilteredActions (out notnull array< BaseUserAction > outActions, out notnull array< bool > outCanBePerformed)
	After collection is done, this method can be used for retrieving already checked user actions from current context.

proto external bool	IsContextAvailable ()
	Returns true when there is a gathered context available.

proto external void	SetManualNearbyCollectionOverride (bool enabled)
	If set to true, we expect a list of nearby entities to be provided from the user instead.

proto external bool	GetManualNearbyCollectionOverride ()
	Returns whether manual nearby collection override is set (we expect a list of nearby entities to be provided from the user instead)

proto external void	SetManualCollectionOverride (bool enabled)
	If set to true, we expect a list of entities to be provided from the user instead.

proto external bool	GetManualCollectionOverride ()
	Returns whether manual collection override is set (we expect a list of entities to be provided from the user instead)

proto external void	SetNearbyCollectionEnabled (bool enabled)
	Sets whether nearby available context collection should be enabled.

proto external bool	GetNearbyCollectionEnabled ()
	Returns whether nearby available context collection is enabled.

proto external float	GetNearbyCollectionRadius ()
	Returns the radius in meters that is used for nearby available context collection.

proto external int	GetNearbyAvailableContextList (out notnull array< UserActionContext > outContexts)
	If nearby collection is enabled, fills the provided array with collected contexts nearby.

proto external int	GetNearbyShowableContextList (out notnull array< UserActionContext > outContexts)
	If nearby collection is enabled, fills the provided array with collected contexts nearby.

proto external int	GetNearbyUnavailableContextList (out notnull array< UserActionContext > outContexts)
	If nearby collection is enabled, fills the provided array with collected contexts nearby.

proto external vector	GetLastReferencePoint (float timeSlice)
	The last known interaction reference point.

Public Member Functions inherited from BaseInteractionHandlerComponent
proto external bool	IsInteractionAvailable ()
	Returns true if any interaction can be done at given moment, i.e. UI should be shown.

proto external BaseUserAction	GetSelectedAction ()
	Return currently selected user action or null if none.

proto external float	GetVisibilityRange ()
	Returns the global actions visibility range value defined by attribute in this component.

void	OnFrame (IEntity owner, float timeSlice)
	Called every frame, only for local player controller.

void	OnAfterPostSimulate (IEntity owner, float timeSlice)
	Called after post simulate, only for local player controller.

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Static Public Member Functions
static bool	CanBeShownInVehicle (notnull ChimeraCharacter character, notnull BaseUserAction userAction, bool pilotOnly=false, bool pilotUncapableOverride=false, bool interiorOnly=false, array< int > definedCompartmentsOnly=null, array< int > excludeDefinedCompartments=null)
	Check if action can be shown when player is inside a vehicle.

Protected Member Functions
void	RegisterActionListeners ()
	Action listeners that are meant to be registered once per user and only for the user who is the owner of this controller.

void	RemoveActionListeners ()

override void	OnControlledEntityChanged (IEntity from, IEntity to)
	Method called when player takes controll over an entity.

SCR_BaseInteractionDisplay	FindDisplay (IEntity owner)

void	DoProcessInteraction (ChimeraCharacter user, UserActionContext context, BaseUserAction action, bool canPerform, bool performInput, float timeSlice, SCR_BaseInteractionDisplay display)
	Checks input, compares it to previous states and evaluates what the handler should do next.

override bool	GetCanInteractScript (IEntity controlledEntity)
	Are we allowed to start collecting and processing interactions? Implement custom logic and return true if yes, false otherwise.

override bool	GetIsInteractionAvailableScript ()
	Are any user actions available to interact with? Implement and return true if yes, false otherwise.

override BaseUserAction	GetSelectedActionScript ()
	Currently sected action or null if none.

override bool	DoIntersectCheck (IEntity controlledEntity)
	Should preferred context collection use intersect checks? This will make a ray check against the context's radius.

override void	OnContextChanged (UserActionContext previousContext, UserActionContext newContext)
	Event called when InteractionHandlerComponent finds new target UserActionContext and a change occurs.

override bool	CanContextChange (UserActionContext currentContext, UserActionContext newContext)
	Called before a context is set to determine whether a change can occur.

override bool	IsPerformingAction ()

bool	IsFreelookEnabled (ChimeraCharacter character)
	display mode is set to automatic freelook mode.

bool	ShouldBeEnabled (SCR_NearbyContextDisplayMode displayMode, ChimeraCharacter character, bool playerCameraOnly=true)

void	HandleOverride (notnull ChimeraCharacter character)
	Check if the player is inside a vehicle or is inspecting something and enable/disable ManualNearbyCollectionOverride and ManualCollectionOverride for the nearby contexts based on it.

bool	HandleVehicle (notnull ChimeraCharacter character)
	Check is player is inside a vehicle and grab all the compartments of that vehicle.

bool	HandleInspection (notnull ChimeraCharacter character)
	Check if player is inspecting something (weapon, item, etc) and grab the contexts from it.

override void	OnPostFrame (IEntity owner, IEntity controlledEntity, float timeSlice)
	Called once per frame after simulation.

void	AggregateActions (array< BaseUserAction > actionsList, array< bool > canPerformList)
	Modifies the input lists (which need to be 1:1 in length and logical sense) so each action which can be aggregated (BaseUserAction.CanAggregate() returns true) only displays the first available (or any first if none is available to perform) action, filtered by BaseUserAction.GetActionName().

Protected Member Functions inherited from ExtBaseInteractionHandlerComponent
proto external void	SetSelectedAction (BaseUserAction action)
	Sets currently select action.

Protected Attributes
SCR_BaseInteractionDisplay	m_pDisplay
	Display (action menu) used to show UI to the player regarding collected actions.

SCR_NearbyContextDisplayMode	m_eDisplayMode

float	m_fRaycastThreshold

string	m_sActionName

string	m_sActionContext

UserActionContext	m_pLastContext
	Last selected context.

BaseUserAction	m_pLastUserAction
	Last selected user action.

int	m_iSelectedActionIndex
	Currently selected action index.

bool	m_bIsPerforming

bool	m_bPerformAction

bool	m_bLastInput

float	m_fSelectAction

float	m_fCurrentProgress

ref array< IEntity >	m_aCollectedEntities = {}
	List of collected entities from which the available contexts will be taken to dispaly (weapon, vehicle, ...)

ref array< IEntity >	m_aCollectedNearbyEntities = {}
	List of collected nearby entities from which the available contexts will be taken to dispaly (weapon, vehicle, ...)

IEntity	m_ControlledEntity

ref array< BaseUserAction >	m_ActionsBuffer = {}

ref array< bool >	m_PerformBuffer = {}

ref map< string, ref array< int > >	m_IndicesBuffer = new map<string, ref array<int>>()

Detailed Description

This component allows the player to interact with their environment.

It collects UserActionContext from ActionsManagerComponent from surrounding entities via queries, filters and finds the most appropriate one and provides script API to work with them.

It should always be attached to PlayerController entity and is local only.

Member Function Documentation

◆ ActionPerform()

void SCR_InteractionHandlerComponent.ActionPerform	(	float	value,
		EActionTrigger	reason )

Callback for caching the key press.

◆ ActionScroll()

void SCR_InteractionHandlerComponent.ActionScroll	(	float	value,
		EActionTrigger	reason )

◆ AggregateActions()

void SCR_InteractionHandlerComponent.AggregateActions	(	array< BaseUserAction >	actionsList,
		array< bool >	canPerformList )

protected

Modifies the input lists (which need to be 1:1 in length and logical sense) so each action which can be aggregated (BaseUserAction.CanAggregate() returns true) only displays the first available (or any first if none is available to perform) action, filtered by BaseUserAction.GetActionName().

◆ CanBeShownInVehicle()

static bool SCR_InteractionHandlerComponent.CanBeShownInVehicle	(	notnull ChimeraCharacter	character,
		notnull BaseUserAction	userAction,
		bool	pilotOnly = false,
		bool	pilotUncapableOverride = false,
		bool	interiorOnly = false,
		array< int >	definedCompartmentsOnly = null,
		array< int >	excludeDefinedCompartments = null )

static

Check if action can be shown when player is inside a vehicle.

Parameters

[in]	Character	controlled by the player
[in]	User	action that is being checked
[in]	True,if	the action can only be seen from the PilotCompartment
[in]	True,if	the action should be available to other passengers as long as pilot is not there or unconscious
[in]	True,if	the action can only be seen when player is sitting in the vehicle, the action belongs to
[in]	Array	of Compartments that the action should be shown in. (Does not work if pilotOnly = true)
[in]	Array	of Compartments that the action can't be shown in. (Does not work if pilotOnly = true)

◆ CanContextChange()

override bool SCR_InteractionHandlerComponent.CanContextChange	(	UserActionContext	currentContext,
		UserActionContext	newContext )

protected

Called before a context is set to determine whether a change can occur.

Implements InteractionHandlerComponent.

◆ DoIntersectCheck()

override bool SCR_InteractionHandlerComponent.DoIntersectCheck ( IEntity controlledEntity )

protected

Should preferred context collection use intersect checks? This will make a ray check against the context's radius.

This works well in tight places where relying on physical collisions is impossible - e.g. in vehicle interiors.

Implements InteractionHandlerComponent.

◆ DoProcessInteraction()

void SCR_InteractionHandlerComponent.DoProcessInteraction	(	ChimeraCharacter	user,
		UserActionContext	context,
		BaseUserAction	action,
		bool	canPerform,
		bool	performInput,
		float	timeSlice,
		SCR_BaseInteractionDisplay	display )

protected

Checks input, compares it to previous states and evaluates what the handler should do next.

Parameters

[in]	user
[in]	context
[in]	action
[in]	canPerform
[in]	performInput
[in]	timeSlice
[in]	display

◆ FindDisplay()

SCR_BaseInteractionDisplay SCR_InteractionHandlerComponent.FindDisplay ( IEntity owner )

protected

◆ GetCanInteractScript()

override bool SCR_InteractionHandlerComponent.GetCanInteractScript ( IEntity controlledEntity )

protected

Are we allowed to start collecting and processing interactions? Implement custom logic and return true if yes, false otherwise.

Parameters

controlledEntity The entity that wants to be able to interact (player controlled)

Implements InteractionHandlerComponent.

◆ GetIsInteractionAvailableScript()

override bool SCR_InteractionHandlerComponent.GetIsInteractionAvailableScript ( )

protected

Are any user actions available to interact with? Implement and return true if yes, false otherwise.

Implements InteractionHandlerComponent.

◆ GetManualNearbyOverrideList()

override array< IEntity > SCR_InteractionHandlerComponent.GetManualNearbyOverrideList	(	IEntity	owner,
		out vector	referencePoint )

Callback when manual nearby collection override is enabled.

See SetManualNearbyCollectionOverride. It may return nullptrs inside array if this is called between deletion of instance inside the array and updating of the array.

Parameters

owner	Parent entity
referencePoint	Point in world space used to calculate distance and sort contexts by

Implements ExtBaseInteractionHandlerComponent.

◆ GetManualOverrideList()

override array< IEntity > SCR_InteractionHandlerComponent.GetManualOverrideList	(	IEntity	owner,
		out vector	referencePoint )

Callback when manual collection override is enabled.

See SetManualCollectionOverride. It may return nullptrs inside array if this is called between deletion of instance inside the array and updating of the array.

Parameters

owner	Parent entity
referencePoint	Point in world space used to calculate distance and sort contexts by

Implements ExtBaseInteractionHandlerComponent.

◆ GetOverrideListReferencePoint()

void SCR_InteractionHandlerComponent.GetOverrideListReferencePoint	(	IEntity	owner,
		out vector	referencePoint )

◆ GetRaycastThreshold()

float SCR_InteractionHandlerComponent.GetRaycastThreshold ( )

◆ GetSelectedActionScript()

override BaseUserAction SCR_InteractionHandlerComponent.GetSelectedActionScript ( )

protected

Currently sected action or null if none.

Implement and return currently selected action.

Implements InteractionHandlerComponent.

◆ HandleInspection()

bool SCR_InteractionHandlerComponent.HandleInspection ( notnull ChimeraCharacter character )

protected

Check if player is inspecting something (weapon, item, etc) and grab the contexts from it.

Parameters

[in] character controlled by the player

Returns: True if player is inspecting something, false otherwise

◆ HandleOverride()

void SCR_InteractionHandlerComponent.HandleOverride ( notnull ChimeraCharacter character )

protected

Check if the player is inside a vehicle or is inspecting something and enable/disable ManualNearbyCollectionOverride and ManualCollectionOverride for the nearby contexts based on it.

Parameters

[in] character controlled by the player

◆ HandleVehicle()

bool SCR_InteractionHandlerComponent.HandleVehicle ( notnull ChimeraCharacter character )

protected

Check is player is inside a vehicle and grab all the compartments of that vehicle.

Parameters

[in] character controlled by the player

Returns: True if player is inside a vehicle, false otherwise

◆ IsFreelookEnabled()

bool SCR_InteractionHandlerComponent.IsFreelookEnabled ( ChimeraCharacter character )

protected

display mode is set to automatic freelook mode.

Returns: true if nearby action contexts should be shown when

◆ IsPerformingAction()

override bool SCR_InteractionHandlerComponent.IsPerformingAction ( )

protected

Implements ExtBaseInteractionHandlerComponent.

◆ OnContextChanged()

override void SCR_InteractionHandlerComponent.OnContextChanged	(	UserActionContext	previousContext,
		UserActionContext	newContext )

protected

Event called when InteractionHandlerComponent finds new target UserActionContext and a change occurs.

Both previous and new context might be 'null' if no context is caught in collection.

Parameters

previousContext	Context that was active up until this collection - can be null
newContext	Context that will be active after this collection - can be null if nothing was caught

Implements ExtBaseInteractionHandlerComponent.

◆ OnControlledEntityChanged()

override void SCR_InteractionHandlerComponent.OnControlledEntityChanged	(	IEntity	from,
		IEntity	to )

protected

Method called when player takes controll over an entity.

Parameters

[in]	from	entity which was previously controlled
[in]	to	entity which is now controlled

Implements ExtBaseInteractionHandlerComponent.

◆ OnInit()

override void SCR_InteractionHandlerComponent.OnInit ( IEntity owner )

Called on initialization.

Might not be called unless we already own this item.

Implements BaseInteractionHandlerComponent.

◆ OnPostFrame()

override void SCR_InteractionHandlerComponent.OnPostFrame	(	IEntity	owner,
		IEntity	controlledEntity,
		float	timeSlice )

protected

Called once per frame after simulation.

Can be used for drawing and updating UI.

Implements ExtBaseInteractionHandlerComponent.

◆ RegisterActionListeners()

void SCR_InteractionHandlerComponent.RegisterActionListeners ( )

protected

Action listeners that are meant to be registered once per user and only for the user who is the owner of this controller.

◆ RemoveActionListeners()

void SCR_InteractionHandlerComponent.RemoveActionListeners ( )

protected

◆ ShouldBeEnabled()

bool SCR_InteractionHandlerComponent.ShouldBeEnabled	(	SCR_NearbyContextDisplayMode	displayMode,
		ChimeraCharacter	character,
		bool	playerCameraOnly = true )

protected

Member Data Documentation

◆ m_aCollectedEntities

ref array<IEntity> SCR_InteractionHandlerComponent.m_aCollectedEntities = {}

protected

List of collected entities from which the available contexts will be taken to dispaly (weapon, vehicle, ...)

◆ m_aCollectedNearbyEntities

ref array<IEntity> SCR_InteractionHandlerComponent.m_aCollectedNearbyEntities = {}

protected

List of collected nearby entities from which the available contexts will be taken to dispaly (weapon, vehicle, ...)

◆ m_ActionsBuffer

ref array<BaseUserAction> SCR_InteractionHandlerComponent.m_ActionsBuffer = {}

protected

◆ m_bIsPerforming

bool SCR_InteractionHandlerComponent.m_bIsPerforming

protected

◆ m_bLastInput

bool SCR_InteractionHandlerComponent.m_bLastInput

protected

◆ m_bPerformAction

bool SCR_InteractionHandlerComponent.m_bPerformAction

protected

◆ m_ControlledEntity

IEntity SCR_InteractionHandlerComponent.m_ControlledEntity

protected

◆ m_eDisplayMode

SCR_NearbyContextDisplayMode SCR_InteractionHandlerComponent.m_eDisplayMode

protected

◆ m_fCurrentProgress

float SCR_InteractionHandlerComponent.m_fCurrentProgress

protected

◆ m_fRaycastThreshold

float SCR_InteractionHandlerComponent.m_fRaycastThreshold

protected

◆ m_fSelectAction

float SCR_InteractionHandlerComponent.m_fSelectAction

protected

◆ m_IndicesBuffer

ref map<string, ref array<int> > SCR_InteractionHandlerComponent.m_IndicesBuffer = new map<string, ref array<int>>()

protected

◆ m_iSelectedActionIndex

int SCR_InteractionHandlerComponent.m_iSelectedActionIndex

protected

Currently selected action index.

◆ m_pDisplay

SCR_BaseInteractionDisplay SCR_InteractionHandlerComponent.m_pDisplay

protected

Display (action menu) used to show UI to the player regarding collected actions.

◆ m_PerformBuffer

ref array<bool> SCR_InteractionHandlerComponent.m_PerformBuffer = {}

protected

◆ m_pLastContext

UserActionContext SCR_InteractionHandlerComponent.m_pLastContext

protected

Last selected context.

◆ m_pLastUserAction

BaseUserAction SCR_InteractionHandlerComponent.m_pLastUserAction

protected

Last selected user action.

◆ m_sActionContext

string SCR_InteractionHandlerComponent.m_sActionContext

protected

◆ m_sActionName

string SCR_InteractionHandlerComponent.m_sActionName

protected

The documentation for this interface was generated from the following file:

Game/Interactions/SCR_InteractionHandlerComponent.c

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ ActionPerform()

◆ ActionScroll()

◆ AggregateActions()

◆ CanBeShownInVehicle()

◆ CanContextChange()

◆ DoIntersectCheck()

◆ DoProcessInteraction()

◆ FindDisplay()

◆ GetCanInteractScript()

◆ GetIsInteractionAvailableScript()

◆ GetManualNearbyOverrideList()

◆ GetManualOverrideList()

◆ GetOverrideListReferencePoint()

◆ GetRaycastThreshold()

◆ GetSelectedActionScript()

◆ HandleInspection()

◆ HandleOverride()

◆ HandleVehicle()

◆ IsFreelookEnabled()

◆ IsPerformingAction()

◆ OnContextChanged()

◆ OnControlledEntityChanged()

◆ OnInit()

◆ OnPostFrame()

◆ RegisterActionListeners()

◆ RemoveActionListeners()

◆ ShouldBeEnabled()

Member Data Documentation

◆ m_aCollectedEntities

◆ m_aCollectedNearbyEntities

◆ m_ActionsBuffer

◆ m_bIsPerforming

◆ m_bLastInput

◆ m_bPerformAction

◆ m_ControlledEntity

◆ m_eDisplayMode

◆ m_fCurrentProgress

◆ m_fRaycastThreshold

◆ m_fSelectAction

◆ m_IndicesBuffer

◆ m_iSelectedActionIndex

◆ m_pDisplay

◆ m_PerformBuffer

◆ m_pLastContext

◆ m_pLastUserAction

◆ m_sActionContext

◆ m_sActionName
