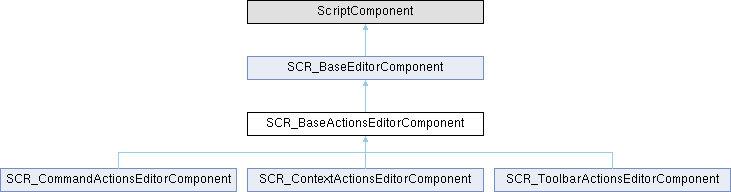

Inheritance diagram for SCR_BaseActionsEditorComponent:

[legend]

Public Member Functions
SCR_EditableEntityComponent	GetHoveredEntity ()

int	GetActions (out notnull array< SCR_BaseEditorAction > actions)
	Gets all actions on the component.

void	EvaluateActions (notnull array< SCR_BaseEditorAction > actions, vector cursorWorldPosition, out notnull array< ref SCR_EditorActionData > filteredActions, out int flags=0)
	Evaluates passed list of actions for the current context.

int	GetAndEvaluateActions (vector cursorWorldPosition, out notnull array< ref SCR_EditorActionData > filteredActions, out int flags=0)
	Gets and evaluates actions for current context, combination of GetActions and EvaluateActions functions.

bool	ActionCanBeShown (SCR_BaseEditorAction action, vector cursorWorldPosition, int flags)

bool	ActionCanBePerformed (SCR_BaseEditorAction action, vector cursorWorldPosition, int flags)

void	ActionPerformInstantly (SCR_BaseEditorAction action, int flags=0)
	When action shortcut is activated, check if the action can be performed and if so, perform it.

void	ActionPerform (SCR_BaseEditorAction action, vector cursorWorldPosition, int flags)
	Perform given action.

override void	EOnEditorActivate ()
	When the component is activated.

override void	EOnEditorDeactivate ()
	When the component is deactivated.

Public Member Functions inherited from SCR_BaseEditorComponent
sealed void	OnInitBase ()

sealed void	OnDeleteBase ()

sealed void	OnRequestBase (bool isOpen)

sealed void	OnOpenedBase ()

sealed void	OnClosedBase ()

sealed void	OnPreActivateBase ()

sealed void	OnActivateBase ()

sealed bool	OnActivateAsyncBase (int attempt)

sealed void	OnPostActivateBase ()

sealed void	OnDeactivateBase ()

sealed void	OnPostDeactivateBase ()

sealed bool	OnDeactivateAsyncBase (int attempt)

sealed void	OnEffectBase (SCR_BaseEditorEffect effect)

SCR_EditorManagerEntity	GetManager ()
	Get editor manager this component belongs to.

SCR_BaseEditorComponent	FindEditorComponent (TypeName type, bool showError=false, bool modeFirst=false)
	Get the editor manager to which this component belongs.

EntityComponentPrefabData	GetEditorComponentData ()
	Get prefab data of this component.

bool	IsRemoved ()
	Check if the component is being deleted.

void	ResetEditorComponent ()
	Reset values controlled by the component.

ScriptInvoker	GetOnEffect ()
	Get event called when an effect is activated.

void	InitServer ()

void	InitOwner ()

override void	OnPostInit (IEntity owner)

void	SCR_BaseEditorComponent (IEntityComponentSource src, IEntity ent, IEntity parent)

void	~SCR_BaseEditorComponent ()

Protected Member Functions
int	ValidateSelection (bool isInstant)
	Evaluate which entities are under cursor and which are selected.

void	ActionPerformInstantlyNoDialog (SCR_BaseEditorAction action, vector cursorWorldPosition, int flags=0)

TraceFlags	GetInstantActionTraceFlags ()

void	ActionPerformRpc (SCR_BaseEditorAction action, vector cursorWorldPosition, int flags, int param=-1)

void	ActionPerform (SCR_BaseEditorAction action, SCR_EditableEntityComponent hoveredEntityComponent, set< SCR_EditableEntityComponent > selectedEntityComponents, vector cursorWorldPosition, int flags, int param)

void	ActionPerformLocal (SCR_BaseEditorAction action, SCR_EditableEntityComponent hoveredEntityComponent, set< SCR_EditableEntityComponent > selectedEntityComponents, vector cursorWorldPosition, int flags, int param)

void	ActionPerformServer (int actionIndex, RplId hoveredEntityID, array< RplId > selectedEntityIds, vector cursorWorldPosition, int flags, int param)
	Perform given action on server, exclusively called by ActionPerform.

void	ActionPerformOwner (int actionIndex, vector cursorWorldPosition, int flags, int param)
	Server callback for when action is executed succesfully, calls PerformOwner function on action for e.g. local effects.

Protected Member Functions inherited from SCR_BaseEditorComponent
bool	IsOnEditorManager ()

bool	IsOwner ()

bool	IsProxy ()

bool	IsMaster ()

bool	IsAdmin ()

SCR_BaseEditorComponent	GetParentComponent ()

void	SetParentComponent (SCR_BaseEditorComponent parent)

void	SendNotification (ENotification notificationID, int selfID=0, int targetID=0, vector position=vector.Zero)

void	EOnEditorInit ()
	When the entity is created.

void	EOnEditorDelete ()
	When the entity is destroyed.

void	EOnEditorRequest (bool isOpen)
	When opening/closing request is sent to server.

void	EOnEditorOpen ()
	When the editor is opened.

void	EOnEditorClose ()
	When the editor is closed.

void	EOnEditorPreActivate ()
	Before the component is activated.

bool	EOnEditorActivateAsync (int attempt)
	When the component is activated.

void	EOnEditorPostActivate ()
	When the component is activated, but after EOnEditorActivate() function was called in all components.

bool	EOnEditorDeactivateAsync (int attempt)
	When the component is deactivated.

void	EOnEditorPostDeactivate ()
	When the component is deactivated, but after the next mode is activated.

void	EOnEditorDebug (array< string > debugTexts)
	Every frame while the editor is opened and debug menu is shown.

void	EOnEffect (SCR_BaseEditorEffect effect)
	When an effect is created in reaction an an event.

void	EOnEditorInitServer ()
	When the entity is created (called on server)

void	EOnEditorDeleteServer ()
	When the entity is destroyed (called on server)

void	EOnEditorOpenServer ()
	When the editor is opened (called on server)

void	EOnEditorOpenServerCallback ()
	When the editor is opened (called on server after async loading finished on client)

void	EOnEditorCloseServer ()
	When the editor is closed (called on server)

void	EOnEditorCloseServerCallback ()
	When the editor is closed (called on server after async loading finished on client)

void	EOnEditorActivateServer ()
	When the component is activated (called on server)

void	EOnEditorDeactivateServer ()
	When the component is deactivated (called on server)

Protected Attributes
SCR_BaseEditableEntityFilter	m_HoverManager

SCR_BaseEditableEntityFilter	m_SelectedManager

SCR_MenuLayoutEditorComponent	m_MenuLayoutManager

SCR_EditableEntityComponent	m_HoveredEntity

ref set< SCR_EditableEntityComponent >	m_SelectedEntities = new set<SCR_EditableEntityComponent>()

Protected Attributes inherited from SCR_BaseEditorComponent
SCR_EditorBaseEntity	m_Owner

SCR_EditorManagerEntity	m_Manager

SCR_BaseEditorComponent	m_Parent

RplComponent	m_RplComponent

Additional Inherited Members
Static Public Member Functions inherited from SCR_BaseEditorComponent
static Managed	GetInstance (TypeName type, bool showError=false, bool modeFirst=false)
	Get the local instance of a component attached on editor manager (SCR_EditorManagerEntity).

static Managed	GetInstance (SCR_EditorBaseEntity editorManager, TypeName type, bool showError=false)
	Get instance of a component attached on specific editor manager / mode (SCR_EditorBaseEntity).

static int	GetAllInstances (TypeName type, out notnull array< Managed > outComponents)
	Get component instances on editor manager (SCR_EditorBaseEntity) and all its modes (SCR_EditorModeEntity).

Member Function Documentation

◆ ActionCanBePerformed()

bool SCR_BaseActionsEditorComponent.ActionCanBePerformed	(	SCR_BaseEditorAction	action,
		vector	cursorWorldPosition,
		int	flags
	)

Parameters

[in]	action
[in]	cursorWorldPosition
[in]	flags

Returns

Implemented in SCR_CommandActionsEditorComponent, SCR_ContextActionsEditorComponent, and SCR_ToolbarActionsEditorComponent.

◆ ActionCanBeShown()

bool SCR_BaseActionsEditorComponent.ActionCanBeShown	(	SCR_BaseEditorAction	action,
		vector	cursorWorldPosition,
		int	flags
	)

Parameters

[in]	action
[in]	cursorWorldPosition
[in]	flags

Returns

Implemented in SCR_CommandActionsEditorComponent, SCR_ContextActionsEditorComponent, and SCR_ToolbarActionsEditorComponent.

◆ ActionPerform() [1/2]

void SCR_BaseActionsEditorComponent.ActionPerform	(	SCR_BaseEditorAction	action,
		SCR_EditableEntityComponent	hoveredEntityComponent,
		set< SCR_EditableEntityComponent >	selectedEntityComponents,
		vector	cursorWorldPosition,
		int	flags,
		int	param
	)

protected

◆ ActionPerform() [2/2]

void SCR_BaseActionsEditorComponent.ActionPerform	(	SCR_BaseEditorAction	action,
		vector	cursorWorldPosition,
		int	flags
	)

Perform given action.

Parameters

[in]	action
[in]	cursorWorldPosition
[in]	flags

◆ ActionPerformInstantly()

void SCR_BaseActionsEditorComponent.ActionPerformInstantly	(	SCR_BaseEditorAction	action,
		int	flags = `0`
	)

When action shortcut is activated, check if the action can be performed and if so, perform it.

Parameters

[in]	action	Action to be performed
[in]	flags

◆ ActionPerformInstantlyNoDialog()

void SCR_BaseActionsEditorComponent.ActionPerformInstantlyNoDialog	(	SCR_BaseEditorAction	action,
		vector	cursorWorldPosition,
		int	flags = `0`
	)

protected

◆ ActionPerformLocal()

void SCR_BaseActionsEditorComponent.ActionPerformLocal	(	SCR_BaseEditorAction	action,
		SCR_EditableEntityComponent	hoveredEntityComponent,
		set< SCR_EditableEntityComponent >	selectedEntityComponents,
		vector	cursorWorldPosition,
		int	flags,
		int	param
	)

protected

◆ ActionPerformOwner()

void SCR_BaseActionsEditorComponent.ActionPerformOwner	(	int	actionIndex,
		vector	cursorWorldPosition,
		int	flags,
		int	param
	)

protected

Server callback for when action is executed succesfully, calls PerformOwner function on action for e.g. local effects.

◆ ActionPerformRpc()

void SCR_BaseActionsEditorComponent.ActionPerformRpc	(	SCR_BaseEditorAction	action,
		vector	cursorWorldPosition,
		int	flags,
		int	param = `-1`
	)

protected

◆ ActionPerformServer()

void SCR_BaseActionsEditorComponent.ActionPerformServer	(	int	actionIndex,
		RplId	hoveredEntityID,
		array< RplId >	selectedEntityIds,
		vector	cursorWorldPosition,
		int	flags,
		int	param
	)

protected

Perform given action on server, exclusively called by ActionPerform.

Parameters

[in]	actionIndex	Index of the action in the m_Actions list, same on server and client
[in]	hoveredEntityID	RplID of the hovered entity, -1 if none hovered
[in]	selectedEntityIds	RplIDs of the selected entities, empty array if none selected
[in]	cursorWorldPosition	world position where action was intitiated
[in]	flags	EEditorContextActionFlags / EEditorCommandActionFlags for placing
[in]	param	parameter obtained through SCR_BaseEditorAction.GetParam() on client, use to pass client data/ids to server

◆ EOnEditorActivate()

override void SCR_BaseActionsEditorComponent.EOnEditorActivate ( )

When the component is activated.

When attached on SCR_EditorManagerEntity, this is executed together with EOnEditorOpen()
When attached on SCR_EditorModeEntity, it's executed when the mode is activated

Implements SCR_BaseEditorComponent.

Implemented in SCR_CommandActionsEditorComponent, SCR_ContextActionsEditorComponent, and SCR_ToolbarActionsEditorComponent.

◆ EOnEditorDeactivate()

override void SCR_BaseActionsEditorComponent.EOnEditorDeactivate ( )

When the component is deactivated.

When attached on SCR_EditorManagerEntity, this is executed together with EOnEditorClose()
When attached on SCR_EditorModeEntity, it's executed when the mode is deactivated

Implements SCR_BaseEditorComponent.

Implemented in SCR_CommandActionsEditorComponent, SCR_ContextActionsEditorComponent, and SCR_ToolbarActionsEditorComponent.

◆ EvaluateActions()

void SCR_BaseActionsEditorComponent.EvaluateActions	(	notnull array< SCR_BaseEditorAction >	actions,
		vector	cursorWorldPosition,
		out notnull array< ref SCR_EditorActionData >	filteredActions,
		out int	flags = `0`
	)

Evaluates passed list of actions for the current context.

Parameters

[in]	actions	input array with all actions
[in]	cursorWorldPositioin	world positon used to evaluate actions
[out]	filteredActions	output array containing all available actions for the current context
[out]	flags	Conitions to be cached for faster evaluation in functions

Returns: Amount of available actions

Implemented in SCR_ContextActionsEditorComponent.

◆ GetActions()

int SCR_BaseActionsEditorComponent.GetActions ( out notnull array< SCR_BaseEditorAction > actions )

Gets all actions on the component.

Parameters

[out] actions output array containing all actions on this component

Returns: Amount of total actions

◆ GetAndEvaluateActions()

int SCR_BaseActionsEditorComponent.GetAndEvaluateActions	(	vector	cursorWorldPosition,
		out notnull array< ref SCR_EditorActionData >	filteredActions,
		out int	flags = `0`
	)

Gets and evaluates actions for current context, combination of GetActions and EvaluateActions functions.

Parameters

[in]	cursorWorldPosition	world positon used to evaluate actions
[in]	filteredActions	output array containing all available actions for the current context
[in]	flags	Cached results of common conditions

Returns: Amount of available actions

◆ GetHoveredEntity()

SCR_EditableEntityComponent SCR_BaseActionsEditorComponent.GetHoveredEntity ( )

Returns: Entity under cursor when context menu was opened

◆ GetInstantActionTraceFlags()

TraceFlags SCR_BaseActionsEditorComponent.GetInstantActionTraceFlags ( )

protected

Implemented in SCR_CommandActionsEditorComponent.

◆ ValidateSelection()

int SCR_BaseActionsEditorComponent.ValidateSelection ( bool isInstant )

protected

Evaluate which entities are under cursor and which are selected.

To be overridden by inherited classes.

Parameters

[in] isInstant True if an action is performed right after this evaluation

Returns: Condition flags passed to actions

Implemented in SCR_CommandActionsEditorComponent, and SCR_ContextActionsEditorComponent.

Member Data Documentation

◆ m_HoveredEntity

SCR_EditableEntityComponent SCR_BaseActionsEditorComponent.m_HoveredEntity

protected

◆ m_HoverManager

SCR_BaseEditableEntityFilter SCR_BaseActionsEditorComponent.m_HoverManager

protected

◆ m_MenuLayoutManager

SCR_MenuLayoutEditorComponent SCR_BaseActionsEditorComponent.m_MenuLayoutManager

protected

◆ m_SelectedEntities

ref set<SCR_EditableEntityComponent> SCR_BaseActionsEditorComponent.m_SelectedEntities = new set<SCR_EditableEntityComponent>()

protected

◆ m_SelectedManager

SCR_BaseEditableEntityFilter SCR_BaseActionsEditorComponent.m_SelectedManager

protected

The documentation for this interface was generated from the following file:

Game/Editor/Components/Editor/SCR_BaseActionsEditorComponent.c

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ ActionCanBePerformed()

◆ ActionCanBeShown()

◆ ActionPerform() [1/2]

◆ ActionPerform() [2/2]

◆ ActionPerformInstantly()

◆ ActionPerformInstantlyNoDialog()

◆ ActionPerformLocal()

◆ ActionPerformOwner()

◆ ActionPerformRpc()

◆ ActionPerformServer()

◆ EOnEditorActivate()

◆ EOnEditorDeactivate()

◆ EvaluateActions()

◆ GetActions()

◆ GetAndEvaluateActions()

◆ GetHoveredEntity()

◆ GetInstantActionTraceFlags()

◆ ValidateSelection()

Member Data Documentation

◆ m_HoveredEntity

◆ m_HoverManager

◆ m_MenuLayoutManager

◆ m_SelectedEntities

◆ m_SelectedManager
