SCR_PersistentBarbedWireDamageEffect Interface Reference

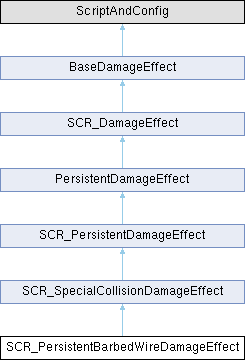

Inheritance diagram for SCR_PersistentBarbedWireDamageEffect:

Public Member Functions
override void	OnEffectAdded (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets added to a DamageManager.
override EDamageType	GetDefaultDamageType ()
SCR_BarbedWireCuttingDamageEffect	GetResultingEffect ()
Public Member Functions inherited from SCR_SpecialCollisionDamageEffect
string	GetDamageSoundEvent ()
override void	OnEffectRemoved (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets removed from a DamageManager.
void	SetResponsibleEntity (notnull IEntity entity)
IEntity	GetResponsibleEntity ()
void	ApplyMobilityLimits (SCR_ExtendedDamageManagerComponent dmgManager)
float	GetMaxSpeedLimitScaled ()
bool	GetJumpingAndClimbingAllowed ()
override bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.
override bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.
Public Member Functions inherited from SCR_PersistentDamageEffect
float	GetCustomDamageValue ()
	Method called locally by SCR_DamageSufferingSystem to get relevant damage amount for this specific damage effect.
bool	ExecuteSynchronizedSoundPlayback (notnull SCR_ExtendedDamageManagerComponent dmgManager)
	Method meant to be called by replicated events to use local data for sound playback.
void	IndividualProcessing (notnull SCR_ExtendedDamageManagerComponent dmgManager)
	Method called locally by SCR_DamageSufferingSystem when UseBatchProcessing() returns false.
bool	UseBatchProcessing ()
	Method called locally by SCR_DamageSufferingSystem to determine if it should group all instances of this damage effect type for processing.
void	BatchData (inout SCR_BatchedDamageEffects batchedDataContainer, notnull SCR_PersistentDamageEffect effect)
	Method called locally by SCR_DamageSufferingSystem to store any neccessary information about effect into a derivative of a SCR_BatchedDamageEffects for further processing.
void	BatchProcessing (notnull SCR_ExtendedDamageManagerComponent dmgManager, notnull SCR_BatchedDamageEffects batchedDataContainer, bool isAuthority)
	Method called locally by SCR_DamageSufferingSystem to do a singular processing for this damage effect type.
Public Member Functions inherited from PersistentDamageEffect
proto external void	Terminate ()
	Terminates this DamageEffect.
proto external void	SetActive (bool value)
	When active, the damage effect will be updated on frame.
proto external bool	IsActive ()
	Checks if this effect is active or not.
bool	SaveApplyEffect (ScriptBitWriter w)
	It is indented to work togeter with SCR_OnEffectApplied to send replicated data to clients.
bool	LoadApplyEffect (ScriptBitReader r)
	It is indented to work togeter with SCR_OnEffectApplied to load replicated data to clients.
Public Member Functions inherited from SCR_DamageEffect
bool	IsProxy (SCR_ExtendedDamageManagerComponent dmgManager)
Public Member Functions inherited from BaseDamageEffect
proto external void	ApplyEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called to apply a DamageEffect.
proto external float	GetTotalDamage ()
	Get total damage dealt until this point by this damage effect.
proto external EDamageType	GetDamageType ()
	Gettor for the DamageType of this DamageEffect.
proto external notnull Instigator	GetInstigator ()
	Gettor for the Instigator of this DamageEffect.
proto external HitZone	GetAffectedHitZone ()
	Gettor for which hitzone this DamageEffect was applied to.
proto external void	SetDamageType (EDamageType type)
	Settor for the DamageType of this DamageEffect.
proto external void	SetInstigator (notnull Instigator instigator)
	Settor for the instigator of the damage effect.
proto external void	SetAffectedHitZone (notnull HitZone hitZone)
	Settor for the affected HitZone of the damage effect.
proto external bool	IsValueChangeAllowed ()
	Once this effect gets added to a manager, some of its values shouldn't change, as their change doesn't get replicated (instigator, damage type, affected hitzone) and it can lead to desync.
proto external bool	IsProxy ()
	Used to check if you are a proxy or not.
bool	HijackDamageEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called before the damage effect is added to the damage manager If it returns true, damage effect is hijacked/intercepted and therefore not added/applied to the damage manager Any modifications done to the damage effect will persist.

Protected Member Functions
override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.
override void	EOnFrame (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
Protected Member Functions inherited from SCR_SpecialCollisionDamageEffect
override void	OnEffectApplied (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets applied on a DamageManager.
void	CopyDataFromSourceEntity (notnull IEntity srcEnt)
	Coppies the necessary informations from the entity which caused this damage effect.
Protected Member Functions inherited from SCR_PersistentDamageEffect
override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

Protected Attributes
float	m_fMaxDamageSpeed
ref Curve	m_cSpeedDamageCurve
ref SCR_BarbedWireCuttingDamageEffect	m_ResultingEffect
Protected Attributes inherited from SCR_SpecialCollisionDamageEffect
SCR_CharacterControllerComponent	m_Controller
IEntity	m_ResponsibleEntity
float	m_fSpecialCollisionMaxSpeedLimitScaled
bool	m_bSpecialCollisionAllowJumpingClimbing
string	m_sOnDamageSoundEvent
int	m_iDamageSoundEvent = 0

Static Protected Attributes
static const float	DAMAGE_APPLY_THRESHOLD = 2

Member Function Documentation

EOnFrame()

override void SCR_PersistentBarbedWireDamageEffect.EOnFrame ( float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager )

protected

Implements PersistentDamageEffect.

GetDefaultDamageType()

override EDamageType SCR_PersistentBarbedWireDamageEffect.GetDefaultDamageType

(

)

Implements SCR_DamageEffect.

GetResultingEffect()

SCR_BarbedWireCuttingDamageEffect SCR_PersistentBarbedWireDamageEffect.GetResultingEffect

(

)

HandleConsequences()

override void SCR_PersistentBarbedWireDamageEffect.HandleConsequences ( SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator )

protected

Called from ApplyEffect.

Implements SCR_SpecialCollisionDamageEffect.

OnEffectAdded()

override void SCR_PersistentBarbedWireDamageEffect.OnEffectAdded

(

SCR_ExtendedDamageManagerComponent

dmgManager

)

Called when this DamageEffect gets added to a DamageManager.

Parameters

SCR_ExtendedDamageManagerComponent

dmgManager: Manager containing this DamageEffect

Implements SCR_SpecialCollisionDamageEffect.

Member Data Documentation

DAMAGE_APPLY_THRESHOLD

const float SCR_PersistentBarbedWireDamageEffect.DAMAGE_APPLY_THRESHOLD = 2

staticprotected

m_cSpeedDamageCurve

ref Curve SCR_PersistentBarbedWireDamageEffect.m_cSpeedDamageCurve

protected

m_fMaxDamageSpeed

float SCR_PersistentBarbedWireDamageEffect.m_fMaxDamageSpeed

protected

m_ResultingEffect

ref SCR_BarbedWireCuttingDamageEffect SCR_PersistentBarbedWireDamageEffect.m_ResultingEffect

protected

---

The documentation for this interface was generated from the following file:

• Game/Damage/DamageEffects/CharacterDamageEffects/SCR_PersistentBarbedWireDamageEffect.c
