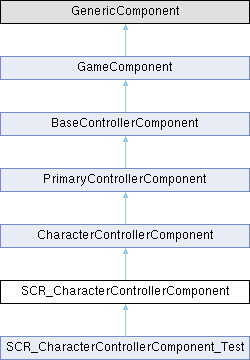

Inheritance diagram for SCR_CharacterControllerComponent:

[legend]

Public Member Functions
bool	CanInteract ()
	Get the interaction status of the character.

override void	OnConsciousnessChanged (bool conscious)
	Will be called when the consciousness of the character changes.

ScriptInvoker	GetOnAnimationEvent ()

override void	OnGadgetStateChanged (IEntity gadget, bool isInHand, bool isOnGround)
	Will be called when gadget taken/removed from hand.

override void	OnGadgetFocusStateChanged (IEntity gadget, bool isFocused)
	Will be called when gadget fully transitioned to or canceled focus mode.

override void	OnItemUseBegan (ItemUseParameters itemUseParams)
	Will be called when item use action is started.

override void	OnItemUseEnded (ItemUseParameters itemUseParams, bool successful)
	Will be called when item use action is complete.

override void	OnMeleeDamage (bool started)
	Handling of melee events. Sends true if melee started, false, when melee ends.

ScriptInvokerVoid	GetOnPlayerDeath ()

OnPlayerDeathWithParamInvoker	GetOnPlayerDeathWithParam ()

override void	OnDeath (IEntity instigatorEntity, notnull Instigator instigator)
	Handling of death. If instigatorEntity is null, you can use instigator.GetInstigatorEntity() if appropiate.

override void	OnLifeStateChanged (ECharacterLifeState previousLifeState, ECharacterLifeState newLifeState)
	Will be called when the life state of the character changes.

override bool	GetCanMeleeAttack ()

override bool	GetCanEquipGadget (IEntity gadget)

override bool	OnPerformAction ()
	Override to handle what happens after pressing F button.

override void	OnInit (IEntity owner)
	Called during EOnInit.

float	GetDrowningTime ()

bool	IsCharacterDrowning ()

override bool	ShouldAligningAdjustAimingAngles ()

bool	IsAligningBeforeLoiter ()

override bool	SCR_GetDisableMovementControls ()

override void	SCR_OnDisabledJumpAction ()

override void	OnPrepareControls (IEntity owner, ActionManager am, float dt, bool player)

void	SCR_CharacterControllerComponent (IEntityComponentSource src, IEntity ent, IEntity parent)

void	~SCR_CharacterControllerComponent ()

void	SetNextSightsFOVInfo (int direction=1, bool allowCycling=false)
	If a weapon with sights is equipped, advances to desired sights FOV info.

void	SetNextSights (int direction=1)
	If a weapon with multiple sights is equipped, switch the next or previous sights on the weapon (if any)

SightsFOVInfo	GetSightsFOVInfo ()

void	ActionNextWeapon (float value=0.0, EActionTrigger trigger=0)
	Alternate between primary weapons.

void	ActionUnequipItem (float value=0.0, EActionTrigger trigger=0)
	Put current item away to inventory/back.

void	ActionDropItem (float value=0.0, EActionTrigger trigger=0)
	Drop current item on ground.

void	ActionWeaponLowReady (float value=0.0, EActionTrigger trigger=0)

void	ActionWeaponRaised (float value=0.0, EActionTrigger trigger=0)

void	ActionWeaponBipod (float value=0.0, EActionTrigger trigger=0)

SCR_ScriptedCharacterInputContext	GetScrInputContext ()

void	StartLoitering (int loiteringType, bool holsterWeapon, bool allowRootMotion, bool alignToPosition, vector targetPosition[4]={ "1 0 0", "0 1 0", "0 0 1", "0 0 0" }, bool disableInput=false, SCR_LoiterCustomAnimData customAnimData=SCR_LoiterCustomAnimData.Default)

void	RPC_StopLoitering_S (bool terminateFast)

void	StopLoitering (bool terminateFast)

bool	IsLoitering ()

Public Member Functions inherited from CharacterControllerComponent
proto external CharacterAimingComponent	GetAimingComponent ()

proto external CharacterHeadAimingComponent	GetHeadAimingComponent ()

proto external CharacterAnimationComponent	GetAnimationComponent ()

proto external BaseWeaponManagerComponent	GetWeaponManagerComponent ()

proto external CameraHandlerComponent	GetCameraHandlerComponent ()

proto external InventoryStorageManagerComponent	GetInventoryStorageManager ()

proto external VoNComponent	GetVONComponent ()

proto external AIControlComponent	GetAIControlComponent ()

proto external EntitySlotInfo	GetRightHandPointInfo ()

proto external EntitySlotInfo	GetLeftHandPointInfo ()

proto external CharacterInputContext	GetInputContext ()

proto external float	GetMovementSpeed ()

proto external void	SetMovement (float movementSpeed, vector movementDirModel)
	Update animation about state of movement, define speed and direction in local space of character.

proto external void	SetHeadingAngle (float newHeadingAngle, bool adjustAimingYaw=false)

proto external ECharacterStance	GetStance ()
	Returns the current stance of the character.

proto external SCR_ChimeraCharacter	GetCharacter ()
	Returns the current controlled character.

proto external void	SetFireWeaponWanted (bool val)
	Set wanted input action values.

proto external void	SetThrow (bool val, bool cancelThrow)
	Set wanted input action values.

proto external void	SetMovementDirWorld (vector movementDirWorld)
	Update simulation state with difference of world position.

proto external vector	GetMovementDirWorld ()

proto external void	SetWeaponRaised (bool val)
	Set the current weapon-raised state.

proto external void	SetWeaponADS (bool val)
	Set the current weapon ADS state.

proto external void	SetFreeLook (bool input, bool mouse, bool controller)

proto external bool	GetFreeLookInput ()

proto external bool	GetFreeLookMouse ()

proto external bool	GetFreeLookController ()

proto external void	SetForcedFreeLook (bool enabled)
	Force character to stay in freelook.

proto external bool	IsFreeLookForced ()

proto external void	ResetPersistentStates (bool resetADSState=true, bool resetGadgetState=true)

proto external void	SetDynamicSpeed (float value)
	Sets dynamic speed of this character.

proto external float	GetDynamicSpeed ()
	Returns dynamic speed value.

proto external void	SetShouldApplyDynamicSpeedOverride (bool shouldApply)

proto external void	SetDynamicStance (float value)
	Sets dynamic stance of this character.

proto external float	GetVehicleRagdollSpeed ()

proto external float	GetVehicleRagdollSpeedMsSq ()

proto external bool	CanSetDynamicStance (float value)
	Returns whether provided dynamic stance can be set for this character.

proto external float	GetDynamicStance ()
	Returns current dynamic stance value.

proto external void	SetInspect (IEntity targetItem)
	Enables or disables inspection mode.

proto external bool	CanInspect (IEntity targetItem)
	Returns whether inspection mode can be set.

proto external bool	GetInspect ()
	Returns whether character is in inspection mode.

proto external bool	GetInspectCurrentWeapon ()
	Returns whether inspected item (if any) is currently equipped weapon or not.

proto external IEntity	GetInspectEntity ()
	Returns entity that is currently inspected or null if none.

proto external void	SetInspectState (int state)
	Sets inspection state if inspection is enabled.

proto external int	GetInspectState ()
	Returns inspection state if inspection is enabled.

proto external bool	GetIsWeaponDeployed ()
	Returns true if weapon is deployed and stabilized.

proto external bool	CanDeployWeapon ()
	Returns true if weapon can be deployed and stabilized.

proto external bool	GetIsWeaponDeployedBipod ()
	Returns true if weapon is deployed and stabilized using a bipod.

proto external IEntity	GetCurrentItemInHands ()

proto external void	SetStanceChange (int stance)
	CharacterStanceChange STANCECHANGE_NONE = 0, STANCECHANGE_TOERECTED = 1, STANCECHANGE_TOCROUCH = 2, STANCECHANGE_TOPRONE = 3.

proto external bool	CanChangeStance (int stance)
	CharacterStanceChange STANCECHANGE_NONE = 0, STANCECHANGE_TOERECTED = 1, STANCECHANGE_TOCROUCH = 2, STANCECHANGE_TOPRONE = 3.

proto external void	ForceStance (int stance)

proto external void	ForceStanceUp (int stance)

proto external void	SetRoll (int val)
	2 - right, 1 - left

proto external bool	IsRoll ()

proto external bool	CanRoll (int val)

proto external bool	ShouldHoldInputForRoll ()

proto external void	EnableHoldInputForRoll (bool enable)

proto external bool	IsPlayerControlled ()

proto external void	SetJump (float val)

proto external void	SetWantedLeaning (float val)

proto external void	SetBanking (float val)

proto external void	SetMeleeAttack (bool val)

proto external float	GetLeaning ()
	Either character wants to lean.

proto external float	GetWantedLeaning ()

proto external bool	IsAdjustingLeaning ()

proto external float	GetCurrentLeanAmount ()
	Returns current amount of leaning applied.

proto external bool	IsLeaning ()

proto external float	GetADSTime ()

proto external bool	IsWeaponRaised ()

proto external EWeaponObstructedState	GetWeaponObstructedState ()

proto external float	GetObstructionAlpha ()

proto external bool	IsClimbing ()

proto external bool	IsSwimming ()

proto external bool	IsSprinting ()

proto external bool	IsChangingStance ()

proto external bool	IsWeaponADS ()

proto external bool	IsChangingFireMode ()

proto external bool	IsPlayingGesture ()

proto external bool	IsFreeLookEnabled ()

proto external bool	IsTrackIREnabled ()

proto external bool	IsFocusMode ()

proto external bool	GetWeaponADSInput ()

proto external bool	IsChangingItem ()

proto external bool	IsFalling ()

proto external bool	IsReloading ()

proto external bool	CanFire ()

proto external bool	IsDead ()

proto external bool	IsUsingItem ()

proto external bool	IsMeleeAttack ()

proto external bool	CanEngageChangeItem ()

proto external bool	SelectWeapon (BaseWeaponComponent newWeapon)
	Set weapon on character with switching animations. If true, the request was successful.

proto external bool	SetMuzzle (int index)

proto external bool	SetFireMode (int index)

proto external void	SetSightsRange (int index)

proto external void	SetWeaponADSInput (bool val)

proto external bool	SetSafety (bool safety, bool automatic)
	Set the safety of the current weapon.

proto external float	GetStamina ()

proto external bool	ReloadWeapon ()
	Request weapon reload. If true, request was sucessful.

proto external bool	ReloadWeaponWith (IEntity ammunitionEntity, bool bForceDetach=false)

proto external ECharacterLifeState	GetLifeState ()

proto external void	SetUnconscious (bool enabled)

proto external bool	IsUnconscious ()

proto external bool	CanReviveCharacter ()

proto external bool	CanEnterUnconsciousness ()

proto external void	EnableReviveCharacter (bool enabled)

proto external void	Ragdoll (bool broadcast=true)
	Dying.

proto external void	ForceDeath ()
	Kills the character. Skips invincibility checks.

proto external void	TakeGadgetInLeftHand (IEntity gadget, int gadgetType, bool autoFocus=false, bool skipAnimations=false)

proto external bool	CanEquipGadget (IEntity gadget)

proto external IEntity	GetAttachedGadgetAtLeftHandSlot ()

proto external bool	TryUseBandage (IEntity bandage, int bodyPart, float duration=4.0, bool bandageSelf=true)
	Try to use bandage on specified body part for a specific duration.

proto external void	RemoveGadgetFromHand (bool skipAnimations=false)
	Remove held gadget.

proto external void	RecoverHiddenGadget (bool respectSettings, bool skipAnims)
	Put held gadget on hold.

proto external bool	IsGadgetInHands ()
	Returns true if there is a gadget in hands.

proto external bool	SetGadgetRaisedModeWanted (bool newRaised)
	Returns true if focus will be changed to requested.

proto external bool	IsGadgetRaisedModeWanted ()
	Returns true if character will be (or is) using gadget in raised mode.

proto external bool	TryEquipRightHandItem (IEntity item, EEquipItemType type, bool swap=false, BaseUserAction callbackAction=null)
	Generic item Equippes an item in right hand, if swap is true then action performed without animations, accepts optional callback that will be triggered when action is completed.

proto external bool	TryRecoverLastRightHandItem (bool swap=false, BaseUserAction callbackAction=null)

proto external IEntity	GetRightHandItem ()
	Returns generic item attached to right hand. Returns null if there's none (or if active item is weapon)

proto external bool	TryUseItem (IEntity item, bool allowMovementDuringAction=false, bool keepInHandAfterSuccessfulAction=false)
	Try to use equipped item.

proto external bool	TryUseItemOverrideParams (notnull ItemUseParameters params)
	Try to use equipped item with custom command and variables.

proto external bool	CanUseItem ()
	Returns true if the character can use an item.

proto external bool	TryStartCharacterGesture (int gesture, int durationMS=0)
	Starts character gesture with specified duration in milliseconds (if duration <= 0, it will be played until StopCharacterGesture is called)

proto external void	StopCharacterGesture ()

proto external bool	TryPlayItemGesture (EItemGesture gesture, BaseUserAction callbackAction=null, string confirmEvent="")
	Try to play the specified gesture.

proto external bool	IsPlayingItemGesture ()
	Returns true if the character is playing a gesture.

proto external bool	CanPlayItemGesture ()
	Returns true if the character can play a gesture.

proto external bool	CanUseLadder (IEntity pLadderOwner, int ladderComponentIndex=0, float maxTestDistance=-1.0, float maxEntryAngle=-1.0, bool performTraceCheck=false)
	Returns true if the character can use provided ladder.

proto external bool	TryUseLadder (IEntity pLadderOwner, int ladderComponentIndex=0, float maxTestDistance=-1.0, float maxEntryAngle=-1.0)
	Start climbing provided ladder.

proto external void	DropWeapon (WeaponSlotComponent weaponSlot)
	Makes character drop weapon from the weapon slot given by parameter.

proto external void	DropItemFromLeftHand ()
	Makes character drop item from left hand.

proto external void	StopDeployment ()

proto external void	RequestActionByID (int actionID, float value)

proto external bool	IsPartiallyLowered ()
	Returns true if the character is partially lowered.

proto external bool	CanPartialLower ()
	Returns true if the character can partially lower (weapon).

proto external void	SetPartialLower (bool state)
	Sets desired partial lower state, if allowed.

proto external vector	GetCameraWeaponOffset ()

proto external bool	GetDisableMovementControls ()

proto external void	SetDisableMovementControls (bool other)

proto external bool	GetDisableViewControls ()

proto external void	SetDisableViewControls (bool other)

proto external bool	GetDisableWeaponControls ()

proto external void	SetDisableWeaponControls (bool other)

proto external vector	GetMovementVelocity ()

proto external vector	GetMovementInput ()

proto external vector	GetVelocity ()

proto external bool	GetIsSprintingToggle ()

proto external float	GetLastStanceChangeDelay ()

proto external int	GetCurrentMovementPhase ()

proto external bool	GetCanFireWeapon ()

proto external bool	GetCanThrow ()

proto external void	SetWeaponNoFireTime (float t)

proto external bool	IsInThirdPersonView ()

proto external void	SetInThirdPersonView (bool state)

proto external float	GetStanceChangeDelayTime ()

proto external float	GetJumpSpeed ()

proto external bool	GetMeleeAttackInput ()

proto external bool	IsFreeLookEnforced ()
	Returns true if freelook is enforced by game logic.

proto external bool	GetPositionInView (vector pos, float angMax)
	Returns whether a position is in the character's view.

proto external void	GetWeaponModifiers (float baseScale, float moveScale, out vector scaleA, out vector scaleB)
	Returns modifiers for weapon sway/recoil based on movement, stance, etc Fills scaleA and scaleB with following modifier values: scaleA.x - modifier scaleX scaleA.y - modifier scaleY scaleB.x - speed scale scaleB.y - translation scale.

proto external CharacterStaminaComponent	GetStaminaComponent ()
	Returns locally cached stamina component or null if none.

proto external bool	IsCharacterStationary ()

void	OnInspectionModeChanged (bool newState)

void	UpdateDrowning (float timeSlice, vector waterLevel)

EHitReactionType	ComputeHitReaction (float damageValue, EDamageType damageType)
	When this character gets hit, this function gets called.

bool	GetCanMeleeAttack ()

bool	GetCanEquipGadget (IEntity gadget)

bool	CanGetOutVehicleScript ()
	Override to handle whether character can get out of vehicle via GetOut input action.

bool	CanJumpOutVehicleScript ()
	Override to handle whether character can eject from vehicle via JumpOut input action.

float	GetInspectTargetLookAt (out vector targetAngles)
	Output target angles vector is used during inspection to adjust look at.

bool	ShouldAligningAdjustAimingAngles ()

bool	ShouldGadgetBeDropped (IEntity gadget)

bool	SCR_GetDisableMovementControls ()

void	SCR_OnDisabledJumpAction ()

bool	SCR_GetDisableViewControls ()

Public Member Functions inherited from BaseControllerComponent
proto external IEntity	GetOwner ()
	Returns the entity owner of the component.

proto external bool	CanMove ()
	Returns state of movement capacity.

proto external void	SetCanMove (bool canMove)
	Changes state of movement capacity. Internally verifies if all necessary conditions are met.

bool	ValidateCanMove ()

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Public Attributes
ref ScriptInvokerVoid	m_OnPlayerDeath = new ScriptInvokerVoid()

ref OnPlayerDeathWithParamInvoker	m_OnPlayerDeathWithParam = new OnPlayerDeathWithParamInvoker()

ref OnLifeStateChangedInvoker	m_OnLifeStateChanged = new OnLifeStateChangedInvoker()

ref OnControlledByPlayerInvoker	m_OnControlledByPlayer = new OnControlledByPlayerInvoker()

ref ScriptInvokerFloat2< float >	m_OnPlayerDrowning = new ScriptInvokerFloat2()

ref ScriptInvokerVoid	m_OnPlayerStopDrowning = new ScriptInvokerVoid()

ref ScriptInvoker< IEntity, bool, bool >	m_OnGadgetStateChangedInvoker = new ScriptInvoker<IEntity, bool, bool>()

ref ScriptInvoker< IEntity, bool >	m_OnGadgetFocusStateChangedInvoker = new ScriptInvoker<IEntity, bool>()

ref OnItemUseBeganInvoker	m_OnItemUseBeganInvoker = new OnItemUseBeganInvoker()

ref OnItemUseEndedInvoker	m_OnItemUseEndedInvoker = new OnItemUseEndedInvoker()

ref OnItemUseFinishedInvoker	m_OnItemUseFinishedInvoker = new OnItemUseFinishedInvoker()

Protected Member Functions
override void	OnAnimationEvent (AnimationEventID animEventType, AnimationEventID animUserString, int intParam, float timeFromStart, float timeToEnd)

override EHitReactionType	ComputeHitReaction (float damageValue, EDamageType damageType)
	When this character gets hit, this function gets called.

override void	OnApplyControls (IEntity owner, float timeSlice)

override void	UpdateDrowning (float timeSlice, vector waterLevel)

override void	OnControlledByPlayer (IEntity owner, bool controlled)
	Called when a player has been assigned to this controller.

override void	OnInspectionModeChanged (bool newState)

override float	GetInspectTargetLookAt (out vector targetAngles)
	Output target angles vector is used during inspection to adjust look at.

bool	AlignToPositionFromCurrentPosition (vector targetPosition[4], float toleranceXZ=0.01, float toleranceY=0.01)

void	Rpc_StartLoitering_S (int loiteringType, bool holsterWeapon, bool allowRootMotion, bool alignToPosition, vector targetPosition[4], SCR_LoiterCustomAnimData customAnimData)

void	Rpc_StartLoitering_BCNO (int loiteringType, bool holsterWeapon, bool allowRootMotion, bool alignToPosition, vector targetPosition[4], SCR_LoiterCustomAnimData customAnimData)

bool	TryStartLoiteringInternal ()

Protected Member Functions inherited from CharacterControllerComponent
void	OnInit (IEntity owner)
	Called during EOnInit.

void	OnDiag (IEntity owner, float timeslice)
	Called during EOnDiag.

void	OnReloaded (IEntity owner, BaseWeaponComponent weapon)

void	OnPrepareControls (IEntity owner, ActionManager am, float dt, bool player)

void	OnApplyControls (IEntity owner, float timeSlice)

void	OnMeleeDamage (bool started)
	Handling of melee events. Sends true if melee started, false, when melee ends.

bool	OnPerformAction ()
	Override to handle what happens after pressing F button, return false to use default cpp behavior.

void	OnLifeStateChanged (ECharacterLifeState previousLifeState, ECharacterLifeState newLifeState)
	Will be called when the life state of the character changes.

void	OnConsciousnessChanged (bool conscious)
	Will be called when the consciousness of the character changes.

void	OnDeath (IEntity instigatorEntity, notnull Instigator instigator)
	Handling of death. If instigatorEntity is null, you can use instigator.GetInstigatorEntity() if appropiate.

void	OnGadgetStateChanged (IEntity gadget, bool isInHand, bool isOnGround)
	Will be called when gadget taken/removed from hand.

void	OnGadgetFocusStateChanged (IEntity gadget, bool isFocused)
	Will be called when gadget fully transitioned to or canceled focus mode.

void	OnItemUseBegan (ItemUseParameters itemUseParams)
	Will be called when item use action is started.

void	OnItemUseEnded (ItemUseParameters itemUseParams, bool successful)
	Will be called when item use action is complete.

void	OnAnimationEvent (AnimationEventID animEventType, AnimationEventID animUserString, int intParam, float timeFromStart, float timeToEnd)

void	OnWeaponDropped (IEntity pWeaponEntity, WeaponSlotComponent pWeaponSlot)
	Runs after a weapon is dropped from hands. Returns dropped weapon entity and slot that the weapon was dropped from.

void	OnItemDroppedFromLeftHand (IEntity pItemEntity)
	Runs after the left hand item is dropped. Returns dropped item entity.

void	OnControlledByPlayer (IEntity owner, bool controlled)
	Called when a player has been assigned to this controller.

Protected Attributes
float	m_fDrowningDuration

float	m_fAnimatedHitReactionThreshold

SCR_CharacterCameraHandlerComponent	m_CameraHandler

SCR_MeleeComponent	m_MeleeComponent

bool	m_bOverrideActions = true

bool	m_bInspectionFocus

bool	m_bCharacterIsDrowning

float	m_fDrowningTime

ref SCR_ScriptedCharacterInputContext	m_pScrInputContext

ref ScriptInvoker< AnimationEventID, AnimationEventID, int, float, float >	m_OnAnimationEvent

int	m_iTargetContext

Static Protected Attributes
static ref array< EDamageType >	s_aHitReactionDamageTypes

Additional Inherited Members
Static Public Member Functions inherited from CharacterControllerComponent
static proto void	SetAimingSensitivity (float mouse, float gamepad, float ads)

static proto void	GetAimingSensitivity (out float mouse, out float gamepad, out float ads)

static proto void	SetFOVInputCurve (float mouse, float gamepad, float gyro)

static proto void	GetFOVInputCurve (out float mouse, out float gamepad, out float gyro)

static proto void	SetGyroSensitivity (float yaw, float pitch, float roll)

static proto void	GetGyroSensitivity (out float yaw, out float pitch, out float roll)

static proto void	SetGyroControl (bool always, bool freelook, bool ads)

static proto void	GetGyroControl (out bool always, out bool freelook, out bool ads)

static proto void	SetStickyGadget (bool enable)

static proto void	SetStickyADS (bool enable)

static proto void	SetGamepadControlAircraft (bool enable)

static proto bool	GetGamepadControlAircraft ()

static proto void	SetMouseControlAircraft (bool enable)

static proto bool	GetMouseControlAircraft ()

static proto void	SetTrackIRFreelookEnable (bool enable)

static proto bool	GetTrackIRFreelookEnable ()

static proto void	SetTrackIRLeaningEnable (bool enable)

static proto bool	GetTrackIRLeaningEnable ()

static proto void	SetTrackIRFreelookSensitivity (float sensitivity)

static proto float	GetTrackIRFreelookSensitivity ()

static proto void	SetTrackIRLeaningSensitivity (float sensitivity)

static proto float	GetTrackIRLeaningSensitivity ()

static proto void	SetTrackIRLeaningDeadzone (float deadzone)

static proto float	GetTrackIRLeaningDeadzone ()

static proto void	SetTrackIRLeaningActiveYawRange (float range)

static proto float	GetTrackIRLeaningActiveYawRange ()

Constructor & Destructor Documentation

◆ SCR_CharacterControllerComponent()

void SCR_CharacterControllerComponent.SCR_CharacterControllerComponent	(	IEntityComponentSource	src,
		IEntity	ent,
		IEntity	parent
	)

Parameters

[in]	src
[in]	ent
[in]	parent

◆ ~SCR_CharacterControllerComponent()

void SCR_CharacterControllerComponent.~SCR_CharacterControllerComponent ( )

Member Function Documentation

◆ ActionDropItem()

void SCR_CharacterControllerComponent.ActionDropItem	(	float	value = `0::0`,
		EActionTrigger	trigger = `0`
	)

Drop current item on ground.

Parameters

[in]	value
[in]	trigger

◆ ActionNextWeapon()

void SCR_CharacterControllerComponent.ActionNextWeapon	(	float	value = `0::0`,
		EActionTrigger	trigger = `0`
	)

Alternate between primary weapons.

Parameters

[in]	value
[in]	trigger

◆ ActionUnequipItem()

void SCR_CharacterControllerComponent.ActionUnequipItem	(	float	value = `0::0`,
		EActionTrigger	trigger = `0`
	)

Put current item away to inventory/back.

Parameters

[in]	value
[in]	trigger

◆ ActionWeaponBipod()

void SCR_CharacterControllerComponent.ActionWeaponBipod	(	float	value = `0::0`,
		EActionTrigger	trigger = `0`
	)

Parameters

[in]	value
[in]	trigger

◆ ActionWeaponLowReady()

void SCR_CharacterControllerComponent.ActionWeaponLowReady	(	float	value = `0::0`,
		EActionTrigger	trigger = `0`
	)

Parameters

[in]	value
[in]	trigger

◆ ActionWeaponRaised()

void SCR_CharacterControllerComponent.ActionWeaponRaised	(	float	value = `0::0`,
		EActionTrigger	trigger = `0`
	)

Parameters

[in]	value
[in]	trigger

◆ AlignToPositionFromCurrentPosition()

bool SCR_CharacterControllerComponent.AlignToPositionFromCurrentPosition	(	vector	targetPosition[4],
		float	toleranceXZ = `0::01`,
		float	toleranceY = `0::01`
	)

protected

◆ CanInteract()

bool SCR_CharacterControllerComponent.CanInteract ( )

Get the interaction status of the character.

Returns: true if the character is alive ad not using items or vehicles not on a ladder, not aiming down sights, not in 3rd person in a vehicle, not already using an item nor weapon-deployed

◆ ComputeHitReaction()

override EHitReactionType SCR_CharacterControllerComponent.ComputeHitReaction	(	float	damageValue,
		EDamageType	damageType
	)

protected

When this character gets hit, this function gets called.

float damageValue: Raw damage of the hit (no damage multipliers have been applied). Can be negative for "healing" damage. EDamageType damageType: return EHitReactionType: Type of hit reaction that should be played for this impact.

Implements CharacterControllerComponent.

◆ GetCanEquipGadget()

override bool SCR_CharacterControllerComponent.GetCanEquipGadget ( IEntity gadget )

Implements CharacterControllerComponent.

◆ GetCanMeleeAttack()

override bool SCR_CharacterControllerComponent.GetCanMeleeAttack ( )

check presence of MeleeWeaponProperties component to ensure it is an Melee weapon or not

Implements CharacterControllerComponent.

◆ GetDrowningTime()

float SCR_CharacterControllerComponent.GetDrowningTime ( )

Returns

◆ GetInspectTargetLookAt()

override float SCR_CharacterControllerComponent.GetInspectTargetLookAt ( out vector targetAngles )

protected

Output target angles vector is used during inspection to adjust look at.

Returned value is speed at which the look angles are adjusted, or 0 if no adjustment is to be made.

Implements CharacterControllerComponent.

◆ GetOnAnimationEvent()

ScriptInvoker SCR_CharacterControllerComponent.GetOnAnimationEvent ( )

Returns: a script invoker with method signature (AnimationEventID animEventType, AnimationEventID animUserString, int intParam, float timeFromStart, float timeToEnd)

◆ GetOnPlayerDeath()

ScriptInvokerVoid SCR_CharacterControllerComponent.GetOnPlayerDeath ( )

Returns

◆ GetOnPlayerDeathWithParam()

OnPlayerDeathWithParamInvoker SCR_CharacterControllerComponent.GetOnPlayerDeathWithParam ( )

Returns

◆ GetScrInputContext()

SCR_ScriptedCharacterInputContext SCR_CharacterControllerComponent.GetScrInputContext ( )

Returns

◆ GetSightsFOVInfo()

SightsFOVInfo SCR_CharacterControllerComponent.GetSightsFOVInfo ( )

Returns: currently used SightsFOVInfo if any, null otherwise.

◆ IsAligningBeforeLoiter()

bool SCR_CharacterControllerComponent.IsAligningBeforeLoiter ( )

Returns

◆ IsCharacterDrowning()

bool SCR_CharacterControllerComponent.IsCharacterDrowning ( )

Returns

◆ IsLoitering()

bool SCR_CharacterControllerComponent.IsLoitering ( )

◆ OnAnimationEvent()

override void SCR_CharacterControllerComponent.OnAnimationEvent	(	AnimationEventID	animEventType,
		AnimationEventID	animUserString,
		int	intParam,
		float	timeFromStart,
		float	timeToEnd
	)

protected

Implements CharacterControllerComponent.

◆ OnApplyControls()

override void SCR_CharacterControllerComponent.OnApplyControls	(	IEntity	owner,
		float	timeSlice
	)

protected

Implements CharacterControllerComponent.

◆ OnConsciousnessChanged()

override void SCR_CharacterControllerComponent.OnConsciousnessChanged ( bool conscious )

Will be called when the consciousness of the character changes.

Implements CharacterControllerComponent.

◆ OnControlledByPlayer()

override void SCR_CharacterControllerComponent.OnControlledByPlayer	(	IEntity	owner,
		bool	controlled
	)

protected

Called when a player has been assigned to this controller.

Implements CharacterControllerComponent.

◆ OnDeath()

override void SCR_CharacterControllerComponent.OnDeath	(	IEntity	instigatorEntity,
		notnull Instigator	instigator
	)

Handling of death. If instigatorEntity is null, you can use instigator.GetInstigatorEntity() if appropiate.

Implements CharacterControllerComponent.

◆ OnGadgetFocusStateChanged()

override void SCR_CharacterControllerComponent.OnGadgetFocusStateChanged	(	IEntity	gadget,
		bool	isFocused
	)

Will be called when gadget fully transitioned to or canceled focus mode.

Implements CharacterControllerComponent.

◆ OnGadgetStateChanged()

override void SCR_CharacterControllerComponent.OnGadgetStateChanged	(	IEntity	gadget,
		bool	isInHand,
		bool	isOnGround
	)

Will be called when gadget taken/removed from hand.

Implements CharacterControllerComponent.

◆ OnInit()

override void SCR_CharacterControllerComponent.OnInit ( IEntity owner )

Called during EOnInit.

Parameters

owner Entity this component is attached to.

Implements CharacterControllerComponent.

◆ OnInspectionModeChanged()

override void SCR_CharacterControllerComponent.OnInspectionModeChanged ( bool newState )

protected

Implements CharacterControllerComponent.

◆ OnItemUseBegan()

override void SCR_CharacterControllerComponent.OnItemUseBegan ( ItemUseParameters itemUseParams )

Will be called when item use action is started.

Implements CharacterControllerComponent.

◆ OnItemUseEnded()

override void SCR_CharacterControllerComponent.OnItemUseEnded	(	ItemUseParameters	itemUseParams,
		bool	successful
	)

Will be called when item use action is complete.

Implements CharacterControllerComponent.

◆ OnLifeStateChanged()

override void SCR_CharacterControllerComponent.OnLifeStateChanged	(	ECharacterLifeState	previousLifeState,
		ECharacterLifeState	newLifeState
	)

Will be called when the life state of the character changes.

Implements CharacterControllerComponent.

◆ OnMeleeDamage()

override void SCR_CharacterControllerComponent.OnMeleeDamage ( bool started )

Handling of melee events. Sends true if melee started, false, when melee ends.

Implements CharacterControllerComponent.

◆ OnPerformAction()

override bool SCR_CharacterControllerComponent.OnPerformAction ( )

Override to handle what happens after pressing F button.

Returns: true to override default behaviour, false to use default behaviour - Perform Action key will immediately perform the action

Implements CharacterControllerComponent.

◆ OnPrepareControls()

override void SCR_CharacterControllerComponent.OnPrepareControls	(	IEntity	owner,
		ActionManager	am,
		float	dt,
		bool	player
	)

Implements CharacterControllerComponent.

Implemented in SCR_CharacterControllerComponent_Test.

◆ Rpc_StartLoitering_BCNO()

void SCR_CharacterControllerComponent.Rpc_StartLoitering_BCNO	(	int	loiteringType,
		bool	holsterWeapon,
		bool	allowRootMotion,
		bool	alignToPosition,
		vector	targetPosition[4],
		SCR_LoiterCustomAnimData	customAnimData
	)

protected

◆ Rpc_StartLoitering_S()

void SCR_CharacterControllerComponent.Rpc_StartLoitering_S	(	int	loiteringType,
		bool	holsterWeapon,
		bool	allowRootMotion,
		bool	alignToPosition,
		vector	targetPosition[4],
		SCR_LoiterCustomAnimData	customAnimData
	)

protected

◆ RPC_StopLoitering_S()

void SCR_CharacterControllerComponent.RPC_StopLoitering_S ( bool terminateFast )

Parameters

[in] terminateFast should be true when going into alerted or combat state.

◆ SCR_GetDisableMovementControls()

override bool SCR_CharacterControllerComponent.SCR_GetDisableMovementControls ( )

Implements CharacterControllerComponent.

◆ SCR_OnDisabledJumpAction()

override void SCR_CharacterControllerComponent.SCR_OnDisabledJumpAction ( )

Implements CharacterControllerComponent.

◆ SetNextSights()

void SCR_CharacterControllerComponent.SetNextSights ( int direction = 1 )

If a weapon with multiple sights is equipped, switch the next or previous sights on the weapon (if any)

Parameters

[in] direction If above zero, advances to next sights. If equal to or below zero, advances to previous sights.

◆ SetNextSightsFOVInfo()

void SCR_CharacterControllerComponent.SetNextSightsFOVInfo	(	int	direction = `1`,
		bool	allowCycling = `false`
	)

If a weapon with sights is equipped, advances to desired sights FOV info.

Parameters

[in]	direction	If above zero, advances to next info. If equal to or below zero, advances to previous info.
[in]	allowCycling	If enabled, selection will cycle from end to start and from start to end, otherwise it will be clamped.

◆ ShouldAligningAdjustAimingAngles()

override bool SCR_CharacterControllerComponent.ShouldAligningAdjustAimingAngles ( )

Implements CharacterControllerComponent.

◆ StartLoitering()

void SCR_CharacterControllerComponent.StartLoitering	(	int	loiteringType,
		bool	holsterWeapon,
		bool	allowRootMotion,
		bool	alignToPosition,
		vector	targetPosition[4] = `{ "1 0 0", "0 1 0", "0 0 1", "0 0 0" }`,
		bool	disableInput = `false`,
		SCR_LoiterCustomAnimData	customAnimData = `SCR_LoiterCustomAnimData::Default`
	)

Parameters

[in]	loiteringType
[in]	holsterWeapon
[in]	allowRootMotion
[in]	alignToPosition
[in]	targetPosition
[in]	disableInput	- If true, player cannot interrupt the loiter by pressing space. It is the responsibility of the caller to ensure that the action will be finished. If false, action can be cancelled by player input.
[in]	customAnimData	- data for playing custom animation in graph attachment

◆ StopLoitering()

void SCR_CharacterControllerComponent.StopLoitering ( bool terminateFast )

Parameters

[in] terminateFast

◆ TryStartLoiteringInternal()

bool SCR_CharacterControllerComponent.TryStartLoiteringInternal ( )

protected

◆ UpdateDrowning()

override void SCR_CharacterControllerComponent.UpdateDrowning	(	float	timeSlice,
		vector	waterLevel
	)

protected

Implements CharacterControllerComponent.

Member Data Documentation

◆ m_bCharacterIsDrowning

bool SCR_CharacterControllerComponent.m_bCharacterIsDrowning

protected

◆ m_bInspectionFocus

bool SCR_CharacterControllerComponent.m_bInspectionFocus

protected

◆ m_bOverrideActions

bool SCR_CharacterControllerComponent.m_bOverrideActions = true

protected

◆ m_CameraHandler

SCR_CharacterCameraHandlerComponent SCR_CharacterControllerComponent.m_CameraHandler

protected

◆ m_fAnimatedHitReactionThreshold

float SCR_CharacterControllerComponent.m_fAnimatedHitReactionThreshold

protected

◆ m_fDrowningDuration

float SCR_CharacterControllerComponent.m_fDrowningDuration

protected

◆ m_fDrowningTime

float SCR_CharacterControllerComponent.m_fDrowningTime

protected

◆ m_iTargetContext

int SCR_CharacterControllerComponent.m_iTargetContext

protected

◆ m_MeleeComponent

SCR_MeleeComponent SCR_CharacterControllerComponent.m_MeleeComponent

protected

◆ m_OnAnimationEvent

ref ScriptInvoker<AnimationEventID, AnimationEventID, int, float, float> SCR_CharacterControllerComponent.m_OnAnimationEvent

protected

◆ m_OnControlledByPlayer

ref OnControlledByPlayerInvoker SCR_CharacterControllerComponent.m_OnControlledByPlayer = new OnControlledByPlayerInvoker()

◆ m_OnGadgetFocusStateChangedInvoker

ref ScriptInvoker<IEntity, bool> SCR_CharacterControllerComponent.m_OnGadgetFocusStateChangedInvoker = new ScriptInvoker<IEntity, bool>()

◆ m_OnGadgetStateChangedInvoker

ref ScriptInvoker<IEntity, bool, bool> SCR_CharacterControllerComponent.m_OnGadgetStateChangedInvoker = new ScriptInvoker<IEntity, bool, bool>()

◆ m_OnItemUseBeganInvoker

ref OnItemUseBeganInvoker SCR_CharacterControllerComponent.m_OnItemUseBeganInvoker = new OnItemUseBeganInvoker()

◆ m_OnItemUseEndedInvoker

ref OnItemUseEndedInvoker SCR_CharacterControllerComponent.m_OnItemUseEndedInvoker = new OnItemUseEndedInvoker()

◆ m_OnItemUseFinishedInvoker

ref OnItemUseFinishedInvoker SCR_CharacterControllerComponent.m_OnItemUseFinishedInvoker = new OnItemUseFinishedInvoker()

◆ m_OnLifeStateChanged

ref OnLifeStateChangedInvoker SCR_CharacterControllerComponent.m_OnLifeStateChanged = new OnLifeStateChangedInvoker()

◆ m_OnPlayerDeath

ref ScriptInvokerVoid SCR_CharacterControllerComponent.m_OnPlayerDeath = new ScriptInvokerVoid()

◆ m_OnPlayerDeathWithParam

ref OnPlayerDeathWithParamInvoker SCR_CharacterControllerComponent.m_OnPlayerDeathWithParam = new OnPlayerDeathWithParamInvoker()

◆ m_OnPlayerDrowning

ref ScriptInvokerFloat2<float> SCR_CharacterControllerComponent.m_OnPlayerDrowning = new ScriptInvokerFloat2()

◆ m_OnPlayerStopDrowning

ref ScriptInvokerVoid SCR_CharacterControllerComponent.m_OnPlayerStopDrowning = new ScriptInvokerVoid()

◆ m_pScrInputContext

ref SCR_ScriptedCharacterInputContext SCR_CharacterControllerComponent.m_pScrInputContext

protected

◆ s_aHitReactionDamageTypes

ref array<EDamageType> SCR_CharacterControllerComponent.s_aHitReactionDamageTypes

staticprotected

Initial value:

= {
        EDamageType.COLLISION,
        EDamageType.MELEE,
        EDamageType.KINETIC,
        EDamageType.FRAGMENTATION,
        EDamageType.EXPLOSIVE
    }

The documentation for this interface was generated from the following file:

Game/Character/SCR_CharacterControllerComponent.c

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ SCR_CharacterControllerComponent()

◆ ~SCR_CharacterControllerComponent()

Member Function Documentation

◆ ActionDropItem()

◆ ActionNextWeapon()

◆ ActionUnequipItem()

◆ ActionWeaponBipod()

◆ ActionWeaponLowReady()

◆ ActionWeaponRaised()

◆ AlignToPositionFromCurrentPosition()

◆ CanInteract()

◆ ComputeHitReaction()

◆ GetCanEquipGadget()

◆ GetCanMeleeAttack()

◆ GetDrowningTime()

◆ GetInspectTargetLookAt()

◆ GetOnAnimationEvent()

◆ GetOnPlayerDeath()

◆ GetOnPlayerDeathWithParam()

◆ GetScrInputContext()

◆ GetSightsFOVInfo()

◆ IsAligningBeforeLoiter()

◆ IsCharacterDrowning()

◆ IsLoitering()

◆ OnAnimationEvent()

◆ OnApplyControls()

◆ OnConsciousnessChanged()

◆ OnControlledByPlayer()

◆ OnDeath()

◆ OnGadgetFocusStateChanged()

◆ OnGadgetStateChanged()

◆ OnInit()

◆ OnInspectionModeChanged()

◆ OnItemUseBegan()

◆ OnItemUseEnded()

◆ OnLifeStateChanged()

◆ OnMeleeDamage()

◆ OnPerformAction()

◆ OnPrepareControls()

◆ Rpc_StartLoitering_BCNO()

◆ Rpc_StartLoitering_S()

◆ RPC_StopLoitering_S()

◆ SCR_GetDisableMovementControls()

◆ SCR_OnDisabledJumpAction()

◆ SetNextSights()

◆ SetNextSightsFOVInfo()

◆ ShouldAligningAdjustAimingAngles()

◆ StartLoitering()

◆ StopLoitering()

◆ TryStartLoiteringInternal()

◆ UpdateDrowning()

Member Data Documentation

◆ m_bCharacterIsDrowning

◆ m_bInspectionFocus

◆ m_bOverrideActions

◆ m_CameraHandler

◆ m_fAnimatedHitReactionThreshold

◆ m_fDrowningDuration

◆ m_fDrowningTime

◆ m_iTargetContext

◆ m_MeleeComponent

◆ m_OnAnimationEvent

◆ m_OnControlledByPlayer

◆ m_OnGadgetFocusStateChangedInvoker

◆ m_OnGadgetStateChangedInvoker

◆ m_OnItemUseBeganInvoker

◆ m_OnItemUseEndedInvoker

◆ m_OnItemUseFinishedInvoker

◆ m_OnLifeStateChanged

◆ m_OnPlayerDeath

◆ m_OnPlayerDeathWithParam

◆ m_OnPlayerDrowning

◆ m_OnPlayerStopDrowning
