SCR_SlotServiceComponent Interface Reference

Service with basic slot handling functionalities. More...

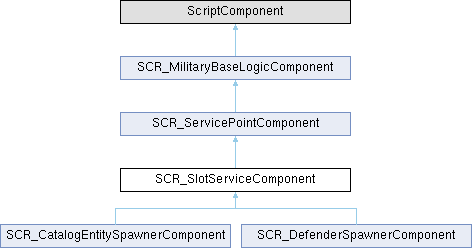

Inheritance diagram for SCR_SlotServiceComponent:

Public Member Functions
void	RegisterSlot (SCR_EntitySpawnerSlotComponent slot)
	Register slot to be used for service.
Public Member Functions inherited from SCR_ServicePointComponent
Faction	GetFaction ()
ResourceName	GetDelegatePrefab ()
ScriptInvoker< SCR_ServicePointComponent, SCR_MilitaryBaseComponent >	GetOnBaseRegistered ()
ScriptInvoker< SCR_ServicePointComponent, SCR_MilitaryBaseComponent >	GetOnBaseUnregistered ()
ScriptInvoker	GetOnServiceStateChanged ()
SCR_EServicePointType	GetType ()
EEditableEntityLabel	GetLabel ()
SCR_EServicePointStatus	GetServiceState ()
void	SetServiceState (SCR_EServicePointStatus state)
	Set the current operational state of the service.
void	ServiceStateChanged ()
	Called from RplProp event.
void	SetDelegate (notnull SCR_ServicePointDelegateComponent delegate)
override void	OnBaseRegistered (notnull SCR_MilitaryBaseComponent base)
override void	OnBaseUnregistered (notnull SCR_MilitaryBaseComponent base)
void	RegisterService ()
void	SetServiceOnline ()
	Switch service to online status.
override void	OnPostInit (IEntity owner)
override void	OnDelete (IEntity owner)
Public Member Functions inherited from SCR_MilitaryBaseLogicComponent
void	RegisterBase (notnull SCR_MilitaryBaseComponent base)
void	OnBaseRegistered (notnull SCR_MilitaryBaseComponent base)
void	UnregisterBase (notnull SCR_MilitaryBaseComponent base)
void	OnBaseUnregistered (notnull SCR_MilitaryBaseComponent base)
int	GetBases (out array< SCR_MilitaryBaseComponent > bases)
void	OnBaseFactionChanged (Faction faction)
override void	EOnInit (IEntity owner)
override void	OnPostInit (IEntity owner)
void	~SCR_MilitaryBaseLogicComponent ()

Protected Member Functions
bool	CanBeSlotRegistered (notnull SCR_EntitySpawnerSlotComponent slot)
	Prevents registration of slots that are too far from service, or are already child of another slot service.
bool	SlotSearchCallback (IEntity ent)
	Callback function for Query used in RegisterNearbySlots Should callback return true, QueryEntitiesBySphere will continue with query.
void	RegisterNearbySlots ()
	Registers slots in near distance. Kept for sake of client checks. Skips slots that are in hiearchy of any entity with SCR_SlotService or classes inherited from it.
void	RegisterChildSlots ()
	Registers slots initially created as children. There slots cannot be used by any other spawner and shouldn't change in runtime.
void	OnSlotUpdate (SCR_EntitySpawnerSlotComponent slot, vector position)
	Called, if slot possition was changed. If it fails to meet previously required criteria in CanBeSlotRegistered, slot wont be used anymore.
void	OnSlotRemoved (SCR_EntitySpawnerSlotComponent slot)
	Called, if slot possition was changed. If it fails to meet previously required criteria in CanBeSlotRegistered, slot wont be used anymore.
override void	EOnInit (IEntity owner)
Protected Member Functions inherited from SCR_ServicePointComponent
void	OnFactionChanged (FactionAffiliationComponent owner, Faction previousFaction, Faction faction)

Protected Attributes
SCR_SpawnerSlotManager	m_SlotManager
ref array< SCR_EntitySpawnerSlotComponent >	m_aChildSlots = {}
ref array< SCR_EntitySpawnerSlotComponent >	m_aNearSlots = {}
Protected Attributes inherited from SCR_ServicePointComponent
SCR_EServicePointType	m_eType
EEditableEntityLabel	m_eBuildingLabel
ResourceName	m_sDelegatePrefab
SCR_EServicePointStatus	m_eServiceState = SCR_EServicePointStatus.OFFLINE
SCR_FactionAffiliationComponent	m_FactionControl
ref ScriptInvoker< SCR_ServicePointComponent, SCR_MilitaryBaseComponent >	m_OnBaseRegistered
ref ScriptInvoker< SCR_ServicePointComponent, SCR_MilitaryBaseComponent >	m_OnBaseUnregistered
ref ScriptInvoker	m_OnServiceStateChanged
SCR_ServicePointDelegateComponent	m_Delegate
Protected Attributes inherited from SCR_MilitaryBaseLogicComponent
ref array< SCR_MilitaryBaseComponent >	m_aBases = {}

Additional Inherited Members
Static Public Member Functions inherited from SCR_ServicePointComponent
static void	SpawnAsOffline (bool val)
	The service will not be registered on init. For an example for Free Roam building - the registration will happen once the service is fully build.
Static Protected Attributes inherited from SCR_ServicePointComponent
static bool	s_bSpawnAsOffline

Detailed Description

Service with basic slot handling functionalities.

Member Function Documentation

CanBeSlotRegistered()

bool SCR_SlotServiceComponent.CanBeSlotRegistered ( notnull SCR_EntitySpawnerSlotComponent  slot )

protected

Prevents registration of slots that are too far from service, or are already child of another slot service.

Parameters

[in]

slot

Returns

EOnInit()

override void SCR_SlotServiceComponent.EOnInit ( IEntity  owner )

protected

Implements SCR_MilitaryBaseLogicComponent.

Implemented in SCR_CatalogEntitySpawnerComponent, and SCR_DefenderSpawnerComponent.

OnSlotRemoved()

void SCR_SlotServiceComponent.OnSlotRemoved ( SCR_EntitySpawnerSlotComponent  slot )

protected

Called, if slot possition was changed. If it fails to meet previously required criteria in CanBeSlotRegistered, slot wont be used anymore.

OnSlotUpdate()

void SCR_SlotServiceComponent.OnSlotUpdate ( SCR_EntitySpawnerSlotComponent  slot, vector  position  )

protected

Called, if slot possition was changed. If it fails to meet previously required criteria in CanBeSlotRegistered, slot wont be used anymore.

RegisterChildSlots()

void SCR_SlotServiceComponent.RegisterChildSlots ( )

protected

Registers slots initially created as children. There slots cannot be used by any other spawner and shouldn't change in runtime.

RegisterNearbySlots()

void SCR_SlotServiceComponent.RegisterNearbySlots ( )

protected

Registers slots in near distance. Kept for sake of client checks. Skips slots that are in hiearchy of any entity with SCR_SlotService or classes inherited from it.

RegisterSlot()

void SCR_SlotServiceComponent.RegisterSlot

(

SCR_EntitySpawnerSlotComponent

slot

)

Register slot to be used for service.

Slots that do not meet conditions in CanBeSlotRegistered are ignored, so are already known slots.

Parameters

[in]

slot

Slot to be registered

SlotSearchCallback()

bool SCR_SlotServiceComponent.SlotSearchCallback ( IEntity  ent )

protected

Callback function for Query used in RegisterNearbySlots Should callback return true, QueryEntitiesBySphere will continue with query.

If false, it will stop.

Member Data Documentation

m_aChildSlots

ref array<SCR_EntitySpawnerSlotComponent> SCR_SlotServiceComponent.m_aChildSlots = {}

protected

m_aNearSlots

ref array<SCR_EntitySpawnerSlotComponent> SCR_SlotServiceComponent.m_aNearSlots = {}

protected

m_SlotManager

SCR_SpawnerSlotManager SCR_SlotServiceComponent.m_SlotManager

protected

---

The documentation for this interface was generated from the following file:

• Game/Components/Spawner/CatalogSpawner/SCR_SlotService.c
