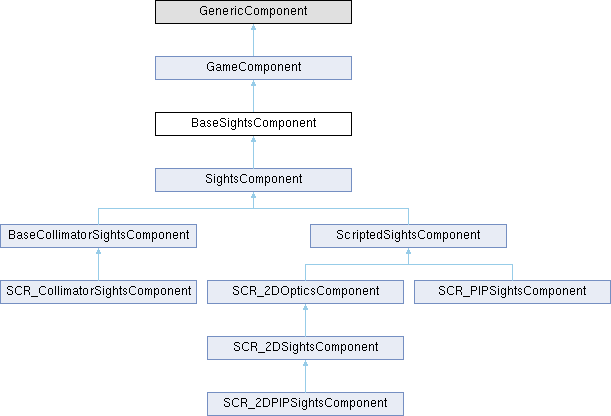

Inheritance diagram for BaseSightsComponent:

[legend]

Public Member Functions
proto external IEntity	GetOwner ()

proto external void	ForceSightsZeroValue (vector offset, vector angles, vector turnOffset)
	Allow to override Zeroing via aim modifier (only works in Workbench)

proto external void	ForceSightsZeroValueEnablel (bool bOnOff)
	Disable forced zeroing data.

proto external bool	IsSightADSActive ()

proto external float	GetADSActivationPercentage ()

proto external float	GetADSDeactivationPercentage ()

proto external bool	AreSightsValid (bool front=true, bool rear=true)

proto external vector	GetSightsRearPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets Start position should be the one closer to eye position than end position.

proto external vector	GetSightsFrontPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets End position should be the one further from eye position than start position.

proto external vector	GetSightsDirection (bool localSpace=false, bool normalize=true)
	Returns a direction vector from the rear sight position to the front sight position A vector is calculated from the rear sight to the front sight in such a way that GetSightsRearPosition() + GetSightsDirection() == GetSightsFrontPosition()

proto external vector	GetSightsDirectionUntransformed (bool localSpace=false, bool normalize=true)
	Like GetSightsDirection, but ignores and bones associated with the sight points.

proto external vector	GetSightsOffset ()
	Returns the local sights reference point offset.

proto external bool	GetSightsTransform (out vector transform[4], bool localSpace=false)
	Returns the transform matrix of the local sights.

proto external float	GetFOV ()
	Returns current value of field of view.

proto external vector	GetCurrentSightsRange ()
	Returns current range info value where x: animation value y: distance z: unused.

proto external SightsFOVInfo	GetFOVInfo ()
	Returns currently selected sights FOV info or null if none.

proto external float	GetCameraRecoilAmount ()
	Percentage 0...1 of recoil that should be applied to camera when using this sights component.

proto external bool	GetSightsPriority ()
	Boolean indicating whether this sight component is prioritized.

proto external bool	GetSightsSkipSwitch ()
	Return true if the sights can be switched to.

proto external void	SetSightsVisibility (float visFactor)
	Hide parts of the sight on ADS. 0 means completely visible, 1 means completely hidden.

proto external PointInfo	GetPositionPointInfo ()

proto external PointInfo	GetRearPositionPointInfo ()

proto external PointInfo	GetFrontPositionPointInfo ()

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Protected Member Functions
bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

Member Function Documentation

◆ AreSightsValid()

proto external bool BaseSightsComponent.AreSightsValid	(	bool	front = `true`,
		bool	rear = `true`
	)

◆ ForceSightsZeroValue()

proto external void BaseSightsComponent.ForceSightsZeroValue	(	vector	offset,
		vector	angles,
		vector	turnOffset
	)

Allow to override Zeroing via aim modifier (only works in Workbench)

◆ ForceSightsZeroValueEnablel()

proto external void BaseSightsComponent.ForceSightsZeroValueEnablel ( bool bOnOff )

Disable forced zeroing data.

◆ GetADSActivationPercentage()

proto external float BaseSightsComponent.GetADSActivationPercentage ( )

◆ GetADSDeactivationPercentage()

proto external float BaseSightsComponent.GetADSDeactivationPercentage ( )

◆ GetCameraRecoilAmount()

proto external float BaseSightsComponent.GetCameraRecoilAmount ( )

Percentage 0...1 of recoil that should be applied to camera when using this sights component.

◆ GetCurrentSightsRange()

proto external vector BaseSightsComponent.GetCurrentSightsRange ( )

Returns current range info value where x: animation value y: distance z: unused.

Returns: Returns sights info values or empty vector if none.

◆ GetFOV()

proto external float BaseSightsComponent.GetFOV ( )

Returns current value of field of view.

Returns: Current field of view value in degrees.

◆ GetFOVInfo()

proto external SightsFOVInfo BaseSightsComponent.GetFOVInfo ( )

Returns currently selected sights FOV info or null if none.

Returns: Current SightsFOVInfo or null if none.

◆ GetFrontPositionPointInfo()

proto external PointInfo BaseSightsComponent.GetFrontPositionPointInfo ( )

◆ GetOwner()

proto external IEntity BaseSightsComponent.GetOwner ( )

◆ GetPositionPointInfo()

proto external PointInfo BaseSightsComponent.GetPositionPointInfo ( )

◆ GetRearPositionPointInfo()

proto external PointInfo BaseSightsComponent.GetRearPositionPointInfo ( )

◆ GetSightsDirection()

proto external vector BaseSightsComponent.GetSightsDirection	(	bool	localSpace = `false`,
		bool	normalize = `true`
	)

Returns a direction vector from the rear sight position to the front sight position A vector is calculated from the rear sight to the front sight in such a way that GetSightsRearPosition() + GetSightsDirection() == GetSightsFrontPosition()

Parameters

localSpce	Wether returned vector is in local or world space
normalize	Wether returned vector is normalized or not, independent of the weapon sight geometry

◆ GetSightsDirectionUntransformed()

proto external vector BaseSightsComponent.GetSightsDirectionUntransformed	(	bool	localSpace = `false`,
		bool	normalize = `true`
	)

Like GetSightsDirection, but ignores and bones associated with the sight points.

This is used to get an untransformed vector which might be needed if camera/optic and turret are rotating together.

◆ GetSightsFrontPosition()

proto external vector BaseSightsComponent.GetSightsFrontPosition ( bool localSpace = false )

Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets End position should be the one further from eye position than start position.

Parameters

localSpace Whether returned position should be in local space or world space

◆ GetSightsOffset()

proto external vector BaseSightsComponent.GetSightsOffset ( )

Returns the local sights reference point offset.

This corresponds to the set point info in base sights component. Returns zero vector if no point info is present.

◆ GetSightsPriority()

proto external bool BaseSightsComponent.GetSightsPriority ( )

Boolean indicating whether this sight component is prioritized.

◆ GetSightsRearPosition()

proto external vector BaseSightsComponent.GetSightsRearPosition ( bool localSpace = false )

Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets Start position should be the one closer to eye position than end position.

Parameters

localSpace Whether returned position should be in local space or world space

◆ GetSightsSkipSwitch()

proto external bool BaseSightsComponent.GetSightsSkipSwitch ( )

Return true if the sights can be switched to.

◆ GetSightsTransform()

proto external bool BaseSightsComponent.GetSightsTransform	(	out vector	transform[4],
		bool	localSpace = `false`
	)

Returns the transform matrix of the local sights.

This corresponds to the set point info in the base sights component.

Parameters

transform	output Transformation matrix for the sight point
localSpace	if true, return the local space transformation of the sights. If false, returns the transformation in world space

Returns: true if the point is defined, false otherwise. If this function returns false, the output matrix is undefined

◆ IsSightADSActive()

proto external bool BaseSightsComponent.IsSightADSActive ( )

◆ SetSightsVisibility()

proto external void BaseSightsComponent.SetSightsVisibility ( float visFactor )

Hide parts of the sight on ADS. 0 means completely visible, 1 means completely hidden.

◆ WB_GetZeroingData()

bool BaseSightsComponent.WB_GetZeroingData	(	IEntity	owner,
		BaseSightsComponent	sights,
		float	weaponAngle,
		out vector	offset,
		out vector	angles
	)

protected

Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

Implemented in SightsComponent.

The documentation for this interface was generated from the following file:

Game/generated/Weapon/BaseSightsComponent.c
