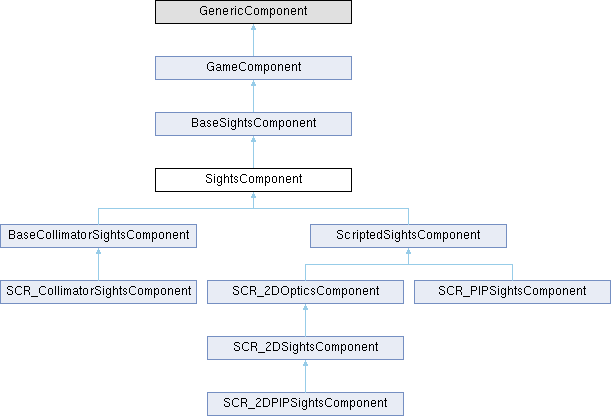

Inheritance diagram for SightsComponent:

[legend]

Public Member Functions
void	ApplyRecoilToCamera (inout vector pOutCameraTransform[4], vector aimModAngles)
	Applies the given recoil angles to the camera transform according to the type of sight By default this method is empty.

bool	CanFreelook ()

bool	GetDOFRelatedPrefabData (out int opticDOFDistanceScale=-1, out bool forceSimpleDOF=false)
	Used by SCR_DepthOfFieldEffect to scale the DOF based on each particular ironsight-distance.

Public Member Functions inherited from BaseSightsComponent
proto external IEntity	GetOwner ()

proto external void	ForceSightsZeroValue (vector offset, vector angles, vector turnOffset)
	Allow to override Zeroing via aim modifier (only works in Workbench)

proto external void	ForceSightsZeroValueEnablel (bool bOnOff)
	Disable forced zeroing data.

proto external bool	IsSightADSActive ()

proto external float	GetADSActivationPercentage ()

proto external float	GetADSDeactivationPercentage ()

proto external bool	AreSightsValid (bool front=true, bool rear=true)

proto external vector	GetSightsRearPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets Start position should be the one closer to eye position than end position.

proto external vector	GetSightsFrontPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets End position should be the one further from eye position than start position.

proto external vector	GetSightsDirection (bool localSpace=false, bool normalize=true)
	Returns a direction vector from the rear sight position to the front sight position A vector is calculated from the rear sight to the front sight in such a way that GetSightsRearPosition() + GetSightsDirection() == GetSightsFrontPosition()

proto external vector	GetSightsDirectionUntransformed (bool localSpace=false, bool normalize=true)
	Like GetSightsDirection, but ignores and bones associated with the sight points.

proto external vector	GetSightsOffset ()
	Returns the local sights reference point offset.

proto external bool	GetSightsTransform (out vector transform[4], bool localSpace=false)
	Returns the transform matrix of the local sights.

proto external float	GetFOV ()
	Returns current value of field of view.

proto external vector	GetCurrentSightsRange ()
	Returns current range info value where x: animation value y: distance z: unused.

proto external SightsFOVInfo	GetFOVInfo ()
	Returns currently selected sights FOV info or null if none.

proto external float	GetCameraRecoilAmount ()
	Percentage 0...1 of recoil that should be applied to camera when using this sights component.

proto external bool	GetSightsPriority ()
	Boolean indicating whether this sight component is prioritized.

proto external bool	GetSightsSkipSwitch ()
	Return true if the sights can be switched to.

proto external void	SetSightsVisibility (float visFactor)
	Hide parts of the sight on ADS. 0 means completely visible, 1 means completely hidden.

proto external PointInfo	GetPositionPointInfo ()

proto external PointInfo	GetRearPositionPointInfo ()

proto external PointInfo	GetFrontPositionPointInfo ()

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Static Public Member Functions
static ZeroingGeneratedData	CalculateDataWithParent (BaseSightsComponent sights, IEntity owner, IEntity parent, float desiredAngle)
	Takes front sights position as the anchor around which it rotates both the owner and the parent under desiredAngle (or rather negative desired angle, as we are pivoting around our target) and calculates new transformation that needs to be applied to reach desired angle.

Static Public Attributes
const string	EYE_BONE = "eye"

Protected Member Functions
override bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

bool	FindParent (IEntity owner, string eyeBoneName, out IEntity parentWeapon, out int boneIndex)

bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

Member Function Documentation

◆ ApplyRecoilToCamera()

void SightsComponent.ApplyRecoilToCamera	(	inout vector	pOutCameraTransform[4],
		vector	aimModAngles
	)

Applies the given recoil angles to the camera transform according to the type of sight By default this method is empty.

It should be overridden by each sight to make the appropriate adjustments

Implemented in SCR_2DPIPSightsComponent, and SCR_2DSightsComponent.

◆ CalculateDataWithParent()

static ZeroingGeneratedData SightsComponent.CalculateDataWithParent	(	BaseSightsComponent	sights,
		IEntity	owner,
		IEntity	parent,
		float	desiredAngle
	)

static

Takes front sights position as the anchor around which it rotates both the owner and the parent under desiredAngle (or rather negative desired angle, as we are pivoting around our target) and calculates new transformation that needs to be applied to reach desired angle.

Store original data prior to modification

Re:zero weapon and attachment

Get desired pivot point in WS

Rotate parent around pivot point

Apply new transformation

◆ CanFreelook()

bool SightsComponent.CanFreelook ( )

Implemented in SCR_2DPIPSightsComponent, and SCR_2DSightsComponent.

◆ FindParent()

bool SightsComponent.FindParent	(	IEntity	owner,
		string	eyeBoneName,
		out IEntity	parentWeapon,
		out int	boneIndex
	)

protected

◆ GetDOFRelatedPrefabData()

bool SightsComponent.GetDOFRelatedPrefabData	(	out int	opticDOFDistanceScale = `-1`,
		out bool	forceSimpleDOF = `false`
	)

Used by SCR_DepthOfFieldEffect to scale the DOF based on each particular ironsight-distance.

◆ WB_GetZeroingData()

override bool SightsComponent.WB_GetZeroingData	(	IEntity	owner,
		BaseSightsComponent	sights,
		float	weaponAngle,
		out vector	offset,
		out vector	angles
	)

protected

Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

Implements BaseSightsComponent.

Member Data Documentation

◆ EYE_BONE

const string SightsComponent.EYE_BONE = "eye"

static

The documentation for this interface was generated from the following file:

GameCode/Weapon/SightsComponent.c
