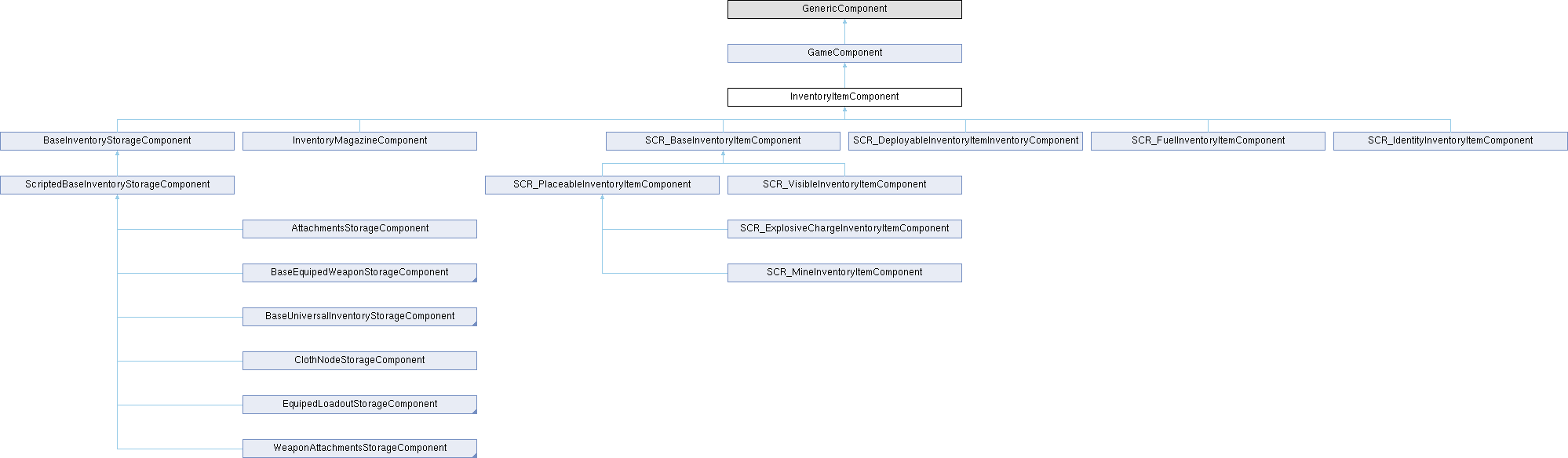

Inheritance diagram for InventoryItemComponent:

Public Member Functions
proto external IEntity	GetOwner ()
	Returns Entity owner of current component instance.

proto external bool	IsLocked ()
	Returns locked state of item (for both user and system locks)

proto external bool	IsUserLocked ()

proto external bool	IsSystemLocked ()

proto external InventoryStorageSlot	GetParentSlot ()

proto external ItemAttributeCollection	GetAttributes ()

proto external void	HideOwner ()
	Hide owner entity.

proto external void	ShowOwner ()
	Show owner entity.

proto external void	SetTraceable (bool traceable)
	Set the entity to be traceable or not.

proto external void	DisablePhysics ()
	Disable owners physical interactions.

proto external void	EnablePhysics ()
	Enable owners physical interactions.

proto external void	ActivateOwner (bool active)
	Enable/Disable entity active state.

proto external float	GetAdditionalWeight ()
	Returns the current additional weight.

proto external void	SetAdditionalWeight (float additionalWeight)
	IMPORTANT* Could only be called on the master.

proto external float	GetTotalWeight ()
	Returns the weight + the additional weight.

proto external float	GetAdditionalVolume ()
	Returns the current additional volume.

proto external void	SetAdditionalVolume (float additionalVolume)
	IMPORTANT* Could only be called on the master.

proto external float	GetTotalVolume ()
	Returns the volume + the additional volume.

proto external void	PlaceOnGround (IEntity callerEntity=null)
	IMPORTANT* This function is heavy in performance because of the multiple traces used inside the function.

proto external bool	IsHiddenInVicnity ()
	returns true if item should be hidden

proto external UIInfo	GetUIInfo ()
	Returns UI info of this item.

proto external bool	RequestUserLock (IEntity caller, bool locked)
	Set external lock on item optional caller is entity that manipulates with item and has inventory manager present (usually character)

proto external BaseItemAttributeData	FindAttribute (TypeName typeName)
	Convinience method Finds first occurance of the coresponding attribute data object in owned PrefabData AttributeCollection.

proto external IEntity	CreatePreviewEntity (BaseWorld world, int camera)
	Creates preview entity in the provided world.

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Public Attributes
ref ScriptInvoker< bool >	m_OnLockedStateChangedInvoker = new ScriptInvoker<bool>()

ref ScriptInvoker< InventoryStorageSlot, InventoryStorageSlot >	m_OnParentSlotChangedInvoker = new ScriptInvoker<InventoryStorageSlot, InventoryStorageSlot>()

Protected Member Functions
bool	ShouldChangeVisibilityOfHierarchy ()

bool	ShouldHideInVicinity ()
	implement custom visibility behavior in vicinity

bool	OverridePlacementTransform (IEntity caller, out vector computedTransform[4])
	Override final transformation of dropped item, return true in case transformation should be applied.

void	OnPlacedOnGround ()
	Override this function if for example physics should be enabled or item's owner should be activated when an item is placed on ground.

void	OnPostInit (IEntity owner)

void	OnDelete (IEntity owner)

Member Function Documentation

◆ ActivateOwner()

proto external void InventoryItemComponent.ActivateOwner ( bool active )

Enable/Disable entity active state.

◆ CreatePreviewEntity()

proto external IEntity InventoryItemComponent.CreatePreviewEntity	(	BaseWorld	world,
		int	camera )

Creates preview entity in the provided world.

◆ DisablePhysics()

proto external void InventoryItemComponent.DisablePhysics ( )

Disable owners physical interactions.

◆ EnablePhysics()

proto external void InventoryItemComponent.EnablePhysics ( )

Enable owners physical interactions.

◆ FindAttribute()

proto external BaseItemAttributeData InventoryItemComponent.FindAttribute ( TypeName typeName )

Convinience method Finds first occurance of the coresponding attribute data object in owned PrefabData AttributeCollection.

Parameters

typeName type of the component

◆ GetAdditionalVolume()

proto external float InventoryItemComponent.GetAdditionalVolume ( )

Returns the current additional volume.

◆ GetAdditionalWeight()

proto external float InventoryItemComponent.GetAdditionalWeight ( )

Returns the current additional weight.

◆ GetAttributes()

proto external ItemAttributeCollection InventoryItemComponent.GetAttributes ( )

◆ GetOwner()

proto external IEntity InventoryItemComponent.GetOwner ( )

Returns Entity owner of current component instance.

◆ GetParentSlot()

proto external InventoryStorageSlot InventoryItemComponent.GetParentSlot ( )

◆ GetTotalVolume()

proto external float InventoryItemComponent.GetTotalVolume ( )

Returns the volume + the additional volume.

◆ GetTotalWeight()

proto external float InventoryItemComponent.GetTotalWeight ( )

Returns the weight + the additional weight.

◆ GetUIInfo()

proto external UIInfo InventoryItemComponent.GetUIInfo ( )

Returns UI info of this item.

◆ HideOwner()

proto external void InventoryItemComponent.HideOwner ( )

Hide owner entity.

◆ IsHiddenInVicnity()

proto external bool InventoryItemComponent.IsHiddenInVicnity ( )

returns true if item should be hidden

◆ IsLocked()

proto external bool InventoryItemComponent.IsLocked ( )

Returns locked state of item (for both user and system locks)

◆ IsSystemLocked()

proto external bool InventoryItemComponent.IsSystemLocked ( )

◆ IsUserLocked()

proto external bool InventoryItemComponent.IsUserLocked ( )

◆ OnDelete()

void InventoryItemComponent.OnDelete ( IEntity owner )

protected

Implemented in SCR_PlaceableInventoryItemComponent.

◆ OnPlacedOnGround()

void InventoryItemComponent.OnPlacedOnGround ( )

protected

Override this function if for example physics should be enabled or item's owner should be activated when an item is placed on ground.

Implemented in SCR_PlaceableInventoryItemComponent.

◆ OnPostInit()

void InventoryItemComponent.OnPostInit ( IEntity owner )

protected

Implemented in SCR_HeadgearInventoryItemComponent.

◆ OverridePlacementTransform()

bool InventoryItemComponent.OverridePlacementTransform	(	IEntity	caller,
		out vector	computedTransform[4] )

protected

Override final transformation of dropped item, return true in case transformation should be applied.

Implemented in SCR_DeployableInventoryItemInventoryComponent, and SCR_PlaceableInventoryItemComponent.

◆ PlaceOnGround()

proto external void InventoryItemComponent.PlaceOnGround ( IEntity callerEntity = null )

IMPORTANT* This function is heavy in performance because of the multiple traces used inside the function.

Place the item on the ground

Parameters

callerEntity The entity used for the rotation calculation. Should be kept to null per default

◆ RequestUserLock()

proto external bool InventoryItemComponent.RequestUserLock	(	IEntity	caller,
		bool	locked )

Set external lock on item optional caller is entity that manipulates with item and has inventory manager present (usually character)

◆ SetAdditionalVolume()

proto external void InventoryItemComponent.SetAdditionalVolume ( float additionalVolume )

IMPORTANT* Could only be called on the master.

Set the additional volume of the item

Parameters

additionalVolume additional volume in cm3

◆ SetAdditionalWeight()

proto external void InventoryItemComponent.SetAdditionalWeight ( float additionalWeight )

IMPORTANT* Could only be called on the master.

Set the additional weight of the item

Parameters

additionalWeight additional weight in kg

◆ SetTraceable()

proto external void InventoryItemComponent.SetTraceable ( bool traceable )

Set the entity to be traceable or not.

◆ ShouldChangeVisibilityOfHierarchy()

bool InventoryItemComponent.ShouldChangeVisibilityOfHierarchy ( )

protected

Implemented in SCR_IdentityInventoryItemComponent.

◆ ShouldHideInVicinity()

bool InventoryItemComponent.ShouldHideInVicinity ( )

protected

implement custom visibility behavior in vicinity

Implemented in SCR_DeployableInventoryItemInventoryComponent, SCR_ExplosiveChargeInventoryItemComponent, SCR_MineInventoryItemComponent, SCR_VisibleInventoryItemComponent, and SCR_WeaponAttachmentsStorageComponent.

◆ ShowOwner()

proto external void InventoryItemComponent.ShowOwner ( )

Show owner entity.

Member Data Documentation

◆ m_OnLockedStateChangedInvoker

ref ScriptInvoker<bool> InventoryItemComponent.m_OnLockedStateChangedInvoker = new ScriptInvoker<bool>()

◆ m_OnParentSlotChangedInvoker

ref ScriptInvoker<InventoryStorageSlot, InventoryStorageSlot> InventoryItemComponent.m_OnParentSlotChangedInvoker = new ScriptInvoker<InventoryStorageSlot, InventoryStorageSlot>()

The documentation for this interface was generated from the following file:

Game/generated/Components/InventorySystem/InventoryItemComponent.c
