Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
SCR_AIFireteamsActivity Interface Reference

Base class for all group activities which are related to fireteams. More...

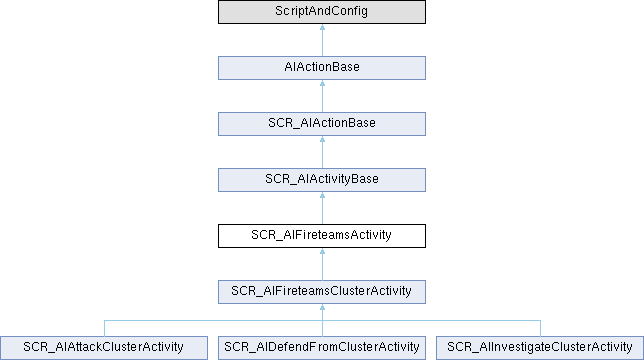

Inheritance diagram for SCR_AIFireteamsActivity:
SCR_AIActivityBase SCR_AIActionBase AIActionBase SCR_AIFireteamsClusterActivity SCR_AIAttackClusterActivity SCR_AIDefendFromClusterActivity SCR_AIInvestigateClusterActivity

Public Member Functions

void SCR_AIFireteamsActivity (SCR_AIGroupUtilityComponent utility, AIWaypoint relatedWaypoint,)

void ~SCR_AIFireteamsActivity ()

override void OnActionRemoved ()

void GetAssignedFireteams (notnull TFireteamLockRefArray outFireteams)

void OnAssignedFireteamsEmpty ()
 Override in inherited classes to do something when all fireteams are gone.

void OnFireteamRemovedFromGroup (SCR_AIGroupFireteam ft)
 Override in inherited classes to do something on fireteam deletion It is called only for registered fireteams.

override string GetDebugPanelText ()

- Public Member Functions inherited from SCR_AIActivityBase
array< ref SCR_AIActivityFeatureBase > GetActivityFeatures ()

SCR_AIActivityFeatureBase FindActivityFeature (TypeName featureType)

void InitParameters (AIWaypoint relatedWaypoint)

void SCR_AIActivityBase (SCR_AIGroupUtilityComponent utility, AIWaypoint relatedWaypoint)

void OnChildBehaviorFinished (SCR_AIBehaviorBase childBehavior)

void OnChildBehaviorCreated (SCR_AIBehaviorBase childBehavior)

- Public Member Functions inherited from SCR_AIActionBase
override float EvaluatePriorityLevel ()

void SetPriorityLevel (int priority)

EAIActionFailReason GetFailReason ()

void SetFailReason (EAIActionFailReason failReason)
 Fail reason is an optional value which can be used to figure out why action failed.

int GetCause ()
 Returns cause value, used for SCR_AISetting.

override void OnSetActionState (EAIActionState state)

override void OnSetSuspended (bool suspended)

override void OnComplete ()

override void OnFail ()

string GetActionDebugInfo ()

override void OnActionSelected ()

override void OnActionDeselected ()

void OnActionExecuted ()

void OnActionCompleted ()

void OnActionFailed ()

bool IsActionInterruptable ()

void SetActionInterruptable (bool IsInterruptable)

void SetParametersToBTVariables (SCR_AIActionTask node)

void GetParametersFromBTVariables (SCR_AIActionTask node)

TStringArray GetPortNames ()

float GetRestrictedPriorityLevel (float minimumLevel=PRIORITY_LEVEL_NORMAL)
 Limits priority level for actions such that those are performed in "NORMAL" and "PLAYER" priority level but not in "GAMEMASTER".

- Public Member Functions inherited from AIActionBase
proto external float Evaluate ()

proto external float GetPriority ()

proto external void SetPriority (float priority)

proto external bool GetActionIsSuspended ()

proto external void SetActionIsSuspended (bool val)

proto external bool GetIsUniqueInActionQueue ()

proto external void SetIsUniqueInActionQueue (bool unique)

proto external EAIActionState GetActionState ()

proto external void SetActionState (EAIActionState state)

proto external void Fail ()

proto external void Complete ()

proto external bool GetRemoveAction ()

proto external void SetRemoveAction (bool val)

proto external ref AIActionBase GetRelatedGroupActivity ()

proto external void SetRelatedGroupActivity (AIActionBase related)

float CustomEvaluate ()

bool OnMessage (AIMessage msg)


Protected Member Functions

void RegisterFireteam (notnull SCR_AIGroupFireteamLock ftLock)
 Registers fireteam within this activity.

void UnregisterFireteam (notnull SCR_AIGroupFireteamLock ftLock)

void UnregisterFireteam (notnull SCR_AIGroupFireteam ft)

- Protected Member Functions inherited from SCR_AIActivityBase
void SendCancelMessagesToAllAgents ()


Protected Attributes

ref TFireteamLockRefArray m_aAssignedFireteams = {}

- Protected Attributes inherited from SCR_AIActionBase
ref SCR_BTParam< float > m_fPriorityLevel = new SCR_BTParam<float>(SCR_AIActionTask.PRIORITY_LEVEL_PORT)

EAIActionFailReason m_eFailReason


Additional Inherited Members

- Public Attributes inherited from SCR_AIActivityBase
SCR_AIGroupUtilityComponent m_Utility

ref SCR_BTParam< bool > m_bIsWaypointRelated = new SCR_BTParam<bool>(SCR_AIActionTask.WAYPOINT_RELATED_PORT)

AIWaypoint m_RelatedWaypoint = null

bool m_bAllowFireteamRebalance = true

- Public Attributes inherited from SCR_AIActionBase
bool m_bIsInterruptable = true

ResourceName m_sBehaviorTree

ref ScriptInvoker m_OnActionCompleted = new ScriptInvoker()

ref ScriptInvoker m_OnActionFailed = new ScriptInvoker()

ref array< SCR_BTParamBase > m_aParams = {}

- Static Public Attributes inherited from SCR_AIActionBase
const static float PRIORITY_LEVEL_NORMAL = 0

const static float PRIORITY_LEVEL_PLAYER = 1000

const static float PRIORITY_LEVEL_GAMEMASTER = 2000

const static float PRIORITY_BEHAVIOR_RETREAT_MELEE = 190 + PRIORITY_LEVEL_PLAYER

const static float PRIORITY_BEHAVIOR_AVOID_CHARACTER = 180 + PRIORITY_LEVEL_PLAYER

const static float PRIORITY_BEHAVIOR_GET_OUT_VEHICLE_HIGH_PRIORITY = 162 + PRIORITY_LEVEL_PLAYER

const static float PRIORITY_BEHAVIOR_MOVE_FROM_DANGER = 160 + PRIORITY_LEVEL_PLAYER

const static float PRIORITY_BEHAVIOR_ATTACK_HIGH_PRIORITY = 120 + PRIORITY_LEVEL_PLAYER

const static float PRIORITY_BEHAVIOR_HEAL_HIGH_PRIORITY = 115 + PRIORITY_LEVEL_PLAYER

const static float PRIORITY_BEHAVIOR_OBSERVE_UNKNOWN_FIRE_HIGH_PRIORITY = 113 + PRIORITY_LEVEL_PLAYER

const static float PRIORITY_BEHAVIOR_GET_IN_VEHICLE = 130

const static float PRIORITY_BEHAVIOR_GET_OUT_VEHICLE = 125

const static float PRIORITY_BEHAVIOR_PICKUP_INVENTORY_ITEMS = 118

const static float PRIORITY_BEHAVIOR_STATIC_ARTILLERY = 114

const static float PRIORITY_BEHAVIOR_FIRE_ILLUM_FLARE = 113

const static float PRIORITY_BEHAVIOR_THROW_GRENADE = 112

const static float PRIORITY_BEHAVIOR_MEDIC_HEAL = 111

const static float PRIORITY_BEHAVIOR_RETREAT_FROM_TARGET = 110

const static float PRIORITY_BEHAVIOR_PROVIDE_AMMO = 100

const static float PRIORITY_BEHAVIOR_ATTACK_SELECTED = 90

const static float PRIORITY_BEHAVIOR_HEAL_WAIT = 83

const static float PRIORITY_BEHAVIOR_MOVE_FROM_VEHICLE_HORN = 72

const static float PRIORITY_BEHAVIOR_ATTACK_NOT_SELECTED = 70

const static float PRIORITY_BEHAVIOR_OBSERVE_THREATS_HIGH_PRIORITY = 69

const static float PRIORITY_BEHAVIOR_MOVE_FROM_UNKNOWN_FIRE = 68

const static float PRIORITY_BEHAVIOR_OBSERVE_UNKNOWN_FIRE = 66

const static float PRIORITY_BEHAVIOR_HEAL = 65

const static float PRIORITY_BEHAVIOR_MOVE_AND_INVESTIGATE = 64

const static float PRIORITY_BEHAVIOR_SUPPRESS = 63

const static float PRIORITY_BEHAVIOR_DEFEND = 61

const static float PRIORITY_BEHAVIOR_FIND_FIRE_POSITION = 60

const static float PRIORITY_BEHAVIOR_OBSERVE_LOW_PRIORITY = 59

const static float PRIORITY_BEHAVIOR_MOVE_INDIVIDUALLY = 58

const static float PRIORITY_BEHAVIOR_OPEN_NAVLINK_DOOR = 54

const static float PRIORITY_BEHAVIOR_PERFORM_ACTION = 30

const static float PRIORITY_BEHAVIOR_MOVE = 30

const static float PRIORITY_BEHAVIOR_MOVE_IN_FORMATION = 30

const static float PRIORITY_BEHAVIOR_ATTACK_DISREGARD_THREATS = 20

const static float PRIORITY_BEHAVIOR_WAIT = 10

const static float PRIORITY_BEHAVIOR_OBSERVE_THREATS_LOW_PRIORITY = 4

const static float PRIORITY_BEHAVIOR_MOVE_IN_FORMATION_LOW_PRIORITY = 3

const static float PRIORITY_BEHAVIOR_IDLE_DRIVER = 2

const static float PRIORITY_BEHAVIOR_ANIMATE = 1.5

const static float PRIORITY_BEHAVIOR_IDLE = 1

const static float PRIORITY_BEHAVIOR_DISMOUNT_TURRET = 300

const static float PRIORITY_BEHAVIOR_DISMOUNT_TURRET_INVESTIGATE = 21

const static float PRIORITY_BEHAVIOR_DISMOUNT_TURRET_GET_IN = 20

const static float PRIORITY_ACTIVITY_GET_IN = 130

const static float PRIORITY_ACTIVITY_FOLLOW = 130

const static float PRIORITY_ACTIVITY_RESUPPLY = 100

const static float PRIORITY_ACTIVITY_COMBAT_WITH_VEHICLES = 85

const static float PRIORITY_ACTIVITY_HEAL = 80

const static float PRIORITY_ACTIVITY_ARTILLERY_SUPPORT = 75

const static float PRIORITY_ACTIVITY_ATTACK_CLUSTER = 70

const static float PRIORITY_ACTIVITY_SEEK_AND_DESTROY = 60

const static float PRIORITY_ACTIVITY_INVESTIGATE_CLUSTER = 55

const static float PRIORITY_ACTIVITY_DEFEND_FROM_CLUSTER = 55

const static float PRIORITY_ACTIVITY_MOVE = 50

const static float PRIORITY_ACTIVITY_PERFORM_ACTION = 50

const static float PRIORITY_ACTIVITY_DEFEND = 50

const static float PRIORITY_ACTIVITY_GET_OUT = 50

const static float PRIORITY_ACTIVITY_SUPPRESS = 40

const static float PRIORITY_ACTIVITY_ANIMATE = 10


Detailed Description

Base class for all group activities which are related to fireteams.

When an activity of this (or inherited) class exists, it prevents group from rebalancing fireteams. When there are no fireteams left, it fails.

Constructor & Destructor Documentation

◆ SCR_AIFireteamsActivity()

void SCR_AIFireteamsActivity.SCR_AIFireteamsActivity ( SCR_AIGroupUtilityComponent utility,
AIWaypoint relatedWaypoint )

◆ ~SCR_AIFireteamsActivity()

void SCR_AIFireteamsActivity.~SCR_AIFireteamsActivity ( )

Member Function Documentation

◆ GetAssignedFireteams()

void SCR_AIFireteamsActivity.GetAssignedFireteams ( notnull TFireteamLockRefArray outFireteams)

◆ GetDebugPanelText()

override string SCR_AIFireteamsActivity.GetDebugPanelText ( )

Implements SCR_AIActionBase.

Implemented in SCR_AIAttackClusterActivity, SCR_AIDefendFromClusterActivity, and SCR_AIInvestigateClusterActivity.

◆ OnActionRemoved()

override void SCR_AIFireteamsActivity.OnActionRemoved ( )

Implements SCR_AIActionBase.

Implemented in SCR_AIAttackClusterActivity, and SCR_AIInvestigateClusterActivity.

◆ OnAssignedFireteamsEmpty()

void SCR_AIFireteamsActivity.OnAssignedFireteamsEmpty ( )

Override in inherited classes to do something when all fireteams are gone.

◆ OnFireteamRemovedFromGroup()

void SCR_AIFireteamsActivity.OnFireteamRemovedFromGroup ( SCR_AIGroupFireteam ft)

Override in inherited classes to do something on fireteam deletion It is called only for registered fireteams.

Implemented in SCR_AIAttackClusterActivity, SCR_AIDefendFromClusterActivity, and SCR_AIInvestigateClusterActivity.

◆ RegisterFireteam()

void SCR_AIFireteamsActivity.RegisterFireteam ( notnull SCR_AIGroupFireteamLock ftLock)
protected

Registers fireteam within this activity.

◆ UnregisterFireteam() [1/2]

void SCR_AIFireteamsActivity.UnregisterFireteam ( notnull SCR_AIGroupFireteam ft)
protected

◆ UnregisterFireteam() [2/2]

void SCR_AIFireteamsActivity.UnregisterFireteam ( notnull SCR_AIGroupFireteamLock ftLock)
protected

Member Data Documentation

◆ m_aAssignedFireteams

ref TFireteamLockRefArray SCR_AIFireteamsActivity.m_aAssignedFireteams = {}
protected
The documentation for this interface was generated from the following file:
