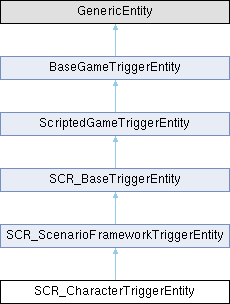

Inheritance diagram for SCR_CharacterTriggerEntity:

[legend]

Additional Inherited Members
Public Member Functions inherited from SCR_ScenarioFrameworkTriggerEntity
void	SetActivationPresence (SCR_EScenarioFrameworkTriggerActivation EActivationPresence)
	Sets Activation Presence.

void	SetSpecificClassName (notnull array< string > aClassName)
	Sets specific classnames to be searched in the trigger.

void	SetPrefabFilters (notnull array< ref SCR_ScenarioFrameworkPrefabFilter > aPrefabFilter)
	Sets specific prefab filters to be searched in the trigger.

void	SetSearchVehicleInventory (bool search)
	Sets if trigger should also search vehicle inventory when looking for prefabs/classnames inside.

void	SetOnce (bool bOnce)
	Sets if trigger can be finished just once.

void	SetNotificationEnabled (bool notificationEnabled)
	Sets if HUD notifications are enabled.

void	SetTriggerConditionsStatus (bool status)
	Sets trigger conditions status.

void	SetEnableAudio (bool enableAudio)
	Sets if audio features from this trigger are enabled.

void	SetMinimumPlayersNeeded (float minimumPlayersNeededPercentage)
	Sets minimum player percentage needed to finish this trigger.

void	SetPlayerActivationNotificationTitle (string sTitle)
	Sets HUD activation notification title.

void	SetActivationCountdownTimer (float activationCountdownTimer)
	Sets activation coundown timer.

void	SetCountdownAudio (string sAudioName)
	Sets which audio can be played from activating this trigger.

void	SetCustomTriggerConditions (array< ref SCR_CustomTriggerConditions > triggerConditions)
	Sets custom trigger conditions.

void	SetEntityEnteredActions (array< ref SCR_ScenarioFrameworkActionBase > entityEnteredActions)

void	SetEntityLefActions (array< ref SCR_ScenarioFrameworkActionBase > entityLefActions)

void	SetFinishedActions (array< ref SCR_ScenarioFrameworkActionBase > finishedActions)

void	SetOwnerFaction (FactionKey sFaction)
	Sets faction that "owns" this trigger.

bool	IsMaster ()
	Returns if this is executed in a server environment.

Faction	GetOwnerFaction ()
	Returns trigger faction owner.

ResourceName	GetCountdownHUD ()
	Returns the countdown HUD resource name.

float	GetActivationCountdownTimer ()
	Returns activation countdown timer.

float	GetActivationCountdownTimerTemp ()
	Returns activation countdown timer temporary value which is calculated by the trigger but changes over time.

float	GetMinimumPlayersNeededPercentage ()
	Returns minimum players needed percentage.

string	GetPlayerActivationNotificationTitle ()
	Returns player activation notification title.

bool	GetNotificationEnabled ()
	Returns if HUD notifications are enabled.

bool	GetTriggerConditionsStatus ()
	Returns trigger conditions status.

int	GetCountInsideTrigger ()
	Returns number of all the entities that are inside this trigger.

int	GetCountEntitiesInside ()
	Returns all entities that are inside this trigger.

int	GetPlayersCountByFaction ()
	Returns number of players in game by the faction set for this trigger.

int	GetSpecificClassCountInsideTrigger (string className, int targetCount=-1)
	Returns number of specific class that is inside of this trigger.

int	GetSpecificPrefabCountInsideTrigger (BaseContainer prefabContainer, int targetCount=-1, bool includeInheritance=false)
	Returns number of specific prefab that is inside of this trigger.

int	GetCharacterCountByFactionInsideTrigger (Faction faction, int targetCount=-1)
	Returns number of characters from the selected faction that are inside this trigger.

int	GetPlayersCountByFactionInsideTrigger (Faction faction)
	Returns number of players from the selected faction that are inside this trigger.

void	GetPlayersByFactionInsideTrigger (notnull out array< IEntity > aOut)
	Returns all the players by the faction set for this trigger.

void	GetPlayersByFaction (notnull out array< IEntity > aOut)
	Returns all the players in the game.

override bool	ScriptedEntityFilterForQuery (IEntity ent)
	Override this method in inherited class to define a new filter.

void	FinishTrigger (IEntity ent)
	Finishes trigger.

void	ActivationPresenceConditions ()
	Checks activation presesence conditions.

void	OnDeactivateCalledLater (IEntity ent)

void	HandleAudio ()
	Checks if trigger conditions are met, plays countdown music if true, stops if false.

void	PlayMusic (string sAudio)
	Plays specified audio track, sets countdown music playing flag, and calls RPC.

void	StopMusic (string sAudio)
	Stops music with given audio name, also stops countdown music if playing.

void	OnChange (IEntity ent)

ScriptInvoker	GetOnChange ()

void	SetInitSequenceDone (bool init)
	Sets Init sequence as done or not.

Public Member Functions inherited from SCR_BaseTriggerEntity
ScriptInvoker	GetOnActivate ()

ScriptInvoker	GetOnDeactivate ()

bool	ScriptedEntityFilterForQuery (IEntity ent)
	Override this method in inherited class to define a new filter. This base filter will not be used unless overridden!

Public Member Functions inherited from BaseGameTriggerEntity
ScriptInvoker	GetOnQueryFinished ()

proto external bool	QueryEntityInside (notnull IEntity ent)

proto external void	QueryEntitiesInside ()

proto external bool	DefaultEntityFilterForQuery (IEntity ent)

proto external int	GetEntitiesInside (out notnull array< IEntity > outEntities)
	Get the entities inside the triggers.

proto external void	SetSphereRadius (float radius)

proto external float	GetSphereRadius ()

proto external void	SetUpdateRate (float updateRate)

proto external float	GetUpdateRate ()

proto external void	EnablePeriodicQueries (bool enable)

proto external bool	IsPeriodicQueriesEnabled ()

proto external void	AddFilterName (string name)
	Add a name to the filter.

proto external bool	RemoveFilterName (string name)
	Remove a name from the filter.

proto external void	AddClassType (TypeName classType)
	Add a class type to the filter.

proto external bool	RemoveClassType (TypeName classType)
	Remove a class type from the filter.

proto external void	AddPrefabFilter (PrefabFilter prefabFilter)
	Add a prefab filter to the filters.

proto external bool	RemovePrefabFilter (PrefabFilter prefabFilter)
	Remove a prefab filter from the filters.

proto external EQueryEntitiesFlags	GetTraceMask ()
	Get flag(s) from the traces done by the the trigger.

proto external void	SetTraceMask (EQueryEntitiesFlags flags)
	Sets trace mask.

proto external void	ClearTraceMask (EQueryEntitiesFlags flags)
	Clears trace mask.

Public Attributes inherited from SCR_ScenarioFrameworkTriggerEntity
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aEntityEnteredActions

ref array< ref SCR_ScenarioFrameworkActionBase >	m_aEntityLeftActions

ref array< ref SCR_ScenarioFrameworkActionBase >	m_aFinishedActions

Static Public Attributes inherited from SCR_ScenarioFrameworkTriggerEntity
static ref ScriptInvokerBase< ScriptInvokerTriggerUpdated >	s_OnTriggerUpdated = new ScriptInvokerBase<ScriptInvokerTriggerUpdated>()

static ref ScriptInvokerInt	s_OnTriggerUpdatedPlayerNotPresent = new ScriptInvokerInt()

Protected Member Functions inherited from SCR_ScenarioFrameworkTriggerEntity
void	CustomTriggerConditions ()
	This method handles custom conditions.

void	HandleNetworkComponentForPlayersInside (IEntity ent)
	Handles players inside the trigger or those who left it.

void	ProcessPlayerNetworkComponent (IEntity entity, bool leftTrigger=false)
	Processes the entity and its Network component to replicate only for each player inside the trigger.

void	HandleTimer ()
	Handles if timer should be ticking or not.

void	UpdateTimer ()
	Updates the timer value and passes info to HUD.

override void	OnActivate (IEntity ent)

override void	OnQueryFinished (bool bIsEmpty)

override void	OnDeactivate (IEntity ent)

void	RpcDo_PlayMusic (string sAudio)
	Plays specified audio in music manager if available.

void	RpcDo_StopMusic (string sAudio)
	Stops music with given audio name.

override void	EOnInit (IEntity owner)
	Initializes the trigger.

Protected Member Functions inherited from SCR_BaseTriggerEntity
bool	IsAlive (IEntity entity)

override void	OnActivate (IEntity ent)
	callback - activation - occurs when and entity which fulfills the filter definitions enters the Trigger

override void	OnDeactivate (IEntity ent)
	callback - deactivation - occurs when and entity which was activated (OnActivate) leaves the Trigger

Protected Member Functions inherited from ScriptedGameTriggerEntity
void	OnInit (IEntity owner)

void	OnFrame (IEntity owner, float timeSlice)

void	OnActivate (IEntity ent)
	callback - activation - occurs when and entity which fulfills the filter definitions enters the Trigger

void	OnDeactivate (IEntity ent)
	callback - deactivation - occurs when and entity which was activated (OnActivate) leaves the Trigger

void	OnQueryFinished (bool bIsEmpty)
	callback - query finished - occurs when the current query finished being processd and has updated results

Protected Attributes inherited from SCR_ScenarioFrameworkTriggerEntity
FactionKey	m_sOwnerFactionKey

SCR_EScenarioFrameworkTriggerActivation	m_eActivationPresence

ref array< string >	m_aSpecificEntityNames

ref array< string >	m_aSpecificClassNames

ref array< ref SCR_ScenarioFrameworkPrefabFilter >	m_aPrefabFilter

ref array< ref SCR_CustomTriggerConditions >	m_aCustomTriggerConditions

bool	m_bSearchVehicleInventory

bool	m_bOnce

float	m_fMinimumPlayersNeededPercentage

float	m_fActivationCountdownTimer

bool	m_bNotificationEnabled

ResourceName	m_sCountdownHUD

string	m_sPlayerActivationNotificationTitle

bool	m_bEnableAudio

string	m_sCountdownAudio

ref set< BaseContainer >	m_aPrefabContainerSet = new set<BaseContainer>()

ref ScriptInvoker	m_OnChange

Faction	m_OwnerFaction

float	m_fTempWaitTime = m_fActivationCountdownTimer

bool	m_bInitSequenceDone = false

bool	m_bCountdownMusicPlaying

ref array< IEntity >	m_aEntitiesInside = {}

ref array< IEntity >	m_aPlayersInside = {}

MusicManager	m_MusicManager

bool	m_bTriggerConditionsStatus

bool	m_bTimerActive

int	m_iCountInsideTrigger

Protected Attributes inherited from SCR_BaseTriggerEntity
ref ScriptInvoker	m_OnActivate = new ScriptInvoker()

ref ScriptInvoker	m_OnDeactivate = new ScriptInvoker()

Protected Attributes inherited from BaseGameTriggerEntity
ref ScriptInvoker	Event_OnQueryFinished = new ScriptInvoker()

The documentation for this interface was generated from the following file:

Game/ScenarioFramework/Entities/Triggers/SCR_CharacterTriggerEntity.c
