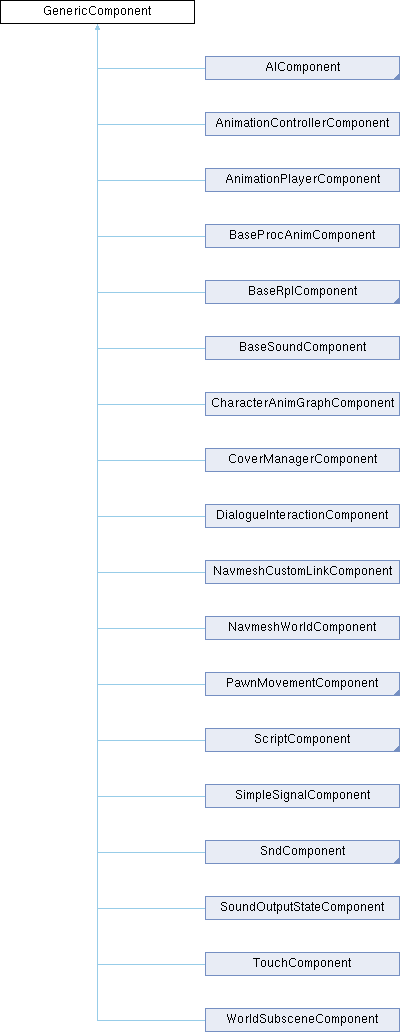

Inheritance diagram for GenericComponent:

[legend]

Public Member Functions
proto external EntityComponentPrefabData	GetComponentData (notnull IEntity ent)
	Gets GenericComponentClass descendant instance with the prefab data.

proto external BaseContainer	GetComponentSource (notnull IEntity ent)
	Gets config container with the prefab data.

proto void	Rpc (func method, void p0=NULL, void p1=NULL, void p2=NULL, void p3=NULL, void p4=NULL, void p5=NULL, void p6=NULL, void p7=NULL)
	Attempts to run a remote procedure call (RPC) of this instance with parameters specified in method RplRpc attribute.

proto external int	GetEventMask ()
	Gets current eventmask of the component.

proto external int	SetEventMask (notnull IEntity owner, int mask)
	Sets eventmask.

proto external int	ClearEventMask (notnull IEntity owner, int mask)
	Clears bitmask.

proto external GenericComponent	FindComponent (TypeName typeName)
	Finds first occurance of the coresponding component.

proto external int	FindComponents (TypeName typeName, notnull array< GenericComponent > outComponents)
	Finds all occurances of the coresponding component.

proto external void	Activate (IEntity owner)
	Activate component and calls EOnActivate().

proto external void	Deactivate (IEntity owner)
	Deactivate component and calls EOnDectivate().

proto external bool	IsActive ()
	Returns activity state.

proto external void	OnTransformReset (bool isCorrection=false, vector newVelocity=vector.Zero)
	Notifies the component that a transformation of the owner entity has been discontinuously changed.

void	_WB_SetTransform (IEntity owner, inout vector mat[4], IEntitySource src)
	Editor changed entity transformation matrix source. Do not call editor API here!

void	_WB_OnInit (IEntity owner, inout vector mat[4], IEntitySource src)
	Called always after entity creation. It's purpose is to prepare entity for editing. Do not edit anything through editor API here because it's too early for undoable actions! Use plain BaseContainer API for changes through src parameter if needed!

bool	_WB_CanDelete (IEntity owner, IEntitySource src)
	Editor needs to know if this entity can be deleted. Do not call editor API here!

bool	_WB_CanRename (IEntity owner, IEntitySource src)
	Editor needs to know if this entity can be renamed. Do not call editor API here!

bool	_WB_CanCopy (IEntity owner, IEntitySource src)
	Editor needs to know if this entity can be copied. Do not call editor API here!

bool	_WB_CanSelect (IEntity owner, IEntitySource src)
	Editor needs to know whether this entity can be selected in scene window or not.

void	_WB_GetBoundBox (IEntity owner, inout vector min, inout vector max, IEntitySource src)
	Editor needs to know a bound box of entity (For ray-casting, visualizers etc.). You can return any custom size you need. Do not call editor API here!

void	_WB_SetExtraVisualiser (IEntity owner, EntityVisualizerType type, IEntitySource src)
	If entity needs to have a special visualizer instead of default one, here is the place where you can implement it. Do not call editor API here!

array< ref WB_UIMenuItem >	_WB_GetContextMenuItems (IEntity owner)
	An opportunity to append items into editor's "Component" context menu. Do not call editor API here!

bool	_WB_OnPhysSimulPlacementBegin (IEntity owner, IEntitySource src)
	Does this entity support editing transformation using physics simulation? Do not call editor API here!

bool	_WB_EnablePhysics (IEntity owner, IEntitySource src, bool physics)
	Prepare to edit transformation using physics simulation. Return previous status. Do not call editor API here!

bool	_WB_OnKeyChanged (IEntity owner, BaseContainer src, string key, BaseContainerList ownerContainers, IEntity parent)
	Any property value has been changed. You can use editor API here and do some additional edit actions which will be part of the same "key changed" action.

void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)
	Called after updating world in Workbench. The entity must be selected. You can use editor API here and do some edit actions if needed.

void	_WB_OnContextMenu (IEntity owner, int id)
	User has chosen any of your menu item from editor's "Component" menu which you have recently provided in WB_GetContextMenuItems(). You can use editor API here and do some edit actions.

void	_WB_OnKeyDown (IEntity owner, int keyCode)
	User pressed a key and this entity is main member of entity selection. You can use editor API here and do some edit actions which will be undoable.

void	_WB_OnCreate (IEntity owner, IEntitySource src)
	Called after entity gets created in map during editing or when deleted entity gets restored after undo action. This event isn't called by loading map!!! If you need an event that is being called after every entity creation then use WB_OnInit instead it. You can use editor API here and do some additional edit actions which will be part of the same "create entity" action.

void	_WB_OnParentChange (IEntity owner, IEntitySource src, IEntitySource prevParentSrc)
	Parent entity has been changed ( it's available through src->GetParent() ). prevParentSrc is a pointer to a previous parent (if any)

void	_WB_OnDelete (IEntity owner, IEntitySource src)
	Entity is going to be deleted. You can use editor API here and do some additional edit actions which will be part of the same "entity delete" action.

void	_WB_OnRename (IEntity owner, IEntitySource src, string oldName)
	Entity has been renamed. You can use editor API here and do some additional edit actions which will be part of the same "entity rename" action.

array< ref ParamEnum >	_WB_GetUserEnums (string varName, IEntity owner, IEntityComponentSource src)
	Possibility to get variable value choices dynamically.

Static Public Member Functions
static bool	Preload (IEntityComponentSource src)

Protected Member Functions
proto external void	ConnectToDiagSystem (IEntity owner)

proto external void	DisconnectFromDiagSystem (IEntity owner)

void	OnTransformResetImpl (TransformResetParams params)
	Script-side implementation of OnTransformReset.

Member Function Documentation

◆ _WB_AfterWorldUpdate()

void GenericComponent._WB_AfterWorldUpdate	(	IEntity	owner,
		float	timeSlice
	)

Called after updating world in Workbench. The entity must be selected. You can use editor API here and do some edit actions if needed.

◆ _WB_CanCopy()

bool GenericComponent._WB_CanCopy	(	IEntity	owner,
		IEntitySource	src
	)

Editor needs to know if this entity can be copied. Do not call editor API here!

◆ _WB_CanDelete()

bool GenericComponent._WB_CanDelete	(	IEntity	owner,
		IEntitySource	src
	)

Editor needs to know if this entity can be deleted. Do not call editor API here!

◆ _WB_CanRename()

bool GenericComponent._WB_CanRename	(	IEntity	owner,
		IEntitySource	src
	)

Editor needs to know if this entity can be renamed. Do not call editor API here!

◆ _WB_CanSelect()

bool GenericComponent._WB_CanSelect	(	IEntity	owner,
		IEntitySource	src
	)

Editor needs to know whether this entity can be selected in scene window or not.

◆ _WB_EnablePhysics()

bool GenericComponent._WB_EnablePhysics	(	IEntity	owner,
		IEntitySource	src,
		bool	physics
	)

Prepare to edit transformation using physics simulation. Return previous status. Do not call editor API here!

◆ _WB_GetBoundBox()

void GenericComponent._WB_GetBoundBox	(	IEntity	owner,
		inout vector	min,
		inout vector	max,
		IEntitySource	src
	)

Editor needs to know a bound box of entity (For ray-casting, visualizers etc.). You can return any custom size you need. Do not call editor API here!

◆ _WB_GetContextMenuItems()

array< ref WB_UIMenuItem > GenericComponent._WB_GetContextMenuItems ( IEntity owner )

An opportunity to append items into editor's "Component" context menu. Do not call editor API here!

◆ _WB_GetUserEnums()

array< ref ParamEnum > GenericComponent._WB_GetUserEnums	(	string	varName,
		IEntity	owner,
		IEntityComponentSource	src
	)

Possibility to get variable value choices dynamically.

◆ _WB_OnContextMenu()

void GenericComponent._WB_OnContextMenu	(	IEntity	owner,
		int	id
	)

User has chosen any of your menu item from editor's "Component" menu which you have recently provided in WB_GetContextMenuItems(). You can use editor API here and do some edit actions.

◆ _WB_OnCreate()

void GenericComponent._WB_OnCreate	(	IEntity	owner,
		IEntitySource	src
	)

Called after entity gets created in map during editing or when deleted entity gets restored after undo action. This event isn't called by loading map!!! If you need an event that is being called after every entity creation then use WB_OnInit instead it. You can use editor API here and do some additional edit actions which will be part of the same "create entity" action.

◆ _WB_OnDelete()

void GenericComponent._WB_OnDelete	(	IEntity	owner,
		IEntitySource	src
	)

Entity is going to be deleted. You can use editor API here and do some additional edit actions which will be part of the same "entity delete" action.

◆ _WB_OnInit()

void GenericComponent._WB_OnInit	(	IEntity	owner,
		inout vector	mat[4],
		IEntitySource	src
	)

Called always after entity creation. It's purpose is to prepare entity for editing. Do not edit anything through editor API here because it's too early for undoable actions! Use plain BaseContainer API for changes through src parameter if needed!

◆ _WB_OnKeyChanged()

bool GenericComponent._WB_OnKeyChanged	(	IEntity	owner,
		BaseContainer	src,
		string	key,
		BaseContainerList	ownerContainers,
		IEntity	parent
	)

Any property value has been changed. You can use editor API here and do some additional edit actions which will be part of the same "key changed" action.

◆ _WB_OnKeyDown()

void GenericComponent._WB_OnKeyDown	(	IEntity	owner,
		int	keyCode
	)

User pressed a key and this entity is main member of entity selection. You can use editor API here and do some edit actions which will be undoable.

◆ _WB_OnParentChange()

void GenericComponent._WB_OnParentChange	(	IEntity	owner,
		IEntitySource	src,
		IEntitySource	prevParentSrc
	)

Parent entity has been changed ( it's available through src->GetParent() ). prevParentSrc is a pointer to a previous parent (if any)

◆ _WB_OnPhysSimulPlacementBegin()

bool GenericComponent._WB_OnPhysSimulPlacementBegin	(	IEntity	owner,
		IEntitySource	src
	)

Does this entity support editing transformation using physics simulation? Do not call editor API here!

◆ _WB_OnRename()

void GenericComponent._WB_OnRename	(	IEntity	owner,
		IEntitySource	src,
		string	oldName
	)

Entity has been renamed. You can use editor API here and do some additional edit actions which will be part of the same "entity rename" action.

◆ _WB_SetExtraVisualiser()

void GenericComponent._WB_SetExtraVisualiser	(	IEntity	owner,
		EntityVisualizerType	type,
		IEntitySource	src
	)

If entity needs to have a special visualizer instead of default one, here is the place where you can implement it. Do not call editor API here!

◆ _WB_SetTransform()

void GenericComponent._WB_SetTransform	(	IEntity	owner,
		inout vector	mat[4],
		IEntitySource	src
	)

Editor changed entity transformation matrix source. Do not call editor API here!

◆ Activate()

proto external void GenericComponent.Activate ( IEntity owner )

Activate component and calls EOnActivate().

◆ ClearEventMask()

proto external int GenericComponent.ClearEventMask	(	notnull IEntity	owner,
		int	mask
	)

Clears bitmask.

Component accepts only events which has set bits in eventmask. Only bits set in the mask are cleared. See enf::EntityEvents

Parameters

mask	Mask of those bits, which will be cleared.

Returns: returns these bits that were set before and now are cleared.

◆ ConnectToDiagSystem()

proto external void GenericComponent.ConnectToDiagSystem ( IEntity owner )

protected

◆ Deactivate()

proto external void GenericComponent.Deactivate ( IEntity owner )

Deactivate component and calls EOnDectivate().

◆ DisconnectFromDiagSystem()

proto external void GenericComponent.DisconnectFromDiagSystem ( IEntity owner )

protected

◆ FindComponent()

proto external GenericComponent GenericComponent.FindComponent ( TypeName typeName )

Finds first occurance of the coresponding component.

Parameters

typeName type of the component

◆ FindComponents()

proto external int GenericComponent.FindComponents	(	TypeName	typeName,
		notnull array< GenericComponent >	outComponents
	)

Finds all occurances of the coresponding component.

Parameters

typeName	type of the component
outComponents	array to fill with selected components

◆ GetComponentData()

proto external EntityComponentPrefabData GenericComponent.GetComponentData ( notnull IEntity ent )

Gets GenericComponentClass descendant instance with the prefab data.

◆ GetComponentSource()

proto external BaseContainer GenericComponent.GetComponentSource ( notnull IEntity ent )

Gets config container with the prefab data.

◆ GetEventMask()

proto external int GenericComponent.GetEventMask ( )

Gets current eventmask of the component.

Returns: Returns bitmask of events the component accepts

◆ IsActive()

proto external bool GenericComponent.IsActive ( )

Returns activity state.

Returns: Returns true, if component is active.

◆ OnTransformReset()

proto external void GenericComponent.OnTransformReset	(	bool	isCorrection = `false`,
		vector	newVelocity = `vector.Zero`
	)

Notifies the component that a transformation of the owner entity has been discontinuously changed.

Should be called after any transformation discontinuity (right after updating the transform) e.g. by teleportation or desync-correction code so the component can react appropriately. By default, this is called automatically from GenericEntity::OnTransformReset.

The default implementation does nothing except calling OnTransformReset on the child components.

The default behavior may be changed in inherited components by overriding OnTransformResetImpl.

Parameters

isCorrection	[optional] Hint that the transform was reset due to its correction (e.g. by net-code), i.e. not a placement/teleport
newVelocity	[optional] Initial velocity of the owner entity after the transform reset

◆ OnTransformResetImpl()

void GenericComponent.OnTransformResetImpl ( TransformResetParams params )

protected

Script-side implementation of OnTransformReset.

The default implementation does nothing except calling OnTransformReset on the child components.

Can be overridden to alter the default behavior. Usually, you'll want to call the base implementation somewhere in the override to preserve the recursion.

Parameters

params See the TransformResetParams documentation.

◆ Preload()

static bool GenericComponent.Preload ( IEntityComponentSource src )

static

◆ Rpc()

proto void GenericComponent.Rpc	(	func	method,
		void	p0 = `NULL`,
		void	p1 = `NULL`,
		void	p2 = `NULL`,
		void	p3 = `NULL`,
		void	p4 = `NULL`,
		void	p5 = `NULL`,
		void	p6 = `NULL`,
		void	p7 = `NULL`
	)

Attempts to run a remote procedure call (RPC) of this instance with parameters specified in method RplRpc attribute.

Parameters

method Member function to be invoked as an RPC.

◆ SetEventMask()

proto external int GenericComponent.SetEventMask	(	notnull IEntity	owner,
		int	mask
	)

Sets eventmask.

Component accepts only events which has set bits in eventmask. Bits are or'ed with existing bitmask. See enf::EntityEvents. When this method is called in the constructor of the component, it will not properly set the eventmask to the parent entity. You may consider OnComponentInsert event.

Parameters

mask	Mask of those bits, which will be set.

Returns: Returns bitmask of events the component accepts (result of mask|GetEventMask())

The documentation for this interface was generated from the following file:

GameLib/generated/Components/GenericComponent.c

Public Member Functions

Static Public Member Functions

Protected Member Functions

Member Function Documentation

◆ _WB_AfterWorldUpdate()

◆ _WB_CanCopy()

◆ _WB_CanDelete()

◆ _WB_CanRename()

◆ _WB_CanSelect()

◆ _WB_EnablePhysics()

◆ _WB_GetBoundBox()

◆ _WB_GetContextMenuItems()

◆ _WB_GetUserEnums()

◆ _WB_OnContextMenu()

◆ _WB_OnCreate()

◆ _WB_OnDelete()

◆ _WB_OnInit()

◆ _WB_OnKeyChanged()

◆ _WB_OnKeyDown()

◆ _WB_OnParentChange()

◆ _WB_OnPhysSimulPlacementBegin()

◆ _WB_OnRename()

◆ _WB_SetExtraVisualiser()

◆ _WB_SetTransform()

◆ Activate()

◆ ClearEventMask()

◆ ConnectToDiagSystem()

◆ Deactivate()

◆ DisconnectFromDiagSystem()

◆ FindComponent()

◆ FindComponents()

◆ GetComponentData()

◆ GetComponentSource()

◆ GetEventMask()

◆ IsActive()

◆ OnTransformReset()

◆ OnTransformResetImpl()

◆ Preload()

◆ Rpc()

◆ SetEventMask()
