GenericEntity Interface Reference

Base entity class. More...

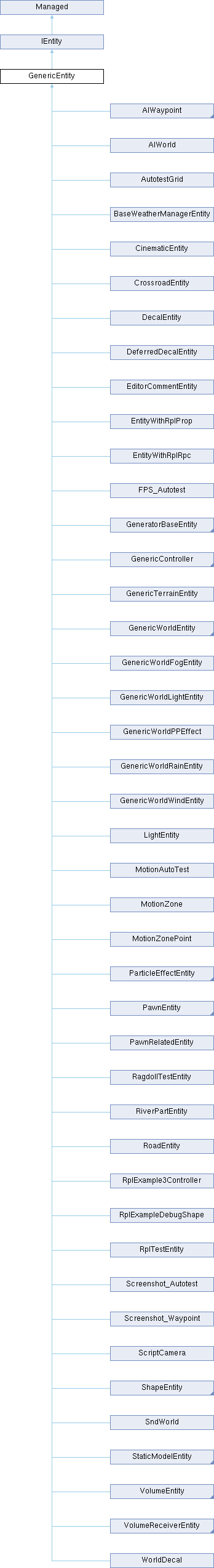

Inheritance diagram for GenericEntity:

Public Member Functions
proto external void	Activate ()
	Activate entity events.
proto external void	Deactivate ()
	Deactivate entity events.
proto external void	Show (bool show)
proto void	Rpc (func method, void p0=NULL, void p1=NULL, void p2=NULL, void p3=NULL, void p4=NULL, void p5=NULL, void p6=NULL, void p7=NULL)
	Attempts to run a remote procedure call of this instance with parameters pecified in method NetRpc attribute.
proto external WorldEditorAPI	_WB_GetEditorAPI ()
	This returns world editor API, which is safe to use from editor events bellow.
proto external void	OnTransformReset (bool isCorrection=false, vector newVelocity=vector.Zero)
	Notifies the entity that its transformation has been discontinuously changed.
IEntity	_WB_GetEditableOwner ()
	Editor needs to know if there is any entity which manages this one and is editable.
void	_WB_MakeVisible (IEntitySource src, bool visible)
	Editor needs to have entity visible or not. Do not call editor API here!
void	_WB_SetTransform (inout vector mat[4], IEntitySource src)
	Editor changed transformation matrix source. This is the place to apply it on entity. Do not call editor API here!
void	_WB_OnInit (inout vector mat[4], IEntitySource src)
	Called always after entity creation. It's purpose is to prepare entity for editing. Do not edit anything through editor API here because it's too early for undoable actions! Use plain BaseContainer API for changes through src parameter if needed!
bool	_WB_CanDelete (IEntitySource src)
	Editor needs to know if this entity can to be deleted. Do not call editor API here!
bool	_WB_CanRename (IEntitySource src)
	Editor needs to know if this entity can to be renamed. Do not call editor API here!
bool	_WB_CanCopy (IEntitySource src)
	Editor needs to know if this entity can be copied. Do not call editor API here!
bool	_WB_CanSelect (IEntitySource src)
	Editor needs to know whether this entity can be selected in scene window or not.
int	_WB_GetAnchorCount (IEntitySource src)
	Returns how many anchor points does this entity have at this time.
void	_WB_GetAnchor (inout vector position, IEntitySource src, int index)
	Fills position of anchor at index index to anchorPosition
void	_WB_OnAnchorSnapped (IEntitySource thisSrc, int thisAnchor, IEntitySource otherSrc, int otherAnchor, bool isReceiver)
	Called when two entities are snapped together.
bool	_WB_CanAnchorSnap (IEntitySource thisSrc, int thisAnchor, IEntitySource otherSrc, int otherAnchor, bool isReceiver)
void	_WB_GetBoundBox (inout vector min, inout vector max, IEntitySource src)
	Editor needs to know a bound box of entity (For ray-casting, visualizers etc.). You can return any custom size you need. Do not call editor API here!
bool	_WB_ShouldShowBoundBox (IEntitySource src)
	Returns true if bound box should be visible when entity is hovered/selected in WB.
void	_WB_SetExtraVisualiser (EntityVisualizerType type, IEntitySource src)
	If entity needs to have a special visualizer instead of default one, here is the place where you can implement it. Do not call editor API here!
array< ref WB_UIMenuItem >	_WB_GetContextMenuItems ()
	An opportunity to append items into editor's "Entity" context menu. Do not call editor API here!
bool	_WB_OnPhysSimulPlacementBegin (IEntitySource src)
	Does this entity support editing transformation using physics simulation? Do not call editor API here!
bool	_WB_EnablePhysics (IEntitySource src, bool physics)
	Prepare to edit transformation using physics simulation. Return previous status. Do not call editor API here!
array< ref ParamEnum >	_WB_GetUserEnums (string varName, IEntitySource src)
	Possibility to get variable value choices dynamically. Do not call editor API here!
bool	_WB_OnKeyChanged (BaseContainer src, string key, BaseContainerList ownerContainers, IEntity parent)
	Any property value has been changed. You can use editor API here and do some additional edit actions which will be part of the same "key changed" action.
void	_WB_AfterWorldUpdate (float timeSlice)
	Called after updating world in Workbench. The entity must be visible in frustum, selected or named. You can use editor API here and do some edit actions if needed.
void	_WB_OnContextMenu (int id)
	User has chosen any of your menu item from editor's "Entity" menu which you have recently provided in WB_GetContextMenuItems(). You can use editor API here and do some edit actions.
void	_WB_OnKeyDown (int keyCode)
	User pressed a key and this entity is main member of entity selection. You can use editor API here and do some edit actions which will be undoable.
void	_WB_OnCreate (IEntitySource src)
	Called after entity gets created in map during editing or when deleted entity gets restored after undo action. This event isn't called by loading map!!! If you need an event that is being called after every entity creation then use WB_OnInit instead it. You can use editor API here and do some additional edit actions which will be part of the same "create entity" action.
void	_WB_OnParentChange (IEntitySource src, IEntitySource prevParentSrc)
	Parent entity has been changed ( it's available through src->GetParent() ). prevParentSrc is a pointer to a previous parent (if any)
void	_WB_OnDelete (IEntitySource src)
	This entity is going to be deleted. You can use editor API here and do some additional edit actions which will be part of the same "entity delete" action.
void	_WB_OnRename (IEntitySource src, string oldName)
	This entity has been renamed. You can use editor API here and do some additional edit actions which will be part of the same "entity rename" action.
Public Member Functions inherited from IEntity
proto external EntityID	GetID ()
	Return unique entity ID.
proto external IEntity	GetParent ()
	Returns parent of this entity (entity on upper level of hierarchy).
proto external IEntity	GetRootParent ()
	Returns top-parent of this entity.
proto external IEntity	GetChildren ()
	Returns first child from this level of hierarchy if there is any.
proto external IEntity	GetSibling ()
	Returns next sibling of this entity (next entity on this level of hierarchy).
proto external VObject	GetVObject ()
	Returns visual object set to this Entity. No reference is added.
proto external EntityPrefabData	GetPrefabData ()
proto external EntityComponentPrefabData	FindComponentData (TypeName typeName)
proto external BaseWorld	GetWorld ()
proto external void	SetFixedLOD (int lod)
	Set fixed LOD. Use -1 for non-fixed LOD.
proto external void	GetTransform (out vector mat[])
	Returns world transformation of Entity.
proto external void	GetWorldTransform (out vector mat[])
	See IEntity::GetTransform.
proto external void	GetLocalTransform (out vector mat[])
	See IEntity::GetTransform.
proto external vector	VectorToParent (vector vec)
	Transforms local vector to parent(world) space.
proto external vector	CoordToParent (vector coord)
	Transforms local position to parent(world) space.
proto external vector	VectorToLocal (vector vec)
	Transforms world space vector to local space.
proto external vector	CoordToLocal (vector coord)
	Transforms world space position to local space.
proto external vector	GetYawPitchRoll ()
	Returns orientation of Entity in world space (Yaw, Pitch, Roll).
proto external void	SetYawPitchRoll (vector angles)
	Sets angles for entity (Yaw, Pitch, Roll).
proto external vector	GetWorldTransformAxis (int axis)
	See IEntity::GetTransformAxis.
proto external vector	GetTransformAxis (int axis)
	See IEntity::GetTransformAxis.
proto external vector	GetLocalTransformAxis (int axis)
	See IEntity::GetTransformAxis.
proto external bool	SetLocalTransform (vector mat[4])
	See IEntity::SetTransform. Returns false, if there is no change in transformation.
proto external bool	SetWorldTransform (vector mat[4])
	See IEntity::SetTransform. Returns false, if there is no change in transformation.
proto external TNodeId	GetPivot ()
	Returns pivot ID from hierarchy component.
proto external bool	SetTransform (vector mat[4])
	Sets entity world transformation.
proto external vector	GetLocalAngles ()
	Same as GetLocalYawPitchRoll(), but returns rotation vector around X, Y and Z axis.
proto external vector	GetLocalYawPitchRoll ()
	Returns local orientation when it's in hierarchy (Yaw, Pitch, Roll).
proto external vector	GetAngles ()
	Same as GetYawPitchRoll(), but returns rotation vector around X, Y and Z axis.
proto external void	SetAngles (vector angles)
	Same as SetYawPitchRoll(), but sets rotation around X, Y and Z axis.
proto external vector	GetOrigin ()
	Returns origin of Entity.
proto external void	SetOrigin (vector orig)
	Sets origin for entity.
proto external void	SetScale (float scale)
proto external float	GetScale ()
proto external void	GetBounds (out vector mins, out vector maxs)
	Returns local bounding box of model on Entity.
proto external void	GetWorldBounds (out vector mins, out vector maxs)
	Returns quantized world-bound-box of Entity.
proto external volatile void	SendEvent (notnull IEntity actor, EntityEvent e, void extra)
	Dynamic event invocation. Parameters are the same as in IEntity::EOnXXXX() methods.
proto external string	GetName ()
proto external int	SetVComponentFlags (VCFlags flags)
	Sets component flags.
proto external void	SetObject (VObject object, string options)
	Sets the visual object to this entity.
proto external EntityFlags	SetFlags (EntityFlags flags, bool recursively=false)
	Sets Entity flags.
proto external EntityFlags	ClearFlags (EntityFlags flags, bool recursively=false)
	Clear Entity flags.
proto external EntityFlags	GetFlags ()
	Returns Entity flags.
proto external EntityEvent	SetEventMask (EntityEvent e)
	Sets event mask.
proto external EntityEvent	ClearEventMask (EntityEvent e)
	Clears event mask.
proto external EntityEvent	GetEventMask ()
	Returns current event mask.
proto external bool	IsLoaded ()
proto external bool	IsRemoved ()
proto external bool	IsDeleted ()
proto external int	Update ()
	Updates entity state/position.
proto external int	AddChild (notnull IEntity child, TNodeId pivot, EAddChildFlags flags=EAddChildFlags.AUTO_TRANSFORM)
	Add Entity to hierarchy. Pivot is pivot index, or -1 for center of parent.
proto external void	RemoveChild (notnull IEntity child, bool keepTransform=false)
	Remove Entity from hierarchy.
proto external void	SetName (string name)
proto external int	SetCameraMask (int mask)
	Sets visibility mask for cameras, where Entity will be rendered.
proto external Physics	GetPhysics ()
proto external Particles	GetParticles ()
proto external Animation	GetAnimation ()
proto external int	Animate (float speed, int loop)
	Updates animation (either xob, or particle, whatever).
proto external int	AnimateEx (float speed, int loop, out vector lin, out vector ang)
	Updates animation (either xob, or particle, whatever).
proto external void	SetBone (TNodeId bone, vector angles, vector trans, float scale)
proto external bool	SetBoneMatrix (TNodeId bone, vector mat[4])
proto external bool	GetBoneMatrix (TNodeId bone, out vector mat[4])
proto external TNodeId	GetBoneIndex (string boneName)
proto external void	GetBoneNames (out notnull array< string > boneNames)
proto external bool	GetBoneLocalMatrix (TNodeId bone, out vector mat[4])
proto external Managed	FindComponent (TypeName typeName)
	Finds first occurance of the coresponding component.
proto external int	FindComponents (TypeName typeName, notnull array< Managed > outComponents)
	Finds all occurances of the coresponding component.
Public Member Functions inherited from Managed
proto external ref Managed	Clone ()
	Return shallow copy of object, or null if it is not allowed (not public constructor)

Static Public Member Functions
static bool	Preload (IEntitySource src)
static proto void	GetMatrixFromSource (BaseWorld world, IEntitySource src, bool withScale, out vector mat[4])

Protected Member Functions
bool	RplLoad (ScriptBitReader reader)
	Called when Item is initialized from replication stream.
bool	RplSave (ScriptBitWriter writer)
	Called when Item is getting replicated from Master to Slave connection.
proto external void	ConnectToDiagSystem ()
proto external void	DisconnectFromDiagSystem ()
void	EOnDiag (IEntity owner, float timeSlice)
void	EOnActivate (IEntity owner)
	Event when entity is activated.
void	EOnDeactivate (IEntity owner)
	Event when entity is deactivated.
void	OnTransformResetImpl (TransformResetParams params)
	Script-side implementation of OnTransformReset.
Protected Member Functions inherited from IEntity
void	EOnTouch (IEntity owner, IEntity other, int touchTypesMask)
	Event when touched by other entity.
void	EOnInit (IEntity owner)
	Event after entity is allocated and initialized.
void	EOnVisible (IEntity owner, int frameNumber)
	Event when we are visible.
void	EOnFrame (IEntity owner, float timeSlice)
	Event every frame.
void	EOnPostFrame (IEntity owner, float timeSlice)
	Event after physics update.
void	EOnAnimEvent (IEntity owner, int type, int slot)
	Event from animation system.
void	EOnSimulate (IEntity owner, float timeSlice)
	Event before every physics fixed step (can be multiple calls per engine update)
void	EOnPostSimulate (IEntity owner, float timeSlice)
	Event after every physics fixed step (can be multiple calls per engine update)
void	EOnJointBreak (IEntity owner, IEntity other)
	Event when joint attached to RigidBody of this entity is broken.
void	EOnPhysicsMove (IEntity owner)
	Event when physics engine has moved with this Entity.
void	EOnContact (IEntity owner, IEntity other, Contact contact)
	Event when physics engine registered contact with other RigidBody.
void	EOnPhysicsActive (IEntity owner, bool activeState)
	Event when a RigidBody active state is changed between consecutive fixed steps.
void	EOnFixedFrame (IEntity owner, float timeSlice)
	Event every fixed frame.
void	EOnFixedPostFrame (IEntity owner, float timeSlice)
	Event after physics update every fixed frame.
void	EOnUser0 (IEntity other, int extra)
	EntityEvent.EV_USER+0.
void	EOnUser1 (IEntity other, int extra)
	EntityEvent.EV_USER+1.
void	EOnUser2 (IEntity other, int extra)
	EntityEvent.EV_USER+2.
void	EOnUser3 (IEntity other, int extra)
	EntityEvent.EV_USER+3.
void	EOnUser4 (IEntity other, int extra)
	EntityEvent.EV_USER+4.
void	IEntity (IEntitySource src, IEntity parent)
	protected script Constructor

Detailed Description

Base entity class.

Member Function Documentation

_WB_AfterWorldUpdate()

void GenericEntity._WB_AfterWorldUpdate

(

float

timeSlice

)

Called after updating world in Workbench. The entity must be visible in frustum, selected or named. You can use editor API here and do some edit actions if needed.

_WB_CanAnchorSnap()

bool GenericEntity._WB_CanAnchorSnap	(	IEntitySource	thisSrc,
		int	thisAnchor,
		IEntitySource	otherSrc,
		int	otherAnchor,
		bool	isReceiver
	)

See also

WB_OnAnchorSnapped

Returns

True if this entity agrees with the snap operation

Implemented in CrossroadEntity.

_WB_CanCopy()

bool GenericEntity._WB_CanCopy

(

IEntitySource

src

)

Editor needs to know if this entity can be copied. Do not call editor API here!

_WB_CanDelete()

bool GenericEntity._WB_CanDelete

(

IEntitySource

src

)

Editor needs to know if this entity can to be deleted. Do not call editor API here!

_WB_CanRename()

bool GenericEntity._WB_CanRename

(

IEntitySource

src

)

Editor needs to know if this entity can to be renamed. Do not call editor API here!

_WB_CanSelect()

bool GenericEntity._WB_CanSelect

(

IEntitySource

src

)

Editor needs to know whether this entity can be selected in scene window or not.

Implemented in RoadGeneratorEntity.

_WB_EnablePhysics()

bool GenericEntity._WB_EnablePhysics	(	IEntitySource	src,
		bool	physics
	)

Prepare to edit transformation using physics simulation. Return previous status. Do not call editor API here!

_WB_GetAnchor()

void GenericEntity._WB_GetAnchor	(	inout vector	position,
		IEntitySource	src,
		int	index
	)

Fills position of anchor at index index to anchorPosition

Implemented in CrossroadEntity.

_WB_GetAnchorCount()

int GenericEntity._WB_GetAnchorCount

(

IEntitySource

src

)

Returns how many anchor points does this entity have at this time.

Implemented in CrossroadEntity.

_WB_GetBoundBox()

void GenericEntity._WB_GetBoundBox	(	inout vector	min,
		inout vector	max,
		IEntitySource	src
	)

Editor needs to know a bound box of entity (For ray-casting, visualizers etc.). You can return any custom size you need. Do not call editor API here!

Implemented in WorldDecal.

_WB_GetContextMenuItems()

array< ref WB_UIMenuItem > GenericEntity._WB_GetContextMenuItems

(

)

An opportunity to append items into editor's "Entity" context menu. Do not call editor API here!

_WB_GetEditableOwner()

IEntity GenericEntity._WB_GetEditableOwner

(

)

Editor needs to know if there is any entity which manages this one and is editable.

_WB_GetEditorAPI()

proto external WorldEditorAPI GenericEntity._WB_GetEditorAPI

(

)

This returns world editor API, which is safe to use from editor events bellow.

_WB_GetUserEnums()

array< ref ParamEnum > GenericEntity._WB_GetUserEnums	(	string	varName,
		IEntitySource	src
	)

Possibility to get variable value choices dynamically. Do not call editor API here!

_WB_MakeVisible()

void GenericEntity._WB_MakeVisible	(	IEntitySource	src,
		bool	visible
	)

Editor needs to have entity visible or not. Do not call editor API here!

_WB_OnAnchorSnapped()

void GenericEntity._WB_OnAnchorSnapped	(	IEntitySource	thisSrc,
		int	thisAnchor,
		IEntitySource	otherSrc,
		int	otherAnchor,
		bool	isReceiver
	)

Called when two entities are snapped together.

Parameters

isReceiver

True if another entity snapped to this one, false otherwise.

Implemented in CrossroadEntity.

_WB_OnContextMenu()

void GenericEntity._WB_OnContextMenu

(

int

id

)

User has chosen any of your menu item from editor's "Entity" menu which you have recently provided in WB_GetContextMenuItems(). You can use editor API here and do some edit actions.

_WB_OnCreate()

void GenericEntity._WB_OnCreate

(

IEntitySource

src

)

Called after entity gets created in map during editing or when deleted entity gets restored after undo action. This event isn't called by loading map!!! If you need an event that is being called after every entity creation then use WB_OnInit instead it. You can use editor API here and do some additional edit actions which will be part of the same "create entity" action.

Implemented in RoadGeneratorEntity.

_WB_OnDelete()

void GenericEntity._WB_OnDelete

(

IEntitySource

src

)

This entity is going to be deleted. You can use editor API here and do some additional edit actions which will be part of the same "entity delete" action.

Implemented in RoadGeneratorEntity.

_WB_OnInit()

void GenericEntity._WB_OnInit	(	inout vector	mat[4],
		IEntitySource	src
	)

Called always after entity creation. It's purpose is to prepare entity for editing. Do not edit anything through editor API here because it's too early for undoable actions! Use plain BaseContainer API for changes through src parameter if needed!

_WB_OnKeyChanged()

bool GenericEntity._WB_OnKeyChanged	(	BaseContainer	src,
		string	key,
		BaseContainerList	ownerContainers,
		IEntity	parent
	)

Any property value has been changed. You can use editor API here and do some additional edit actions which will be part of the same "key changed" action.

Implemented in CrossroadEntity, and RoadGeneratorEntity.

_WB_OnKeyDown()

void GenericEntity._WB_OnKeyDown

(

int

keyCode

)

User pressed a key and this entity is main member of entity selection. You can use editor API here and do some edit actions which will be undoable.

_WB_OnParentChange()

void GenericEntity._WB_OnParentChange	(	IEntitySource	src,
		IEntitySource	prevParentSrc
	)

Parent entity has been changed ( it's available through src->GetParent() ). prevParentSrc is a pointer to a previous parent (if any)

_WB_OnPhysSimulPlacementBegin()

bool GenericEntity._WB_OnPhysSimulPlacementBegin

(

IEntitySource

src

)

Does this entity support editing transformation using physics simulation? Do not call editor API here!

_WB_OnRename()

void GenericEntity._WB_OnRename	(	IEntitySource	src,
		string	oldName
	)

This entity has been renamed. You can use editor API here and do some additional edit actions which will be part of the same "entity rename" action.

_WB_SetExtraVisualiser()

void GenericEntity._WB_SetExtraVisualiser	(	EntityVisualizerType	type,
		IEntitySource	src
	)

If entity needs to have a special visualizer instead of default one, here is the place where you can implement it. Do not call editor API here!

Implemented in WorldDecal.

_WB_SetTransform()

void GenericEntity._WB_SetTransform	(	inout vector	mat[4],
		IEntitySource	src
	)

Editor changed transformation matrix source. This is the place to apply it on entity. Do not call editor API here!

Implemented in WorldDecal.

_WB_ShouldShowBoundBox()

bool GenericEntity._WB_ShouldShowBoundBox

(

IEntitySource

src

)

Returns true if bound box should be visible when entity is hovered/selected in WB.

Activate()

proto external void GenericEntity.Activate

(

)

Activate entity events.

Will also activate all components of the entity.

ConnectToDiagSystem()

proto external void GenericEntity.ConnectToDiagSystem ( )

protected

Deactivate()

proto external void GenericEntity.Deactivate

(

)

Deactivate entity events.

Will also deactivate all components of the entity.

DisconnectFromDiagSystem()

proto external void GenericEntity.DisconnectFromDiagSystem ( )

protected

EOnActivate()

void GenericEntity.EOnActivate ( IEntity  owner )

protected

Event when entity is activated.

EOnDeactivate()

void GenericEntity.EOnDeactivate ( IEntity  owner )

protected

Event when entity is deactivated.

EOnDiag()

void GenericEntity.EOnDiag ( IEntity  owner, float  timeSlice  )

protected

GetMatrixFromSource()

static proto void GenericEntity.GetMatrixFromSource ( BaseWorld  world, IEntitySource  src, bool  withScale, out vector  mat[4]  )

static

OnTransformReset()

proto external void GenericEntity.OnTransformReset	(	bool	isCorrection = false,
		vector	newVelocity = vector.Zero
	)

Notifies the entity that its transformation has been discontinuously changed.

Should be called after any transformation discontinuity (right after updating the transform) e.g. by teleportation or desync-correction code so the entity can react appropriately.

The default implementation handles Particles (if present on the entity) and calls OnTransformReset on all of the entity's GenericComponent instances and child GenericEntity instances with auto-transform enabled (i.e. it handles the whole entity and component hierarchy by recursion).

The default behavior may be changed in inherited entities by overriding OnTransformResetImpl.

Parameters

isCorrection	[optional] Hint that the transform was reset due to its correction (e.g. by net-code), i.e. not a placement/teleport
newVelocity	[optional] Initial velocity of the entity after the transform reset

OnTransformResetImpl()

void GenericEntity.OnTransformResetImpl ( TransformResetParams  params )

protected

Script-side implementation of OnTransformReset.

The default implementation handles Particles (if present on the entity) and calls OnTransformReset on all of the entity's GenericComponent instances and child GenericEntity instances (i.e. it handles the whole entity and component hierarchy by recursion).

Can be overridden to alter the default behavior. Usually, you'll want to call the base implementation somewhere in the override to preserve the recursion.

Parameters

params

See the TransformResetParams documentation.

Preload()

static bool GenericEntity.Preload ( IEntitySource  src )

static

Rpc()

proto void GenericEntity.Rpc	(	func	method,
		void	p0 = NULL,
		void	p1 = NULL,
		void	p2 = NULL,
		void	p3 = NULL,
		void	p4 = NULL,
		void	p5 = NULL,
		void	p6 = NULL,
		void	p7 = NULL
	)

Attempts to run a remote procedure call of this instance with parameters pecified in method NetRpc attribute.

Parameters

method

member function pointer

RplLoad()

bool GenericEntity.RplLoad ( ScriptBitReader  reader )

protected

Called when Item is initialized from replication stream.

Carries the data from Master.

RplSave()

bool GenericEntity.RplSave ( ScriptBitWriter  writer )

protected

Called when Item is getting replicated from Master to Slave connection.

The data will be delivered to Slave using RplInit method.

Show()

proto external void GenericEntity.Show

(

bool

show

)

---

The documentation for this interface was generated from the following file:

• GameLib/generated/Entities/GenericEntity.c
