SCR_AIGetActionParameters Interface Reference

Base class of node which outputs action parameters to Behavior Tree variables. More...

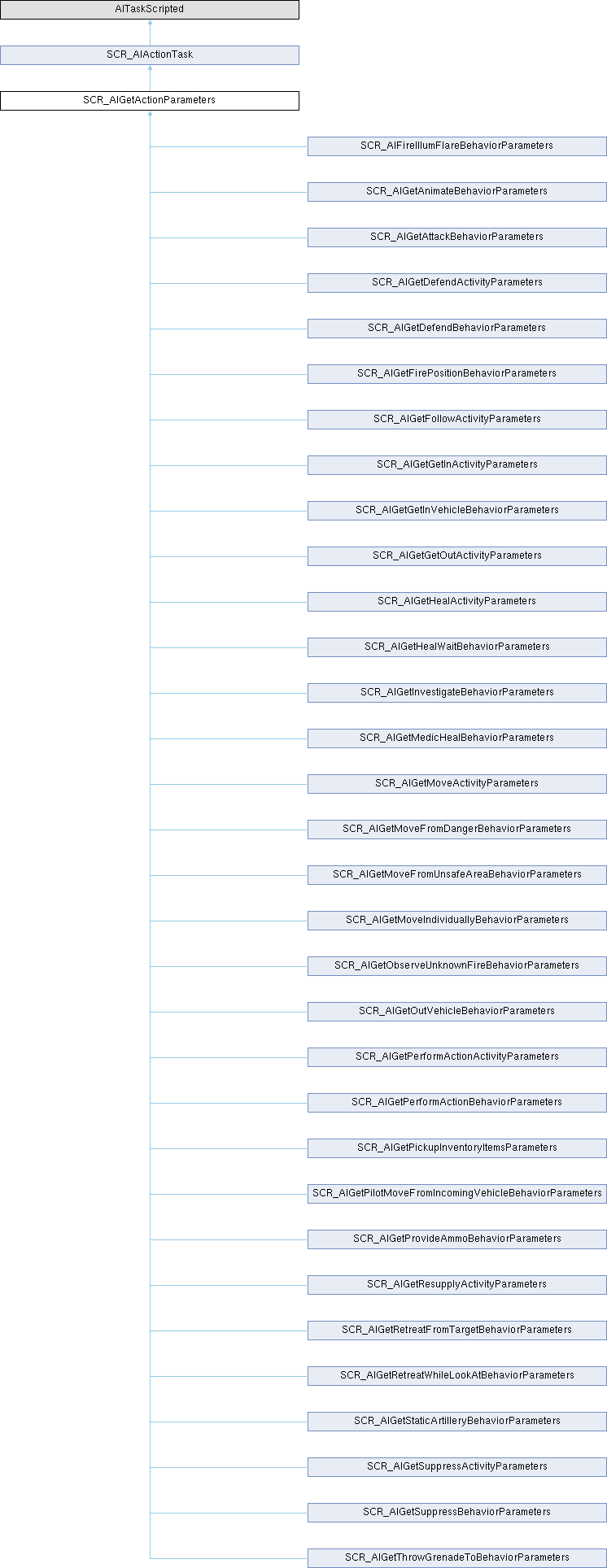

Inheritance diagram for SCR_AIGetActionParameters:

Public Member Functions
override ENodeResult	EOnTaskSimulate (AIAgent owner, float dt)
	Scripted nodes are suposed to return SUCCESS, FAIL or RUNNING state.
Public Member Functions inherited from SCR_AIActionTask
override void	OnEnter (AIAgent owner)
Public Member Functions inherited from AITaskScripted
void	OnInit (AIAgent owner)
void	OnAbort (AIAgent owner, Node nodeCausingAbort)
Public Member Functions inherited from Node
proto external int	GetNodeID ()
proto external TypeName	GetVariableType (bool inputPort, string name)
proto bool	GetVariableIn (string name, out void val)
proto void	SetVariableOut (string name, void val)
proto void	ClearVariable (string name)
proto void	GetCallstackStr (out string val)
proto void	GetParentTreeName (out string val)

Static Protected Member Functions
static override bool	VisibleInPalette ()
Static Protected Member Functions inherited from Node
static string	GetOnHoverDescription ()
static bool	CanReturnRunning ()

Additional Inherited Members
Static Public Attributes inherited from SCR_AIActionTask
static const string	ENTITY_PORT = "Entity"
static const string	POSITION_PORT = "Position"
static const string	STANCE_PORT = "Stance"
static const string	ROLEINVEHICLE_PORT = "RoleInVehicle"
static const string	REPORTER_PORT = "ReportingAgent"
static const string	USE_VEHICLES_PORT = "UseVehicles"
static const string	DESIREDDISTANCE_PORT = "DesiredDistance"
static const string	TARGET_PORT = "Target"
static const string	TARGETINFO_PORT = "TargetInfo"
static const string	TARGETPOSITION_PORT = "TargetPosition"
static const string	NEXTCOVERPOSITION_PORT = "NextCoverPosition"
static const string	COMPARTMENT_PORT = "Compartment"
static const string	SMARTACTION_PORT = "SmartActionComponent"
static const string	WEAPON_TYPE_PORT = "WeaponType"
static const string	WEAPON_COMP_PORT = "WeaponComponent"
static const string	MAGAZINE_COMP_PORT = "MagazineComponent"
static const string	MAGAZINE_WELL_PORT = "MagazineWell"
static const string	PRIORITY_LEVEL_PORT = "PriorityLevel"
static const string	MUZZLE_ID = "MuzzleID"
static const string	WAYPOINT_PORT = "Waypoint"
static const string	BOARDING_PARAMS_PORT = "BoardingParams"
static const string	DEFEND_DIRECTION_PORT = "DefendDirection"
static const string	DEFEND_LOCATION_PORT = "DefendLocation"
static const string	ANGULAR_RANGE_PORT = "AngularRange"
static const string	WAYPOINT_RELATED_PORT = "WaypointRelated"
static const string	IS_DANGEROUS_PORT = "isDangerous"
static const string	RESET_TIMER_PORT = "ResetTimer"
static const string	TIMEOUT_PORT = "Timeout"
static const string	DELAY_PORT = "Delay"
static const string	REINIT_PORT = "Reinit"
static const string	RADIUS_PORT = "Radius"
static const string	AGENT_SCRIPT_PORT = "AgentScript"
static const string	RELATED_INVOKER_PORT = "RelatedInvoker"
Protected Member Functions inherited from SCR_AIActionTask
SCR_AIActionBase	GetExecutedAction ()
	Returns current action from the utility component.
Protected Member Functions inherited from AITaskScripted
string	GetNodeMiddleText ()
Protected Member Functions inherited from Node
TStringArray	GetVariablesIn ()
TStringArray	GetVariablesOut ()
Protected Attributes inherited from SCR_AIActionTask
SCR_AIBaseUtilityComponent	m_UtilityComp
Static Protected Attributes inherited from Node
static ref TStringArray	m_aEmptyVars = {}

Detailed Description

Base class of node which outputs action parameters to Behavior Tree variables.

If you need to expose action parameters to a BT, you must create a scripted node class which inherits from SCR_AIGetActionParameters.

The action class must use SCR_BTParam for variables which must be exposed to Behavior Trees.

For example: class SCR_AIGetFlyHelicopterParameters : SCR_AIGetActionParameters { static ref TStringArray s_aVarsOut = (new SCR_AIFlyHelicopterBehavior(null, false)).GetPortNames(); // (1) override TStringArray GetVariablesOut() { return s_aVarsOut; } // protected static override bool VisibleInPalette() { return true; } // (2) };

(1) We need to create an action object once to get port names. We store the resulting array into a static variable. Please ensure that constructor does not call any other code which is inaccessible during script compilation!

(2) Remember to override VisibleInPallete!

Member Function Documentation

EOnTaskSimulate()

override ENodeResult SCR_AIGetActionParameters.EOnTaskSimulate	(	AIAgent	owner,
		float	dt )

Scripted nodes are suposed to return SUCCESS, FAIL or RUNNING state.

Implements AITaskScripted.

Implemented in SCR_AIGetMoveIndividuallyBehaviorParameters.

VisibleInPalette()

static override bool SCR_AIGetActionParameters.VisibleInPalette ( )

staticprotected

Implements Node.

Implemented in SCR_AIFireIllumFlareBehaviorParameters, SCR_AIGetAnimateBehaviorParameters, SCR_AIGetAttackBehaviorParameters, SCR_AIGetDefendActivityParameters, SCR_AIGetDefendBehaviorParameters, SCR_AIGetFirePositionBehaviorParameters, SCR_AIGetFollowActivityParameters, SCR_AIGetGetInActivityParameters, SCR_AIGetGetInVehicleBehaviorParameters, SCR_AIGetGetOutActivityParameters, SCR_AIGetHealActivityParameters, SCR_AIGetHealWaitBehaviorParameters, SCR_AIGetInvestigateBehaviorParameters, SCR_AIGetMedicHealBehaviorParameters, SCR_AIGetMoveActivityParameters, SCR_AIGetMoveFromDangerBehaviorParameters, SCR_AIGetMoveFromUnsafeAreaBehaviorParameters, SCR_AIGetMoveIndividuallyBehaviorParameters, SCR_AIGetObserveUnknownFireBehaviorParameters, SCR_AIGetOutVehicleBehaviorParameters, SCR_AIGetPerformActionActivityParameters, SCR_AIGetPerformActionBehaviorParameters, SCR_AIGetPickupInventoryItemsParameters, SCR_AIGetPilotMoveFromIncomingVehicleBehaviorParameters, SCR_AIGetProvideAmmoBehaviorParameters, SCR_AIGetResupplyActivityParameters, SCR_AIGetRetreatFromTargetBehaviorParameters, SCR_AIGetRetreatWhileLookAtBehaviorParameters, SCR_AIGetStaticArtilleryBehaviorParameters, SCR_AIGetSuppressActivityParameters, SCR_AIGetSuppressBehaviorParameters, and SCR_AIGetThrowGrenadeToBehaviorParameters.

---

The documentation for this interface was generated from the following file:

• Game/AI/ScriptedNodes/Behavior/SCR_AIGetActionParameters.c
