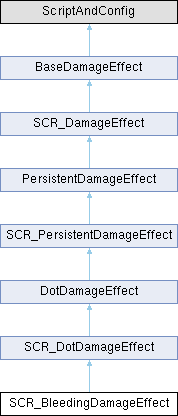

Inheritance diagram for SCR_BleedingDamageEffect:

[legend]

Public Member Functions
override void	OnEffectAdded (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets added to a DamageManager.

override void	OnEffectRemoved (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets removed from a DamageManager.

override bool	HijackDamageEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called before the damage effect is added to the damage manager If it returns true, damage effect is hijacked/intercepted and therefore not added/applied to the damage manager Any modifications done to the damage effect will persist.

float	CalculateBleedingRate ()

override bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

override bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

override EDamageType	GetDefaultDamageType ()

override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

Public Member Functions inherited from SCR_DotDamageEffect
override bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

override bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

void	SkipRegenDelay (bool skip)
	When this is toggled PRIOR to the damage effect being added, the regen will start instantly OnEffectAdded.

bool	GetSkipRegenDelay (SCR_ExtendedDamageManagerComponent dmgManager)
	Will return true if regen delay was enabled.

Public Member Functions inherited from DotDamageEffect
proto external void	DealDot (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
	Applies DOT equivalent to timeSlice seconds.

proto external void	DealCustomDot (notnull HitZone hitzone, float dotAmount, notnull DotDamageEffectTimerToken token, SCR_ExtendedDamageManagerComponent dmgManager)

proto external void	SetDPS (float dps)
	set amount of damage per second

proto external void	SetMaxDuration (float newMaxduration)
	Set max duration for this DOT effect.

proto external void	ExtendMaxDuration (float amount)
	Increases the max duration of this damage effect.

proto external DotDamageEffectTimerToken	UpdateTimer (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
	Updates current duration of this damage effect by timeSlice and returns a token to be used for DealCustomDot.

proto external float	GetAccurateTimeSlice (float timeSlice)
	timeSlice can exceed the remaining time for DOT, this will return the accurate amount of DOT time left that can be applied.

proto external float	GetDPS ()
	Returns amount of Damage Per Second applied by this DamageEffect.

proto external float	GetCurrentDuration ()
	Returns amount of time this effect has been running.

proto external float	GetMaxDuration ()

Public Member Functions inherited from PersistentDamageEffect
proto external void	Terminate ()
	Terminates this DamageEffect.

proto external void	SetActive (bool value)
	When active, the damage effect will be updated on frame.

proto external bool	IsActive ()
	Checks if this effect is active or not.

void	EOnFrame (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)

override bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

override bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

EDamageType	GetDefaultDamageType ()

Public Member Functions inherited from BaseDamageEffect
proto external void	ApplyEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets applied on a DamageManager.

proto external float	GetTotalDamage ()
	Get total damage dealt until this point by this damage effect.

proto external EDamageType	GetDamageType ()
	Gettor for the DamageType of this DamageEffect.

proto external notnull Instigator	GetInstigator ()
	Gettor for the Instigator of this DamageEffect.

proto external HitZone	GetAffectedHitZone ()
	Gettor for which hitzone this DamageEffect was applied to.

proto external void	SetDamageType (EDamageType type)
	Settor for the DamageType of this DamageEffect.

proto external void	SetInstigator (notnull Instigator instigator)
	Settor for the instigator of the damage effect.

proto external void	SetAffectedHitZone (HitZone hitZone)
	Settor for the affected HitZone of the damage effect.

proto external bool	IsProxy (SCR_ExtendedDamageManagerComponent dmgManager)
	Used to check if you are a proxy or not.

bool	HijackDamageEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called before the damage effect is added to the damage manager If it returns true, damage effect is hijacked/intercepted and therefore not added/applied to the damage manager Any modifications done to the damage effect will persist.

void	OnEffectAdded (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets added to a DamageManager.

void	OnEffectApplied (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets applied on a DamageManager.

void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.

void	OnEffectRemoved (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets removed from a DamageManager.

void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

Public Attributes
SCR_CharacterBloodHitZone	m_BloodHitZone

int	m_iColliderDescriptorIndex = -1

Protected Member Functions
override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.

override void	EOnFrame (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)

override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.

override void	EOnFrame (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)

override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.

override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.

override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

Member Function Documentation

◆ CalculateBleedingRate()

float SCR_BleedingDamageEffect.CalculateBleedingRate ( )

◆ EOnFrame()

override void SCR_BleedingDamageEffect.EOnFrame	(	float	timeSlice,
		SCR_ExtendedDamageManagerComponent	dmgManager
	)

protected

Implements SCR_DotDamageEffect.

◆ GetDefaultDamageType()

override EDamageType SCR_BleedingDamageEffect.GetDefaultDamageType ( )

Implements SCR_DamageEffect.

◆ HandleConsequences()

override void SCR_BleedingDamageEffect.HandleConsequences	(	SCR_ExtendedDamageManagerComponent	dmgManager,
		DamageEffectEvaluator	evaluator
	)

protected

Called from ApplyEffect.

Implements SCR_DotDamageEffect.

◆ HijackDamageEffect()

override bool SCR_BleedingDamageEffect.HijackDamageEffect ( SCR_ExtendedDamageManagerComponent dmgManager )

Called before the damage effect is added to the damage manager If it returns true, damage effect is hijacked/intercepted and therefore not added/applied to the damage manager Any modifications done to the damage effect will persist.

Parameters

SCR_ExtendedDamageManagerComponent dmgManager: Manager containing this DamageEffect

Implements BaseDamageEffect.

◆ Load()

override bool SCR_BleedingDamageEffect.Load ( ScriptBitReader r )

Since DamageEffects can't have rpl methods, streaming has to be done through this method.

This method writes the necessary info for the replication of this DamageEffect and sends it through the network

Parameters

ScriptBitReader r: Streamed data should be read from here.

Returns: true if there were no issues on replication

Implements SCR_DotDamageEffect.

◆ OnDiag()

override void SCR_BleedingDamageEffect.OnDiag ( SCR_ExtendedDamageManagerComponent dmgManager )

When DamageEffect info is enabled on the diag menu, this will be called.

Used to write debug information about this DamageEffect

Parameters

SCR_ExtendedDamageManagerComponent dmgManager: Manager containing this DamageEffect

Implements SCR_DotDamageEffect.

◆ OnEffectAdded()

override void SCR_BleedingDamageEffect.OnEffectAdded ( SCR_ExtendedDamageManagerComponent dmgManager )

Called when this DamageEffect gets added to a DamageManager.

Parameters

SCR_ExtendedDamageManagerComponent dmgManager: Manager containing this DamageEffect

Implements BaseDamageEffect.

◆ OnEffectRemoved()

override void SCR_BleedingDamageEffect.OnEffectRemoved ( SCR_ExtendedDamageManagerComponent dmgManager )

Called when this DamageEffect gets removed from a DamageManager.

Parameters

SCR_ExtendedDamageManagerComponent dmgManager: Manager containing this DamageEffect

Implements BaseDamageEffect.

◆ Save()

override bool SCR_BleedingDamageEffect.Save ( ScriptBitWriter w )

Since DamageEffects can't have rpl methods, streaming has to be done through this method.

This method writes the necessary info for the replication of this DamageEffect and sends it through the network

Parameters

ScriptBitWriter w: data to stream should be written here.

Returns: true if there were no issues on replication

Implements SCR_DotDamageEffect.

Member Data Documentation

◆ m_BloodHitZone

SCR_CharacterBloodHitZone SCR_BleedingDamageEffect.m_BloodHitZone

◆ m_iColliderDescriptorIndex

int SCR_BleedingDamageEffect.m_iColliderDescriptorIndex = -1

The documentation for this interface was generated from the following file:

Game/Damage/DamageEffects/CharacterDamageEffects/SCR_BleedingDamageEffect.c
