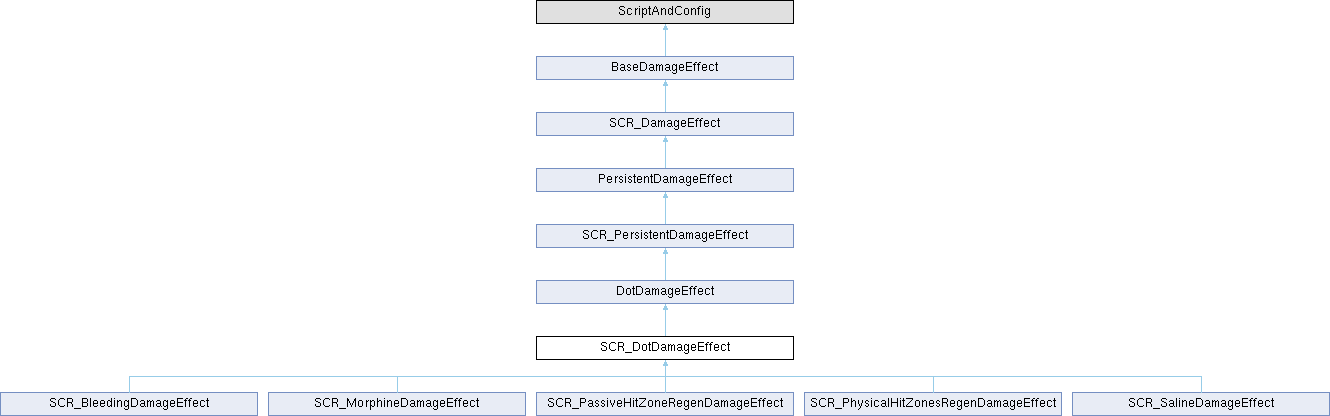

Inheritance diagram for SCR_DotDamageEffect:

Public Member Functions
override bool	Save (ScriptBitWriter w)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

override bool	Load (ScriptBitReader r)
	Since DamageEffects can't have rpl methods, streaming has to be done through this method.

void	SkipRegenDelay (bool skip)
	When this is toggled PRIOR to the damage effect being added, the regen will start instantly OnEffectAdded.

bool	GetSkipRegenDelay (SCR_ExtendedDamageManagerComponent dmgManager)
	Will return true if regen delay was enabled.

override float	GetCustomDamageValue ()
	Method called locally by SCR_DamageSufferingSystem to get relevant damage amount for this specific damage effect.

void	RecalculateDPS (float timeSlice, notnull SCR_ExtendedDamageManagerComponent dmgManager)
	Method called locally by SCR_DamageSufferingSystem to allow local computation of the DPS.

Public Member Functions inherited from DotDamageEffect
proto external void	DealDot (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
	Applies DOT equivalent to timeSlice seconds.

proto external void	DealCustomDot (notnull HitZone hitzone, float dotAmount, notnull DotDamageEffectTimerToken token, SCR_ExtendedDamageManagerComponent dmgManager)

proto external void	SetDPS (float dps)
	set amount of damage per second.

proto external void	SetMaxDuration (float newMaxduration)
	Set max duration for this DOT effect.

proto external void	ExtendMaxDuration (float amount)
	Increases the max duration of this damage effect.

proto external DotDamageEffectTimerToken	UpdateTimer (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)
	Updates current duration of this damage effect by timeSlice and returns a token to be used for DealCustomDot.

proto external float	GetAccurateTimeSlice (float timeSlice)
	timeSlice can exceed the remaining time for DOT, this will return the accurate amount of DOT time left that can be applied.

proto external float	GetDPS ()
	Returns amount of Damage Per Second applied by this DamageEffect.

proto external float	GetCurrentDuration ()
	Returns amount of time this effect has been running.

proto external float	GetMaxDuration ()

Public Member Functions inherited from SCR_PersistentDamageEffect
bool	ExecuteSynchronizedSoundPlayback (notnull SCR_ExtendedDamageManagerComponent dmgManager)
	Method meant to be called by replicated events to use local data for sound playback.

void	IndividualProcessing (notnull SCR_ExtendedDamageManagerComponent dmgManager)
	Method called locally by SCR_DamageSufferingSystem when UseBatchProcessing() returns false.

bool	UseBatchProcessing ()
	Method called locally by SCR_DamageSufferingSystem to determine if it should group all instances of this damage effect type for processing.

void	BatchData (inout SCR_BatchedDamageEffects batchedDataContainer, notnull SCR_PersistentDamageEffect effect)
	Method called locally by SCR_DamageSufferingSystem to store any neccessary information about effect into a derivative of a SCR_BatchedDamageEffects for further processing.

void	BatchProcessing (notnull SCR_ExtendedDamageManagerComponent dmgManager, notnull SCR_BatchedDamageEffects batchedDataContainer, bool isAuthority)
	Method called locally by SCR_DamageSufferingSystem to do a singular processing for this damage effect type.

Public Member Functions inherited from PersistentDamageEffect
proto external void	Terminate ()
	Terminates this DamageEffect.

proto external void	SetActive (bool value)
	When active, the damage effect will be updated on frame.

proto external bool	IsActive ()
	Checks if this effect is active or not.

bool	SaveApplyEffect (ScriptBitWriter w)
	It is indented to work togeter with SCR_OnEffectApplied to send replicated data to clients.

bool	LoadApplyEffect (ScriptBitReader r)
	It is indented to work togeter with SCR_OnEffectApplied to load replicated data to clients.

Public Member Functions inherited from SCR_DamageEffect
bool	IsProxy (SCR_ExtendedDamageManagerComponent dmgManager)

EDamageType	GetDefaultDamageType ()

Public Member Functions inherited from BaseDamageEffect
proto external void	ApplyEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called to apply a DamageEffect.

proto external float	GetTotalDamage ()
	Get total damage dealt until this point by this damage effect.

proto external EDamageType	GetDamageType ()
	Gettor for the DamageType of this DamageEffect.

proto external notnull Instigator	GetInstigator ()
	Gettor for the Instigator of this DamageEffect.

proto external HitZone	GetAffectedHitZone ()
	Gettor for which hitzone this DamageEffect was applied to.

proto external void	SetDamageType (EDamageType type)
	Settor for the DamageType of this DamageEffect.

proto external void	SetInstigator (notnull Instigator instigator)
	Settor for the instigator of the damage effect.

proto external void	SetAffectedHitZone (notnull HitZone hitZone)
	Settor for the affected HitZone of the damage effect.

proto external bool	IsValueChangeAllowed ()
	Once this effect gets added to a manager, some of its values shouldn't change, as their change doesn't get replicated (instigator, damage type, affected hitzone) and it can lead to desync.

proto external bool	IsProxy ()
	Used to check if you are a proxy or not.

bool	HijackDamageEffect (SCR_ExtendedDamageManagerComponent dmgManager)
	Called before the damage effect is added to the damage manager If it returns true, damage effect is hijacked/intercepted and therefore not added/applied to the damage manager Any modifications done to the damage effect will persist.

void	OnEffectAdded (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets added to a DamageManager.

void	OnEffectApplied (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets applied on a DamageManager.

void	OnEffectRemoved (SCR_ExtendedDamageManagerComponent dmgManager)
	Called when this DamageEffect gets removed from a DamageManager.

Protected Member Functions
override void	HandleConsequences (SCR_ExtendedDamageManagerComponent dmgManager, DamageEffectEvaluator evaluator)
	Called from ApplyEffect.

override void	EOnFrame (float timeSlice, SCR_ExtendedDamageManagerComponent dmgManager)

override void	OnDiag (SCR_ExtendedDamageManagerComponent dmgManager)
	When DamageEffect info is enabled on the diag menu, this will be called.

Member Function Documentation

◆ EOnFrame()

override void SCR_DotDamageEffect.EOnFrame	(	float	timeSlice,
		SCR_ExtendedDamageManagerComponent	dmgManager )

protected

Implements PersistentDamageEffect.

Implemented in SCR_BleedingDamageEffect, SCR_MorphineDamageEffect, SCR_PassiveHitZoneRegenDamageEffect, SCR_PhysicalHitZonesRegenDamageEffect, SCR_PoisonDamageEffect, and SCR_SalineDamageEffect.

◆ GetCustomDamageValue()

override float SCR_DotDamageEffect.GetCustomDamageValue ( )

Method called locally by SCR_DamageSufferingSystem to get relevant damage amount for this specific damage effect.

Returns

Implements SCR_PersistentDamageEffect.

Implemented in SCR_PoisonDamageEffect.

◆ GetSkipRegenDelay()

bool SCR_DotDamageEffect.GetSkipRegenDelay ( SCR_ExtendedDamageManagerComponent dmgManager )

Will return true if regen delay was enabled.

Getting this will reset the value so damage effect behaves normally after the regen delay was skipped

Implemented in SCR_PhysicalHitZonesRegenDamageEffect.

◆ HandleConsequences()

override void SCR_DotDamageEffect.HandleConsequences	(	SCR_ExtendedDamageManagerComponent	dmgManager,
		DamageEffectEvaluator	evaluator )

protected

Called from ApplyEffect.

Implements SCR_PersistentDamageEffect.

Implemented in SCR_BleedingDamageEffect, SCR_MorphineDamageEffect, SCR_PassiveHitZoneRegenDamageEffect, SCR_PhysicalHitZonesRegenDamageEffect, SCR_PoisonDamageEffect, and SCR_SalineDamageEffect.

◆ Load()

override bool SCR_DotDamageEffect.Load ( ScriptBitReader r )

Since DamageEffects can't have rpl methods, streaming has to be done through this method.

This method writes the necessary info for the replication of this DamageEffect and sends it through the network

Parameters

ScriptBitReader r: Streamed data should be read from here.

Returns: true if there were no issues on replication

Implements SCR_DamageEffect.

Implemented in SCR_BleedingDamageEffect.

◆ OnDiag()

override void SCR_DotDamageEffect.OnDiag ( SCR_ExtendedDamageManagerComponent dmgManager )

protected

When DamageEffect info is enabled on the diag menu, this will be called.

Used to write debug information about this DamageEffect

Parameters

SCR_ExtendedDamageManagerComponent dmgManager: Manager containing this DamageEffect

Implements SCR_PersistentDamageEffect.

Implemented in SCR_BleedingDamageEffect.

◆ RecalculateDPS()

void SCR_DotDamageEffect.RecalculateDPS	(	float	timeSlice,
		notnull SCR_ExtendedDamageManagerComponent	dmgManager )

Method called locally by SCR_DamageSufferingSystem to allow local computation of the DPS.

Parameters

[in]	timeSlice
[in]	dmgManager

Implemented in SCR_PoisonDamageEffect.

◆ Save()

override bool SCR_DotDamageEffect.Save ( ScriptBitWriter w )

Since DamageEffects can't have rpl methods, streaming has to be done through this method.

This method writes the necessary info for the replication of this DamageEffect and sends it through the network

Parameters

ScriptBitWriter w: data to stream should be written here.

Returns: true if there were no issues on replication

Implements SCR_DamageEffect.

Implemented in SCR_BleedingDamageEffect.

◆ SkipRegenDelay()

void SCR_DotDamageEffect.SkipRegenDelay ( bool skip )

When this is toggled PRIOR to the damage effect being added, the regen will start instantly OnEffectAdded.

The documentation for this interface was generated from the following file:

Game/Damage/DamageEffects/BaseDamageEffects/SCR_DotDamageEffect.c
