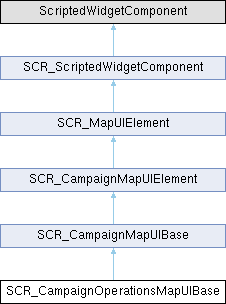

Inheritance diagram for SCR_CampaignOperationsMapUIBase:

Public Member Functions
override bool	OnMouseEnter (Widget w, int x, int y)

override bool	OnMouseLeave (Widget w, Widget enterW, int x, int y)

bool	EvaluateEntity (notnull IEntity entity)
	Check if this entity can block player to enter a building mode. If such an entity is found, return false to stop evaluating next entity found by query.

Public Member Functions inherited from SCR_CampaignMapUIBase
ScriptInvoker	GetOnMapIconEnter ()

ScriptInvoker	GetOnMapIconClick ()

int	GetBaseIconSize ()

override bool	OnClick (Widget w, int x, int y, int button)

override void	SelectIcon (bool invoke=true)

void	FlashBaseIcon (Faction faction=null, bool changeToDefault=false)

override void	AnimExpand ()

override void	AnimCollapse ()

void	ShowServiceHint (string name, string text, bool show, int suppliesAmount=-1, int suppliesMax=-1)

override void	HandlerAttached (Widget w)

void	OnMapCloseInvoker (MapConfiguration config)

void	RemoveHint ()

override void	HandlerDeattached (Widget w)

void	SetIconInfoText ()

void	InitServices ()

void	UpdateBaseIcon (int id)

void	InitBase (SCR_CampaignMilitaryBaseComponent base)

void	InitMobile (SCR_CampaignMobileAssemblyStandaloneComponent assembly)

void	ChangeBaseIconSize ()

override void	ShowName (bool visible)

override vector	GetPos ()

void	ChangeNameSize (bool visible)

void	ChangeNameSizeOnLayerChange (int layer)

string	GetFactionKey ()

Color	GetFactionColor ()

SCR_CampaignMilitaryBaseComponent	GetBase ()

void	SetBaseIconFactionColor (Faction faction)

override void	SetImage (string image)

override RplId	GetSpawnPointId ()

void	SetAntennaIconVisible (bool visible)

void	~SCR_CampaignMapUIBase ()

Public Member Functions inherited from SCR_MapUIElement
void	SetParent (SCR_MapUIElementContainer parent)

string	GetName ()

bool	GetIconVisible ()

void	SetVisible (bool visible)

Widget	GetRoot ()

void	Select (bool select=true)

Color	GetColorForFaction (string factionKey)

void	SetName (string name)

Public Member Functions inherited from SCR_ScriptedWidgetComponent
Widget	GetRootWidget ()

bool	IsVisible ()

Protected Member Functions
override void	DeinitOpenButton (Widget w)

void	SetOpenButtonEnabled (bool enable)
	Enables or disables button for entering the build mode.

void	EvaluateBuildModeAvailability ()
	Checks all entities in vicinity of the base and if any entities blocking the build mode in the base are found. Enter build mode button is disabled.

Protected Member Functions inherited from SCR_CampaignMapUIBase
void	SelectBase ()

void	OnLeave ()

bool	CanShowOpenButton ()

void	InitOpenButton (Widget w)

void	OnOpenButtonActivated (SCR_InputButtonComponent button, string action)

void	FocusOnBase (SCR_SpawnPoint sp)

void	OnSelected (SCR_SpawnPoint sp)

void	ShowServices (bool show)

void	ShowBase (bool show)

void	UpdateIconAndText ()

void	InitBaseIcon ()

void	UpdateResources ()

void	UpdateAssemblyIcon ()

void	SetIconFaction (Faction faction)

void	SetBaseImage ()

void	OnMapClose (MapConfiguration config)

void	SetIconName (string name)

void	CheckIfCanRespawn ()

void	SetBaseType (SCR_ECampaignBaseType type)

void	SetBaseServices (SCR_CampaignMilitaryBaseComponent base)

void	OnGroupRallyPointChanged (SCR_AIGroup group)

void	SetRallyPointVisibility (SCR_AIGroup playerGroup=null)

void	SetRallyPointVisible (bool visible)

Protected Member Functions inherited from SCR_MapUIElement
void	PlayHoverSound (string sound)

Static Protected Attributes
const int	EVALUATE_BUILD_MODE_AVAILABILITY_DELAY = 3000

Static Protected Attributes inherited from SCR_CampaignMapUIBase
static const float	OPACITY_DISABLED = 0.5

static const float	OPACITY_UNSELECTED = 0.9

static Widget	m_wServiceHint

Static Protected Attributes inherited from SCR_MapUIElement
static SCR_MapUIElement	s_SelectedElement

const float	ANIM_SPEED = 20

Additional Inherited Members
Static Public Member Functions inherited from SCR_ScriptedWidgetComponent
static SCR_ScriptedWidgetComponent	GetComponent (TypeName componentType, string name, Widget parent, bool searchAllChildren=true)
	Base method for component lookup through the widget library.

Public Attributes inherited from SCR_CampaignMapUIBase
bool	m_bHighlighted

bool	m_bIsAnyElementHovered

bool	m_bIsAnyElementClicked

Public Attributes inherited from SCR_MapUIElement
ref Color	m_UnknownFactionColor

Public Attributes inherited from SCR_ScriptedWidgetComponent
ref ScriptInvoker	m_OnClick = new ScriptInvoker

Static Public Attributes inherited from SCR_CampaignMapUIBase
static ref ScriptInvoker	Event_OnIconUpdated = new ScriptInvoker()

Protected Attributes inherited from SCR_CampaignMapUIBase
ResourceName	m_sServiceElement

ResourceName	m_sServiceHint

ResourceName	m_sSupplyIcon

string	m_sOpenButtonName

int	m_iServicesPadding = 0

float	m_fNameOffset = 2

ref map< EEditableEntityLabel, SCR_ServicePointDelegateComponent >	m_mServices = new map<EEditableEntityLabel, SCR_ServicePointDelegateComponent>()

SCR_CampaignMilitaryBaseComponent	m_Base

string	m_sFactionKey

SCR_CampaignFaction	m_PlayerFaction

SCR_CampaignMobileAssemblyStandaloneComponent	m_MobileAssembly

SCR_ResourceComponent	m_ResourceComponent

SCR_ResourceConsumer	m_ResourceConsumer

ref SCR_ResourceSystemSubscriptionHandleBase	m_ResourceSubscriptionHandleConsumer

RplId	m_ResourceInventoryPlayerComponentRplId

SizeLayoutWidget	m_wImageOverlay

Widget	m_wBaseFrame

Widget	m_wBaseIcon

Widget	m_wBaseOverlay

Widget	m_wInfoOverlay

Widget	m_wServices

TextWidget	m_w_NameDialog

Widget	m_w_ServicesOverlay

Widget	m_wOpenButton

SCR_InputButtonComponent	m_OpenInputButtonComponent

TextWidget	m_wBaseName

TextWidget	m_wCallsignName

TextWidget	m_wBaseNameDialog

TextWidget	m_wCallsignNameDialog

TextWidget m_wSuppliesText Widget	m_wInfoText

Widget	m_wAntennaImg

Widget	m_wRallyPointIconTop

Widget	m_wRallyPointIconBalancer

Widget	m_wRallyPointIconBottom

TextWidget	m_wRallyPointText

LocalizedString	m_sRallyPointText = "#AR-RallyPoint_Name"

int	m_iBaseSize = 80

int	m_iDefBaseSize = 46

int	m_iMaxBaseSize = 80

int	m_iDefHQSize = 88

int	m_iDefRelaySize = 64

ImageWidget	m_wLocalTask

LocalizedString	m_sAssembly = "#AR-Vehicle_MobileAssembly_Name"

ref ScriptInvoker	m_OnBaseSelected = new ScriptInvoker()

ref ScriptInvoker	m_OnMapIconEnter

ref ScriptInvoker	m_OnMapIconClick

bool	m_bServicesShown

bool	m_bCanRespawn

bool	m_bIsRespawnMenu

bool	m_bIsEditor

bool	m_bCanPlaySounds = true

SCR_SpawnPoint	m_SpawnPoint

Protected Attributes inherited from SCR_CampaignMapUIElement
string	m_sArmory

string	m_sFuelDepot

string	m_sLightVehicleDepot

string	m_sHeavyVehicleDepot

string	m_sRadioAntenna

string	m_sFieldHospital

string	m_sBarracks

string	m_sSupplyDepot

string	m_sVehicleDepot

string	m_sHelipad

string	m_sFactionNeutral

string	m_sRelay

string	m_sBase

string	m_sSourceBase

string	m_sMobileAssembly

string	m_sMajorBase

string	m_sMinorBase

string	m_sSmallBase

string	m_sRespawn

string	m_sRespawnBackground

string	m_sSelection

ResourceName	m_sImageSet

Protected Attributes inherited from SCR_MapUIElement
SCR_MapUIElementContainer	m_Parent

MapItem	m_MapItem

ImageWidget	m_wImage

ImageWidget	m_wGradient

ImageWidget	m_wSelectImg

ImageWidget	m_wHighlightImg

bool	m_bIsSelected

SCR_EIconType	m_eIconType

bool	m_bVisible = false

ResourceName	m_sImageSetARO

ResourceName	m_sImageSetSpecial

bool	m_bUseBackgroundGradient

string	m_sSoundBase

string	m_sSoundEnemyBase

string	m_sSoundRelay

string	m_sSoundTask

string	m_sSoundService

string	m_sSoundHover

string	m_sName

Protected Attributes inherited from SCR_ScriptedWidgetComponent
Widget	m_wRoot

Member Function Documentation

◆ DeinitOpenButton()

override void SCR_CampaignOperationsMapUIBase.DeinitOpenButton ( Widget w )

protected

Implements SCR_CampaignMapUIBase.

◆ EvaluateBuildModeAvailability()

void SCR_CampaignOperationsMapUIBase.EvaluateBuildModeAvailability ( )

protected

Checks all entities in vicinity of the base and if any entities blocking the build mode in the base are found. Enter build mode button is disabled.

◆ EvaluateEntity()

bool SCR_CampaignOperationsMapUIBase.EvaluateEntity ( notnull IEntity entity )

Check if this entity can block player to enter a building mode. If such an entity is found, return false to stop evaluating next entity found by query.

◆ OnMouseEnter()

override bool SCR_CampaignOperationsMapUIBase.OnMouseEnter	(	Widget	w,
		int	x,
		int	y )

Implements SCR_CampaignMapUIBase.

◆ OnMouseLeave()

override bool SCR_CampaignOperationsMapUIBase.OnMouseLeave	(	Widget	w,
		Widget	enterW,
		int	x,
		int	y )

Implements SCR_CampaignMapUIBase.

◆ SetOpenButtonEnabled()

void SCR_CampaignOperationsMapUIBase.SetOpenButtonEnabled ( bool enable )

protected

Enables or disables button for entering the build mode.

Parameters

[in] enable

Member Data Documentation

◆ EVALUATE_BUILD_MODE_AVAILABILITY_DELAY

const int SCR_CampaignOperationsMapUIBase.EVALUATE_BUILD_MODE_AVAILABILITY_DELAY = 3000

staticprotected

The documentation for this interface was generated from the following file:

Game/UI/Conflict/SCR_CampaignOperationsMapUIBase.c
