SCR_ExplosiveChargeAction Interface Reference

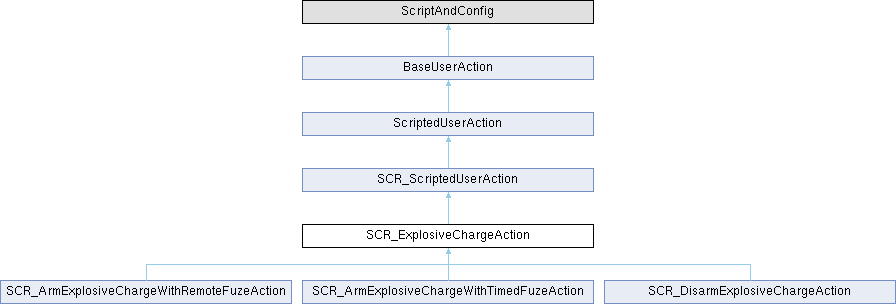

Inheritance diagram for SCR_ExplosiveChargeAction:

Public Member Functions
override void	Init (IEntity pOwnerEntity, GenericComponent pManagerComponent)
	Called when object is initialized and registered to actions manager.
override bool	CanBeShownScript (IEntity user)
	Can this entity be shown in the UI by the provided user entity?
override bool	CanBePerformedScript (IEntity user)
	Can this action be performed by the provided user entity?
override bool	GetActionNameScript (out string outName)
	If overridden and true is returned, outName is returned when BaseUserAction.GetActionName is called.
override void	PerformAction (IEntity pOwnerEntity, IEntity pUserEntity)
	Called when someone tries to perform the action, user entity is typically character.
void	ProcesFinished (IEntity item, bool successful, ItemUseParameters animParams)
	Called by everyone when process was finished.
Public Member Functions inherited from SCR_ScriptedUserAction
override bool	CanBeShownScript (IEntity user)
	Can this entity be shown in the UI by the provided user entity?
vector	GetLocalPositionAction ()
	Get action local position Used for such things like playing audio at the correct location on action use.
vector	GetWorldPositionAction ()
	Get action world position Used for such things like playing audio at the correct location on action use.
override float	GetActionProgressScript (float fProgress, float timeSlice)
bool	IsActionLooping ()
float	GetLoopActionHoldDuration ()
override void	OnActionStart (IEntity pUserEntity)
	Method called from scripted interaction handler when an action is started (progress bar appeared)
Public Member Functions inherited from ScriptedUserAction
void	Init (IEntity pOwnerEntity, GenericComponent pManagerComponent)
	Called when object is initialized and registered to actions manager.
void	PerformAction (IEntity pOwnerEntity, IEntity pUserEntity)
	Called when someone tries to perform the action, user entity is typically character.
void	PerformContinuousAction (IEntity pOwnerEntity, IEntity pUserEntity, float timeSlice)
	Called when someone tries to perform the continuous action, user entity is typically character.
void	OnConfirmed (IEntity pUserEntity)
	If action passed as callback OnConfirmed will be called when reached execution, user entity is typically character.
void	OnRejected (IEntity pUserEntity)
	If action passed as callback OnRejected will be called when execution was rejected, user entity is typically character.
void	OnActionCanceled (IEntity pOwnerEntity, IEntity pUserEntity)
	Method called when the action is interrupted/canceled.
void	OnActionStart (IEntity pUserEntity)
	Method called from scripted interaction handler when an action is started (progress bar appeared)
bool	GetActionNameScript (out string outName)
	If overridden and true is returned, outName is returned when BaseUserAction.GetActionName is called.
bool	GetActionDescriptionScript (out string outName)
	If overridden and true is returned, outName is returned when BaseUserAction.GetActionDescription is called.
bool	CanBePerformedScript (IEntity user)
	Can this action be performed by the provided user entity?
bool	CanBeShownScript (IEntity user)
	Can this entity be shown in the UI by the provided user entity?
bool	HasLocalEffectOnlyScript ()
	Does this action only have client side effect?
bool	CanBroadcastScript ()
	If HasLocalEffectOnly() is false this method tells if the server is supposed to broadcast this action to clients.
float	GetActionProgressScript (float fProgress, float timeSlice)
	Returns the progress of this action in seconds.
Public Member Functions inherited from BaseUserAction
void	SetCannotPerformReason (string reason)
	Sets the reason why action couldn't be performed.
string	GetCannotPerformReason ()
	Returns the reason why action couldn't be performed.
proto external int	GetContextIndex (string sContextName)
	Returns the index of the context this action is registered in as or -1 if none.
proto external void	SetActiveContext (UserActionContext context)
	Setter for m_pActiveContext.
proto external UserActionContext	GetActiveContext ()
	Getter for m_pActiveContext.
proto external bool	CanBePerformed (IEntity user)
	Can this action be performed by the user?
proto external bool	CanBeShown (IEntity user)
	Can this action be shown in the UI for the user?
proto external bool	HasLocalEffectOnly ()
	Does this action only have client side effect?
proto external bool	CanBroadcast ()
	If HasLocalEffectOnly() is false this method tells if the server is supposed to broadcast this action to clients.
proto external bool	ShouldPerformPerFrame ()
	Should this action be performed every frame the input action is triggered?
proto external string	GetActionName ()
	Return the name of this action.
proto external string	GetActionDescription ()
	Return the description of this action.
proto external float	GetVisibilityRange ()
	Returns the visibility range of this action in metres.
proto external void	SetActionDuration (float duration)
	Sets the duration of this action in seconds.
proto external float	GetActionDuration ()
	Returns the duration of this action in seconds.
proto external float	GetActionProgress (float fProgress, float timeSlice)
	Returns the progress of this action in seconds.
proto external bool	IsInProgress ()
	Returns true while continuous or timed action is being used.
proto external UIInfo	GetUIInfo ()
	Returns the UIInfo set for this user action or null if none.
proto external IEntity	GetOwner ()
	Returns the parent entity of this action.
proto external bool	CanAggregate ()
	Whether action can be aggregated by name, this is a temp workaround for localization.
proto external int	GetActionID ()
	Returns the ID with which this action is registered in its parent ActionsManagerComponent.
proto external void	SetSendActionDataFlag ()
	Used to ask to send action data again during continuous action.
proto external ActionsManagerComponent	GetActionsManager ()

Protected Member Functions
void	AnimateUsage (IEntity pUserEntity)
Protected Member Functions inherited from SCR_ScriptedUserAction
bool	IsSameVehicleOrNone (notnull IEntity user)
bool	LoopActionUpdate (float timeSlice)
override void	OnActionSelected ()
	Callback for when action is selected by the local player and the local player ONLY.
Protected Member Functions inherited from BaseUserAction
bool	OnRplSave (ScriptBitWriter writer)
bool	OnRplLoad (ScriptBitReader reader)
bool	OnSaveActionData (ScriptBitWriter writer)
	Before performing the action the caller can store some data in it which is delivered to others.
bool	OnLoadActionData (ScriptBitReader reader)
	If the one performing the action packed some data in it everybody receiving the action.
void	OnActionSelected ()
	Callback for when action is selected by the local player and the local player ONLY.
void	OnActionDeselected ()
	Callback for when action is deselected by the local player and the local player ONLY.

Protected Attributes
string	m_sUseItemCommandName
LocalizedString	m_sDifferentFuzeInUseText
SCR_ExplosiveChargeComponent	m_ChargeComp
ChimeraCharacter	m_ActionUser
Protected Attributes inherited from SCR_ScriptedUserAction
bool	m_bLoopAction
float	m_fLoopActionHoldDuration
bool	m_bLowerWeaponOnUse
EUserActionInVehicleState	m_eShownInVehicleState
bool	m_bSameVehicleOnly
UserActionContext	m_LastUserActionContext
float	m_fLoopProgress
float	m_fLoopProgressSmoothVelocity
Protected Attributes inherited from BaseUserAction
string	m_sCannotPerformReason
	The reason why action cannot be performed.

Static Protected Attributes
const float	MAX_ALLOWED_ANIMATION_DISTANCE = 0.3

Additional Inherited Members
Public Attributes inherited from BaseUserAction
string	ActionNameParams [9]
	Can be filled in scripts to be used as params when name is being formatted when displayed in UI.

Member Function Documentation

AnimateUsage()

void SCR_ExplosiveChargeAction.AnimateUsage ( IEntity  pUserEntity )

protected

Implemented in SCR_ArmExplosiveChargeWithRemoteFuzeAction.

CanBePerformedScript()

override bool SCR_ExplosiveChargeAction.CanBePerformedScript

(

IEntity

user

)

Can this action be performed by the provided user entity?

Implements ScriptedUserAction.

Implemented in SCR_ArmExplosiveChargeWithRemoteFuzeAction, and SCR_ArmExplosiveChargeWithTimedFuzeAction.

CanBeShownScript()

override bool SCR_ExplosiveChargeAction.CanBeShownScript

(

IEntity

user

)

Can this entity be shown in the UI by the provided user entity?

Implements SCR_ScriptedUserAction.

Implemented in SCR_ArmExplosiveChargeWithRemoteFuzeAction, SCR_ArmExplosiveChargeWithTimedFuzeAction, and SCR_DisarmExplosiveChargeAction.

GetActionNameScript()

override bool SCR_ExplosiveChargeAction.GetActionNameScript

(

out string

outName

)

If overridden and true is returned, outName is returned when BaseUserAction.GetActionName is called.

If not overridden or false is returned the default value from UIInfo is taken (or empty string if no UI info exists)

Implements ScriptedUserAction.

Implemented in SCR_ArmExplosiveChargeWithRemoteFuzeAction.

Init()

override void SCR_ExplosiveChargeAction.Init	(	IEntity	pOwnerEntity,
		GenericComponent	pManagerComponent
	)

Called when object is initialized and registered to actions manager.

Implements ScriptedUserAction.

PerformAction()

override void SCR_ExplosiveChargeAction.PerformAction	(	IEntity	pOwnerEntity,
		IEntity	pUserEntity
	)

Called when someone tries to perform the action, user entity is typically character.

Implements ScriptedUserAction.

Implemented in SCR_ArmExplosiveChargeWithRemoteFuzeAction, SCR_ArmExplosiveChargeWithTimedFuzeAction, and SCR_DisarmExplosiveChargeAction.

ProcesFinished()

void SCR_ExplosiveChargeAction.ProcesFinished	(	IEntity	item,
		bool	successful,
		ItemUseParameters	animParams
	)

Called by everyone when process was finished.

Implemented in SCR_ArmExplosiveChargeWithRemoteFuzeAction, SCR_ArmExplosiveChargeWithTimedFuzeAction, and SCR_DisarmExplosiveChargeAction.

Member Data Documentation

m_ActionUser

ChimeraCharacter SCR_ExplosiveChargeAction.m_ActionUser

protected

m_ChargeComp

SCR_ExplosiveChargeComponent SCR_ExplosiveChargeAction.m_ChargeComp

protected

m_sDifferentFuzeInUseText

LocalizedString SCR_ExplosiveChargeAction.m_sDifferentFuzeInUseText

protected

m_sUseItemCommandName

string SCR_ExplosiveChargeAction.m_sUseItemCommandName

protected

MAX_ALLOWED_ANIMATION_DISTANCE

const float SCR_ExplosiveChargeAction.MAX_ALLOWED_ANIMATION_DISTANCE = 0.3

staticprotected

---

The documentation for this interface was generated from the following file:

• Game/UserActions/SCR_ExplosiveChargeAction.c
