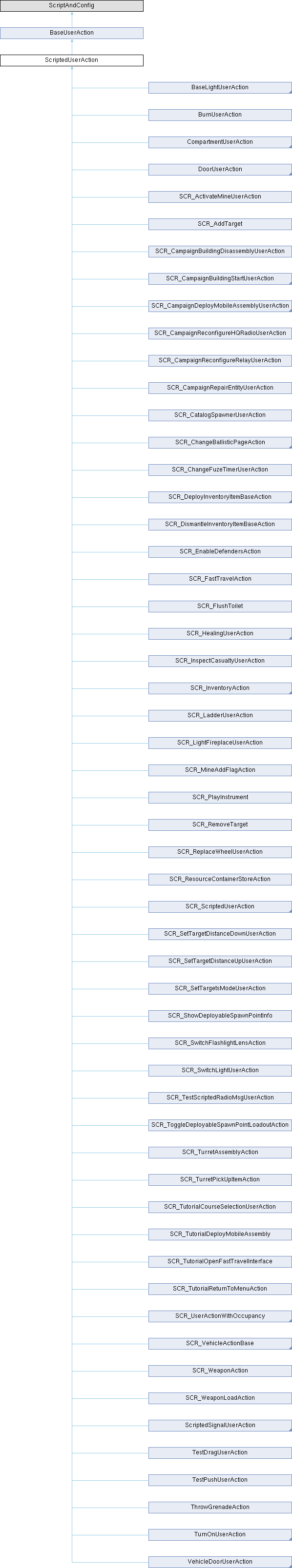

Inheritance diagram for ScriptedUserAction:

Public Member Functions
void	Init (IEntity pOwnerEntity, GenericComponent pManagerComponent)
	Called when object is initialized and registered to actions manager.

void	PerformAction (IEntity pOwnerEntity, IEntity pUserEntity)
	Called when someone tries to perform the action, user entity is typically character.

void	PerformContinuousAction (IEntity pOwnerEntity, IEntity pUserEntity, float timeSlice)
	Called when someone tries to perform the continuous action, user entity is typically character.

void	OnConfirmed (IEntity pUserEntity)
	If action passed as callback OnConfirmed will be called when reached execution, user entity is typically character.

void	OnRejected (IEntity pUserEntity)
	If action passed as callback OnRejected will be called when execution was rejected, user entity is typically character.

void	OnActionCanceled (IEntity pOwnerEntity, IEntity pUserEntity)
	Method called when the action is interrupted/canceled.

void	OnActionStart (IEntity pUserEntity)
	Method called from scripted interaction handler when an action is started (progress bar appeared)

bool	GetActionNameScript (out string outName)
	If overridden and true is returned, outName is returned when BaseUserAction.GetActionName is called.

bool	GetActionDescriptionScript (out string outName)
	If overridden and true is returned, outName is returned when BaseUserAction.GetActionDescription is called.

bool	CanBePerformedScript (IEntity user)
	Can this action be performed by the provided user entity?

bool	CanBeShownScript (IEntity user)
	Can this entity be shown in the UI by the provided user entity?

bool	HasLocalEffectOnlyScript ()
	Does this action only have client side effect?

bool	CanBroadcastScript ()
	If HasLocalEffectOnly() is false this method tells if the server is supposed to broadcast this action to clients.

float	GetActionProgressScript (float fProgress, float timeSlice)
	Returns the progress of this action in seconds.

Public Member Functions inherited from BaseUserAction
void	SetCannotPerformReason (string reason)
	Sets the reason why action couldn't be performed.

string	GetCannotPerformReason ()
	Returns the reason why action couldn't be performed.

proto external int	GetContextIndex (string sContextName)
	Returns the index of the context this action is registered in as or -1 if none.

proto external void	SetActiveContext (UserActionContext context)
	Setter for m_pActiveContext.

proto external UserActionContext	GetActiveContext ()
	Getter for m_pActiveContext.

proto external bool	CanBePerformed (IEntity user)
	Can this action be performed by the user?

proto external bool	CanBeShown (IEntity user)
	Can this action be shown in the UI for the user?

proto external bool	HasLocalEffectOnly ()
	Does this action only have client side effect?

proto external bool	CanBroadcast ()
	If HasLocalEffectOnly() is false this method tells if the server is supposed to broadcast this action to clients.

proto external bool	ShouldPerformPerFrame ()
	Should this action be performed every frame the input action is triggered?

proto external string	GetActionName ()
	Return the name of this action.

proto external string	GetActionDescription ()
	Return the description of this action.

proto external float	GetVisibilityRange ()
	Returns the visibility range of this action in metres.

proto external void	SetActionDuration (float duration)
	Sets the duration of this action in seconds.

proto external float	GetActionDuration ()
	Returns the duration of this action in seconds.

proto external float	GetActionProgress (float fProgress, float timeSlice)
	Returns the progress of this action in seconds.

proto external bool	IsInProgress ()
	Returns true while continuous or timed action is being used.

proto external UIInfo	GetUIInfo ()
	Returns the UIInfo set for this user action or null if none.

proto external IEntity	GetOwner ()
	Returns the parent entity of this action.

proto external bool	CanAggregate ()
	Whether action can be aggregated by name, this is a temp workaround for localization.

proto external int	GetActionID ()
	Returns the ID with which this action is registered in its parent ActionsManagerComponent.

proto external void	SetSendActionDataFlag ()
	Used to ask to send action data again during continuous action.

proto external ActionsManagerComponent	GetActionsManager ()

proto external void	SetActionEnabled_S (bool enable)
	Action can be enabled/disabled by the server. Disabled actions return false for CanBeShown(). Has no effect when called from the client.

proto external bool	WasDisabledByServer ()
	Was the action disabled by the server?

Additional Inherited Members
Public Attributes inherited from BaseUserAction
string	ActionNameParams [9]
	Can be filled in scripts to be used as params when name is being formatted when displayed in UI.

Protected Member Functions inherited from BaseUserAction
bool	OnRplSave (ScriptBitWriter writer)

bool	OnRplLoad (ScriptBitReader reader)

bool	OnSaveActionData (ScriptBitWriter writer)
	Before performing the action the caller can store some data in it which is delivered to others.

bool	OnLoadActionData (ScriptBitReader reader)
	If the one performing the action packed some data in it everybody receiving the action.

void	OnActionSelected ()
	Callback for when action is selected by the local player and the local player ONLY.

void	OnActionDeselected ()
	Callback for when action is deselected by the local player and the local player ONLY.

Protected Attributes inherited from BaseUserAction
string	m_sCannotPerformReason
	The reason why action cannot be performed.

Member Function Documentation

◆ CanBePerformedScript()

bool ScriptedUserAction.CanBePerformedScript ( IEntity user )

Can this action be performed by the provided user entity?

◆ CanBeShownScript()

bool ScriptedUserAction.CanBeShownScript ( IEntity user )

Can this entity be shown in the UI by the provided user entity?

◆ CanBroadcastScript()

bool ScriptedUserAction.CanBroadcastScript ( )

If HasLocalEffectOnly() is false this method tells if the server is supposed to broadcast this action to clients.

Implemented in LightUserAction, SCR_AdjustSignalAction, SCR_BaseUseSupportStationAction, SCR_ChangeBallisticPageAction, SCR_ChangeFuzeTimerUserAction, SCR_EngineAction, SCR_InspectCasualtyUserAction, SCR_PushVehicleAction, SCR_RemoteDetonatorAction, SCR_TurnOnAction, SCR_TutorialCourseSelectionUserAction, and SCR_UnflipVehicleAction.

◆ GetActionDescriptionScript()

bool ScriptedUserAction.GetActionDescriptionScript ( out string outName )

If overridden and true is returned, outName is returned when BaseUserAction.GetActionDescription is called.

If not overridden or false is returned the default value from UIInfo is taken (or empty string if no UI info exists)

◆ GetActionNameScript()

bool ScriptedUserAction.GetActionNameScript ( out string outName )

If overridden and true is returned, outName is returned when BaseUserAction.GetActionName is called.

If not overridden or false is returned the default value from UIInfo is taken (or empty string if no UI info exists)

Implemented in LightUserAction, SCR_AddTarget, SCR_AdjustShellChargeRingsAction, SCR_AdjustShellTimeFuzeAction, SCR_AdjustTimedFuzeAction, SCR_ArmExplosiveChargeWithRemoteFuzeAction, SCR_AttachementAction, SCR_AttachItemFromInventoryAction, SCR_AttachPylonSupportStationAction, SCR_BaseUseSupportStationAction, SCR_CampaignBuildingBuildUserAction, SCR_CampaignBuildingStartUserAction, SCR_CampaignPackMobileAssemblyUserAction, SCR_CampaignRepairEntityUserAction, SCR_CatalogSpawnerUserAction, SCR_ChangeFuzeTimerUserAction, SCR_CloseVehicleDoorUserAction, SCR_CompartmentUserAction, SCR_DeployCollimatorAction, SCR_DetachMagazineUserAction, SCR_DoorUserAction, SCR_DrainFuelUserAction, SCR_EnableDefendersAction, SCR_EquipClothAction, SCR_EquipItemAction, SCR_EquipWeaponAction, SCR_EquipWeaponHolsterAction, SCR_ExplosiveChargeAction, SCR_FlushToilet, SCR_GetOutAction, SCR_InventoryAction, SCR_JumpOutAction, SCR_LightFireplaceUserAction, SCR_LightsDashboardUserAction, SCR_LightsHazardUserAction, SCR_LightsHiBeamsUserAction, SCR_LightsPresenceUserAction, SCR_LightsSearchLightUserAction, SCR_LightsTurnLeftUserAction, SCR_LightsTurnRightUserAction, SCR_LoiterUserAction, SCR_MortarShootAction, SCR_OpenVehicleDoorUserAction, SCR_RadioToggleUserAction, SCR_RadioTuningUserAction, SCR_RefundPylonSupportStationAction, SCR_RefundVehicleAmmoSupportStationAction, SCR_RemoteDetonatorAction, SCR_RemoveTarget, SCR_RepairAtSupportStationAction, SCR_ResourceContainerStoreAction, SCR_ResourceContainerVehicleLoadAction, SCR_ResourceContainerVehicleUnloadAction, SCR_ResourceEntityRefundAction, SCR_ResupplyVehicleWeaponSupportStationAction, SCR_RippleFireIntervalAction, SCR_RippleFireQuantityAction, SCR_SaveArsenalLoadout, SCR_SetTargetDistanceDownUserAction, SCR_SetTargetDistanceUpUserAction, SCR_SetTargetsModeUserAction, SCR_SwitchLightUserAction, SCR_ToggleHandbrakeAction, SCR_ToggleSafetyUserAction, SCR_TourniquetUserAction, SCR_TurnOnAction, SCR_TurretAssemblyAction, SCR_TutorialCourseSelectionUserAction, SCR_TutorialDeployMobileAssembly, SCR_TutorialReturnToMenuAction, SCR_UnflipVehicleAction, SCR_VehicleActionBase, SCR_VehicleWeaponFireModeSwitchAction, SCR_VehicleWeaponGroupSelectAction, SCR_WeaponAction, SCR_WeaponLoadAction, and TestDragUserAction.

◆ GetActionProgressScript()

float ScriptedUserAction.GetActionProgressScript	(	float	fProgress,
		float	timeSlice )

Returns the progress of this action in seconds.

Implemented in SCR_AdjustShellTimeFuzeAction, SCR_AdjustSignalAction, SCR_AdjustTimedFuzeAction, SCR_PushVehicleAction, SCR_ScriptedUserAction, SCR_UnflipVehicleAction, and ScriptedSignalUserAction.

◆ HasLocalEffectOnlyScript()

bool ScriptedUserAction.HasLocalEffectOnlyScript ( )

Does this action only have client side effect?

Implemented in SCR_AddTarget, SCR_AdjustSignalAction, SCR_CampaignBuildingBuildUserAction, SCR_CampaignBuildingDisassemblyUserAction, SCR_CampaignBuildingStartUserAction, SCR_CampaignDeployMobileAssemblyUserAction, SCR_CampaignReconfigureHQRadioUserAction, SCR_CampaignReconfigureRelayUserAction, SCR_CampaignRepairEntityUserAction, SCR_CatalogSpawnerUserAction, SCR_ChangeFuzeTimerUserAction, SCR_CloseVehicleDoorUserAction, SCR_CompartmentUserAction, SCR_EnableDefendersAction, SCR_EngineAction, SCR_FastTravelAction, SCR_InspectCasualtyUserAction, SCR_InventoryAction, SCR_LadderUserAction, SCR_LoadItemsAction, SCR_LoiterUserAction, SCR_OpenVehicleDoorUserAction, SCR_RadioToggleUserAction, SCR_RadioTuningUserAction, SCR_RemoteDetonatorAction, SCR_RemoveCasualtyUserAction, SCR_RemoveTarget, SCR_SetTargetDistanceDownUserAction, SCR_SetTargetDistanceUpUserAction, SCR_SetTargetsModeUserAction, and SCR_WeaponAction.

◆ Init()

void ScriptedUserAction.Init	(	IEntity	pOwnerEntity,
		GenericComponent	pManagerComponent )

Called when object is initialized and registered to actions manager.

Implemented in SCR_ActivateMineUserAction, SCR_AddTarget, SCR_AdjustCollimatorAction, SCR_AdjustShellChargeRingsAction, SCR_AdjustShellTimeFuzeAction, SCR_AdjustSignalAction, SCR_AdjustTimedFuzeAction, SCR_AttachementAction, SCR_AttachItemFromInventoryAction, SCR_BaseFactionCheckUserAction, SCR_BaseUseSupportStationAction, SCR_BaseWeaponAction, SCR_CampaignBuildingBuildUserAction, SCR_CampaignBuildingDisassemblyUserAction, SCR_CampaignBuildingStartUserAction, SCR_CampaignDeployMobileAssemblyUserAction, SCR_CampaignReconfigureHQRadioUserAction, SCR_CampaignReconfigureRelayUserAction, SCR_CampaignRepairEntityUserAction, SCR_CatalogSpawnerUserAction, SCR_ChangeBallisticPageAction, SCR_ChangeFuzeTimerUserAction, SCR_CheckFuelAction, SCR_DeployCollimatorAction, SCR_DeployInventoryItemBaseAction, SCR_DismantleInventoryItemBaseAction, SCR_DrainFuelUserAction, SCR_EnableDefendersAction, SCR_EquipClothAction, SCR_EquipWeaponAttachment, SCR_ExplosiveChargeAction, SCR_GetInUserAction, SCR_HelicopterEngineAction, SCR_InspectionUserAction, SCR_InventoryAction, SCR_LadderUserAction, SCR_LightFireplaceUserAction, SCR_LoadItemsAction, SCR_LoiterUserAction, SCR_MortarShootAction, SCR_OpenDeployableSpawnPointStorageAction, SCR_OpenVehicleStorageAction, SCR_PushVehicleAction, SCR_RadioBaseUserAction, SCR_RadioToggleUserAction, SCR_RadioTuningUserAction, SCR_RefuelAtSupportStationAction, SCR_RemoteDetonatorAction, SCR_RemoveTarget, SCR_ResourceContainerStoreAction, SCR_ResourceContainerVehicleLoadAction, SCR_ResourceContainerVehicleUnloadAction, SCR_ResourceEntityRefundAction, SCR_ResourceStorageOpenAction, SCR_ResupplySelfSupportStationAction, SCR_RippleFireIntervalAction, SCR_SaveArsenalLoadout, SCR_ScenarioFrameworkRadioBaseUserAction, SCR_SetTargetDistanceDownUserAction, SCR_SetTargetDistanceUpUserAction, SCR_SetTargetsModeUserAction, SCR_ShowDeployableSpawnPointInfo, SCR_SwitchFlashlightLensAction, SCR_SwitchLightUserAction, SCR_ToggleDeployableSpawnPointLoadoutAction, SCR_ToggleSafetyUserAction, SCR_TurretAssemblyAction, SCR_VehicleAction, SCR_VehicleActionBase, SCR_VehicleWeaponActionBase, SCR_WeaponAction, SCR_WeaponLoadAction, TestDragUserAction, TestPushUserAction, and ThrowGrenadeAction.

◆ OnActionCanceled()

void ScriptedUserAction.OnActionCanceled	(	IEntity	pOwnerEntity,
		IEntity	pUserEntity )

Method called when the action is interrupted/canceled.

Parameters

pUserEntity The entity that was performing this action prior to interruption

Implemented in SCR_AdjustSignalAction, SCR_BandageUserAction, SCR_BaseUseSupportStationAction, SCR_CampaignBuildingBuildUserAction, SCR_CampaignBuildingDisassemblyUserAction, SCR_CampaignReconfigureHQRadioUserAction, SCR_CampaignReconfigureRelayUserAction, SCR_DeployInventoryItemBaseAction, SCR_DrainFuelUserAction, SCR_EngineAction, SCR_LoadItemsAction, SCR_MorphineUserAction, SCR_PlayInstrument, SCR_PushVehicleAction, SCR_SalineBagUserAction, SCR_ScenarioFrameworkRadioBaseUserAction, SCR_TourniquetUserAction, and SCR_UnflipVehicleAction.

◆ OnActionStart()

void ScriptedUserAction.OnActionStart ( IEntity pUserEntity )

Method called from scripted interaction handler when an action is started (progress bar appeared)

Parameters

pUserEntity The entity that started performing this action

Implemented in SCR_AdjustShellChargeRingsAction, SCR_AdjustShellTimeFuzeAction, SCR_AdjustSignalAction, SCR_BaseUseSupportStationAction, SCR_CampaignBuildingBuildUserAction, SCR_CampaignBuildingDisassemblyUserAction, SCR_CampaignReconfigureHQRadioUserAction, SCR_CampaignReconfigureRelayUserAction, SCR_DeployInventoryItemBaseAction, SCR_DrainFuelUserAction, SCR_EngineAction, SCR_HelicopterEngineAction, SCR_InspectCasualtyUserAction, SCR_MortarShootAction, SCR_PlayInstrument, SCR_PushVehicleAction, SCR_ScenarioFrameworkRadioBaseUserAction, SCR_ScriptedUserAction, and SCR_UnflipVehicleAction.

◆ OnConfirmed()

void ScriptedUserAction.OnConfirmed ( IEntity pUserEntity )

If action passed as callback OnConfirmed will be called when reached execution, user entity is typically character.

Implemented in SCR_CampaignBuildingBuildUserAction, SCR_EquipWeaponAction, and SCR_EquipWeaponHolsterAction.

◆ OnRejected()

void ScriptedUserAction.OnRejected ( IEntity pUserEntity )

If action passed as callback OnRejected will be called when execution was rejected, user entity is typically character.

Implemented in SCR_EquipWeaponAction.

◆ PerformAction()

void ScriptedUserAction.PerformAction	(	IEntity	pOwnerEntity,
		IEntity	pUserEntity )

Called when someone tries to perform the action, user entity is typically character.

Implemented in BurnUserAction, LightUserAction, SCR_ActivateMineUserAction, SCR_AddTarget, SCR_ArmExplosiveChargeWithRemoteFuzeAction, SCR_ArmExplosiveChargeWithTimedFuzeAction, SCR_BaseAudioScriptedUserAction, SCR_BaseResupplySupportStationAction, SCR_BaseUseSupportStationAction, SCR_CampaignBuildingBuildUserAction, SCR_CampaignBuildingDisassemblyUserAction, SCR_CampaignBuildingStartUserAction, SCR_CampaignDeployMobileAssemblyUserAction, SCR_CampaignPackMobileAssemblyUserAction, SCR_CampaignReconfigureHQRadioUserAction, SCR_CampaignReconfigureRelayUserAction, SCR_CampaignRepairEntityUserAction, SCR_CatalogSpawnerUserAction, SCR_ChangeBallisticPageAction, SCR_ChangeBallisticShellTypeAction, SCR_ChangeComparmentAction, SCR_ChangeFuzeTimerUserAction, SCR_CheckFuelAction, SCR_CloseVehicleDoorUserAction, SCR_DeployInventoryItemBaseAction, SCR_DetonateChargesAction, SCR_DisarmExplosiveChargeAction, SCR_DisconnectChargesAction, SCR_DismantleInventoryItemBaseAction, SCR_DoorUserAction, SCR_DrainFuelUserAction, SCR_EnableDefendersAction, SCR_ExplosiveChargeAction, SCR_FastTravelAction, SCR_FireModeSwitchUserAction, SCR_FlushToilet, SCR_GetInUserAction, SCR_GetOutAction, SCR_HealingUserAction, SCR_InspectCasualtyUserAction, SCR_InventoryAction, SCR_JumpOutAction, SCR_LadderDoorUserAction, SCR_LadderUserAction, SCR_LightFireplaceUserAction, SCR_LightsDashboardUserAction, SCR_LightsHazardUserAction, SCR_LightsHiBeamsUserAction, SCR_LightsPresenceUserAction, SCR_LightsSearchLightUserAction, SCR_LightsTurnLeftUserAction, SCR_LightsTurnRightUserAction, SCR_LoadItemsAction, SCR_MineAddFlagAction, SCR_MineFlagPickUpAction, SCR_MortarShootAction, SCR_OpenVehicleDoorUserAction, SCR_RadioToggleUserAction, SCR_RadioTuningUserAction, SCR_RemoveCasualtyUserAction, SCR_RemoveTarget, SCR_ResourceContainerStoreAction, SCR_ResourceContainerVehicleLoadAction, SCR_ResourceContainerVehicleUnloadAction, SCR_ResourceEntityRefundAction, SCR_RippleFireQuantityAction, SCR_SaveArsenalLoadout, SCR_SetTargetDistanceDownUserAction, SCR_SetTargetDistanceUpUserAction, SCR_SetTargetsModeUserAction, SCR_ShowDeployableSpawnPointInfo, SCR_SwitchFlashlightLensAction, SCR_SwitchLightUserAction, SCR_TestScriptedRadioMsgUserAction, SCR_ToggleDeployableSpawnPointLoadoutAction, SCR_ToggleHandbrakeAction, SCR_ToggleSafetyUserAction, SCR_TourniquetUserAction, SCR_TurnOnAction, SCR_TurretAssemblyAction, SCR_TutorialCourseSelectionUserAction, SCR_TutorialDeployMobileAssembly, SCR_TutorialOpenFastTravelInterface, SCR_TutorialReturnToMenuAction, SCR_UserActionWithOccupancy, SCR_VehicleActionBase, SCR_VehicleLockControlsAction, SCR_VehicleTakeControlsAction, SCR_VehicleWeaponActionBase, SCR_VehicleWeaponFireModeSwitchAction, SCR_VehicleWeaponGroupSelectAction, SCR_WeaponAction, SCR_WeaponLoadAction, TestDragUserAction, TestPushUserAction, and ThrowGrenadeAction.

◆ PerformContinuousAction()

void ScriptedUserAction.PerformContinuousAction	(	IEntity	pOwnerEntity,
		IEntity	pUserEntity,
		float	timeSlice )

Called when someone tries to perform the continuous action, user entity is typically character.

Implemented in SCR_AdjustSignalAction, SCR_BaseUseSupportStationAction, SCR_CampaignBuildingBuildUserAction, SCR_DrainFuelUserAction, SCR_EngineAction, SCR_HelicopterEngineAction, SCR_LoadItemsAction, SCR_PushVehicleAction, SCR_ResourceContainerVehicleLoadAction, SCR_ResourceContainerVehicleUnloadAction, SCR_ScriptedSignalUserActionDecrease, SCR_ScriptedSignalUserActionIncrease, and SCR_UnflipVehicleAction.

The documentation for this interface was generated from the following file:

Game/generated/UserAction/ScriptedUserAction.c
