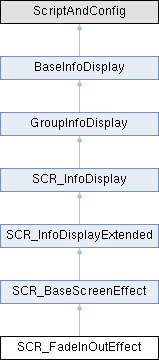

Inheritance diagram for SCR_FadeInOutEffect:

[legend]

Public Member Functions
override void	DisplayStartDraw (IEntity owner)

void	FadeOutEffect (bool fadeDirection, float seconds=0.35)
	Fade the screen in/out.

Public Member Functions inherited from SCR_BaseScreenEffect
override void	DisplayStartDraw (IEntity owner)

void	SettingsChanged ()
	Called when any settings are changed in the settings menu, upon DisplayStartDraw() Called from SCR_ScreenEffectsManager.

override void	DisplayControlledEntityChanged (IEntity from, IEntity to)

override void	DisplayUpdate (IEntity owner, float timeSlice)

void	UpdateEffect (float timeSlice)
	Called every frame from SCR_ScreenEffectsManager.

void	ClearEffects ()
	Automatically called upon DisplayStartDraw() and DisplayStopDraw() from SCR_ScreenEffectsManager Due to many screeneffects listening to invokers, ClearEffects() is often called manually OnControlledEntityChanged()

Public Member Functions inherited from SCR_InfoDisplayExtended
void	SetEnabled (bool isEnabled)

override void	Show (bool show, float speed=UIConstants.FADE_RATE_INSTANT, EAnimationCurve curve=EAnimationCurve.LINEAR)
	Show/hide InfoDisplay properly, not breaking other systems like AdaptiveOpacity or ConditionalVisibility.

Public Member Functions inherited from SCR_InfoDisplay
SCR_InfoDisplayHandler	GetHandler (TypeName handlerType)

SCR_InfoDisplayInvoker	GetOnStart ()

SCR_InfoDisplayInvoker	GetOnStop ()

IEntity	GetOwnerEntity ()

Widget	GetContentWidget ()

string	GetContentWidgetName ()

void	SetRootWidget (notnull Widget root)

void	SetContentWidget (notnull Widget content)

void	Show (bool show, float speed=UIConstants.FADE_RATE_INSTANT, EAnimationCurve curve=EAnimationCurve.LINEAR)
	Show/hide InfoDisplay properly, not breaking other systems like AdaptiveOpacity or ConditionalVisibility.

bool	IsShown ()

Widget	GetRootWidget ()

bool	GetDimensions (out float width, out float height, bool addSafezones=true)
	Get width and height of the InfoDisplay element, optionally with safezones adjustments.

bool	GetAnchorPosition (out float x, out float y, EWidgetAnchor anchor=EWidgetAnchor.TOPLEFT, bool addSafezones=true)
	Get width and height of the InfoDisplay element, optionally with safezones adjustments.

void	RegisterToHudManager ()

Public Member Functions inherited from GroupInfoDisplay
proto external int	GetInfoDisplays (out notnull array< BaseInfoDisplay > outInfoDisplays)

Public Member Functions inherited from BaseInfoDisplay
proto external GenericComponent	FindComponentInParentContainer (TypeName typeName)

Additional Inherited Members
Public Attributes inherited from SCR_InfoDisplay
ResourceName	m_LayoutPath

EHudLayers	m_eLayer

int	m_iOverrideZOrder

Protected Member Functions inherited from SCR_InfoDisplayExtended
bool	DisplayStartDrawInit (IEntity owner)

void	DisplayStartDraw (IEntity owner)

void	DisplayStopDraw (IEntity owner)

void	DisplayInit (IEntity owner)

void	DisplayUpdate (IEntity owner, float timeSlice)

void	DisplayControlledEntityChanged (IEntity from, IEntity to)

void	DisplayConsciousnessChanged (bool conscious, bool init=false)

void	DisplayOnSuspended ()
	Called when GUI is temporarily suspended due to visibility flags; e.g. GM entered and GUI marked as not to show in GM.

void	DisplayOnResumed ()

void	InitializeInterfaceSettings ()

void	OnSettingsChanged ()

Protected Member Functions inherited from SCR_InfoDisplay
void	OnShownFinished (Widget w, float targetOpacity, WidgetAnimationOpacity anim=null)

override void	OnStartDraw (IEntity owner)

void	AdaptiveOpacity_Update (float opacity, float sceneBrightness, bool init=false)

override void	OnStopDraw (IEntity owner)

override void	UpdateValues (IEntity owner, float timeSlice)

override void	OnInit (IEntity owner)

void	OnInit (IEntity owner)

void	UpdateValues (IEntity owner, float timeSlice)

void	OnStartDraw (IEntity owner)

void	OnStopDraw (IEntity owner)

Protected Attributes inherited from SCR_InfoDisplayExtended
bool	m_bIsEnabled

string	m_sInterfaceSettingName

SCR_PlayerController	m_PlayerController

SCR_CharacterControllerComponent	m_CharacterController

SCR_CharacterCameraHandlerComponent	m_CameraHandler

MenuManager	m_MenuManager

EventHandlerManagerComponent	m_EventHandlerManager

SCR_EditorManagerEntity	m_EditorManager

bool	m_bAttachedToPlayerController

bool	m_bInThirdPerson

bool	m_bInADS

bool	m_bIsUnconscious

bool	m_bInPauseMenu

bool	m_bInEditor

bool	m_bCanShow

bool	m_bIsEnabledInSettings = true

bool	m_bShowInAllCameras = true

Protected Attributes inherited from SCR_InfoDisplay
string	m_sParentSlot

string	m_sContentWidget

int	m_iContentWidthAdjustment

int	m_iContentHeightAdjustment

string	m_sAdaptiveOpacityWidgetName

ref array< ref SCR_InfoDisplayHandler >	m_aHandlers

bool	m_bShown

Widget	m_wRoot

Widget	m_wContent

Widget	m_wSlot

SCR_HUDManagerComponent	m_HUDManager

int	m_iChildDisplays = 0

ref array< BaseInfoDisplay >	m_aChildDisplays = new array<BaseInfoDisplay>

SCR_InfoDisplay	m_pParentDisplay

bool	m_bRegistered = false

IEntity	m_OwnerEntity

ref array< ref SCR_InfoDisplayHandler >	m_aUpdatableHandlers = {}

ref SCR_InfoDisplayInvoker	m_OnStart = new SCR_InfoDisplayInvoker()

ref SCR_InfoDisplayInvoker	m_OnStop = new SCR_InfoDisplayInvoker()

Member Function Documentation

◆ DisplayStartDraw()

override void SCR_FadeInOutEffect.DisplayStartDraw ( IEntity owner )

Implements SCR_BaseScreenEffect.

◆ FadeOutEffect()

void SCR_FadeInOutEffect.FadeOutEffect	(	bool	fadeDirection,
		float	seconds = `0::35`
	)

Fade the screen in/out.

Parameters

fadeDirection fades out if true, in if false

The documentation for this interface was generated from the following file:

Game/UI/ScreenEffects/SCR_FadeInOutEffect.c
