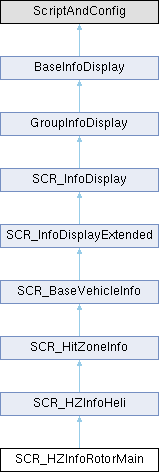

Inheritance diagram for SCR_HZInfoRotorMain:

Additional Inherited Members
Public Member Functions inherited from SCR_HZInfoHeli
override EVehicleInfoState	GetState ()
	Can be overridden to get state of actual system or linked to an event.

override void	DisplayInit (IEntity owner)
	Init the UI, runs 1x at the start of the game.

Public Member Functions inherited from SCR_HitZoneInfo
override bool	DisplayStartDrawInit (IEntity owner)

override void	DisplayStopDraw (IEntity owner)
	Destroy the UI.

Public Member Functions inherited from SCR_BaseVehicleInfo
override void	DisplayUpdate (IEntity owner, float timeSlice)

override void	DisplayStartDraw (IEntity owner)
	Create the UI.

Public Member Functions inherited from SCR_InfoDisplayExtended
void	SetEnabled (bool isEnabled)

override void	Show (bool show, float speed=UIConstants.FADE_RATE_INSTANT, EAnimationCurve curve=EAnimationCurve.LINEAR)
	Show/hide InfoDisplay properly, not breaking other systems like AdaptiveOpacity or ConditionalVisibility.

Public Member Functions inherited from SCR_InfoDisplay
SCR_InfoDisplayHandler	GetHandler (TypeName handlerType)

SCR_InfoDisplayInvoker	GetOnStart ()

SCR_InfoDisplayInvoker	GetOnStop ()

IEntity	GetOwnerEntity ()

Widget	GetContentWidget ()

string	GetContentWidgetName ()

void	SetRootWidget (notnull Widget root)

void	SetContentWidget (notnull Widget content)

bool	IsShown ()

Widget	GetRootWidget ()

bool	GetDimensions (out float width, out float height, bool addSafezones=true)
	Get width and height of the InfoDisplay element, optionally with safezones adjustments.

bool	GetAnchorPosition (out float x, out float y, EWidgetAnchor anchor=EWidgetAnchor.TOPLEFT, bool addSafezones=true)
	Get width and height of the InfoDisplay element, optionally with safezones adjustments.

void	RegisterToHudManager ()

Public Member Functions inherited from GroupInfoDisplay
proto external int	GetInfoDisplays (out notnull array< BaseInfoDisplay > outInfoDisplays)

Public Member Functions inherited from BaseInfoDisplay
proto external GenericComponent	FindComponentInParentContainer (TypeName typeName)

Public Attributes inherited from SCR_BaseVehicleInfo
EVehicleInfoColor	m_eColor

Public Attributes inherited from SCR_InfoDisplay
ResourceName	m_LayoutPath

EHudLayers	m_eLayer

int	m_iOverrideZOrder

Protected Member Functions inherited from SCR_BaseVehicleInfo
bool	IsBlinking ()
	Can be overridden to get state of actual system or linked to an event.

void	Scale (ImageWidget widget, float scale)

void	Scale (TextWidget widget, float scale)

void	Scale (OverlayWidget widget, float scale)

void	SetIcon (string icon)

void	SetColor (EVehicleInfoState state, EVehicleInfoColor color)

bool	UpdateRequired (EVehicleInfoState state)

Protected Member Functions inherited from SCR_InfoDisplayExtended
void	DisplayControlledEntityChanged (IEntity from, IEntity to)

void	DisplayConsciousnessChanged (bool conscious, bool init=false)

void	DisplayOnSuspended ()
	Called when GUI is temporarily suspended due to visibility flags; e.g. GM entered and GUI marked as not to show in GM.

void	DisplayOnResumed ()

void	InitializeInterfaceSettings ()

void	OnSettingsChanged ()

Protected Member Functions inherited from SCR_InfoDisplay
void	OnShownFinished (Widget w, float targetOpacity, WidgetAnimationOpacity anim=null)

void	AdaptiveOpacity_Update (float opacity, float sceneBrightness, bool init=false)

Protected Attributes inherited from SCR_HZInfoHeli
SCR_HelicopterControllerComponent	m_HelicoperController

SignalsManagerComponent	m_SignalsManager

int	m_iSignalIndexSpeed

int	m_iSignalIndexAlt

Protected Attributes inherited from SCR_HitZoneInfo
ref array< string >	m_aHitZoneNames

ref array< HitZone >	m_aHitZones

Protected Attributes inherited from SCR_BaseVehicleInfo
ResourceName	m_Imageset = "{3262679C50EF4F01}UI/Textures/Icons/icons_wrapperUI.imageset"

ResourceName	m_ImagesetGlow = "{00FE3DBDFD15227B}UI/Textures/Icons/icons_wrapperUI-glow.imageset"

ImageWidget	m_wIcon

ImageWidget	m_wGlow

OverlayWidget	m_wSizeOverlay

string	m_sIcon

float	m_fWidgetScale

bool	m_bShowGhost

EVehicleInfoState	m_eState = EVehicleInfoState.ERROR

bool	m_bIsBlinking

int	m_iBlinkingOffset

Color	m_aColors [5]

Color	m_aColorsGlow [5]

Protected Attributes inherited from SCR_InfoDisplayExtended
bool	m_bIsEnabled

string	m_sInterfaceSettingName

SCR_PlayerController	m_PlayerController

SCR_CharacterControllerComponent	m_CharacterController

SCR_CharacterCameraHandlerComponent	m_CameraHandler

MenuManager	m_MenuManager

EventHandlerManagerComponent	m_EventHandlerManager

SCR_EditorManagerEntity	m_EditorManager

bool	m_bAttachedToPlayerController

bool	m_bInThirdPerson

bool	m_bInADS

bool	m_bIsUnconscious

bool	m_bInPauseMenu

bool	m_bInEditor

bool	m_bCanShow

bool	m_bIsEnabledInSettings = true

bool	m_bShowInAllCameras = true

Protected Attributes inherited from SCR_InfoDisplay
string	m_sParentSlot

string	m_sContentWidget

int	m_iContentWidthAdjustment

int	m_iContentHeightAdjustment

string	m_sAdaptiveOpacityWidgetName

ref array< ref SCR_InfoDisplayHandler >	m_aHandlers

bool	m_bShown

Widget	m_wRoot

Widget	m_wContent

Widget	m_wSlot

SCR_HUDManagerComponent	m_HUDManager

int	m_iChildDisplays = 0

ref array< BaseInfoDisplay >	m_aChildDisplays = new array<BaseInfoDisplay>

SCR_InfoDisplay	m_pParentDisplay

bool	m_bRegistered = false

IEntity	m_OwnerEntity

ref array< ref SCR_InfoDisplayHandler >	m_aUpdatableHandlers = {}

ref SCR_InfoDisplayInvoker	m_OnStart = new SCR_InfoDisplayInvoker()

ref SCR_InfoDisplayInvoker	m_OnStop = new SCR_InfoDisplayInvoker()

Static Protected Attributes inherited from SCR_HZInfoHeli
const string	SIGNAL_SPEED = "airspeed"

const string	SIGNAL_ALTITUDE = "altitudeAGL"

Static Protected Attributes inherited from SCR_BaseVehicleInfo
const int	ICON_SIZE = 64

The documentation for this interface was generated from the following file:

Game/UI/HUD/VehicleInfo/SCR_HZInfoRotorMain.c
