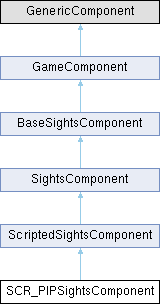

Inheritance diagram for SCR_PIPSightsComponent:

[legend]

Public Member Functions
void	SetEnabled (bool enabled)

void	SCR_PIPSightsComponent (IEntityComponentSource src, IEntity ent, IEntity parent)
	Constructor.

void	~SCR_PIPSightsComponent ()
	Destructor.

Public Member Functions inherited from ScriptedSightsComponent
void	OnInit (IEntity owner)
	Called during EOnInit.

void	OnSightADSActivated ()
	Called every time the sight is activated.

void	OnSightADSPostFrame (IEntity owner, float timeSlice)
	Called on post-frame as long as sights ADS is active.

void	OnSightADSDeactivated ()
	Called every time the sight is deactivated.

float	GetADSActivationPercentageScript ()
	Called to get the ADS percentage when the sights go active.

float	GetADSDeactivationPercentageScript ()
	Called to get the ADS percentage when the sights go inactive.

Public Member Functions inherited from SightsComponent
void	ApplyRecoilToCamera (inout vector pOutCameraTransform[4], vector aimModAngles)
	Applies the given recoil angles to the camera transform according to the type of sight By default this method is empty.

bool	CanFreelook ()

bool	GetDOFRelatedPrefabData (out int opticDOFDistanceScale=-1, out bool forceSimpleDOF=false)
	Used by SCR_DepthOfFieldEffect to scale the DOF based on each particular ironsight-distance.

Public Member Functions inherited from BaseSightsComponent
proto external IEntity	GetOwner ()

proto external void	ForceSightsZeroValue (vector offset, vector angles, vector turnOffset)
	Allow to override Zeroing via aim modifier (only works in Workbench)

proto external void	ForceSightsZeroValueEnablel (bool bOnOff)
	Disable forced zeroing data.

proto external bool	IsSightADSActive ()

proto external float	GetADSActivationPercentage ()

proto external float	GetADSDeactivationPercentage ()

proto external bool	AreSightsValid (bool front=true, bool rear=true)

proto external vector	GetSightsRearPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets Start position should be the one closer to eye position than end position.

proto external vector	GetSightsFrontPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets End position should be the one further from eye position than start position.

proto external vector	GetSightsDirection (bool localSpace=false, bool normalize=true)
	Returns a direction vector from the rear sight position to the front sight position A vector is calculated from the rear sight to the front sight in such a way that GetSightsRearPosition() + GetSightsDirection() == GetSightsFrontPosition()

proto external vector	GetSightsDirectionUntransformed (bool localSpace=false, bool normalize=true)
	Like GetSightsDirection, but ignores and bones associated with the sight points.

proto external vector	GetSightsOffset ()
	Returns the local sights reference point offset.

proto external bool	GetSightsTransform (out vector transform[4], bool localSpace=false)
	Returns the transform matrix of the local sights.

proto external float	GetFOV ()
	Returns current value of field of view.

proto external vector	GetCurrentSightsRange ()
	Returns current range info value where x: animation value y: distance z: unused.

proto external SightsFOVInfo	GetFOVInfo ()
	Returns currently selected sights FOV info or null if none.

proto external float	GetCameraRecoilAmount ()
	Percentage 0...1 of recoil that should be applied to camera when using this sights component.

proto external bool	GetSightsPriority ()
	Boolean indicating whether this sight component is prioritized.

proto external bool	GetSightsSkipSwitch ()
	Return true if the sights can be switched to.

proto external void	SetSightsVisibility (float visFactor)
	Hide parts of the sight on ADS. 0 means completely visible, 1 means completely hidden.

proto external PointInfo	GetPositionPointInfo ()

proto external PointInfo	GetRearPositionPointInfo ()

proto external PointInfo	GetFrontPositionPointInfo ()

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Protected Member Functions
override void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)

Widget	CreateUI (string layout, string rtTextureName, string rtName, out RTTextureWidget RTTexture, out RenderTargetWidget RTWidget)

void	DestroyUI (Widget root)

ScriptCamera	CreateCamera (IEntity parent, vector position, int cameraIndex, float fov, float nearPlane, float farPlane)

void	DestroyCamera (ScriptCamera camera)

void	Destroy ()

override void	OnSightADSActivated ()
	Called every time the sight is activated.

override void	OnSightADSDeactivated ()
	Called every time the sight is deactivated.

override void	OnInit (IEntity owner)
	Called during EOnInit.

Protected Member Functions inherited from SightsComponent
override bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

bool	FindParent (IEntity owner, string eyeBoneName, out IEntity parentWeapon, out int boneIndex)

bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

Protected Attributes
ResourceName	m_sLayoutResource

string	m_sRTTextureWidgetName

string	m_sRTargetWidgetName

int	m_iCameraIndex

float	m_fCameraFOV

float	m_fNearPlane

float	m_fFarPlane

float	m_fResolutionScale

vector	m_vCameraPoint

bool	m_bIsEnabled
	Is this PIP currently enabled?

ref Widget	m_wRoot
	The root layout hierarchy widget.

IEntity	m_pOwner
	Parent entity owner.

RTTextureWidget	m_wRenderTargetTextureWidget
	The render target texture found within our layout.

RenderTargetWidget	m_wRenderTargetWidget
	The render target found within our layout.

ScriptCamera	m_PIPCamera
	The camera to be used by this pip component.

Additional Inherited Members
Static Public Member Functions inherited from SightsComponent
static ZeroingGeneratedData	CalculateDataWithParent (BaseSightsComponent sights, IEntity owner, IEntity parent, float desiredAngle)
	Takes front sights position as the anchor around which it rotates both the owner and the parent under desiredAngle (or rather negative desired angle, as we are pivoting around our target) and calculates new transformation that needs to be applied to reach desired angle.

Static Public Attributes inherited from SightsComponent
const string	EYE_BONE = "eye"

Constructor & Destructor Documentation

◆ SCR_PIPSightsComponent()

void SCR_PIPSightsComponent.SCR_PIPSightsComponent	(	IEntityComponentSource	src,
		IEntity	ent,
		IEntity	parent
	)

Constructor.

◆ ~SCR_PIPSightsComponent()

void SCR_PIPSightsComponent.~SCR_PIPSightsComponent ( )

Destructor.

Member Function Documentation

◆ _WB_AfterWorldUpdate()

override void SCR_PIPSightsComponent._WB_AfterWorldUpdate	(	IEntity	owner,
		float	timeSlice
	)

protected

◆ CreateCamera()

ScriptCamera SCR_PIPSightsComponent.CreateCamera	(	IEntity	parent,
		vector	position,
		int	cameraIndex,
		float	fov,
		float	nearPlane,
		float	farPlane
	)

protected

Parameters

parent	Parent entity this camera should be attached to
position	Local offset from parent entity
cameraIndex	The index created camera should use, 0-31
fov	The field of view of camera 0-89
nearPlane	Near clipping plane of the camera in metres
farPlane	Far clipping plane of the camera in metres

◆ CreateUI()

Widget SCR_PIPSightsComponent.CreateUI	(	string	layout,
		string	rtTextureName,
		string	rtName,
		out RTTextureWidget	RTTexture,
		out RenderTargetWidget	RTWidget
	)

protected

◆ Destroy()

void SCR_PIPSightsComponent.Destroy ( )

protected

◆ DestroyCamera()

void SCR_PIPSightsComponent.DestroyCamera ( ScriptCamera camera )

protected

◆ DestroyUI()

void SCR_PIPSightsComponent.DestroyUI ( Widget root )

protected

◆ OnInit()

override void SCR_PIPSightsComponent.OnInit ( IEntity owner )

protected

Called during EOnInit.

Parameters

owner Entity this component is attached to.

Implements ScriptedSightsComponent.

◆ OnSightADSActivated()

override void SCR_PIPSightsComponent.OnSightADSActivated ( )

protected

Called every time the sight is activated.

Implements ScriptedSightsComponent.

◆ OnSightADSDeactivated()

override void SCR_PIPSightsComponent.OnSightADSDeactivated ( )

protected

Called every time the sight is deactivated.

Implements ScriptedSightsComponent.

◆ SetEnabled()

void SCR_PIPSightsComponent.SetEnabled ( bool enabled )

Member Data Documentation

◆ m_bIsEnabled

bool SCR_PIPSightsComponent.m_bIsEnabled

protected

Is this PIP currently enabled?

◆ m_fCameraFOV

float SCR_PIPSightsComponent.m_fCameraFOV

protected

◆ m_fFarPlane

float SCR_PIPSightsComponent.m_fFarPlane

protected

◆ m_fNearPlane

float SCR_PIPSightsComponent.m_fNearPlane

protected

◆ m_fResolutionScale

float SCR_PIPSightsComponent.m_fResolutionScale

protected

◆ m_iCameraIndex

int SCR_PIPSightsComponent.m_iCameraIndex

protected

◆ m_PIPCamera

ScriptCamera SCR_PIPSightsComponent.m_PIPCamera

protected

The camera to be used by this pip component.

◆ m_pOwner

IEntity SCR_PIPSightsComponent.m_pOwner

protected

Parent entity owner.

◆ m_sLayoutResource

ResourceName SCR_PIPSightsComponent.m_sLayoutResource

protected

◆ m_sRTargetWidgetName

string SCR_PIPSightsComponent.m_sRTargetWidgetName

protected

◆ m_sRTTextureWidgetName

string SCR_PIPSightsComponent.m_sRTTextureWidgetName

protected

◆ m_vCameraPoint

vector SCR_PIPSightsComponent.m_vCameraPoint

protected

◆ m_wRenderTargetTextureWidget

RTTextureWidget SCR_PIPSightsComponent.m_wRenderTargetTextureWidget

protected

The render target texture found within our layout.

◆ m_wRenderTargetWidget

RenderTargetWidget SCR_PIPSightsComponent.m_wRenderTargetWidget

protected

The render target found within our layout.

◆ m_wRoot

ref Widget SCR_PIPSightsComponent.m_wRoot

protected

The root layout hierarchy widget.

The documentation for this interface was generated from the following file:

Game/Weapon/Sights/SCR_PIPSightsComponent.c
