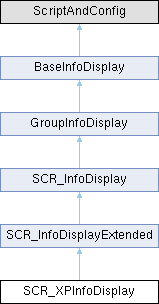

Inheritance diagram for SCR_XPInfoDisplay:

Public Member Functions
override void	DisplayInit (IEntity owner)

override bool	DisplayStartDrawInit (IEntity owner)

override void	DisplayStartDraw (IEntity owner)

void	AddNewWidgets (notnull SCR_XPInfoWidgetData hudXPWidget, int id)

bool	RemoveWidgetsById (int widgetDataId)

override void	OnSettingsChanged ()

void	AllowShowingInfo (bool allow)

void	ToggleXPInfo (bool visible)

void	~SCR_XPInfoDisplay ()

Public Member Functions inherited from SCR_InfoDisplayExtended
void	SetEnabled (bool isEnabled)

override void	Show (bool show, float speed=UIConstants.FADE_RATE_INSTANT, EAnimationCurve curve=EAnimationCurve.LINEAR)
	Show/hide InfoDisplay properly, not breaking other systems like AdaptiveOpacity or ConditionalVisibility.

Public Member Functions inherited from SCR_InfoDisplay
SCR_InfoDisplayHandler	GetHandler (TypeName handlerType)

SCR_InfoDisplayInvoker	GetOnStart ()

SCR_InfoDisplayInvoker	GetOnStop ()

IEntity	GetOwnerEntity ()

Widget	GetContentWidget ()

string	GetContentWidgetName ()

void	SetRootWidget (notnull Widget root)

void	SetContentWidget (notnull Widget content)

bool	IsShown ()

Widget	GetRootWidget ()

bool	GetDimensions (out float width, out float height, bool addSafezones=true)
	Get width and height of the InfoDisplay element, optionally with safezones adjustments.

bool	GetAnchorPosition (out float x, out float y, EWidgetAnchor anchor=EWidgetAnchor.TOPLEFT, bool addSafezones=true)
	Get width and height of the InfoDisplay element, optionally with safezones adjustments.

void	RegisterToHudManager ()

Public Member Functions inherited from GroupInfoDisplay
proto external int	GetInfoDisplays (out notnull array< BaseInfoDisplay > outInfoDisplays)

Public Member Functions inherited from BaseInfoDisplay
proto external GenericComponent	FindComponentInParentContainer (TypeName typeName)

Static Public Member Functions
static ResourceName	GetRankIconImageSet ()

Protected Member Functions
void	RecolorXPBar ()

void	RecolorXPText ()

void	HideHUD ()

void	ShowXPInfo (int totalXP, SCR_EXPRewards rewardID, int XP, bool volunteer, bool profileUsed, int skillLevel)

void	UpdateData ()

Protected Member Functions inherited from SCR_InfoDisplayExtended
void	DisplayStopDraw (IEntity owner)

void	DisplayUpdate (IEntity owner, float timeSlice)

void	DisplayControlledEntityChanged (IEntity from, IEntity to)

void	DisplayConsciousnessChanged (bool conscious, bool init=false)

void	DisplayOnSuspended ()
	Called when GUI is temporarily suspended due to visibility flags; e.g. GM entered and GUI marked as not to show in GM.

void	DisplayOnResumed ()

void	InitializeInterfaceSettings ()

Protected Member Functions inherited from SCR_InfoDisplay
void	OnShownFinished (Widget w, float targetOpacity, WidgetAnimationOpacity anim=null)

void	AdaptiveOpacity_Update (float opacity, float sceneBrightness, bool init=false)

Protected Attributes
bool	m_bInitDone

bool	m_bIsInfoAllowed = true

SCR_XPHandlerComponent	m_PlayerXPComponent

ref map< int, ref SCR_XPInfoWidgetData >	m_Widgets = new map<int, ref SCR_XPInfoWidgetData>()

string	m_sCurrentRankName

string	m_sCurrentRankIcon

string	m_sNextRankIcon

SCR_ECharacterRank	m_ECurrentRank

SCR_ECharacterRank	m_EPrevRank

SCR_EXPRewards	m_EReward

string	m_sRewardName

Protected Attributes inherited from SCR_InfoDisplayExtended
bool	m_bIsEnabled

string	m_sInterfaceSettingName

SCR_PlayerController	m_PlayerController

SCR_CharacterControllerComponent	m_CharacterController

SCR_CharacterCameraHandlerComponent	m_CameraHandler

MenuManager	m_MenuManager

EventHandlerManagerComponent	m_EventHandlerManager

SCR_EditorManagerEntity	m_EditorManager

bool	m_bAttachedToPlayerController

bool	m_bInThirdPerson

bool	m_bInADS

bool	m_bIsUnconscious

bool	m_bInPauseMenu

bool	m_bInEditor

bool	m_bCanShow

bool	m_bIsEnabledInSettings = true

bool	m_bShowInAllCameras = true

Protected Attributes inherited from SCR_InfoDisplay
string	m_sParentSlot

string	m_sContentWidget

int	m_iContentWidthAdjustment

int	m_iContentHeightAdjustment

string	m_sAdaptiveOpacityWidgetName

ref array< ref SCR_InfoDisplayHandler >	m_aHandlers

bool	m_bShown

Widget	m_wRoot

Widget	m_wContent

Widget	m_wSlot

SCR_HUDManagerComponent	m_HUDManager

int	m_iChildDisplays = 0

ref array< BaseInfoDisplay >	m_aChildDisplays = new array<BaseInfoDisplay>

SCR_InfoDisplay	m_pParentDisplay

bool	m_bRegistered = false

IEntity	m_OwnerEntity

ref array< ref SCR_InfoDisplayHandler >	m_aUpdatableHandlers = {}

ref SCR_InfoDisplayInvoker	m_OnStart = new SCR_InfoDisplayInvoker()

ref SCR_InfoDisplayInvoker	m_OnStop = new SCR_InfoDisplayInvoker()

Static Protected Attributes
static const int	XP_INFO_DURATION = 10000

static const ResourceName	RANK_ICON_IMAGESET = "{70E828A2F6EBE7D0}UI/Textures/Nametags/nametagicons.imageset"

Additional Inherited Members
Public Attributes inherited from SCR_InfoDisplay
ResourceName	m_LayoutPath

EHudLayers	m_eLayer

int	m_iOverrideZOrder

Constructor & Destructor Documentation

◆ ~SCR_XPInfoDisplay()

void SCR_XPInfoDisplay.~SCR_XPInfoDisplay ( )

Member Function Documentation

◆ AddNewWidgets()

void SCR_XPInfoDisplay.AddNewWidgets	(	notnull SCR_XPInfoWidgetData	hudXPWidget,
		int	id )

◆ AllowShowingInfo()

void SCR_XPInfoDisplay.AllowShowingInfo ( bool allow )

◆ DisplayInit()

override void SCR_XPInfoDisplay.DisplayInit ( IEntity owner )

Implements SCR_InfoDisplayExtended.

◆ DisplayStartDraw()

override void SCR_XPInfoDisplay.DisplayStartDraw ( IEntity owner )

Implements SCR_InfoDisplayExtended.

◆ DisplayStartDrawInit()

override bool SCR_XPInfoDisplay.DisplayStartDrawInit ( IEntity owner )

Implements SCR_InfoDisplayExtended.

◆ GetRankIconImageSet()

static ResourceName SCR_XPInfoDisplay.GetRankIconImageSet ( )

static

Returns: Image set containing the rank icons

◆ HideHUD()

void SCR_XPInfoDisplay.HideHUD ( )

protected

◆ OnSettingsChanged()

override void SCR_XPInfoDisplay.OnSettingsChanged ( )

Implements SCR_InfoDisplayExtended.

◆ RecolorXPBar()

void SCR_XPInfoDisplay.RecolorXPBar ( )

protected

◆ RecolorXPText()

void SCR_XPInfoDisplay.RecolorXPText ( )

protected

◆ RemoveWidgetsById()

bool SCR_XPInfoDisplay.RemoveWidgetsById ( int widgetDataId )

◆ ShowXPInfo()

void SCR_XPInfoDisplay.ShowXPInfo	(	int	totalXP,
		SCR_EXPRewards	rewardID,
		int	XP,
		bool	volunteer,
		bool	profileUsed,
		int	skillLevel )

protected

◆ ToggleXPInfo()

void SCR_XPInfoDisplay.ToggleXPInfo ( bool visible )

◆ UpdateData()

void SCR_XPInfoDisplay.UpdateData ( )

protected

Member Data Documentation

◆ m_bInitDone

bool SCR_XPInfoDisplay.m_bInitDone

protected

◆ m_bIsInfoAllowed

bool SCR_XPInfoDisplay.m_bIsInfoAllowed = true

protected

◆ m_ECurrentRank

SCR_ECharacterRank SCR_XPInfoDisplay.m_ECurrentRank

protected

◆ m_EPrevRank

SCR_ECharacterRank SCR_XPInfoDisplay.m_EPrevRank

protected

◆ m_EReward

SCR_EXPRewards SCR_XPInfoDisplay.m_EReward

protected

◆ m_PlayerXPComponent

SCR_XPHandlerComponent SCR_XPInfoDisplay.m_PlayerXPComponent

protected

◆ m_sCurrentRankIcon

string SCR_XPInfoDisplay.m_sCurrentRankIcon

protected

◆ m_sCurrentRankName

string SCR_XPInfoDisplay.m_sCurrentRankName

protected

◆ m_sNextRankIcon

string SCR_XPInfoDisplay.m_sNextRankIcon

protected

◆ m_sRewardName

string SCR_XPInfoDisplay.m_sRewardName

protected

◆ m_Widgets

ref map<int, ref SCR_XPInfoWidgetData> SCR_XPInfoDisplay.m_Widgets = new map<int, ref SCR_XPInfoWidgetData>()

protected

◆ RANK_ICON_IMAGESET

const ResourceName SCR_XPInfoDisplay.RANK_ICON_IMAGESET = "{70E828A2F6EBE7D0}UI/Textures/Nametags/nametagicons.imageset"

staticprotected

◆ XP_INFO_DURATION

const int SCR_XPInfoDisplay.XP_INFO_DURATION = 10000

staticprotected

The documentation for this interface was generated from the following file:

Game/UI/HUD/SCR_XPInfoDisplay.c
