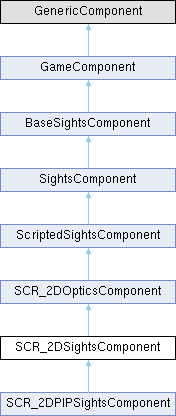

Inheritance diagram for SCR_2DSightsComponent:

[legend]

Public Member Functions
override void	OnSightADSActivated ()
	Called every time the sight is activated.

override void	OnSightADSDeactivated ()
	Called every time the sight is deactivated.

override bool	CanFreelook ()

SCR_SightsZoomFOVInfo	GetSightsFovInfo ()

Public Member Functions inherited from SCR_2DOpticsComponent
override float	GetADSActivationPercentageScript ()
	Called to get the ADS percentage when the sights go active.

override float	GetADSDeactivationPercentageScript ()
	Called to get the ADS percentage when the sights go inactive.

float	GetReticleOffsetX ()

void	GetReticleTextures (out ResourceName reticleTexture, out ResourceName reticleTextureGlow, out ResourceName filterTexture)

void	GetReticleData (out float reticleAngularSize, out float reticlePortion, out float reticleBaseZoom)

float	GetObjectiveFov ()

float	GetObjectiveScale ()

float	GetVignetteScale ()

float	GetMisalignmentDampingSpeed ()

float	GetRotationScale ()

float	GetRotationDampingSpeed ()

float	GetMovementScale ()

float	GetMovementDampingSpeed ()

float	GetRollScale ()

float	GetRollDampingSpeed ()

float	GetMisalignmentScale ()

float	GetVignetteMoveSpeed ()

float	GetMotionBlurScale ()

float	GetMotionBlurMax ()

SCR_EPIPZeroingType	GetZeroType ()

float	GetMagnification ()

bool	GetIsOpticsHidden ()

ScriptInvokerVoid	OnSetupOpticImage ()

ScriptInvokerBase< On2DOpticsIlluminationChange >	OnIlluminationChange ()

float	GetFovZoomed ()
	Get base FOV of the optic, used to determine maximum FOV.

void	SetFovZoomed (float value)
	Set base FOV of the optic. Negative value means magnification to compute new m_fFovZoomed with.

float	GetNearPlane ()

int	GetAnimationActivationDelay ()

int	GetAnimationDeactivationDelay ()

float	GetAnimationEnterTime ()

float	GetAnimationSpeedBlur ()

bool	GetIsMoving ()

bool	GetIsRotating ()

float	GetScratchesRoll ()

override void	OnInit (IEntity owner)
	Called during EOnInit.

override void	OnSightADSActivated ()
	Called every time the sight is activated.

override void	OnSightADSDeactivated ()
	Called every time the sight is deactivated.

bool	IsMoveCloseToLimit (vector move, float limitMin)
	Return true if move X a Y is below limit.

vector	GetMisalignmentAngles (notnull CameraBase camera)
	Get sight angles in camera space !

vector	GetRotation (out vector previousDir, float timeSlice)

vector	GetMovement (out vector previousPos, float timeSlice)

bool	HasIllumination ()

Color	GetReticleColor ()

Color	GetReticleOutlineColor ()

Color	GetReticleIlluminationColor ()

float	GetCurrentReticleOffsetY ()

float	GetCurrentCameraPitchOffset ()

vector	GetCameraOffset ()

vector	GetCameraAngles ()

IEntity	GetCameraLocalTransform (out vector matrix[4])
	Return actual parent (weapon) with calculated transformation in relation to it.

void	SetObjectiveFov (float objectiveFov)

void	SetObjectiveScale (float objectiveScale)

void	SetReticleBaseZoom (float reticleBaseZoom)

void	SetReticleAngularSize (float reticleAngularSize)

void	SetReticlePortion (float reticlePortion)

void	SetReticleOffsetX (float reticleOffsetX)

void	SetReticleOffsetY (float reticleOffsetY)

void	OnInit (IEntity owner)
	Called during EOnInit.

void	OnSightADSActivated ()
	Called every time the sight is activated.

void	OnSightADSPostFrame (IEntity owner, float timeSlice)
	Called on post-frame as long as sights ADS is active.

void	OnSightADSDeactivated ()
	Called every time the sight is deactivated.

float	GetADSActivationPercentageScript ()
	Called to get the ADS percentage when the sights go active.

float	GetADSDeactivationPercentageScript ()
	Called to get the ADS percentage when the sights go inactive.

Public Member Functions inherited from SightsComponent
void	ApplyRecoilToCamera (inout vector pOutCameraTransform[4], vector aimModAngles)
	Applies the given recoil angles to the camera transform according to the type of sight By default this method is empty.

bool	CanFreelook ()

bool	GetDOFRelatedPrefabData (out int opticDOFDistanceScale=-1, out bool forceSimpleDOF=false)
	Used by SCR_DepthOfFieldEffect to scale the DOF based on each particular ironsight-distance.

Public Member Functions inherited from BaseSightsComponent
proto external IEntity	GetOwner ()

proto external void	ForceSightsZeroValue (vector offset, vector angles, vector turnOffset)
	Allow to override Zeroing via aim modifier (only works in Workbench)

proto external void	ForceSightsZeroValueEnablel (bool bOnOff)
	Disable forced zeroing data.

proto external bool	IsSightADSActive ()

proto external float	GetADSActivationPercentage ()

proto external float	GetADSDeactivationPercentage ()

proto external bool	AreSightsValid (bool front=true, bool rear=true)

proto external vector	GetSightsRearPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets Start position should be the one closer to eye position than end position.

proto external vector	GetSightsFrontPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets End position should be the one further from eye position than start position.

proto external vector	GetSightsDirection (bool localSpace=false, bool normalize=true)
	Returns a direction vector from the rear sight position to the front sight position A vector is calculated from the rear sight to the front sight in such a way that GetSightsRearPosition() + GetSightsDirection() == GetSightsFrontPosition()

proto external vector	GetSightsDirectionUntransformed (bool localSpace=false, bool normalize=true)
	Like GetSightsDirection, but ignores and bones associated with the sight points.

proto external vector	GetSightsOffset ()
	Returns the local sights reference point offset.

proto external bool	GetSightsTransform (out vector transform[4], bool localSpace=false)
	Returns the transform matrix of the local sights.

proto external float	GetFOV ()
	Returns current value of field of view.

proto external vector	GetCurrentSightsRange ()
	Returns current range info value where x: animation value y: distance z: unused.

proto external SightsFOVInfo	GetFOVInfo ()
	Returns currently selected sights FOV info or null if none.

proto external float	GetCameraRecoilAmount ()
	Percentage 0...1 of recoil that should be applied to camera when using this sights component.

proto external bool	GetSightsPriority ()
	Boolean indicating whether this sight component is prioritized.

proto external bool	GetSightsSkipSwitch ()
	Return true if the sights can be switched to.

proto external void	SetSightsVisibility (float visFactor)
	Hide parts of the sight on ADS. 0 means completely visible, 1 means completely hidden.

proto external PointInfo	GetPositionPointInfo ()

proto external PointInfo	GetRearPositionPointInfo ()

proto external PointInfo	GetFrontPositionPointInfo ()

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Protected Member Functions
void	RegisterInputs ()

void	UnregisterInputs ()

override void	HandleSightActivation ()

override void	HandleSightDeactivation ()

override void	ApplyRecoilToCamera (inout vector pOutCameraTransform[4], vector aimModAngles)
	Applies the given recoil angles to the camera transform according to the type of sight By default this method is empty.

void	SetupFovInfo ()

void	SelectZoomLevel (int id)
	Switch betweem zoom levels from sights.

void	ActionZoomIn (float value=0.0, EActionTrigger reason=0)
	Move zoom level up and down based on mouse wheel value.

void	ActionZoomOut (float value=0.0, EActionTrigger reason=0)
	Move zoom level up and down based on mouse wheel value.

void	AdjustZoom (float value)
	Move zoom level up and down based on mouse wheel value.

void	ToggleIllumination (float value, EActionTrigger trigger)
	Action for toggling illumination.

override float	GetReticleOffsetYTarget ()

Protected Member Functions inherited from SCR_2DOpticsComponent
void	HandleSightActivation ()

void	HandleSightDeactivation ()

override void	OnSightADSPostFrame (IEntity owner, float timeSlice)
	Called on post-frame as long as sights ADS is active.

void	HideObjects ()
	Hides objects to prevent clipping when entering ADS.

vector	GetSightsRelPosition ()

void	EnableReticleIllumination (bool enable)
	Toggle between illumination modes.

float	GetReticleOffsetYTarget ()

float	GetCameraPitchTarget ()

Protected Member Functions inherited from SightsComponent
override bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

bool	FindParent (IEntity owner, string eyeBoneName, out IEntity parentWeapon, out int boneIndex)

bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

Protected Attributes
bool	m_bShouldHideParentParentObject

SCR_SightsZoomFOVInfo	m_SightsFovInfo

Protected Attributes inherited from SCR_2DOpticsComponent
ResourceName	m_sReticleTexture

ResourceName	m_sReticleGlowTexture

bool	m_bHasIllumination

ref Color	m_ReticleColor

ref Color	m_ReticleOutlineColor

ref Color	m_cReticleTextureIllumination

float	m_fReticleTextureGlowAlpha

ResourceName	m_sFilterTexture

float	m_fMagnification

float	m_fReticleAngularSize

float	m_fReticlePortion

float	m_fReticleBaseZoom

float	m_fObjectiveFov

float	m_fObjectiveScale

float	m_fVignetteScale

bool	m_bShouldHideParentObject

bool	m_bShouldHideParentCharacter

int	m_iAnimationActivationDelay

int	m_iAnimationDeactivationDelay

float	m_fAnimationEnterTime

float	m_fAnimationSpeedBlur

float	m_fMisalignmentDampingSpeed

float	m_fRotationScale

float	m_fRotationDampingSpeed

float	m_fMovementScale

float	m_fMovementDampingSpeed

float	m_fRollScale

float	m_fRollDampingSpeed

float	m_fMisalignmentScale

float	m_fVignetteMoveSpeed

float	m_fMotionBlurScale

float	m_fMotionBlurMax

float	m_fADSActivationPercentage

float	m_fADSDeactivationPercentage

SCR_EPIPZeroingType	m_eZeroingType

float	m_fReticleOffsetX

float	m_fReticleOffsetY

float	m_fReticleOffsetInterpSpeed

vector	m_vCameraOffset

vector	m_vCameraAngles

vector	m_vCameraMisalignmentScale

float	m_fCurrentReticleOffsetY

float	m_fCurrentCameraPitch

int	m_iSelectedZoomLevel

float	m_fScratchesRoll

float	m_fFovZoomed

float	m_fDefaultSize

float	m_fNearPlaneCurrent

bool	m_bIsMoving

bool	m_bIsRotating

bool	m_bWasEntityHidden

int	m_iHeadBoneId = -1

bool	m_bIsOpticsHidden

bool	m_bIsIlluminationOn

ChimeraCharacter	m_ParentCharacter

ref ScriptInvokerVoid	s_OnSetupOpticImage = new ScriptInvokerVoid()

ref ScriptInvokerBase< On2DOpticsIlluminationChange >	s_OnIlluminationChange = new ScriptInvokerBase<On2DOpticsIlluminationChange>()

Additional Inherited Members
Static Public Member Functions inherited from SCR_2DOpticsComponent
static float	CalculateZoomFOV (float magnification)
	Return camera FOV for given magnification. Focus FOV is used as reference 1x magnification.

Static Public Member Functions inherited from SightsComponent
static ZeroingGeneratedData	CalculateDataWithParent (BaseSightsComponent sights, IEntity owner, IEntity parent, float desiredAngle)
	Takes front sights position as the anchor around which it rotates both the owner and the parent under desiredAngle (or rather negative desired angle, as we are pivoting around our target) and calculates new transformation that needs to be applied to reach desired angle.

Static Public Attributes inherited from SCR_2DOpticsComponent
const string	ACTION_ZOOM_IN = "WeaponOpticsZoomIn"

const string	ACTION_ZOOM_OUT = "WeaponOpticsZoomOut"

const string	ACTION_ILLUMINATION = "WeaponToggleSightsIllumination"

const float	REFERENCE_FOV = 28

const float	OPACITY_INITIAL = 0.75

const float	NEAR_PLANE_DEFAULT = 0.05

const float	NEAR_PLANE_ZOOMED = 0.05

static ref ScriptInvokerBase< OnSightsADSChanged >	s_OnSightsADSChanged = new ScriptInvokerBase<OnSightsADSChanged>()

static ref ScriptInvokerBase< On2DOpticsADSChange >	s_On2DOpticADSChanged = new ScriptInvokerBase<On2DOpticsADSChange>()

Static Public Attributes inherited from SightsComponent
const string	EYE_BONE = "eye"

Member Function Documentation

◆ ActionZoomIn()

void SCR_2DSightsComponent.ActionZoomIn	(	float	value = `0::0`,
		EActionTrigger	reason = `0`
	)

protected

Move zoom level up and down based on mouse wheel value.

◆ ActionZoomOut()

void SCR_2DSightsComponent.ActionZoomOut	(	float	value = `0::0`,
		EActionTrigger	reason = `0`
	)

protected

Move zoom level up and down based on mouse wheel value.

◆ AdjustZoom()

void SCR_2DSightsComponent.AdjustZoom ( float value )

protected

Move zoom level up and down based on mouse wheel value.

◆ ApplyRecoilToCamera()

override void SCR_2DSightsComponent.ApplyRecoilToCamera	(	inout vector	pOutCameraTransform[4],
		vector	aimModAngles
	)

protected

Applies the given recoil angles to the camera transform according to the type of sight By default this method is empty.

It should be overridden by each sight to make the appropriate adjustments

Implements SightsComponent.

Implemented in SCR_2DPIPSightsComponent.

◆ CanFreelook()

override bool SCR_2DSightsComponent.CanFreelook ( )

Implements SightsComponent.

Implemented in SCR_2DPIPSightsComponent.

◆ GetReticleOffsetYTarget()

override float SCR_2DSightsComponent.GetReticleOffsetYTarget ( )

protected

Implements SCR_2DOpticsComponent.

◆ GetSightsFovInfo()

SCR_SightsZoomFOVInfo SCR_2DSightsComponent.GetSightsFovInfo ( )

◆ HandleSightActivation()

override void SCR_2DSightsComponent.HandleSightActivation ( )

protected

Implements SCR_2DOpticsComponent.

Implemented in SCR_2DPIPSightsComponent.

◆ HandleSightDeactivation()

override void SCR_2DSightsComponent.HandleSightDeactivation ( )

protected

Implements SCR_2DOpticsComponent.

Implemented in SCR_2DPIPSightsComponent.

◆ OnSightADSActivated()

override void SCR_2DSightsComponent.OnSightADSActivated ( )

Called every time the sight is activated.

Implements SCR_2DOpticsComponent.

◆ OnSightADSDeactivated()

override void SCR_2DSightsComponent.OnSightADSDeactivated ( )

Called every time the sight is deactivated.

Implements SCR_2DOpticsComponent.

◆ RegisterInputs()

void SCR_2DSightsComponent.RegisterInputs ( )

protected

◆ SelectZoomLevel()

void SCR_2DSightsComponent.SelectZoomLevel ( int id )

protected

Switch betweem zoom levels from sights.

◆ SetupFovInfo()

void SCR_2DSightsComponent.SetupFovInfo ( )

protected

◆ ToggleIllumination()

void SCR_2DSightsComponent.ToggleIllumination	(	float	value,
		EActionTrigger	trigger
	)

protected

Action for toggling illumination.

◆ UnregisterInputs()

void SCR_2DSightsComponent.UnregisterInputs ( )

protected

Member Data Documentation

◆ m_bShouldHideParentParentObject

bool SCR_2DSightsComponent.m_bShouldHideParentParentObject

protected

◆ m_SightsFovInfo

SCR_SightsZoomFOVInfo SCR_2DSightsComponent.m_SightsFovInfo

protected

The documentation for this interface was generated from the following file:

Game/Weapon/Sights/SCR_2DSightsComponent.c

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ ActionZoomIn()

◆ ActionZoomOut()

◆ AdjustZoom()

◆ ApplyRecoilToCamera()

◆ CanFreelook()

◆ GetReticleOffsetYTarget()

◆ GetSightsFovInfo()

◆ HandleSightActivation()

◆ HandleSightDeactivation()

◆ OnSightADSActivated()

◆ OnSightADSDeactivated()

◆ RegisterInputs()

◆ SelectZoomLevel()

◆ SetupFovInfo()

◆ ToggleIllumination()

◆ UnregisterInputs()

Member Data Documentation

◆ m_bShouldHideParentParentObject

◆ m_SightsFovInfo
