TurretControllerComponent Interface Reference

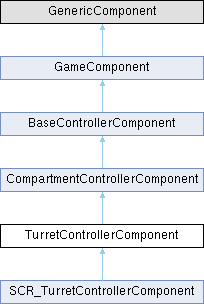

Inheritance diagram for TurretControllerComponent:

Public Member Functions
proto external BaseCompartmentSlot	GetCompartmentSlot ()
proto external bool	GetCanAimOnlyInADS ()
	Returns true if we can only aim in ADS.
proto external bool	IsFreeLookEnabled ()
	Returns true if the free look is enabled.
proto external bool	IsWeaponADS ()
	Returns true if the weapon is in ADS.
proto external void	SetWeaponADS (bool val)
	Request weapon ADS state.
proto external bool	GetWeaponADSInput ()
	Returns weapon ADS input state.
proto external void	SetWeaponADSInput (bool val)
	Request weapon ADS input state.
proto external void	SetWeaponADSEnabled (bool val)
	Enable or disable weapon ADS.
proto external bool	GetWeaponADSEnabled ()
proto external ETurretReloadState	GetReloadingState ()
proto external float	GetADSTime ()
	Returns the time to ADS in seconds.
proto external BaseSightsComponent	GetCurrentSights ()
proto external bool	GetCurrentSightsADS ()
proto external void	SetCurrentSightsADS (bool on)
	Set if we are currently in ADS.
proto bool	GetCurrentSightsCameraTransform (out vector outWorldMatrix[4], out float fov)
	Returns true if current turret is valid and has some sights data, outputs world sights transformation and FOV.
proto bool	GetCurrentSightsCameraLocalTransform (out vector outLocalMatrix[4], out float fov)
	Returns true if current turret is valid and has some sights data, outputs local sights transformation and FOV.
proto external bool	AssembleTurret ()
proto external bool	DisassembleTurret ()
proto external bool	RemoveWeapon (IEntity user, int index, IEntity receiver)
	Remove the given weapon index, and put it into pReceiver's inventory. If pReceiver is null, drop it to the ground. pUser can be nullptr if called from server.
proto external bool	AddWeapon (IEntity user, int index, IEntity weapon)
	Add the weapon to the turret on the given slot index. pUser can be nullptr if called from server.
proto external TurretComponent	GetTurretComponent ()
proto external BaseWeaponManagerComponent	GetWeaponManager ()
proto external InventoryStorageManagerComponent	GetInventoryManager ()
proto external bool	SelectWeapon (IEntity user, BaseWeaponComponent newWeapon)
	Select the new weapon specified in parameter.
proto external void	SetWeaponGroup (array< int > weapons, EWeaponGroupFireMode mode, int rippleQuantity=1, float timeBetween=100.0)
	Select a group of weapons for firing.
proto external float	GetReloadDuration ()
proto external float	GetReloadTime ()
proto external bool	DoReloadWeaponWith (IEntity ammunitionEntity)
proto external void	SetFireWeaponWanted (bool val)
	Set if turret is firing or not.
proto external void	SetAimingAngles (float yaw, float pitch)
	Set aiming angles in radians.
proto external bool	GetIsOverridden ()
proto external ETurretContextID	GetContextIDs ()
	Returns the context indices that are used when this turret is connected to another compartment slot.
proto external string	GetUniqueName ()
proto external bool	GetUseVehicleCamera ()
proto external void	SetWeaponInputState (ETurretWeaponInputState state)
	Used to remotely trigger weapon actions on the turret.
Public Member Functions inherited from BaseControllerComponent
proto external IEntity	GetOwner ()
	Returns the entity owner of the component.
proto external bool	CanMove ()
	Returns state of movement capacity.
proto external void	SetCanMove (bool canMove)
	Changes state of movement capacity. Internally verifies if all necessary conditions are met.
bool	ValidateCanMove ()
Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Protected Member Functions
void	OnPrepareControls (IEntity owner, ActionManager am, float dt, bool player)

Member Function Documentation

AddWeapon()

proto external bool TurretControllerComponent.AddWeapon	(	IEntity	user,
		int	index,
		IEntity	weapon )

Add the weapon to the turret on the given slot index. pUser can be nullptr if called from server.

AssembleTurret()

proto external bool TurretControllerComponent.AssembleTurret

(

)

DisassembleTurret()

proto external bool TurretControllerComponent.DisassembleTurret

(

)

DoReloadWeaponWith()

proto external bool TurretControllerComponent.DoReloadWeaponWith

(

IEntity

ammunitionEntity

)

GetADSTime()

proto external float TurretControllerComponent.GetADSTime

(

)

Returns the time to ADS in seconds.

GetCanAimOnlyInADS()

proto external bool TurretControllerComponent.GetCanAimOnlyInADS

(

)

Returns true if we can only aim in ADS.

GetCompartmentSlot()

proto external BaseCompartmentSlot TurretControllerComponent.GetCompartmentSlot

(

)

GetContextIDs()

proto external ETurretContextID TurretControllerComponent.GetContextIDs

(

)

Returns the context indices that are used when this turret is connected to another compartment slot.

GetCurrentSights()

proto external BaseSightsComponent TurretControllerComponent.GetCurrentSights

(

)

GetCurrentSightsADS()

proto external bool TurretControllerComponent.GetCurrentSightsADS

(

)

GetCurrentSightsCameraLocalTransform()

proto bool TurretControllerComponent.GetCurrentSightsCameraLocalTransform	(	out vector	outLocalMatrix[4],
		out float	fov )

Returns true if current turret is valid and has some sights data, outputs local sights transformation and FOV.

GetCurrentSightsCameraTransform()

proto bool TurretControllerComponent.GetCurrentSightsCameraTransform	(	out vector	outWorldMatrix[4],
		out float	fov )

Returns true if current turret is valid and has some sights data, outputs world sights transformation and FOV.

GetInventoryManager()

proto external InventoryStorageManagerComponent TurretControllerComponent.GetInventoryManager

(

)

GetIsOverridden()

proto external bool TurretControllerComponent.GetIsOverridden

(

)

GetReloadDuration()

proto external float TurretControllerComponent.GetReloadDuration

(

)

GetReloadingState()

proto external ETurretReloadState TurretControllerComponent.GetReloadingState

(

)

GetReloadTime()

proto external float TurretControllerComponent.GetReloadTime

(

)

GetTurretComponent()

proto external TurretComponent TurretControllerComponent.GetTurretComponent

(

)

GetUniqueName()

proto external string TurretControllerComponent.GetUniqueName

(

)

GetUseVehicleCamera()

proto external bool TurretControllerComponent.GetUseVehicleCamera

(

)

GetWeaponADSEnabled()

proto external bool TurretControllerComponent.GetWeaponADSEnabled

(

)

GetWeaponADSInput()

proto external bool TurretControllerComponent.GetWeaponADSInput

(

)

Returns weapon ADS input state.

GetWeaponManager()

proto external BaseWeaponManagerComponent TurretControllerComponent.GetWeaponManager

(

)

IsFreeLookEnabled()

proto external bool TurretControllerComponent.IsFreeLookEnabled

(

)

Returns true if the free look is enabled.

IsWeaponADS()

proto external bool TurretControllerComponent.IsWeaponADS

(

)

Returns true if the weapon is in ADS.

OnPrepareControls()

void TurretControllerComponent.OnPrepareControls ( IEntity owner, ActionManager am, float dt, bool player )

protected

Implemented in SCR_TurretControllerComponent.

RemoveWeapon()

proto external bool TurretControllerComponent.RemoveWeapon	(	IEntity	user,
		int	index,
		IEntity	receiver )

Remove the given weapon index, and put it into pReceiver's inventory. If pReceiver is null, drop it to the ground. pUser can be nullptr if called from server.

SelectWeapon()

proto external bool TurretControllerComponent.SelectWeapon	(	IEntity	user,
		BaseWeaponComponent	newWeapon )

Select the new weapon specified in parameter.

Parameters

user	The user will select the weapon.
newWeapon	The new weapon that will be selected.

Returns

Returns true if the selection has happened.

SetAimingAngles()

proto external void TurretControllerComponent.SetAimingAngles	(	float	yaw,
		float	pitch )

Set aiming angles in radians.

IMPORTANT* Only works locally. Used mainly for cinematic

SetCurrentSightsADS()

proto external void TurretControllerComponent.SetCurrentSightsADS

(

bool

on

)

Set if we are currently in ADS.

Parameters

on	True if we are ADS otherwise false.

SetFireWeaponWanted()

proto external void TurretControllerComponent.SetFireWeaponWanted

(

bool

val

)

Set if turret is firing or not.

SetWeaponADS()

proto external void TurretControllerComponent.SetWeaponADS

(

bool

val

)

Request weapon ADS state.

SetWeaponADSEnabled()

proto external void TurretControllerComponent.SetWeaponADSEnabled

(

bool

val

)

Enable or disable weapon ADS.

SetWeaponADSInput()

proto external void TurretControllerComponent.SetWeaponADSInput

(

bool

val

)

Request weapon ADS input state.

SetWeaponGroup()

proto external void TurretControllerComponent.SetWeaponGroup	(	array< int >	weapons,
		EWeaponGroupFireMode	mode,
		int	rippleQuantity = 1,
		float	timeBetween = 100.0 )

Select a group of weapons for firing.

Parameters

weapons	An array of weapon slots to use (corresponding to the indices defined in WeaponSlotComponents)
mode	One of EWeaponGroupFireMode, WGFM_SALVO, WGFM_RIPPLE or WGFM_SEQUENTIAL
rippleQuantity	(optional) How many weapons to fire in ripple mode (default 1)
timeBetween	(optional) time between ripples (in ms, default 100) or sequential firing (if WGFM_SEQUENTIAL) Note that calling SelectWeapon or passing in an empty array will return to normal firing of single weapons

SetWeaponInputState()

proto external void TurretControllerComponent.SetWeaponInputState

(

ETurretWeaponInputState

state

)

Used to remotely trigger weapon actions on the turret.

Note that the turret must be overridden for this to have any effect

---

The documentation for this interface was generated from the following file:

• Game/generated/Components/TurretControllerComponent.c
