PhysicsJoint Interface Reference

Wrapper over joint simulation. More...

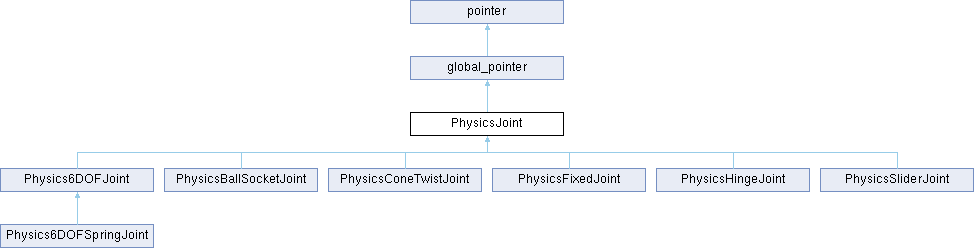

Inheritance diagram for PhysicsJoint:

Public Member Functions
proto external void	Destroy ()
	Destroys joint.
Public Member Functions inherited from pointer
proto string	ToString ()

Static Public Member Functions
static proto PhysicsHingeJoint	CreateHinge (notnull IEntity ent1, IEntity ent2, vector point1, vector axis1, vector point2, vector axis2, bool disableCollisions, float breakThreshold=-1)
	Creates hinge joint.
static proto PhysicsHingeJoint	CreateHinge2 (notnull IEntity ent1, IEntity ent2, vector matrix1[4], vector matrix2[4], bool disableCollisions, float breakThreshold=-1)
	Creates hinge joint.
static proto PhysicsBallSocketJoint	CreateBallSocket (notnull IEntity ent1, IEntity ent2, vector point1, vector point2, bool disableCollisions, float breakThreshold=-1)
	Creates ball socket joint.
static proto PhysicsFixedJoint	CreateFixed (notnull IEntity ent1, IEntity ent2, vector point1, vector point2, bool disableCollisions, float breakThreshold=-1)
	Creates fixed joint.
static proto PhysicsConeTwistJoint	CreateConeTwist (notnull IEntity ent1, IEntity ent2, vector matrix1[4], vector matrix2[4], bool disableCollisions, float breakThreshold=-1)
	Creates cone twist joint.
static proto PhysicsSliderJoint	CreateSlider (notnull IEntity ent1, IEntity ent2, vector matrix1[4], vector matrix2[4], bool disableCollisions, float breakThreshold=-1)
	Creates slider joint.
static proto Physics6DOFJoint	Create6DOF (notnull IEntity ent1, IEntity ent2, vector matrix1[4], vector matrix2[4], bool disableCollisions, float breakThreshold=-1)
	Creates 6 DOF joint.
static proto Physics6DOFSpringJoint	Create6DOFSpring (notnull IEntity ent1, IEntity ent2, vector matrix1[4], vector matrix2[4], bool disableCollisions, float breakThreshold=-1)
	Creates DOF spring joint.

Detailed Description

Wrapper over joint simulation.

Joint parameters

• softness
  • 0->1, recommend ~0.8->1
  • describes % of limits where movement is free
  • beyond this softness %, the limit is gradually enforced until the "hard" (1.0) limit is reached
• biasFactor
  • 0->1?, recommend 0.3 +/-0.3 or so
  • strength with which constraint resists zeroth order (angular, not angular velocity) limit violation
• relaxationFactor
  • 0->1, recommend to stay near 1
  • the lower the value, the less the constraint will fight velocities which violate the angular limits

Member Function Documentation

Create6DOF()

static proto Physics6DOFJoint PhysicsJoint.Create6DOF ( notnull IEntity  ent1, IEntity  ent2, vector  matrix1[4], vector  matrix2[4], bool  disableCollisions, float  breakThreshold = -1  )

static

Creates 6 DOF joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
vector mat1[4] = { vector.Right, vector.Up, vector.Forward, vector.Right };
vector mat2[4] = { vector.Right, vector.Up, vector.Forward, -vector.Right };
Physics6DOFJoint joint = PhysicsJoint.Create6DOF(entity1, entity2, mat1, mat2, false);
joint.SetLimit(0, -1, 1);
joint.SetAngularLimits(vector.Zero, vector.Zero);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
matrix1	Joint transformation in reference frame of ent1
matrix2	Joint transformation in reference frame of ent2
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

Create6DOFSpring()

static proto Physics6DOFSpringJoint PhysicsJoint.Create6DOFSpring ( notnull IEntity  ent1, IEntity  ent2, vector  matrix1[4], vector  matrix2[4], bool  disableCollisions, float  breakThreshold = -1  )

static

Creates DOF spring joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
vector mat1[4] = { vector.Right, vector.Up, vector.Forward, vector.Right };
vector mat2[4] = { vector.Right, vector.Up, vector.Forward, -vector.Right };
Physics6DOFSpringJoint joint = PhysicsJoint.Create6DOF(entity1, entity2, mat1, mat2, false);
joint.SetLimit(0, -1, 1);
joint.SetAngularLimits(vector.Zero, vector.Zero);
joint.SetSpring(0, 1, 1);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
matrix1	Joint transformation in reference frame of ent1
matrix2	Joint transformation in reference frame of ent2
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

CreateBallSocket()

static proto PhysicsBallSocketJoint PhysicsJoint.CreateBallSocket ( notnull IEntity  ent1, IEntity  ent2, vector  point1, vector  point2, bool  disableCollisions, float  breakThreshold = -1  )

static

Creates ball socket joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
PhysicsJoint.CreateBallSocket(entity1, entity2, vector.Right, -vector.Right, false);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
point1	Joint position in reference frame of ent1
point2	Joint position in reference frame of ent2
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

CreateConeTwist()

static proto PhysicsConeTwistJoint PhysicsJoint.CreateConeTwist ( notnull IEntity  ent1, IEntity  ent2, vector  matrix1[4], vector  matrix2[4], bool  disableCollisions, float  breakThreshold = -1  )

static

Creates cone twist joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
vector mat1[4] = { vector.Right, vector.Up, vector.Forward, vector.Right };
vector mat2[4] = { vector.Right, vector.Up, vector.Forward, -vector.Right };
PhysicsJoint.CreateConeTwist(entity1, entity2, mat1, mat2, false);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
matrix1	Joint transformation in reference frame of ent1 (twist is x-axis, swings are z and y axes)
matrix2	Joint transformation in reference frame of ent2 (twist is x-axis, swings are z and y axes)
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

CreateFixed()

static proto PhysicsFixedJoint PhysicsJoint.CreateFixed ( notnull IEntity  ent1, IEntity  ent2, vector  point1, vector  point2, bool  disableCollisions, float  breakThreshold = -1  )

static

Creates fixed joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
PhysicsJoint.CreateFixed(entity1, entity2, vector.Right, -vector.Right, false);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
point1	Joint position in reference frame of ent1
point2	Joint position in reference frame of ent2
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

CreateHinge()

static proto PhysicsHingeJoint PhysicsJoint.CreateHinge ( notnull IEntity  ent1, IEntity  ent2, vector  point1, vector  axis1, vector  point2, vector  axis2, bool  disableCollisions, float  breakThreshold = -1  )

static

Creates hinge joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
PhysicsJoint.CreateHinge(entity1, entity2, vector.Right, vector.Up, -vector.Right, vector.Up, false);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
point1	Joint position in reference frame of ent1
axis1	Joint axis in reference frame of ent1
point2	Joint position in reference frame of ent2
axis2	Joint axis in reference frame of ent2
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

CreateHinge2()

static proto PhysicsHingeJoint PhysicsJoint.CreateHinge2 ( notnull IEntity  ent1, IEntity  ent2, vector  matrix1[4], vector  matrix2[4], bool  disableCollisions, float  breakThreshold = -1  )

static

Creates hinge joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
vector mat1[4] = { vector.Right, -vector.Forward, vector.Up, vector.Right };
vector mat2[4] = { vector.Right, -vector.Forward, vector.Up, -vector.Right };
PhysicsJoint.CreateHinge2(entity1, entity2, mat1, mat2, false);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
matrix1	Joint transformation in reference frame of ent1 (hinge is z-axis)
matrix2	Joint transformation in reference frame of ent2 (hinge is z-axis)
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

CreateSlider()

static proto PhysicsSliderJoint PhysicsJoint.CreateSlider ( notnull IEntity  ent1, IEntity  ent2, vector  matrix1[4], vector  matrix2[4], bool  disableCollisions, float  breakThreshold = -1  )

static

Creates slider joint.

Entities must be dynamic objects. Using only ent1 anchors it to the world.

IEntity entity1 = GetWorld().FindEntityByName("entity1");
IEntity entity2 = GetWorld().FindEntityByName("entity1");
vector mat1[4] = { vector.Right, vector.Up, vector.Forward, vector.Right };
vector mat2[4] = { vector.Right, vector.Up, vector.Forward, -vector.Right };
PhysicsJoint.CreateSlider(entity1, entity2, mat1, mat2, false);

Parameters

ent1	Entity that will be part of the joint, mandatory
ent2	Other entity that will be part of the joint, optional
matrix1	Joint transformation in reference frame of ent1 (slide is x-axis)
matrix2	Joint transformation in reference frame of ent2 (slide is x-axis)
disableCollisions	True to disable collisions between connected entities
breakThreshold	Maximum impulse to break the joint. Use -1 for unbreakable joint

Destroy()

proto external void PhysicsJoint.Destroy

(

)

Destroys joint.

---

The documentation for this interface was generated from the following file:
