SCR_CharacterHitZone Interface Reference

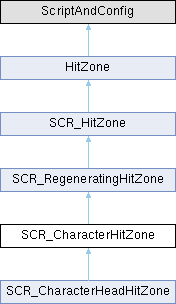

Inheritance diagram for SCR_CharacterHitZone:

Public Member Functions
override void	OnDamage (notnull BaseDamageContext damageContext)
	Called after damage multipliers and thresholds are applied to received impacts and damage is applied to hitzone.
override float	ComputeEffectiveDamage (notnull BaseDamageContext damageContext, bool isDOT)
	Calculates the amount of damage a hitzone will receive.
float	GetArmorProtectionValue (EDamageType damageType)
	Get strength of protection from armor attribute on prefab of clothing item.
bool	IsCovered ()
	Whether hitzone submeshes are hidden with clothing.
override void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Called when the damage state changes.
void	AddBloodToClothes (float immediateBloodEffect=0)
void	SetWoundedSubmesh (bool wounded)
void	UpdateSubmeshes ()
	Manage wounds submeshes.
float	GetMaxBleedingRate ()
override EHitZoneGroup	GetHitZoneGroup ()
	Hit zone group getter to be overridden.
EBandagingAnimationBodyParts	GetBodyPartToHeal ()
Public Member Functions inherited from SCR_RegeneratingHitZone
float	CalculatePassiveRegenDPS (bool considerRegenScale=true)
	Returns the desired regeneration speed in damage per second for this hitzone.
float	GetHitZoneDamageOverTime (EDamageType targetDamageType)
	Get current total damage per second of this hitZone.
override void	OnHealthSet ()
	HealthSet could have decreased health, so passive regeneration is planned.
void	ToggleHitZoneAutoRegenOnHealthSet (bool doRegen)
	Permanently disable/enable the automatic start of regeneration on this hitzone when manually setting it's health Use this when setting health on characters that should not heal, such as scripted gameplay events.
Public Member Functions inherited from SCR_HitZone
EHitZoneGroup	GetHitZoneGroup ()
	Hit zone group getter to be overridden.
ScriptInvokerVoid	GetOnHealthChanged (bool createNew=true)
	Get event called when hitzone damage changes.
ScriptInvoker	GetOnDamageStateChanged (bool createNew=true)
	Get event called when hitzone damage state changes.
IEntity	GetOwner ()
override float	ComputeEffectiveDamage (notnull BaseDamageContext damageContext, bool isDOT)
	Calculates the amount of damage a hitzone will receive.
void	DrawDebug ()
void	ApplyDamagePassRules (notnull BaseDamageContext damageContext)
void	HandlePassedDamage (notnull BaseDamageContext damageContext)
Public Member Functions inherited from HitZone
proto external float	GetBaseDamageMultiplier ()
proto external bool	HasColliderNodes ()
proto external int	GetColliderDescriptorIndex (int colliderID)
proto external float	GetDamageMultiplier (EDamageType dmgType)
proto external float	GetDamageReduction ()
proto external float	GetDamageThreshold ()
proto external int	GetAllColliderNames (out notnull array< string > colliderNames)
proto external void	SetDamageOverTime (EDamageType dmgType, float dps)
	Sets damage over time for this particular hitzone.
proto external float	GetDamageOverTime (EDamageType dmgType)
proto external int	GetNumColliderDescriptors ()
proto external HitZoneContainerComponent	GetHitZoneContainer ()
proto external void	SetHealth (float health)
proto external void	SetHealthScaled (float health)
proto external void	SetMaxHealth (float maxHealth, ESetMaxHealthFlags flag=ESetMaxHealthFlags.NONE)
proto external float	GetHealth ()
proto external float	GetHealthScaled ()
proto external float	GetDamageStateThreshold (EDamageState damageState)
proto external float	GetMaxHealth ()
proto external string	GetName ()
proto external EDamageState	GetDamageState ()
proto external float	GetCriticalDamageThreshold ()
proto external EDamageState	GetPreviousDamageState ()
proto external void	HandleDamage (float damage, int damageType, IEntity instigator)
proto external bool	IsProxy ()
proto external int	GetColliderIDs (out notnull array< int > outIDs)
	Returns all collider IDs attached to this hitzone.
proto bool	TryGetColliderDescription (IEntity owner, int descIndex, out vector transformLS[4], out int boneIndex, out int nodeID)
proto bool	TryGetColliderDescriptionFromName (IEntity owner, string colliderName, out vector transformLS[4], out int boneIndex, out int nodeID)
void	OnInit (IEntity pOwnerEntity, GenericComponent pManagerComponent)
	Call OnInit method from script.
void	OnDamage (notnull BaseDamageContext damageContext)
	Called when the damage has been dealt by the server, doesn't get called for DOT.
float	ComputeEffectiveDamage (notnull BaseDamageContext damageContext, bool isDOT)
	Calculates the amount of damage a hitzone will receive.

Protected Attributes
float	m_fBleedingRateScale
ref array< string >	m_aDamageSubmeshes
ref array< ref LoadoutAreaType >	m_aBleedingAreas
ECharacterHitZoneGroup	m_eHitZoneGroup
EBandagingAnimationBodyParts	m_eBandageAnimationBodyPart
bool	m_bIsWounded
Protected Attributes inherited from SCR_RegeneratingHitZone
float	m_fFullRegenerationTime
bool	m_bAutoRegenOnHealthSet = true
Protected Attributes inherited from SCR_HitZone
ref array< ref SCR_DamagePassRule >	m_aDamagePassRules
float	m_fFireMultiplier
ref ScriptInvokerVoid	m_OnHealthChanged
ref ScriptInvoker	m_OnDamageStateChanged

Static Protected Attributes
static const float	DAMAGE_TO_BLOOD_MULTIPLIER = 1.3

Additional Inherited Members
override void	OnHealthSet ()
	Called when damage changes.
override void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Called when the damage state changes.
Protected Member Functions inherited from HitZone
void	OnHealthSet ()
	Called when damage changes.
void	OnMaxHealthChanged ()
	Called when max damage changes.
void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Called when damage state changes.

Member Function Documentation

AddBloodToClothes()

void SCR_CharacterHitZone.AddBloodToClothes

(

float

immediateBloodEffect = 0

)

ComputeEffectiveDamage()

override float SCR_CharacterHitZone.ComputeEffectiveDamage	(	notnull BaseDamageContext	damageContext,
		bool	isDOT
	)

Calculates the amount of damage a hitzone will receive.

Parameters

damageType	- damage type
rawDamage	- incoming damage, without any modifiers taken into account
hitEntity	- damaged entity
struckHitZone	- hitzone to damage
damageSource	- projectile
damageSourceGunner	- damage source instigator
damageSourceParent	- damage source parent entity (soldier, vehicle)
hitMaterial	- hit surface physics material
colliderID	- collider ID - if it exists
hitTransform	- hit position, direction and normal
impactVelocity	- projectile velocity in time of impact
nodeID	- bone index in mesh obj
isDOT	- true if this is a calculation for DamageOverTime

Implements SCR_HitZone.

GetArmorProtectionValue()

float SCR_CharacterHitZone.GetArmorProtectionValue

(

EDamageType

damageType

)

Get strength of protection from armor attribute on prefab of clothing item.

GetBodyPartToHeal()

EBandagingAnimationBodyParts SCR_CharacterHitZone.GetBodyPartToHeal

(

)

GetHitZoneGroup()

override EHitZoneGroup SCR_CharacterHitZone.GetHitZoneGroup

(

)

Hit zone group getter to be overridden.

Returns

Hit zone group

Implements SCR_HitZone.

GetMaxBleedingRate()

float SCR_CharacterHitZone.GetMaxBleedingRate

(

)

Parameters

[in]

considerRegenScale

consider the Gamemaster's tweaked modifier for the regenerationDPS

Returns

the desired regeneration speed in damage per second for this hit zone

IsCovered()

bool SCR_CharacterHitZone.IsCovered

(

)

Whether hitzone submeshes are hidden with clothing.

OnDamage()

override void SCR_CharacterHitZone.OnDamage

(

notnull BaseDamageContext

damageContext

)

Called after damage multipliers and thresholds are applied to received impacts and damage is applied to hitzone.

This is also called when transmitting the damage to parent hitzones!

Parameters

type	Type of damage
damage	Amount of damage received
struckHitZone	Original hitzone that got dealt damage, as this might be transmitted damage.
instigator	Damage source instigator (soldier, vehicle, ...)
hitTransform	[hitPosition, hitDirection, hitNormal]
speed	Projectile speed in time of impact
colliderID	ID of the collider receiving damage
nodeID	ID of the node of the collider receiving damage

Implements HitZone.

OnDamageStateChanged()

override void SCR_CharacterHitZone.OnDamageStateChanged	(	EDamageState	newState,
		EDamageState	previousDamageState,
		bool	isJIP
	)

Called when the damage state changes.

Implements SCR_HitZone.

Implemented in SCR_CharacterHeadHitZone.

SetWoundedSubmesh()

void SCR_CharacterHitZone.SetWoundedSubmesh

(

bool

wounded

)

UpdateSubmeshes()

void SCR_CharacterHitZone.UpdateSubmeshes

(

)

Manage wounds submeshes.

Member Data Documentation

DAMAGE_TO_BLOOD_MULTIPLIER

const float SCR_CharacterHitZone.DAMAGE_TO_BLOOD_MULTIPLIER = 1.3

staticprotected

m_aBleedingAreas

ref array<ref LoadoutAreaType> SCR_CharacterHitZone.m_aBleedingAreas

protected

m_aDamageSubmeshes

ref array<string> SCR_CharacterHitZone.m_aDamageSubmeshes

protected

m_bIsWounded

bool SCR_CharacterHitZone.m_bIsWounded

protected

m_eBandageAnimationBodyPart

EBandagingAnimationBodyParts SCR_CharacterHitZone.m_eBandageAnimationBodyPart

protected

m_eHitZoneGroup

ECharacterHitZoneGroup SCR_CharacterHitZone.m_eHitZoneGroup

protected

m_fBleedingRateScale

float SCR_CharacterHitZone.m_fBleedingRateScale

protected

---

The documentation for this interface was generated from the following file:

• Game/HitZone/SCR_CharacterHitZone.c
