SCR_CollimatorSightsComponent Interface Reference

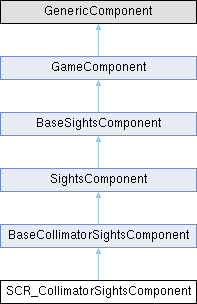

Inheritance diagram for SCR_CollimatorSightsComponent:

Public Member Functions
override float	GetReticleBrightnessDay ()
	Get the Brightness of the reticle glow.
override float	GetReticleBrightnessNight ()
override void	OnPostInit (IEntity owner)
	Called on PostInit when all components are added.
override void	OnSightADSActivate ()
override void	OnSightADSDeactivated ()
void	ReticleToggleIllumination ()
override void	UpdateReticlePosition (float u, float v, float uScale, float vScale)
	Called to update the sight position U/V.
override void	UpdateReticleShapeIndex (int index)
	Called to update the Reticle shape.
override void	UpdateReticleColor (vector inner, vector glow)
	Called to update reticle color.
override void	UpdateReticleBrightnessScale (float scale)
	Called to set auto brightness factor.
override void	UpdateReticleBrightness (float lvFactor, bool useOwn)
	Called to set glow brightness.
Public Member Functions inherited from BaseCollimatorSightsComponent
proto external void	SetReticleSize (float angularSize, float reticlePortion)
	Set virtual reticle size.
proto external float	GetReticleAngularSize ()
	Get the default angular size of the reticle, in degrees.
proto external float	GetReticlePortion ()
	Get the default portion of the reticle that covers the given angular size.
proto external int	GetNumReticles ()
	Get the number of reticle infos.
proto external bool	IsReticleValid (int index)
	Is reticle index valud.
proto external BaseCollimatorReticleInfo	GetReticleByIndex (int index)
	Get a reticle by index.
proto external int	GetCurrentReticleShape ()
	Get current reticle shape.
proto external void	ReticleNextShape ()
	Set the next reticle shape. This always works, but might not do anything if only one reticle is defined.
proto external void	ReticlePreviousShape ()
	Set the previous reticle shape. This always works, but might not do anything if only one reticle is defined.
proto external bool	SetReticleShapeByIndex (int iIndex)
	Set reticle shape by index. Returns true if successful.
proto external int	GetNumColors ()
	Get the number of reticle colors.
proto external int	IsColorValid (int index)
	Is color index valid.
proto external BaseCollimatorReticleColor	GetColorByIndex (int index)
	Get a color record by index.
proto external int	GetCurrentColor ()
	Get current reticle color index.
proto external void	ReticleNextColor ()
	Set the next reticle color. This always works, but might not do anything if only one or no color is defined.
proto external void	ReticlePreviousColor ()
	Set the previous reticle color. This always works, but might not do anything if only one or no color is defined.
proto external float	GetNormalizedLightIntensity ()
	Get the normalized light intensity at the sight.
proto external bool	SetReticleColorByIndex (int iIndex)
	Set reticle color by index. Return true if successful.
proto external void	SetVerticalAngularCorrection (float fAngle)
	Set the angular correction (vertical) (in mils)
proto external float	GetVerticalAngularCorrection ()
	Get the angular correction (vertical) in mils.
proto external void	SetHorizontalAngularCorrection (float fAngle)
	Set the angular correction (widage) (in mils)
proto external float	GetHorizontalAngularCorrection ()
	Get the angular correction (windage) in mils.
void	UpdateReticlePosition (float u, float v, float uScale, float vScale)
	Called to update the sight position U/V.
void	OnPostInit (IEntity owner)
	Called on PostInit when all components are added.
void	UpdateReticleShapeIndex (int index)
	Called to update the Reticle shape.
void	UpdateReticleColor (vector inner, vector glow)
	Called to update reticle color.
void	UpdateReticleBrightnessScale (float scale)
	Called to set auto brightness factor.
void	UpdateReticleBrightness (float lvFactor, bool useOwn)
	Called to set glow brightness.
float	GetReticleBrightnessDay ()
	Get the Brightness of the reticle glow.
float	GetReticleBrightnessNight ()
void	OnSightADSActivate ()
void	OnSightADSDeactivated ()
Public Member Functions inherited from SightsComponent
void	ApplyRecoilToCamera (inout vector pOutCameraTransform[4], vector aimModAngles)
	Applies the given recoil angles to the camera transform according to the type of sight By default this method is empty.
bool	CanFreelook ()
bool	GetDOFRelatedPrefabData (out int opticDOFDistanceScale=-1, out bool forceSimpleDOF=false)
	Used by SCR_DepthOfFieldEffect to scale the DOF based on each particular ironsight-distance.
Public Member Functions inherited from BaseSightsComponent
proto external IEntity	GetOwner ()
proto external void	ForceSightsZeroValue (vector offset, vector angles, vector turnOffset)
	Allow to override Zeroing via aim modifier (only works in Workbench)
proto external void	ForceSightsZeroValueEnablel (bool bOnOff)
	Disable forced zeroing data.
proto external bool	IsSightADSActive ()
proto external float	GetADSActivationPercentage ()
proto external float	GetADSDeactivationPercentage ()
proto external bool	AreSightsValid (bool front=true, bool rear=true)
proto external vector	GetSightsRearPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets Start position should be the one closer to eye position than end position.
proto external vector	GetSightsFrontPosition (bool localSpace=false)
	Returns additional sights position used for calculating zeroing A vector is calculated from start position to end position and used as direction for calculating zeroing offsets End position should be the one further from eye position than start position.
proto external vector	GetSightsDirection (bool localSpace=false, bool normalize=true)
	Returns a direction vector from the rear sight position to the front sight position A vector is calculated from the rear sight to the front sight in such a way that GetSightsRearPosition() + GetSightsDirection() == GetSightsFrontPosition()
proto external vector	GetSightsDirectionUntransformed (bool localSpace=false, bool normalize=true)
	Like GetSightsDirection, but ignores and bones associated with the sight points.
proto external vector	GetSightsOffset ()
	Returns the local sights reference point offset.
proto external bool	GetSightsTransform (out vector transform[4], bool localSpace=false)
	Returns the transform matrix of the local sights.
proto external float	GetFOV ()
	Returns current value of field of view.
proto external vector	GetCurrentSightsRange ()
	Returns current range info value where x: animation value y: distance z: unused.
proto external SightsFOVInfo	GetFOVInfo ()
	Returns currently selected sights FOV info or null if none.
proto external float	GetCameraRecoilAmount ()
	Percentage 0...1 of recoil that should be applied to camera when using this sights component.
proto external bool	GetSightsPriority ()
	Boolean indicating whether this sight component is prioritized.
proto external bool	GetSightsSkipSwitch ()
	Return true if the sights can be switched to.
proto external void	SetSightsVisibility (float visFactor)
	Hide parts of the sight on ADS. 0 means completely visible, 1 means completely hidden.
proto external PointInfo	GetPositionPointInfo ()
proto external PointInfo	GetRearPositionPointInfo ()
proto external PointInfo	GetFrontPositionPointInfo ()
Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Public Attributes
SCR_CollimatorControllerComponent	m_managerComponent
bool	m_bReticleDaylight = true
int	m_iColorIndex = -1

Static Public Attributes
const string	ACTION_ILLUMINATION = "WeaponToggleSightsIllumination"
Static Public Attributes inherited from SightsComponent
const string	EYE_BONE = "eye"

Protected Member Functions
void	ToggleIllumination (float value, EActionTrigger trigger)
Protected Member Functions inherited from SightsComponent
override bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!
bool	FindParent (IEntity owner, string eyeBoneName, out IEntity parentWeapon, out int boneIndex)
bool	WB_GetZeroingData (IEntity owner, BaseSightsComponent sights, float weaponAngle, out vector offset, out vector angles)
	Positive weapon angle tilts weapon upwards (muzzle goes up, stock goes down) Negative weapon angle tilts weapon downwards (muzzle goes down, stock goes up) Called from GameCode, do not remove!

Protected Attributes
float	m_fDaylightBrightness
float	m_fNightBrightness

Additional Inherited Members
Static Public Member Functions inherited from SightsComponent
static ZeroingGeneratedData	CalculateDataWithParent (BaseSightsComponent sights, IEntity owner, IEntity parent, float desiredAngle)
	Takes front sights position as the anchor around which it rotates both the owner and the parent under desiredAngle (or rather negative desired angle, as we are pivoting around our target) and calculates new transformation that needs to be applied to reach desired angle.

Member Function Documentation

GetReticleBrightnessDay()

override float SCR_CollimatorSightsComponent.GetReticleBrightnessDay

(

)

Get the Brightness of the reticle glow.

Implements BaseCollimatorSightsComponent.

GetReticleBrightnessNight()

override float SCR_CollimatorSightsComponent.GetReticleBrightnessNight

(

)

Implements BaseCollimatorSightsComponent.

OnPostInit()

override void SCR_CollimatorSightsComponent.OnPostInit

(

IEntity

owner

)

Called on PostInit when all components are added.

Implements BaseCollimatorSightsComponent.

OnSightADSActivate()

override void SCR_CollimatorSightsComponent.OnSightADSActivate

(

)

Implements BaseCollimatorSightsComponent.

OnSightADSDeactivated()

override void SCR_CollimatorSightsComponent.OnSightADSDeactivated

(

)

Implements BaseCollimatorSightsComponent.

ReticleToggleIllumination()

void SCR_CollimatorSightsComponent.ReticleToggleIllumination

(

)

ToggleIllumination()

void SCR_CollimatorSightsComponent.ToggleIllumination ( float  value, EActionTrigger  trigger  )

protected

UpdateReticleBrightness()

override void SCR_CollimatorSightsComponent.UpdateReticleBrightness	(	float	lvFactor,
		bool	useOwn
	)

Called to set glow brightness.

Implements BaseCollimatorSightsComponent.

UpdateReticleBrightnessScale()

override void SCR_CollimatorSightsComponent.UpdateReticleBrightnessScale

(

float

scale

)

Called to set auto brightness factor.

Implements BaseCollimatorSightsComponent.

UpdateReticleColor()

override void SCR_CollimatorSightsComponent.UpdateReticleColor	(	vector	inner,
		vector	glow
	)

Called to update reticle color.

Implements BaseCollimatorSightsComponent.

UpdateReticlePosition()

override void SCR_CollimatorSightsComponent.UpdateReticlePosition	(	float	u,
		float	v,
		float	uScale,
		float	vScale
	)

Called to update the sight position U/V.

Implements BaseCollimatorSightsComponent.

UpdateReticleShapeIndex()

override void SCR_CollimatorSightsComponent.UpdateReticleShapeIndex

(

int

index

)

Called to update the Reticle shape.

Implements BaseCollimatorSightsComponent.

Member Data Documentation

ACTION_ILLUMINATION

const string SCR_CollimatorSightsComponent.ACTION_ILLUMINATION = "WeaponToggleSightsIllumination"

static

m_bReticleDaylight

bool SCR_CollimatorSightsComponent.m_bReticleDaylight = true

m_fDaylightBrightness

float SCR_CollimatorSightsComponent.m_fDaylightBrightness

protected

m_fNightBrightness

float SCR_CollimatorSightsComponent.m_fNightBrightness

protected

m_iColorIndex

int SCR_CollimatorSightsComponent.m_iColorIndex = -1

m_managerComponent

SCR_CollimatorControllerComponent SCR_CollimatorSightsComponent.m_managerComponent

---

The documentation for this interface was generated from the following file:

• Game/Weapon/Sights/SCR_CollimatorSightsComponent.c
