SCR_ScenarioFrameworkLayerTask Interface Reference

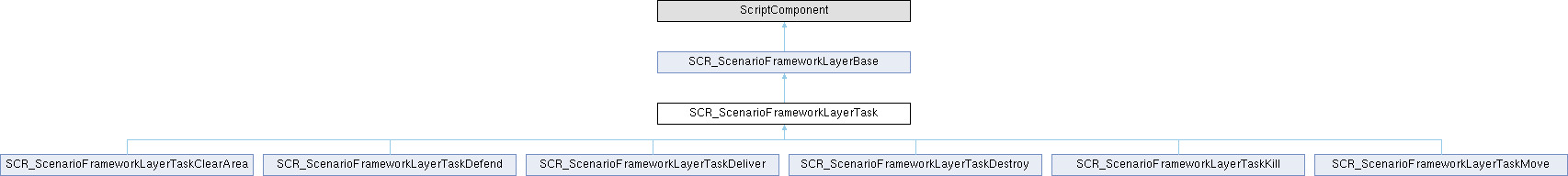

Inheritance diagram for SCR_ScenarioFrameworkLayerTask:

Public Member Functions
SCR_TaskState	GetLayerTaskState ()
bool	GetLayerTaskResolvedBeforeLoad ()
void	SetLayerTaskState (SCR_TaskState state)
SCR_ScenarioFrameworkTask	GetTask ()
ResourceName	GetTaskPrefab ()
string	GetOverridenObjectDisplayName ()
void	SetOverridenObjectDisplayName (string name)
string	GetTaskTitle ()
string	GetOriginalTaskDescription ()
string	GetTaskDescription ()
SCR_ESFTaskType	GetTaskType ()
override void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Restores default settings, clears children, removes spawned entities, optionally reinitializes after restoration.
override void	DynamicReinit ()
	Initializes layer with same activation type as parent.
override void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	Dynamically despawns this layer.
override void	FinishInit ()
	Initializes tasks after all children spawned, logs error if task manager not found.
void	OnTaskStateChanged (SCR_TaskState previousState, SCR_TaskState newState)
	Triggers actions on task finish if not resolved before load.
void	SetSlotTask (SCR_ScenarioFrameworkSlotTask slotTask)
SCR_ScenarioFrameworkSlotTask	GetSlotTask ()
void	InitTask (SCR_ScenarioFrameworkLayerBase layer)
	Initializes task, sets up support entity, and handles task state changes based on scenario framework layer.
override void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)
	Draws debug shape based on m_bShowDebugShapesInWorkbench setting in Workbench after world update.
override bool	_WB_OnKeyChanged (IEntity owner, BaseContainer src, string key, BaseContainerList ownerContainers, IEntity parent)
	Controls debug shape visibility in Workbench based on user input.
void	~SCR_ScenarioFrameworkLayerTask ()
	Removes task from support entity and despawns if in edit mode or task is cancelled.
Public Member Functions inherited from SCR_ScenarioFrameworkLayerBase
string	GetName ()
void	SetEntity (IEntity entity)
bool	GetIsTerminated ()
void	SetIsTerminated (bool state)
void	SetRandomlySpawnedChildren (array< string > randomlySpawnedChildren)
void	AddRandomlySpawnedChild (SCR_ScenarioFrameworkLayerBase child)
	Adds child to list if not already present, ensuring uniqueness.
array< SCR_ScenarioFrameworkLayerBase >	GetRandomlySpawnedChildren ()
int	GetPlayersCount (FactionKey factionName="")
	Counts players in specified faction.
int	GetMaxPlayersForGameMode (FactionKey factionName="")
	Determines maximum players for a mission based on its mode, returns 4 if mission header is invalid.
SCR_ScenarioFrameworkArea	GetParentArea ()
void	GetAllLayers (out notnull array< SCR_ScenarioFrameworkLayerBase > layers)
	Gathers all layers from child entities and their siblings, adding them to the provided array.
void	GetAllLayers (out notnull array< SCR_ScenarioFrameworkLayerBase > layers, SCR_ScenarioFrameworkEActivationType activationType)
	Gathers all layers from child entities and their siblings, adding them to the provided array, filtered by activation type.
void	GetAllLayerTasks (out notnull array< SCR_ScenarioFrameworkLayerTask > layerTasks)
	Gathers all layer tasks from child entities and their siblings, adding them to the provided array.
void	GetAllSlotTasks (out notnull array< SCR_ScenarioFrameworkSlotTask > slotTasks)
	Gets all slot tasks from all layers in the hierarchy of the owner entity, including sibling layers' tasks.
SCR_ScenarioFrameworkLayerTask	GetLayerTask ()
SCR_ScenarioFrameworkSlotTask	GetSlotTask (array< SCR_ScenarioFrameworkLayerBase > aLayers)
	Retrieves slot task from layer child entities.
void	SetParentLayer (SCR_ScenarioFrameworkLayerBase parentLayer)
SCR_ScenarioFrameworkLayerBase	GetParentLayer ()
SCR_EScenarioFrameworkSpawnChildrenType	GetSpawnChildrenType ()
bool	GetEnableRepeatedSpawn ()
void	SetEnableRepeatedSpawn (bool value)
SCR_ScenarioFrameworkEActivationType	GetActivationType ()
void	SetActivationType (SCR_ScenarioFrameworkEActivationType activationType)
bool	GetIsInitiated ()
bool	GetDynamicDespawnExcluded ()
void	SetDynamicDespawnExcluded (bool excluded)
array< IEntity >	GetSpawnedEntities ()
array< SCR_ScenarioFrameworkLayerBase >	GetChildrenEntities ()
SCR_ScenarioFrameworkLayerBase	GetRandomChildren ()
void	GetChildren (out array< SCR_ScenarioFrameworkLayerBase > children)
	Reverses and inserts children layers into an array.
void	GetChildren (out array< SCR_ScenarioFrameworkLayerBase > children, SCR_ScenarioFrameworkEActivationType activationType)
	Reverses and inserts children layers into an array, filtered by activation type.
void	GetLogics (out array< SCR_ScenarioFrameworkLogic > logics)
	Retrieves all child scenario framework logic entities from owner entity and adds them to logics array if not already present.
array< SCR_ScenarioFrameworkLogic >	GetSpawnedLogics ()
array< ref SCR_ScenarioFrameworkPlugin >	GetSpawnedPlugins ()
int	GetRepeatedSpawnNumber ()
void	SetRepeatedSpawnNumber (int number)
ScriptInvokerScenarioFrameworkLayer	GetOnAllChildrenSpawned ()
void	InvokeAllChildrenSpawned ()
	Spawns all children and triggers invoker on completion.
void	CalculateSupposedSpawnedChildren (bool previouslyRandomized=false)
	Calculates supposed spawned children based on activation type, termination, initiation, and conditions.
void	CheckAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer=null)
	Checks if all children layers have spawned or spawns one randomly if specified.
void	SpawnChildren (bool previouslyRandomized=false)
	Spawns children based on scenario settings, either all at once or randomly.
void	SpawnPreviouslyRandomizedChildren ()
	Spawns children with delay based on their index.
void	SpawnRandomOneChild (bool previouslyRandomized=false)
	Spawns random child object if not previously randomized, else spawns previously randomized children.
void	SpawnRandomMultipleChildren (bool previouslyRandomized=false)
	Spawns random children based on player count, if previously randomized, uses previous children, otherwise selects from available children.
void	InitChild (SCR_ScenarioFrameworkLayerBase child)
	Initializes child layer, sets parent layer, and initializes child with parent area and action type.
IEntity	GetSpawnedEntity ()
void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Restores default settings, clears children, removes spawned entities, optionally reinitializes after restoration.
void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	Dynamically despawns this layer.
void	DynamicReinit ()
	Reinitializes this layer.
bool	InitAlreadyHappened ()
	Initialization check if already happened.
bool	InitParentLayer ()
	Initializes parent layer.
bool	InitNotTerminated ()
	Checks if layer is not terminated, spawns children if parent exists, returns false if terminated or children not spawnned.
bool	InitDynDespawnAndActivation (SCR_ScenarioFrameworkEActivationType activation)
	Checks if object is not dynamically despawned, then verifies if activation type matches, spawns all children if.
bool	InitActivationConditions (bool calledFromInit=false)
	Checks activation conditions for scenario layer, sets condition status based on logic operator, checks parent layer if needed.
bool	InitArea (SCR_ScenarioFrameworkArea area)
	Initializes area for scenario framework layer.
bool	InitFactionSettings ()
	Handles inheritance of faction settings from parents.
bool	InitOtherThings ()
	For situations where some other logic is to be appended in these checks and is to be performed before FinishInit.
void	FinishInitChildrenInsert ()
	For situations where some other logic is needed to be performed before or after this Insert.
void	FinishInit ()
	Initializes children, retrieves them, and spawns them.
void	Init (SCR_ScenarioFrameworkArea area=null, SCR_ScenarioFrameworkEActivationType activation=SCR_ScenarioFrameworkEActivationType.SAME_AS_PARENT)
	Initializes scenario framework layer.
void	AfterAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer)
	Initializes logic, plugins and actions.
override void	EOnFrame (IEntity owner, float timeSlice)
	Draws debug shapes during runtime if enabled.
override void	OnPostInit (IEntity owner)
void	SetDebugShapeSize (float fSize)
override void	_WB_OnCreate (IEntity owner, IEntitySource src)
	Renames all entities in the owner's children hierarchy.
void	RenameOwnerEntity (IEntity owner)
	Rename entity owner with default name if not restoring undo/redo.
void	SCR_ScenarioFrameworkLayerBase (IEntityComponentSource src, IEntity ent, IEntity parent)
void	~SCR_ScenarioFrameworkLayerBase ()
	Removes object in edit mode or despawns it if not in edit mode.

Public Attributes
string	m_sTaskTitle
string	m_sTaskDescription
SCR_ESFTaskType	m_eTypeOfTask = SCR_ESFTaskType.DEFAULT
ResourceName	m_sTaskPrefab
bool	m_bPlaceMarkerOnSubjectSlot
string	m_sOverrideObjectDisplayName
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aTriggerActionsOnFinish
SCR_ScenarioFrameworkSlotTask	m_SlotTask
SCR_ScenarioFrameworkTask	m_Task
SCR_ScenarioFrameworkTaskSupportEntity	m_SupportEntity
SCR_TaskState	m_eLayerTaskState
bool	m_bTaskResolvedBeforeLoad
Public Attributes inherited from SCR_ScenarioFrameworkLayerBase
SCR_EScenarioFrameworkSpawnChildrenType	m_SpawnChildren
FactionKey	m_sFactionKey
int	m_iRandomPercent
bool	m_bEnableRepeatedSpawn
int	m_iRepeatedSpawnNumber
float	m_fRepeatedSpawnTimer
bool	m_bShowDebugShapesDuringRuntime
SCR_ScenarioFrameworkEActivationType	m_eActivationType
ref array< ref SCR_ScenarioFrameworkActivationConditionBase >	m_aActivationConditions
SCR_EScenarioFrameworkLogicOperators	m_eActivationConditionLogic
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActivationActions
bool	m_bExcludeFromDynamicDespawn
ref array< ref SCR_ScenarioFrameworkPlugin >	m_aPlugins
ref array< SCR_ScenarioFrameworkLayerBase >	m_aChildren = {}
ref array< SCR_ScenarioFrameworkLayerBase >	m_aRandomlySpawnedChildren = {}
ref array< SCR_ScenarioFrameworkLogic >	m_aLogic = {}
ref ScriptInvokerBase< ScriptInvokerScenarioFrameworkLayerMethod >	m_OnAllChildrenSpawned
ref array< IEntity >	m_aSpawnedEntities = {}
IEntity	m_Entity
SCR_ScenarioFrameworkArea	m_Area
SCR_ScenarioFrameworkLayerBase	m_ParentLayer
float	m_fDebugShapeRadius = 0.25
WorldTimestamp	m_fRepeatSpawnTimeStart
WorldTimestamp	m_fRepeatSpawnTimeEnd
int	m_iDebugShapeColor = ARGB(32, 0xFF, 0x00, 0x12)
int	m_iCurrentlySpawnedChildren
int	m_iSupposedSpawnedChildren
bool	m_bInitiated
bool	m_bDynamicallyDespawned
bool	m_bIsTerminated
int	m_iRepeatedSpawnNumberDefault = m_iRepeatedSpawnNumber
SCR_ScenarioFrameworkEActivationType	m_eActivationTypeDefault = m_eActivationType

Static Public Attributes
static const ref ScriptInvoker	s_OnTaskSetup = new ScriptInvoker()
Static Public Attributes inherited from SCR_ScenarioFrameworkLayerBase
static const int	SPAWN_DELAY = 200

Protected Member Functions
bool	SetTaskPrefab ()
	Sets task prefab for support entity.
bool	SetSupportEntity ()
	Sets support entity for layer task.
bool	CreateTask ()
	Creates a task for the support entity, sets its target faction, and moves it to the specified location.
void	SetupTask ()
	Sets up a task with optional title, description, and spawned entity name from a slot task, or prints an error message.
Protected Member Functions inherited from SCR_ScenarioFrameworkLayerBase
void	SetFactionKey (FactionKey factionKey)
FactionKey	GetFactionKey ()
FactionKey	GetParentFactionKeyRecursive ()
	Climbs the hierarchy tree to find a defined FactionKey.
void	RepeatedSpawn ()
	Repetitive spawning with timer.
void	RepeatedSpawnCalled ()
	Repetitive spawning logic with countdown and condition checks.
void	ActivateLogic ()
	Initializes all logic components.
void	DrawDebugShape (bool draw)
	Draws debug shape if draw flag is true, creates sphere shape with specified color, flags, position, and radius.

Protected Attributes
bool	m_bShowDebugShapesInWorkbench

Constructor & Destructor Documentation

~SCR_ScenarioFrameworkLayerTask()

void SCR_ScenarioFrameworkLayerTask.~SCR_ScenarioFrameworkLayerTask

(

)

Removes task from support entity and despawns if in edit mode or task is cancelled.

Member Function Documentation

_WB_AfterWorldUpdate()

override void SCR_ScenarioFrameworkLayerTask._WB_AfterWorldUpdate	(	IEntity	owner,
		float	timeSlice
	)

Draws debug shape based on m_bShowDebugShapesInWorkbench setting in Workbench after world update.

Parameters

[in]	owner	The owner represents the entity (object) calling the method.
[in]	timeSlice	TimeSlice represents the time interval for which the method is called during each frame update.

_WB_OnKeyChanged()

override bool SCR_ScenarioFrameworkLayerTask._WB_OnKeyChanged	(	IEntity	owner,
		BaseContainer	src,
		string	key,
		BaseContainerList	ownerContainers,
		IEntity	parent
	)

Controls debug shape visibility in Workbench based on user input.

Parameters

[in]	owner	The owner represents the entity (object) in the game world that triggers the key change event, which in turn calls this
[in]	src	is the prefab of owner entity
[in]	key	corresponds with the workbench attribute.
[in]	ownerContainers	Represents a list of containers related to the owner entity in the method.
[in]	parent	Parent represents the parent entity.

Returns

bool

CreateTask()

bool SCR_ScenarioFrameworkLayerTask.CreateTask ( )

protected

Creates a task for the support entity, sets its target faction, and moves it to the specified location.

Returns

true if the task creation is successful, false otherwise.

DynamicDespawn()

override void SCR_ScenarioFrameworkLayerTask.DynamicDespawn

(

SCR_ScenarioFrameworkLayerBase

layer

)

Dynamically despawns this layer.

Parameters

[in]

layer

for which this is called.

Implements SCR_ScenarioFrameworkLayerBase.

Implemented in SCR_ScenarioFrameworkLayerTaskDefend.

DynamicReinit()

override void SCR_ScenarioFrameworkLayerTask.DynamicReinit

(

)

Initializes layer with same activation type as parent.

Implements SCR_ScenarioFrameworkLayerBase.

FinishInit()

override void SCR_ScenarioFrameworkLayerTask.FinishInit

(

)

Initializes tasks after all children spawned, logs error if task manager not found.

Implements SCR_ScenarioFrameworkLayerBase.

GetLayerTaskResolvedBeforeLoad()

bool SCR_ScenarioFrameworkLayerTask.GetLayerTaskResolvedBeforeLoad

(

)

Returns

Indicates if task was resolved before loading.

GetLayerTaskState()

SCR_TaskState SCR_ScenarioFrameworkLayerTask.GetLayerTaskState

(

)

Returns

Layer task state in current task layer.

GetOriginalTaskDescription()

string SCR_ScenarioFrameworkLayerTask.GetOriginalTaskDescription

(

)

Returns

Original task description string returned by the method.

GetOverridenObjectDisplayName()

string SCR_ScenarioFrameworkLayerTask.GetOverridenObjectDisplayName

(

)

Returns

the display name for an overridden object.

GetSlotTask()

SCR_ScenarioFrameworkSlotTask SCR_ScenarioFrameworkLayerTask.GetSlotTask

(

)

Returns

related to this layer task.

GetTask()

SCR_ScenarioFrameworkTask SCR_ScenarioFrameworkLayerTask.GetTask

(

)

Returns

the current task.

GetTaskDescription()

string SCR_ScenarioFrameworkLayerTask.GetTaskDescription

(

)

Returns

the task description, or sets it if an override object display name is provided.

GetTaskPrefab()

ResourceName SCR_ScenarioFrameworkLayerTask.GetTaskPrefab

(

)

Returns

The return value represents the prefab for the task in the method.

GetTaskTitle()

string SCR_ScenarioFrameworkLayerTask.GetTaskTitle

(

)

Returns

The return value represents the title of the task.

GetTaskType()

SCR_ESFTaskType SCR_ScenarioFrameworkLayerTask.GetTaskType

(

)

Returns

Task type enum representing the type of task in the mission.

InitTask()

void SCR_ScenarioFrameworkLayerTask.InitTask

(

SCR_ScenarioFrameworkLayerBase

layer

)

Initializes task, sets up support entity, and handles task state changes based on scenario framework layer.

Parameters

[in]

layer

for which this task is to be initialized

OnTaskStateChanged()

void SCR_ScenarioFrameworkLayerTask.OnTaskStateChanged	(	SCR_TaskState	previousState,
		SCR_TaskState	newState
	)

Triggers actions on task finish if not resolved before load.

Parameters

[in]	previousState	represents the current state of the task before it transitions to new state.
[in]	newState	Triggers actions on task finish state change.

RestoreToDefault()

override void SCR_ScenarioFrameworkLayerTask.RestoreToDefault	(	bool	includeChildren = false,
		bool	reinitAfterRestoration = false,
		bool	affectRandomization = true
	)

Restores default settings, clears children, removes spawned entities, optionally reinitializes after restoration.

Parameters

[in]	includeChildren	Restores default settings for this entity and its children if includeChildren is true.
[in]	reinitAfterRestoration	Restores entity to default state, optionally reinitializes after restoration.
[in]	affectRandomization	determines whether to clear all randomly spawned children entities after restoring default settings.

Implements SCR_ScenarioFrameworkLayerBase.

Implemented in SCR_ScenarioFrameworkLayerTaskDefend, and SCR_ScenarioFrameworkLayerTaskDeliver.

SetLayerTaskState()

void SCR_ScenarioFrameworkLayerTask.SetLayerTaskState

(

SCR_TaskState

state

)

Parameters

[in]

state

Sets layer task state

SetOverridenObjectDisplayName()

void SCR_ScenarioFrameworkLayerTask.SetOverridenObjectDisplayName

(

string

name

)

Parameters

[in]

name

Sets object display name override.

SetSlotTask()

void SCR_ScenarioFrameworkLayerTask.SetSlotTask

(

SCR_ScenarioFrameworkSlotTask

slotTask

)

Parameters

[in]

slotTask

related to this layer task.

SetSupportEntity()

bool SCR_ScenarioFrameworkLayerTask.SetSupportEntity ( )

protected

Sets support entity for layer task.

Returns

true if support entity is found and set, false otherwise.

Implemented in SCR_ScenarioFrameworkLayerTaskClearArea, SCR_ScenarioFrameworkLayerTaskDefend, SCR_ScenarioFrameworkLayerTaskDeliver, SCR_ScenarioFrameworkLayerTaskDestroy, and SCR_ScenarioFrameworkLayerTaskKill.

SetTaskPrefab()

bool SCR_ScenarioFrameworkLayerTask.SetTaskPrefab ( )

protected

Sets task prefab for support entity.

Returns

true if task prefab is set, false otherwise.

SetupTask()

void SCR_ScenarioFrameworkLayerTask.SetupTask ( )

protected

Sets up a task with optional title, description, and spawned entity name from a slot task, or prints an error message.

Implemented in SCR_ScenarioFrameworkLayerTaskDeliver.

Member Data Documentation

m_aTriggerActionsOnFinish

ref array<ref SCR_ScenarioFrameworkActionBase> SCR_ScenarioFrameworkLayerTask.m_aTriggerActionsOnFinish

m_bPlaceMarkerOnSubjectSlot

bool SCR_ScenarioFrameworkLayerTask.m_bPlaceMarkerOnSubjectSlot

m_bShowDebugShapesInWorkbench

bool SCR_ScenarioFrameworkLayerTask.m_bShowDebugShapesInWorkbench

protected

m_bTaskResolvedBeforeLoad

bool SCR_ScenarioFrameworkLayerTask.m_bTaskResolvedBeforeLoad

m_eLayerTaskState

SCR_TaskState SCR_ScenarioFrameworkLayerTask.m_eLayerTaskState

m_eTypeOfTask

SCR_ESFTaskType SCR_ScenarioFrameworkLayerTask.m_eTypeOfTask = SCR_ESFTaskType.DEFAULT

m_SlotTask

SCR_ScenarioFrameworkSlotTask SCR_ScenarioFrameworkLayerTask.m_SlotTask

m_sOverrideObjectDisplayName

string SCR_ScenarioFrameworkLayerTask.m_sOverrideObjectDisplayName

m_sTaskDescription

string SCR_ScenarioFrameworkLayerTask.m_sTaskDescription

m_sTaskPrefab

ResourceName SCR_ScenarioFrameworkLayerTask.m_sTaskPrefab

m_sTaskTitle

string SCR_ScenarioFrameworkLayerTask.m_sTaskTitle

m_SupportEntity

SCR_ScenarioFrameworkTaskSupportEntity SCR_ScenarioFrameworkLayerTask.m_SupportEntity

m_Task

SCR_ScenarioFrameworkTask SCR_ScenarioFrameworkLayerTask.m_Task

s_OnTaskSetup

const ref ScriptInvoker SCR_ScenarioFrameworkLayerTask.s_OnTaskSetup = new ScriptInvoker()

static

---

The documentation for this interface was generated from the following file:

• Game/ScenarioFramework/Components/SCR_ScenarioFrameworkLayerTask.c
