SCR_BatteryHitZone Interface Reference

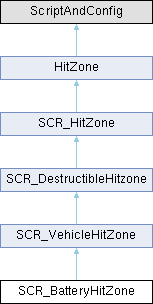

Inheritance diagram for SCR_BatteryHitZone:

Public Member Functions
override void	OnInit (IEntity pOwnerEntity, GenericComponent pManagerComponent)
	Called when hit zone is initialized.
override void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Called when the damage state changes.
Public Member Functions inherited from SCR_VehicleHitZone
override EHitZoneGroup	GetHitZoneGroup ()
	Hit zone group getter to be overridden.
Public Member Functions inherited from SCR_DestructibleHitzone
ref SCR_DestructionBaseHandler	GetDestructionHandler ()
override void	OnInit (IEntity pOwnerEntity, GenericComponent pManagerComponent)
	Call OnInit method from script.
float	GetSecondaryExplosionScale ()
	Get secondary explosion desired scale. It will determine the prefab retrieved from secondary explosion config.
PointInfo	GetSecondaryExplosionPoint ()
	Get secondary explosion desired scale. It will determine the prefab retrieved from secondary explosion config.
override void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Kill occupants and start destruction.
void	StartDestruction (bool immediate=false)
	Start destruction effects.
void	PlayDestructionParticle (EDamageState state)
	Start destruction particle.
Public Member Functions inherited from SCR_HitZone
EHitZoneGroup	GetHitZoneGroup ()
	Hit zone group getter to be overridden.
ScriptInvokerVoid	GetOnHealthChanged (bool createNew=true)
	Get event called when hitzone damage changes.
ScriptInvoker	GetOnDamageStateChanged (bool createNew=true)
	Get event called when hitzone damage state changes.
IEntity	GetOwner ()
override float	ComputeEffectiveDamage (notnull BaseDamageContext damageContext, bool isDOT)
	Calculates the amount of damage a hitzone will receive.
void	DrawDebug ()
void	ApplyDamagePassRules (notnull BaseDamageContext damageContext)
void	HandlePassedDamage (notnull BaseDamageContext damageContext)
Public Member Functions inherited from HitZone
proto external float	GetBaseDamageMultiplier ()
proto external bool	HasColliderNodes ()
proto external int	GetColliderDescriptorIndex (int colliderID)
proto external float	GetDamageMultiplier (EDamageType dmgType)
proto external float	GetDamageReduction ()
proto external float	GetDamageThreshold ()
proto external int	GetAllColliderNames (out notnull array< string > colliderNames)
proto external void	SetDamageOverTime (EDamageType dmgType, float dps)
	Sets damage over time for this particular hitzone.
proto external float	GetDamageOverTime (EDamageType dmgType)
proto external int	GetNumColliderDescriptors ()
proto external HitZoneContainerComponent	GetHitZoneContainer ()
proto external void	SetHealth (float health)
proto external void	SetHealthScaled (float health)
proto external void	SetMaxHealth (float maxHealth, ESetMaxHealthFlags flag=ESetMaxHealthFlags.NONE)
proto external float	GetHealth ()
proto external float	GetHealthScaled ()
proto external float	GetDamageStateThreshold (EDamageState damageState)
proto external float	GetMaxHealth ()
proto external string	GetName ()
proto external EDamageState	GetDamageState ()
proto external float	GetCriticalDamageThreshold ()
proto external EDamageState	GetPreviousDamageState ()
proto external void	HandleDamage (float damage, int damageType, IEntity instigator)
proto external bool	IsProxy ()
proto external int	GetColliderIDs (out notnull array< int > outIDs)
	Returns all collider IDs attached to this hitzone.
proto bool	TryGetColliderDescription (IEntity owner, int descIndex, out vector transformLS[4], out int boneIndex, out int nodeID)
proto bool	TryGetColliderDescriptionFromName (IEntity owner, string colliderName, out vector transformLS[4], out int boneIndex, out int nodeID)
void	OnInit (IEntity pOwnerEntity, GenericComponent pManagerComponent)
	Call OnInit method from script.
void	OnDamage (notnull BaseDamageContext damageContext)
	Called when the damage has been dealt by the server, doesn't get called for DOT.
float	ComputeEffectiveDamage (notnull BaseDamageContext damageContext, bool isDOT)
	Calculates the amount of damage a hitzone will receive.

Additional Inherited Members
Protected Member Functions inherited from SCR_DestructibleHitzone
void	StopDestruction ()
	Stop destruction effects.
SCR_VehicleDamageManagerComponent	FindParentVehicleDamageManager ()
void	PlayDestructionSound (EDamageState damageState)
	Start destruction sounds.
Protected Member Functions inherited from SCR_HitZone
override void	OnHealthSet ()
	Called when damage changes.
override void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Called when the damage state changes.
Protected Member Functions inherited from HitZone
void	OnHealthSet ()
	Called when damage changes.
void	OnMaxHealthChanged ()
	Called when max damage changes.
void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Called when damage state changes.
Protected Attributes inherited from SCR_VehicleHitZone
EVehicleHitZoneGroup	m_eHitZoneGroup
Protected Attributes inherited from SCR_DestructibleHitzone
ref PointInfo	m_SecondaryExplosionPoint
ref SCR_DestructionBaseHandler	m_pDestructionHandler
string	m_sDestructionSoundEvent
ResourceName	m_sDestructionParticle
vector	m_vParticleOffset
ParticleEffectEntity	m_DstParticle
SCR_DamageManagerComponent	m_ParentDamageManager
SCR_DamageManagerComponent	m_RootDamageManager
SCR_BaseCompartmentManagerComponent	m_CompartmentManager
Protected Attributes inherited from SCR_HitZone
ref array< ref SCR_DamagePassRule >	m_aDamagePassRules
float	m_fFireMultiplier
ref ScriptInvokerVoid	m_OnHealthChanged
ref ScriptInvoker	m_OnDamageStateChanged

Member Function Documentation

OnDamageStateChanged()

override void SCR_BatteryHitZone.OnDamageStateChanged	(	EDamageState	newState,
		EDamageState	previousDamageState,
		bool	isJIP
	)

Called when the damage state changes.

Implements SCR_DestructibleHitzone.

OnInit()

override void SCR_BatteryHitZone.OnInit	(	IEntity	pOwnerEntity,
		GenericComponent	pManagerComponent
	)

Called when hit zone is initialized.

Implements SCR_DestructibleHitzone.

---

The documentation for this interface was generated from the following file:

• Game/HitZone/SCR_BatteryHitZone.c
