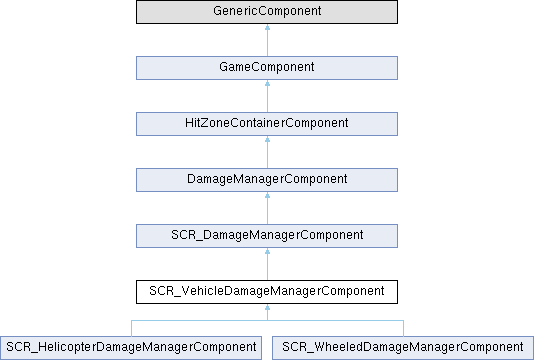

Inheritance diagram for SCR_VehicleDamageManagerComponent:

Public Member Functions
SCR_VehicleDamageManagerComponentClass	GetPrefabData ()

float	GetTopMultiplier ()

float	GetRightMultiplier ()

float	GetLeftMultiplier ()

float	GetRearMultiplier ()

float	GetBottomMultiplier ()

float	GetFrontMultiplier ()

float	GetMaxSharedDamageDistance ()

float	GetOccupantsDamageSpeedThreshold ()

float	GetOccupantsSpeedDeath ()

int	GetMinCollisionDamageEjectionThreshold ()

int	GetMinExplosionDamageEjectionThreshold ()

float	GetCollisionDamageEjectionChance ()

float	GetExplosionDamageEjectionChance ()

vector	GetFrontalImpact ()

float	GetSideDamageMultiplier (SCR_EBoxSide side)

override void	OnPostInit (IEntity owner)
	Called after all components are initialized.

void	RegisterVehicleHitZone (notnull HitZone hitZone)

void	UnregisterVehicleHitZone (HitZone hitZone)

void	UpdateVehicleState ()
	Compute current simulation state of vehicle Called when hit zone damage states change.

void	UpdateMovementDamage ()

bool	GetEngineFunctional ()

float	GetEngineMalfunctionThreshold ()

float	GetEngineEfficiency ()

bool	GetGearboxFunctional ()

float	GetGearboxEfficiency ()

int	GetSurroundingHitzones (vector position, notnull Physics physics, float maxDistance, EDamageType damageType, out notnull array< HitZone > outHitZones, out float hitZonesDistancePercentSum=0, out map< HitZone, float > outHitZoneDistanceProcentageMap=null)
	Finds compatible hit zones.

float	DamageSurroundingHitzones (vector position, float damage, EDamageType damageType, bool dontApply=false)
	Distributes provided damage amongst compatible hit zones.

SCR_EBoxSide	GetHitDirection (vector position)

float	CalculateCriticalCollisionDamage ()
	Determines the amount of damage required to destroy the vehicle in case of a frontal collision.

override bool	FilterContact (IEntity owner, IEntity other, Contact contact)
	Filter out any contacts under a reasonable speed for damage.

override void	OnFrame (IEntity owner, float timeSlice)
	Called during EOnFrame.

void	ProcessCollision (notnull SCR_CollisionDamageContainer collision)
	Processing of cached collision data in order to deal damage to the vhehicle and its passengers.

override void	OnDamageStateChanged (EDamageState newState, EDamageState previousDamageState, bool isJIP)
	Update buoyancy loss rate.

override bool	CanBeHealed (bool ignoreHealingDOT=true)
	Return true if there is damage that can be repaired.

override void	FullHeal (bool ignoreHealingDOT=true)
	Fix all the damage.

void	HandlePassengerDamage (EDamageType damageType, float damage, notnull Instigator instigator)
	Damage and eject passengers based on vehicle taking damage.

void	TickResponseIndexCheck ()

void	ToggleResponseIndexTicking (IEntity owner, bool activeState)

void	EOnPhysicsActive (IEntity owner, bool activeState)

void	RegisterFlammableHitZone (notnull SCR_FlammableHitZone hitZone)

void	UnregisterFlammableHitZone (notnull SCR_FlammableHitZone hitZone)

override void	UpdateFireDamage (float timeSlice)

float	GetMinImpulse ()

void	InitStaticMapForIndices ()

void	SCR_VehicleDamageManagerComponent (IEntityComponentSource src, IEntity ent, IEntity parent)

void	~SCR_VehicleDamageManagerComponent ()

Public Member Functions inherited from SCR_DamageManagerComponent
void	GetPhysicalHitZones (out notnull array< HitZone > physicalHitZones)
	Return hit zones with colliders assigned.

void	GetRegeneratingHitZones (out notnull array< SCR_RegeneratingHitZone > regeneratingHitZones)
	Return hit zones with passive regeneration enabled.

void	RpcDo_SetFireState (int hitZoneIndex, SCR_EBurningState fireState)

int	GetSurroundingHitzones (vector origin, Physics physics, float maxDistance, out array< HitZone > outHitzones)

float	GetMinDestroyDamage (EDamageType damageType, array< HitZone > hitzones)

ScriptInvoker	GetOnDamage ()

ScriptInvoker	GetOnDamageOverTimeAdded ()

ScriptInvoker	GetOnDamageOverTimeRemoved ()

ScriptInvoker	GetOnDamageStateChanged ()

void	~SCR_DamageManagerComponent ()

int	GetHitZonesOfGroup (EHitZoneGroup hitZoneGroup, out notnull array< HitZone > groupHitZones, bool clearArray=true)
	Get a list of all hitzones of specific hitzone group.

int	GetHitZonesOfGroups (notnull array< EHitZoneGroup > hitZoneGroups, out notnull array< HitZone > groupHitZones)
	Get a list of all hitzones of specific hitzone group.

float	GetGroupDamageOverTime (ECharacterHitZoneGroup hitZoneGroup, EDamageType damageType)
	Get total damage over time of given hitzone group.

void	Kill (notnull Instigator instigator)
	Neutralize the entity with a specific damage type, registering the killer entity.

void	DamageRandomHitZones (float damage, EDamageType type, notnull Instigator instigator, bool onlyPhysical=true, vector outMat[3]={}, bool damageDefault=false)
	Damage random physical hit zones up to damage amount.

float	HealHitZones (float healthToDistribute, bool sequential=false, float maxHealThresholdScaled=1, array< HitZone > alternativeHitZones=null)
	Partially heal the hitZones of an entity.

void	ReduceSmoke ()
	Reduce smoke output based on the total health of hit zones.

float	GetHitZonesDamage (float untilThresholdScaled=1, array< HitZone > alternativeHitZones=null)
	Get all damage dealt to hitzones.

float	GetHitZonesHealthScaled (array< HitZone > alternativeHitZones=null)
	Get Health scaled of all hitzones.

float	GetSingleHitZonesHealthScaled (array< HitZone > alternativeHitZones=null, bool getLowestHealth=true)
	Get single Health scaled from hitzones.

ResourceName	GetSecondaryExplosion (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES, bool fire=false, out bool hasData=false)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.

SCR_SecondaryExplosion	GetSecondaryExplosionForScale (SCR_ESecondaryExplosionScale scale, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion scale, type and resource type if defined.

SCR_ESecondaryExplosionScale	GetSecondaryExplosionScale (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.

ResourceName	GetSecondaryFireParticle (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.

bool	IsOnFire (HitZone hitZone=null)
	Determine if provided or any hit zone from this damage manager is on fire.

bool	IsOnFire (notnull array< HitZone > hitZones)
	Determine if any hit zone from this damage manager is on fire.

void	SecondaryExplosion (ResourceName prefabName, notnull Instigator instigator, notnull EntitySpawnParams spawnParams)
	Spawn secondary explosion.

SCR_ResourceEncapsulator	GetResourceEncapsulator (EResourceType suppliesType=EResourceType.SUPPLIES)

void	SupplySecondaryExplosion (notnull Instigator instigator)
	Spawn supply secondary explosion when vehicle becomes destroyed.

vector	GetSecondaryExplosionPosition (TypeName hitZoneType, out float totalWeight=0)
	Get weighed average position of explosion for hitzones of specified type.

void	FuelSecondaryExplosion (notnull Instigator instigator)
	Spawn fuel secondary explosion when vehicle becomes destroyed.

void	UpdateFireParticles (vector position, out ParticleEffectEntity particles, SCR_ESecondaryExplosionScale state, SCR_ESecondaryExplosionType fireType, EResourceType resourceType=EResourceType.SUPPLIES)
	Update visual effects and store result in particles variable.

override void	OnDamageOverTimeAdded (EDamageType dType, float dps, HitZone hz)
	Invoked every time the DoT is added to certain hitzone.

override void	OnDamageOverTimeRemoved (EDamageType dType, HitZone hz)
	Invoked when provided damage type is removed from certain hitzone.

override bool	HijackDamageHandling (notnull BaseDamageContext damageContext)

override int	_WB_GetAfterWorldUpdateSpecs (IEntity owner, IEntitySource src)

Public Member Functions inherited from DamageManagerComponent
proto external int	ComputeStruckHitZones (out notnull array< HitZone > struckHitZones, notnull BaseDamageContext damageContext)
	Clears and fills struckHitZones array with all HZs that should get damaged by this BaseDamageContext.

proto external void	EnableDamageHandling (bool enable)

proto external bool	IsDamageHandlingEnabled ()

proto external void	EnableDamageSystemOnFrame ()
	Call to enable damage system's on frame.

proto external void	DisableDamageSystemOnFrame ()
	Call to disable damage system's on frame.

proto external void	SetMovementDamage (float damage)
	Sets the movement damage modifier.

proto external float	GetMovementDamage ()
	Returns the movement damage modifier.

proto external void	SetAimingDamage (float damage)
	Sets the aiming damage modifier.

proto external float	GetAimingDamage ()
	Returns aiming damage modifier.

proto external float	GetHealthScaled ()

proto external bool	SetHealthScaled (float health)

proto external float	GetHealth ()

proto external float	GetMaxHealth ()

proto external EDamageState	GetState ()

proto external bool	IsDestroyed ()

proto external void	SetInstigatorEntity (IEntity instigator)

proto external void	SetInstigator (notnull Instigator instigator)

proto external void	SetAndReplicateInstigator (notnull Instigator instigator)
	Sets the instigator and broadcasts the change to clients DO NOT USE THIS METHOD UNLESS YOU KNOW EXACTLY WHEN TO USE IT IF YOU ARE USING THIS YOU PROBABLY SHOULD BE DEALING DAMAGE TO THE PLAYER TO KILL THEM.

proto external notnull Instigator	GetInstigator ()

proto external int	GetAttachedColliderIDs (out notnull array< int > outAttachedColliderIDs)
	Fills colliderIDs with all the colliders attached to hitzones this dmg manager owns.

proto external void	HandleDamage (notnull BaseDamageContext damageContext)

proto external bool	IsDamagedOverTime (EDamageType dType)

proto external float	GetDamageOverTime (EDamageType dType)

proto external void	RemoveDamageOverTime (EDamageType dType)
	Removes DOT of provided damageType from all currently affected HitZones.

GameMaterial	OverrideHitMaterial (HitZone struckHitzone)
	Not all armors are physical so the surface that gets struck by projectiles will not be the one the armor, but the hitzone.

bool	ShouldCountAsHit (notnull BaseDamageContext damageContext)
	Called after HijackDamageHandling.

Public Member Functions inherited from HitZoneContainerComponent
proto external IEntity	GetOwner ()

proto external HitZone	GetDefaultHitZone ()

proto external HitZone	GetHitZoneByName (string hitZoneName)
	Get the HitZone that matches the provided collider name.

proto external HitZone	GetHitZoneByColliderID (int colliderID)
	Get the HitZone that matches the provided collider ID.

proto external int	GetHitZonesByColliderIDs (out notnull array< HitZone > outHitZones, notnull array< int > colliderIDs)
	Clears and fills the specified outHitZones array with all HZs that are attached to colliderIDs.

proto external HitZone	GetHitZone (string colliderName)

proto external int	CountAllHitZones ()
	Counts the number of hitzones in this entity.

proto external int	CountAllHitZonesInHierarchy ()
	Counts the number of hitzones in this entity and its children.

proto external int	GetAllHitZones (out notnull array< HitZone > outHitZones)
	Clears and fills the specified outHitZones array with all HZs in this entity Returns the count of elements that were filled into the array.

proto external int	GetAllHitZonesInHierarchy (out notnull array< HitZone > outHitZones)
	Clears and fills the specified outHitZones array with all HZs in this entity and its children.

proto external HitZoneContainerComponent	GetParentHitZoneContainer ()

Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Static Public Member Functions
static ScriptInvokerInt	GetOnVehicleDestroyed ()

static ScriptInvoker	GetOnVehicleDamageStateChanged ()

Static Public Member Functions inherited from SCR_DamageManagerComponent
static SCR_DamageManagerComponent	GetDamageManager (notnull IEntity owner)
	Get damage manager from given owner.

Public Attributes
SCR_ESecondaryExplosionScale	m_eVehicleFireState

SCR_ESecondaryExplosionScale	m_eFuelTankFireState

SCR_ESecondaryExplosionScale	m_eSuppliesFireState

Static Public Attributes
static ref map< SCR_EPhysicsResponseIndex, float >	s_mResponseIndexMomentumMap = new map<SCR_EPhysicsResponseIndex, float>()

Static Public Attributes inherited from SCR_DamageManagerComponent
static const int	MAX_DESTRUCTION_RESPONSE_INDEX = 10

static const string	MAX_DESTRUCTION_RESPONSE_INDEX_NAME = "HugeDestructible"

static const ref array< EDamageType >	HEALING_DAMAGE_TYPES = {EDamageType.HEALING, EDamageType.REGENERATION}

Protected Member Functions
void	SetEngineFunctional (bool functional)

void	SetEngineEfficiency (float efficiency)

void	SetGearboxFunctional (bool functional)

void	SetGearboxEfficiency (float efficiency)

void	OnWaterEnter ()
	Determine whether collision into water is severe enough to apply damage, then get velocities an manually call CollisionDamage.

override void	OnFilteredContact (IEntity owner, IEntity other, Contact contact)
	Handle damage and collision effects of contact Contact must NEVER be passed as variable to external functions.

override void	OnDamage (notnull BaseDamageContext damageContext)
	On Vehicle being blown up, there is a chance the passengers are ejected.

void	RPC_OnPhysicsActive (bool activeState)

void	OnVehicleFireStateChanged ()

void	SetVehicleFireState (SCR_ESecondaryExplosionScale state, vector origin=vector.Zero)

void	OnFuelTankFireStateChanged ()

void	SetFuelTankFireState (SCR_ESecondaryExplosionScale state, vector origin=vector.Zero)

void	OnSuppliesFireStateChanged ()

void	SetSuppliesFireState (SCR_ESecondaryExplosionScale state, vector origin=vector.Zero)

void	UpdateVehicleFireState (out float fireRate, float timeSlice)

void	UpdateFuelTankFireState (float fireRate, float timeSlice)

void	UpdateSuppliesFireState (float fireRate, float timeSlice)

override bool	ShouldOverrideInstigator (notnull Instigator currentInstigator, notnull Instigator newInstigator)

Protected Member Functions inherited from SCR_DamageManagerComponent
void	RpcDo_SetFireState_ (int hitZoneIndex, SCR_EBurningState fireState)
	Set fire rate of a flammable hitzone.

notnull SCR_DamageManagerData	GetScriptedDamageManagerData ()

float	HealHitZonesInSequence (float healthToDistribute, float maxHealThresholdScaled, array< HitZone > targetHitZones)

float	HealHitZonesInParallel (float healthToDistribute, float maxHealThresholdScaled, array< HitZone > targetHitZones)

void	ConnectToFireDamageSystem ()

void	DisconnectFromFireDamageSystem ()

override void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)

Protected Member Functions inherited from DamageManagerComponent
void	DiagOnlyIfPossessedByPlayerController (notnull IEntity owner)
	Use this to run diag for the character who is currently possessed by player controller.

void	OnHandleFallDamage (EFallDamageType fallDamageType, vector velocityVector)
	Called when fall related damage is relevant.

void	OnHealthSet ()
	Called when SetHealth() is used on default hitzone.

void	OnMaxHealthChanged ()
	Called when SetMaxHealth() is used on default hitzone.

void	OnDelete (IEntity owner)

void	OnDiag (IEntity owner, float timeSlice)
	Called during EOnDiag.

Protected Member Functions inherited from HitZoneContainerComponent
bool	HasDataToReplicate ()
	Use it to save bandwidth in some default conditions. Use it if Save and Load are overriden.

bool	OnRplSave (ScriptBitWriter writer)

bool	OnRplLoad (ScriptBitReader reader)

Protected Attributes
float	m_fVelocityMultiplierOnWaterEnter = 0.5

int	m_fMinWaterFallDamageVelocity = 5

float	m_fEngineMalfunctioningThreshold

string	m_sVehicleFireStateSignal

string	m_sFuelTankFireStateSignal

string	m_sSuppliesFireStateSignal

float	m_fFuelTankFireDamageRate

float	m_fSuppliesFireDamageRate

float	m_fSecondaryFireDamageDelay

float	m_fMinImpulse

SCR_BaseCompartmentManagerComponent	m_CompartmentManager

ref array< HitZone >	m_aVehicleHitZones = {}
	Common vehicle features that will influence its simulation.

CompartmentControllerComponent	m_Controller

VehicleBaseSimulation	m_Simulation

float	m_fEngineEfficiency = 1

bool	m_bEngineFunctional = true

float	m_fGearboxEfficiency = 1

bool	m_bGearboxFunctional = true

ref array< SCR_FlammableHitZone >	m_aFlammableHitZones

SignalsManagerComponent	m_SignalsManager

float	m_fVehicleFireDamageTimeout

ParticleEffectEntity	m_FuelTankFireParticle

FuelManagerComponent	m_FuelManager

float	m_fFuelTankFireDamageTimeout

ParticleEffectEntity	m_SuppliesFireParticle

float	m_fSuppliesFireDamageTimeout

int	m_iVehicleFireStateSignalIdx

int	m_iFuelTankFireStateSignalIdx

int	m_iSuppliesFireStateSignalIdx

SCR_ImpactEffectComponent	m_ImpactEffectComponent

vector	m_vVehicleFireOrigin

vector	m_vFuelTankFireOrigin

vector	m_vSuppliesFireOrigin

ref array< ref SCR_CollisionDamageContainer >	m_LastFrameCollisions

ref array< ref SCR_CollisionDamageContainer >	m_CurrentCollisions

Protected Attributes inherited from SCR_DamageManagerComponent
SCR_EBurningState	m_iMinimumBurningState

int	m_iTimetickInstigator = System.GetTickCount()

int	m_iTimeThresholdInstigatorReplacement = 180000

int	m_iPlayerId = 0

int	m_iDamageManagerDataIndex = -1

Static Protected Attributes
const float	MIN_IMPULSE_THRESHOLD = 5

const float	HITZONE_DAMAGE_VALUE_THRESHOLD = 0.01

const int	MIN_RESPONSE_INDEX = SCR_EPhysicsResponseIndex.TINY_MOMENTUM

const int	MAX_RESPONSE_INDEX = SCR_EPhysicsResponseIndex.HUGE_MOMENTUM

const int	CACHED_COLLISION_PROCESSING_DELAY = 50

static ref ScriptInvokerInt	s_OnVehicleDestroyed

static ref ScriptInvoker	s_OnVehicleDamageStateChanged

const float	HACK_DAMAGE_CALCULATION_REDUCTION = 0.9
	The reason for this magic number is that the collision position can be slightly unpredictable.

Static Protected Attributes inherited from SCR_DamageManagerComponent
static const int	MIN_MOMENTUM_RESPONSE_INDEX = 1

static const int	MAX_MOMENTUM_RESPONSE_INDEX = 5

static const int	MIN_DESTRUCTION_RESPONSE_INDEX = 6

const float	SIMULATION_IMPRECISION_MULTIPLIER = 1.1

static ref array< ref SCR_DamageManagerData >	s_aDamageManagerData = {}

Constructor & Destructor Documentation

◆ SCR_VehicleDamageManagerComponent()

void SCR_VehicleDamageManagerComponent.SCR_VehicleDamageManagerComponent	(	IEntityComponentSource	src,
		IEntity	ent,
		IEntity	parent )

Parameters

[in]	src
[in]	ent
[in]	parent

◆ ~SCR_VehicleDamageManagerComponent()

void SCR_VehicleDamageManagerComponent.~SCR_VehicleDamageManagerComponent ( )

Member Function Documentation

◆ CalculateCriticalCollisionDamage()

float SCR_VehicleDamageManagerComponent.CalculateCriticalCollisionDamage ( )

Determines the amount of damage required to destroy the vehicle in case of a frontal collision.

◆ CanBeHealed()

override bool SCR_VehicleDamageManagerComponent.CanBeHealed ( bool ignoreHealingDOT = true )

Return true if there is damage that can be repaired.

Implements SCR_DamageManagerComponent.

◆ DamageSurroundingHitzones()

float SCR_VehicleDamageManagerComponent.DamageSurroundingHitzones	(	vector	position,
		float	damage,
		EDamageType	damageType,
		bool	dontApply = false )

Distributes provided damage amongst compatible hit zones.

Parameters

[in]	position
[in]	damage
[in]	damageType
[in]	dontApply	used for debugging the damage handling without actually passing the damage

Returns: leftover damage that wasnt absorbed by compatible hit zones

◆ EOnPhysicsActive()

void SCR_VehicleDamageManagerComponent.EOnPhysicsActive	(	IEntity	owner,
		bool	activeState )

Parameters

[in]	owner
[in]	activeState

◆ FilterContact()

override bool SCR_VehicleDamageManagerComponent.FilterContact	(	IEntity	owner,
		IEntity	other,
		Contact	contact )

Filter out any contacts under a reasonable speed for damage.

Implements SCR_DamageManagerComponent.

◆ FullHeal()

override void SCR_VehicleDamageManagerComponent.FullHeal ( bool ignoreHealingDOT = true )

Fix all the damage.

Parameters

[in] ignoreHealingDOT

Implements SCR_DamageManagerComponent.

◆ GetBottomMultiplier()

float SCR_VehicleDamageManagerComponent.GetBottomMultiplier ( )

Returns

◆ GetCollisionDamageEjectionChance()

float SCR_VehicleDamageManagerComponent.GetCollisionDamageEjectionChance ( )

Returns

◆ GetEngineEfficiency()

float SCR_VehicleDamageManagerComponent.GetEngineEfficiency ( )

Returns

◆ GetEngineFunctional()

bool SCR_VehicleDamageManagerComponent.GetEngineFunctional ( )

Returns

◆ GetEngineMalfunctionThreshold()

float SCR_VehicleDamageManagerComponent.GetEngineMalfunctionThreshold ( )

Returns

◆ GetExplosionDamageEjectionChance()

float SCR_VehicleDamageManagerComponent.GetExplosionDamageEjectionChance ( )

Returns

◆ GetFrontalImpact()

vector SCR_VehicleDamageManagerComponent.GetFrontalImpact ( )

Returns

◆ GetFrontMultiplier()

float SCR_VehicleDamageManagerComponent.GetFrontMultiplier ( )

Returns

◆ GetGearboxEfficiency()

float SCR_VehicleDamageManagerComponent.GetGearboxEfficiency ( )

Returns

◆ GetGearboxFunctional()

bool SCR_VehicleDamageManagerComponent.GetGearboxFunctional ( )

Returns

◆ GetHitDirection()

SCR_EBoxSide SCR_VehicleDamageManagerComponent.GetHitDirection ( vector position )

Parameters

[in] position

Returns

◆ GetLeftMultiplier()

float SCR_VehicleDamageManagerComponent.GetLeftMultiplier ( )

Returns

◆ GetMaxSharedDamageDistance()

float SCR_VehicleDamageManagerComponent.GetMaxSharedDamageDistance ( )

Returns

◆ GetMinCollisionDamageEjectionThreshold()

int SCR_VehicleDamageManagerComponent.GetMinCollisionDamageEjectionThreshold ( )

Returns

◆ GetMinExplosionDamageEjectionThreshold()

int SCR_VehicleDamageManagerComponent.GetMinExplosionDamageEjectionThreshold ( )

Returns

◆ GetMinImpulse()

float SCR_VehicleDamageManagerComponent.GetMinImpulse ( )

Returns

◆ GetOccupantsDamageSpeedThreshold()

float SCR_VehicleDamageManagerComponent.GetOccupantsDamageSpeedThreshold ( )

Returns

◆ GetOccupantsSpeedDeath()

float SCR_VehicleDamageManagerComponent.GetOccupantsSpeedDeath ( )

Returns

◆ GetOnVehicleDamageStateChanged()

static ScriptInvoker SCR_VehicleDamageManagerComponent.GetOnVehicleDamageStateChanged ( )

static

Returns

◆ GetOnVehicleDestroyed()

static ScriptInvokerInt SCR_VehicleDamageManagerComponent.GetOnVehicleDestroyed ( )

static

Returns

◆ GetPrefabData()

SCR_VehicleDamageManagerComponentClass SCR_VehicleDamageManagerComponent.GetPrefabData ( )

Returns

◆ GetRearMultiplier()

float SCR_VehicleDamageManagerComponent.GetRearMultiplier ( )

Returns

◆ GetRightMultiplier()

float SCR_VehicleDamageManagerComponent.GetRightMultiplier ( )

Returns

◆ GetSideDamageMultiplier()

float SCR_VehicleDamageManagerComponent.GetSideDamageMultiplier ( SCR_EBoxSide side )

Parameters

[in] side

Returns

◆ GetSurroundingHitzones()

int SCR_VehicleDamageManagerComponent.GetSurroundingHitzones	(	vector	position,
		notnull Physics	physics,
		float	maxDistance,
		EDamageType	damageType,
		out notnull array< HitZone >	outHitZones,
		out float	hitZonesDistancePercentSum = 0,
		out map< HitZone, float >	outHitZoneDistanceProcentageMap = null )

Finds compatible hit zones.

Parameters

[in]	position	in world space
[in]	physics
[in]	maxDistance	distance form the provided position up to which hit zones searched for
[in]	damageType	fitler that ensures that hit zones can accept provided damage type
[out]	outHitZones
[out]	outHitZoneDistanceProcentageMap	map of hit zones and how far they are from the provided position
[out]	hitZonesDistancePercentSum

Returns: number of found hit zones

◆ GetTopMultiplier()

float SCR_VehicleDamageManagerComponent.GetTopMultiplier ( )

Returns

◆ HandlePassengerDamage()

void SCR_VehicleDamageManagerComponent.HandlePassengerDamage	(	EDamageType	damageType,
		float	damage,
		notnull Instigator	instigator )

Damage and eject passengers based on vehicle taking damage.

◆ InitStaticMapForIndices()

void SCR_VehicleDamageManagerComponent.InitStaticMapForIndices ( )

◆ OnDamage()

override void SCR_VehicleDamageManagerComponent.OnDamage ( notnull BaseDamageContext damageContext )

protected

On Vehicle being blown up, there is a chance the passengers are ejected.

Implements SCR_DamageManagerComponent.

◆ OnDamageStateChanged()

override void SCR_VehicleDamageManagerComponent.OnDamageStateChanged	(	EDamageState	newState,
		EDamageState	previousDamageState,
		bool	isJIP )

Update buoyancy loss rate.

Implements SCR_DamageManagerComponent.

Implemented in SCR_HelicopterDamageManagerComponent.

◆ OnFilteredContact()

override void SCR_VehicleDamageManagerComponent.OnFilteredContact	(	IEntity	owner,
		IEntity	other,
		Contact	contact )

protected

Handle damage and collision effects of contact Contact must NEVER be passed as variable to external functions.

Implements DamageManagerComponent.

◆ OnFrame()

override void SCR_VehicleDamageManagerComponent.OnFrame	(	IEntity	owner,
		float	timeSlice )

Called during EOnFrame.

Parameters

owner	Entity this component is attached to.
timeSlice	Delta time since last update.

Implements DamageManagerComponent.

◆ OnFuelTankFireStateChanged()

void SCR_VehicleDamageManagerComponent.OnFuelTankFireStateChanged ( )

protected

◆ OnPostInit()

override void SCR_VehicleDamageManagerComponent.OnPostInit ( IEntity owner )

Called after all components are initialized.

Parameters

owner Entity this component is attached to.

Implements DamageManagerComponent.

◆ OnSuppliesFireStateChanged()

void SCR_VehicleDamageManagerComponent.OnSuppliesFireStateChanged ( )

protected

◆ OnVehicleFireStateChanged()

void SCR_VehicleDamageManagerComponent.OnVehicleFireStateChanged ( )

protected

◆ OnWaterEnter()

void SCR_VehicleDamageManagerComponent.OnWaterEnter ( )

protected

Determine whether collision into water is severe enough to apply damage, then get velocities an manually call CollisionDamage.

◆ ProcessCollision()

void SCR_VehicleDamageManagerComponent.ProcessCollision ( notnull SCR_CollisionDamageContainer collision )

Processing of cached collision data in order to deal damage to the vhehicle and its passengers.

◆ RegisterFlammableHitZone()

void SCR_VehicleDamageManagerComponent.RegisterFlammableHitZone ( notnull SCR_FlammableHitZone hitZone )

Parameters

[in] hitZone

◆ RegisterVehicleHitZone()

void SCR_VehicleDamageManagerComponent.RegisterVehicleHitZone ( notnull HitZone hitZone )

Parameters

[in] hitZone

Implemented in SCR_HelicopterDamageManagerComponent.

◆ RPC_OnPhysicsActive()

void SCR_VehicleDamageManagerComponent.RPC_OnPhysicsActive ( bool activeState )

protected

◆ SetEngineEfficiency()

void SCR_VehicleDamageManagerComponent.SetEngineEfficiency ( float efficiency )

protected

◆ SetEngineFunctional()

void SCR_VehicleDamageManagerComponent.SetEngineFunctional ( bool functional )

protected

Implemented in SCR_HelicopterDamageManagerComponent.

◆ SetFuelTankFireState()

void SCR_VehicleDamageManagerComponent.SetFuelTankFireState	(	SCR_ESecondaryExplosionScale	state,
		vector	origin = vector::Zero )

protected

◆ SetGearboxEfficiency()

void SCR_VehicleDamageManagerComponent.SetGearboxEfficiency ( float efficiency )

protected

◆ SetGearboxFunctional()

void SCR_VehicleDamageManagerComponent.SetGearboxFunctional ( bool functional )

protected

◆ SetSuppliesFireState()

void SCR_VehicleDamageManagerComponent.SetSuppliesFireState	(	SCR_ESecondaryExplosionScale	state,
		vector	origin = vector::Zero )

protected

◆ SetVehicleFireState()

void SCR_VehicleDamageManagerComponent.SetVehicleFireState	(	SCR_ESecondaryExplosionScale	state,
		vector	origin = vector::Zero )

protected

◆ ShouldOverrideInstigator()

override bool SCR_VehicleDamageManagerComponent.ShouldOverrideInstigator	(	notnull Instigator	currentInstigator,
		notnull Instigator	newInstigator )

protected

Called whenever an instigator is going to be set.

!

Parameters

[in]	currentInstigator	This damage manager's last instigator !
[in]	newInstigator	The new instigator for this damage manager !

Returns: If it returns true, newInstigator will become the new current instigator for the damage manager and it will receive kill credit.

Implements SCR_DamageManagerComponent.

◆ TickResponseIndexCheck()

void SCR_VehicleDamageManagerComponent.TickResponseIndexCheck ( )

◆ ToggleResponseIndexTicking()

void SCR_VehicleDamageManagerComponent.ToggleResponseIndexTicking	(	IEntity	owner,
		bool	activeState )

Parameters

[in]	owner
[in]	activeState

◆ UnregisterFlammableHitZone()

void SCR_VehicleDamageManagerComponent.UnregisterFlammableHitZone ( notnull SCR_FlammableHitZone hitZone )

Parameters

[in] hitZone

◆ UnregisterVehicleHitZone()

void SCR_VehicleDamageManagerComponent.UnregisterVehicleHitZone ( HitZone hitZone )

Parameters

[in] hitZone

Implemented in SCR_HelicopterDamageManagerComponent.

◆ UpdateFireDamage()

override void SCR_VehicleDamageManagerComponent.UpdateFireDamage ( float timeSlice )

Implements SCR_DamageManagerComponent.

◆ UpdateFuelTankFireState()

void SCR_VehicleDamageManagerComponent.UpdateFuelTankFireState	(	float	fireRate,
		float	timeSlice )

protected

◆ UpdateMovementDamage()

void SCR_VehicleDamageManagerComponent.UpdateMovementDamage ( )

Implemented in SCR_HelicopterDamageManagerComponent, and SCR_WheeledDamageManagerComponent.

◆ UpdateSuppliesFireState()

void SCR_VehicleDamageManagerComponent.UpdateSuppliesFireState	(	float	fireRate,
		float	timeSlice )

protected

◆ UpdateVehicleFireState()

void SCR_VehicleDamageManagerComponent.UpdateVehicleFireState	(	out float	fireRate,
		float	timeSlice )

protected

◆ UpdateVehicleState()

void SCR_VehicleDamageManagerComponent.UpdateVehicleState ( )

Compute current simulation state of vehicle Called when hit zone damage states change.

Implemented in SCR_HelicopterDamageManagerComponent, and SCR_WheeledDamageManagerComponent.

Member Data Documentation

◆ CACHED_COLLISION_PROCESSING_DELAY

const int SCR_VehicleDamageManagerComponent.CACHED_COLLISION_PROCESSING_DELAY = 50

staticprotected

◆ HACK_DAMAGE_CALCULATION_REDUCTION

const float SCR_VehicleDamageManagerComponent.HACK_DAMAGE_CALCULATION_REDUCTION = 0.9

staticprotected

The reason for this magic number is that the collision position can be slightly unpredictable.

Because of that, what may end up happening is that the distribution of the damage won't have enough hit zone health to absorb the impact, which in turn means that more damage will be passed to the hull hit zone, resulting in a vehicle explosion at a lower speed. Thus, the precomputed damage is reduced by 10% to accommodate this bit of randomness.

◆ HITZONE_DAMAGE_VALUE_THRESHOLD

const float SCR_VehicleDamageManagerComponent.HITZONE_DAMAGE_VALUE_THRESHOLD = 0.01

staticprotected

◆ m_aFlammableHitZones

ref array<SCR_FlammableHitZone> SCR_VehicleDamageManagerComponent.m_aFlammableHitZones

protected

◆ m_aVehicleHitZones

ref array<HitZone> SCR_VehicleDamageManagerComponent.m_aVehicleHitZones = {}

protected

Common vehicle features that will influence its simulation.

◆ m_bEngineFunctional

bool SCR_VehicleDamageManagerComponent.m_bEngineFunctional = true

protected

◆ m_bGearboxFunctional

bool SCR_VehicleDamageManagerComponent.m_bGearboxFunctional = true

protected

◆ m_CompartmentManager

SCR_BaseCompartmentManagerComponent SCR_VehicleDamageManagerComponent.m_CompartmentManager

protected

◆ m_Controller

CompartmentControllerComponent SCR_VehicleDamageManagerComponent.m_Controller

protected

◆ m_CurrentCollisions

ref array<ref SCR_CollisionDamageContainer> SCR_VehicleDamageManagerComponent.m_CurrentCollisions

protected

◆ m_eFuelTankFireState

SCR_ESecondaryExplosionScale SCR_VehicleDamageManagerComponent.m_eFuelTankFireState

◆ m_eSuppliesFireState

SCR_ESecondaryExplosionScale SCR_VehicleDamageManagerComponent.m_eSuppliesFireState

◆ m_eVehicleFireState

SCR_ESecondaryExplosionScale SCR_VehicleDamageManagerComponent.m_eVehicleFireState

◆ m_fEngineEfficiency

float SCR_VehicleDamageManagerComponent.m_fEngineEfficiency = 1

protected

◆ m_fEngineMalfunctioningThreshold

float SCR_VehicleDamageManagerComponent.m_fEngineMalfunctioningThreshold

protected

◆ m_fFuelTankFireDamageRate

float SCR_VehicleDamageManagerComponent.m_fFuelTankFireDamageRate

protected

◆ m_fFuelTankFireDamageTimeout

float SCR_VehicleDamageManagerComponent.m_fFuelTankFireDamageTimeout

protected

◆ m_fGearboxEfficiency

float SCR_VehicleDamageManagerComponent.m_fGearboxEfficiency = 1

protected

◆ m_fMinImpulse

float SCR_VehicleDamageManagerComponent.m_fMinImpulse

protected

◆ m_fMinWaterFallDamageVelocity

int SCR_VehicleDamageManagerComponent.m_fMinWaterFallDamageVelocity = 5

protected

◆ m_fSecondaryFireDamageDelay

float SCR_VehicleDamageManagerComponent.m_fSecondaryFireDamageDelay

protected

◆ m_fSuppliesFireDamageRate

float SCR_VehicleDamageManagerComponent.m_fSuppliesFireDamageRate

protected

◆ m_fSuppliesFireDamageTimeout

float SCR_VehicleDamageManagerComponent.m_fSuppliesFireDamageTimeout

protected

◆ m_FuelManager

FuelManagerComponent SCR_VehicleDamageManagerComponent.m_FuelManager

protected

◆ m_FuelTankFireParticle

ParticleEffectEntity SCR_VehicleDamageManagerComponent.m_FuelTankFireParticle

protected

◆ m_fVehicleFireDamageTimeout

float SCR_VehicleDamageManagerComponent.m_fVehicleFireDamageTimeout

protected

◆ m_fVelocityMultiplierOnWaterEnter

float SCR_VehicleDamageManagerComponent.m_fVelocityMultiplierOnWaterEnter = 0.5

protected

◆ m_iFuelTankFireStateSignalIdx

int SCR_VehicleDamageManagerComponent.m_iFuelTankFireStateSignalIdx

protected

◆ m_ImpactEffectComponent

SCR_ImpactEffectComponent SCR_VehicleDamageManagerComponent.m_ImpactEffectComponent

protected

◆ m_iSuppliesFireStateSignalIdx

int SCR_VehicleDamageManagerComponent.m_iSuppliesFireStateSignalIdx

protected

◆ m_iVehicleFireStateSignalIdx

int SCR_VehicleDamageManagerComponent.m_iVehicleFireStateSignalIdx

protected

◆ m_LastFrameCollisions

ref array<ref SCR_CollisionDamageContainer> SCR_VehicleDamageManagerComponent.m_LastFrameCollisions

protected

◆ m_sFuelTankFireStateSignal

string SCR_VehicleDamageManagerComponent.m_sFuelTankFireStateSignal

protected

◆ m_SignalsManager

SignalsManagerComponent SCR_VehicleDamageManagerComponent.m_SignalsManager

protected

◆ m_Simulation

VehicleBaseSimulation SCR_VehicleDamageManagerComponent.m_Simulation

protected

◆ m_sSuppliesFireStateSignal

string SCR_VehicleDamageManagerComponent.m_sSuppliesFireStateSignal

protected

◆ m_SuppliesFireParticle

ParticleEffectEntity SCR_VehicleDamageManagerComponent.m_SuppliesFireParticle

protected

◆ m_sVehicleFireStateSignal

string SCR_VehicleDamageManagerComponent.m_sVehicleFireStateSignal

protected

◆ m_vFuelTankFireOrigin

vector SCR_VehicleDamageManagerComponent.m_vFuelTankFireOrigin

protected

◆ m_vSuppliesFireOrigin

vector SCR_VehicleDamageManagerComponent.m_vSuppliesFireOrigin

protected

◆ m_vVehicleFireOrigin

vector SCR_VehicleDamageManagerComponent.m_vVehicleFireOrigin

protected

◆ MAX_RESPONSE_INDEX

const int SCR_VehicleDamageManagerComponent.MAX_RESPONSE_INDEX = SCR_EPhysicsResponseIndex.HUGE_MOMENTUM

staticprotected

◆ MIN_IMPULSE_THRESHOLD

const float SCR_VehicleDamageManagerComponent.MIN_IMPULSE_THRESHOLD = 5

staticprotected

◆ MIN_RESPONSE_INDEX

const int SCR_VehicleDamageManagerComponent.MIN_RESPONSE_INDEX = SCR_EPhysicsResponseIndex.TINY_MOMENTUM

staticprotected

◆ s_mResponseIndexMomentumMap

ref map<SCR_EPhysicsResponseIndex, float> SCR_VehicleDamageManagerComponent.s_mResponseIndexMomentumMap = new map<SCR_EPhysicsResponseIndex, float>()

static

◆ s_OnVehicleDamageStateChanged

ref ScriptInvoker SCR_VehicleDamageManagerComponent.s_OnVehicleDamageStateChanged

staticprotected

◆ s_OnVehicleDestroyed

ref ScriptInvokerInt SCR_VehicleDamageManagerComponent.s_OnVehicleDestroyed

staticprotected

The documentation for this interface was generated from the following file:

Game/Components/Damage/SCR_VehicleDamageManagerComponent.c

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Constructor & Destructor Documentation

◆ SCR_VehicleDamageManagerComponent()

◆ ~SCR_VehicleDamageManagerComponent()

Member Function Documentation

◆ CalculateCriticalCollisionDamage()

◆ CanBeHealed()

◆ DamageSurroundingHitzones()

◆ EOnPhysicsActive()

◆ FilterContact()

◆ FullHeal()

◆ GetBottomMultiplier()

◆ GetCollisionDamageEjectionChance()

◆ GetEngineEfficiency()

◆ GetEngineFunctional()

◆ GetEngineMalfunctionThreshold()

◆ GetExplosionDamageEjectionChance()

◆ GetFrontalImpact()

◆ GetFrontMultiplier()

◆ GetGearboxEfficiency()

◆ GetGearboxFunctional()

◆ GetHitDirection()

◆ GetLeftMultiplier()

◆ GetMaxSharedDamageDistance()

◆ GetMinCollisionDamageEjectionThreshold()

◆ GetMinExplosionDamageEjectionThreshold()

◆ GetMinImpulse()

◆ GetOccupantsDamageSpeedThreshold()

◆ GetOccupantsSpeedDeath()

◆ GetOnVehicleDamageStateChanged()

◆ GetOnVehicleDestroyed()

◆ GetPrefabData()

◆ GetRearMultiplier()

◆ GetRightMultiplier()

◆ GetSideDamageMultiplier()

◆ GetSurroundingHitzones()

◆ GetTopMultiplier()

◆ HandlePassengerDamage()

◆ InitStaticMapForIndices()

◆ OnDamage()

◆ OnDamageStateChanged()

◆ OnFilteredContact()

◆ OnFrame()

◆ OnFuelTankFireStateChanged()

◆ OnPostInit()

◆ OnSuppliesFireStateChanged()

◆ OnVehicleFireStateChanged()

◆ OnWaterEnter()

◆ ProcessCollision()

◆ RegisterFlammableHitZone()

◆ RegisterVehicleHitZone()

◆ RPC_OnPhysicsActive()

◆ SetEngineEfficiency()

◆ SetEngineFunctional()

◆ SetFuelTankFireState()

◆ SetGearboxEfficiency()

◆ SetGearboxFunctional()

◆ SetSuppliesFireState()

◆ SetVehicleFireState()

◆ ShouldOverrideInstigator()

◆ TickResponseIndexCheck()

◆ ToggleResponseIndexTicking()

◆ UnregisterFlammableHitZone()

◆ UnregisterVehicleHitZone()

◆ UpdateFireDamage()

◆ UpdateFuelTankFireState()

◆ UpdateMovementDamage()

◆ UpdateSuppliesFireState()

◆ UpdateVehicleFireState()

◆ UpdateVehicleState()

Member Data Documentation

◆ CACHED_COLLISION_PROCESSING_DELAY

◆ HACK_DAMAGE_CALCULATION_REDUCTION

◆ HITZONE_DAMAGE_VALUE_THRESHOLD
