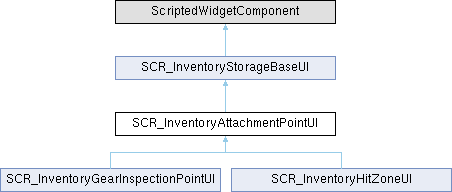

Inheritance diagram for SCR_InventoryAttachmentPointUI:

Public Member Functions
override void	HandlerAttached (Widget w)

TNodeId	GetBoneIndex ()

void	SCR_InventoryAttachmentPointUI (BaseInventoryStorageComponent storage, LoadoutAreaType slotID=null, SCR_InventoryMenuUI menuManager=null, int iPage=0, array< BaseInventoryStorageComponent > aTraverseStorage=null)

Public Member Functions inherited from SCR_InventoryStorageBaseUI
void	Init ()

void	InitPaging ()

void	SetPagingActive (bool active)

override bool	OnFocus (Widget w, int x, int y)

override bool	OnFocusLost (Widget w, int x, int y)

override bool	OnMouseEnter (Widget w, int x, int y)

override bool	OnMouseLeave (Widget w, Widget enterW, int x, int y)

bool	OnDrop (SCR_InventorySlotUI slot)

void	SetRowsAndColumns ()

BaseInventoryStorageComponent	GetCurrentNavigationStorage ()

bool	IsTraversalAllowed ()

void	Traverse (BaseInventoryStorageComponent storage)

void	Back (int traverseStorageIndex)

void	Home ()

float	GetTotalResources (notnull SCR_ResourceConsumer resourceContainer)

float	GetMaxResources (notnull SCR_ResourceConsumer resourceContainer)

void	GetTraverseStorage (out notnull array< BaseInventoryStorageComponent > aTraverseStorage)

void	Action_ChangePage (SCR_SpinBoxPagingComponent pSpinBox, int page)

void	Action_PrevPage ()

void	Action_NextPage ()

bool	IsStorageEnabled ()

bool	IsStorageSelected ()

bool	GetLastShownPage ()

int	GetPageCount ()

BaseInventoryStorageComponent	GetStorage ()

EquipedWeaponStorageComponent	GetWeaponStorage ()

string	GetStorageName ()

SCR_InventorySlotUI	GetSelectedSlot ()

SCR_InventorySlotUI	GetPrevSelectedSlot ()

void	Show (bool bShow)

void	ToggleShow ()

SCR_InventorySlotUI	GetFocusedSlot ()

SCR_InventorySlotUI	GetLastFocusedSlot ()

Widget	GetStorageGrid ()

Widget	GetRootWidget ()

SCR_InventoryMenuUI	GetInventoryMenuHandler ()

SCR_InventoryStorageManagerComponent	GetInventoryManager ()

LoadoutAreaType	GetSlotAreaType ()

void	GetUISlots (out array< SCR_InventorySlotUI > outArray)

array< SCR_InventorySlotUI >	GetUISlots ()

void	RemoveSlotUI (SCR_InventorySlotUI pSlot)

void	RefreshSlot (int index)

void	RefreshResources ()

void	Refresh ()

void	UpdateSlotUI (ResourceName item)

void	ReserveAndSetSlot (int iIndex,)

void	UpdateTotalWeight (float totalWeight, Color fontColor=Color.Gray25)

float	GetTotalRoundedUpWeight (BaseInventoryStorageComponent storage)

void	UpdateVolumePercentage (float percentage, bool previewOnly=false)

float	GetOccupiedVolumePercentage (BaseInventoryStorageComponent storage, float occupiedSpace=0)

float	GetOccupiedVolume (BaseInventoryStorageComponent storage)

float	GetMaxVolumeCapacity (BaseInventoryStorageComponent storage)

void	SetStorageAsHighlighted (bool isVisible, EInvInsertFailReason reason=EInvInsertFailReason.OK)

bool	IsStorageHighlighted ()

InventoryItemComponent	GetItemComponentFromEntity (IEntity pEntity)

void	GetSlots (out notnull array< SCR_InventorySlotUI > outSlots)

void	ShowItemDetails (string sName, string sDescription, string sWeight)

void	SetLastFocusedSlot (SCR_InventorySlotUI pSlot)
	memorize the last focused slot ( in case we leaving the actual UI storage and we want to select this slot again when we are back )

void	SetSlotFocused (SCR_InventorySlotUI pSlotUI=null, bool bSelected=true)

void	SetSlotSelected (SCR_InventorySlotUI pSlot=null, bool bSelected=true)

void	ShowContainerBorder (bool bShow)

void	ActivateStorageButton (bool active)

int	GetFocusedSlotId ()

int	GetSlotId (SCR_InventorySlotUI slot)

int	GetSlotIdForItem (ResourceName itemName)

void	DimSlots (bool bDim)

override void	HandlerDeattached (Widget w)

Widget	GetButtonWidget ()

ButtonWidget	GetLastCloseTraverseButton ()

bool	IsWarningOverlayVisible ()

void	SCR_InventoryStorageBaseUI (BaseInventoryStorageComponent storage, LoadoutAreaType slotID=null, SCR_InventoryMenuUI menuManager=null, int iPage=0, array< BaseInventoryStorageComponent > aTraverseStorage=null)

void	~SCR_InventoryStorageBaseUI ()

Protected Member Functions
override SCR_InventorySlotUI	CreateSlotUI (InventoryItemComponent pComponent, SCR_ItemAttributeCollection pAttributes=null)

override void	SetPreviewItem ()

string	GetBoneName ()

Protected Member Functions inherited from SCR_InventoryStorageBaseUI
void	SetSlotAreaType (LoadoutAreaType eSlotType)

Widget	CreateEmptySlotUI (int iRow, int iCol)

void	DeleteSlots ()

void	RefreshConsumer ()

void	UpdateStoredResources (float totalResources, float maxResources)

void	UpdateAvailableResources (float totalResources, bool hasStored)

void	UpdateContainerResources (notnull Widget targetTitle, notnull BaseInventoryStorageComponent targetStorage)

void	UpdateOwnedSlots (notnull array< IEntity > pItemsInStorage)

void	UpdateOwnedSlots (notnull array< BaseInventoryStorageComponent > pItemsInStorage)

int	FindItem (notnull InventoryItemComponent pInvItem)

int	FindItemByName (string sItemName, int iActualIndex)

string	GetNameFromComponent (notnull InventoryItemComponent pComponent)

int	CreateSlots ()

int	GetIndexFromCoords (int x, int y)

void	SortSlots ()

void	FillWithEmptySlots ()

void	ShowPage (int iPage, out int slotToFocus=-1)

void	ClearTraverseTitles ()

void	FillItemsFromStorage (BaseInventoryStorageComponent storage)

void	FindAndSetTitleName (Widget targetTitle, BaseInventoryStorageComponent targetStorage)

void	GetAllItems (out notnull array< IEntity > pItemsInStorage, BaseInventoryStorageComponent pStorage=null)

void	GetAllItemsFromDepth (out notnull array< IEntity > pItemsInStorages, int iDepth=3, int iDepthDefault=0)

bool	CheckIfAnyItemInStorageHasResources (array< IEntity > items)

void	CreateEmptyLayout ()

Additional Inherited Members
Static Public Attributes inherited from SCR_InventoryStorageBaseUI
static ref map< SCR_ArsenalInventorySlotUI, IEntity >	ARSENAL_SLOT_STORAGES = new map<SCR_ArsenalInventorySlotUI, IEntity>()

const float	STORAGE_NON_HIGHLIGHTED_OPACITY = 0.35

const string	ARSENAL_TITLE_LAYOUT = "{E668FD2152D06CF9}UI/layouts/Menus/Inventory/ArsenalInventoryTraverseTitlePanel.layout"

const string	SUPPLY_TITLE_LAYOUT = "{4CAAD8087F93ABE6}UI/layouts/Menus/Inventory/SupplyInventoryTraverseTitlePanel.layout"

const string	GENERIC_CONTAINER_PREFAB = "{9F0C54A3740F7FC9}Prefabs/Props/Military/SupplyBox/SupplyPortableContainers/SupplyPortableContainer_01/SupplyContainerGeneric.et"

const string	STORAGE_TITLE_LAYOUT = "{1E788C30AF7F76E9}UI/layouts/Menus/Inventory/InventoryTraverseTitlePanel.layout"

const string	SLOT_LAYOUT_1x1_EMPTY = "{B11F8BE49DFB62A2}UI/layouts/Menus/Inventory/Inventory20Slot_1x1_empty.layout"

Protected Attributes inherited from SCR_InventoryStorageBaseUI
ChimeraCharacter	m_Player

SCR_InventoryStorageManagerComponent	m_InventoryManager

SCR_CharacterInventoryStorageComponent	m_InventoryStorage

InputManager	m_pInputManager

BaseInventoryStorageComponent	m_Storage

SCR_ResourceComponent	m_ResourceComponent

SCR_ResourceConsumer	m_ResourceConsumer

SCR_InventoryMenuUI	m_MenuHandler

ref array< SCR_InventorySlotUI >	m_aSlots = {}

SCR_InventorySlotUI	m_pSelectedSlot = null

SCR_InventorySlotUI	m_pPrevSelectedSlot = null

SCR_InventorySlotUI	m_pFocusedSlot = null

SCR_InventorySlotUI	m_pLastFocusedSlot = null

WorkspaceWidget	m_workspaceWidget = null

Widget	m_widget = null

GridLayoutWidget	m_wGrid

string	m_sGridPath = "GridLayout0"

Widget	m_wDropContainer

LoadoutAreaType	m_eSlotAreaType = null

bool	m_bEnabled = false

bool	m_bSelected = false

bool	m_bShown = true

ItemPreviewWidget	m_wItemStorage

ItemPreviewWidget	m_wTraverseItemStorage

RenderTargetWidget	m_wPreviewImage

RenderTargetWidget	m_wTraversePreviewImage

ref SCR_Matrix	m_iMatrix

int	m_iMaxRows

int	m_iMaxColumns

int	m_iPageSize

int	m_iNrOfPages = 0

TextWidget	m_wStorageName

TextWidget	m_wCapacityPercentageText

TextWidget	m_wWeightText

TextWidget	m_wResourceAvailableText

TextWidget	m_wResourceStoredText

Widget	m_wCapacityDisplay

Widget	m_wWeightDisplay

Widget	m_wResourceAvailableDisplay

Widget	m_wResourceStoredDisplay

SizeLayoutWidget	m_wWidthOverride

int	m_iLastShownPage = 0

SCR_SpinBoxPagingComponent	m_wPagingSpinboxComponent

ref array< BaseInventoryStorageComponent >	m_aTraverseStorage = {}

ref array< Widget >	m_aTraverseTitle = {}

ref array< SCR_ResourceComponent >	m_aResourceCompsInStorage = {}

ButtonWidget	m_wButton

ButtonWidget	m_wLastCloseTraverseButton

ButtonWidget	m_wCloseStorageButton

ref SCR_ResourceSystemSubscriptionHandleBase	m_ResourceSubscriptionHandleConsumer

LocalizedString	m_sSuppliesStoredFormat = "#AR-Campaign_BaseSuppliesAmount"

LocalizedString	m_sSuppliesAvailableFormat = "#AR-Supplies_Arsenal_Availability"

SCR_InventoryProgressBar	m_ProgressBar

Widget	m_wProgressBar

Widget	m_wWarningOverlay

Static Protected Attributes inherited from SCR_InventoryStorageBaseUI
const int	SLOT_LAYOUT_WIDTH = 66

static const ref Color	m_WeightDefault = new Color(0.73, 0.73, 0.73, 1)

Constructor & Destructor Documentation

◆ SCR_InventoryAttachmentPointUI()

void SCR_InventoryAttachmentPointUI.SCR_InventoryAttachmentPointUI	(	BaseInventoryStorageComponent	storage,
		LoadoutAreaType	slotID = null,
		SCR_InventoryMenuUI	menuManager = null,
		int	iPage = 0,
		array< BaseInventoryStorageComponent >	aTraverseStorage = null )

Member Function Documentation

◆ CreateSlotUI()

override SCR_InventorySlotUI SCR_InventoryAttachmentPointUI.CreateSlotUI	(	InventoryItemComponent	pComponent,
		SCR_ItemAttributeCollection	pAttributes = null )
