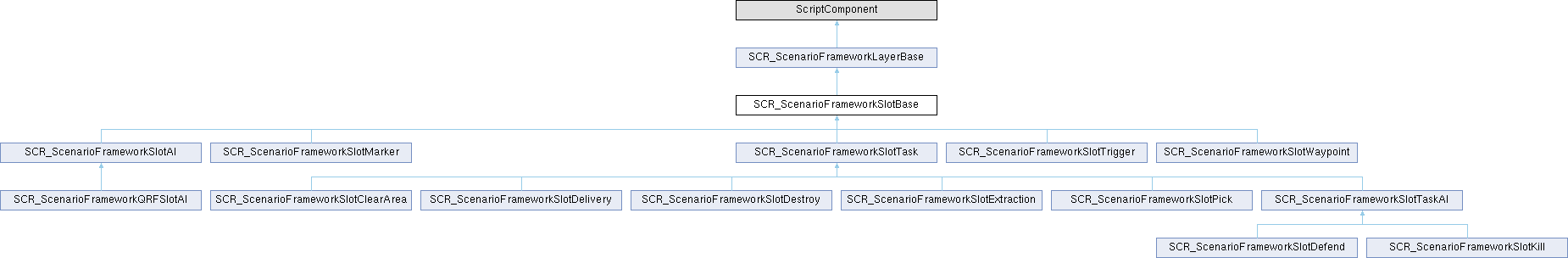

Inheritance diagram for SCR_ScenarioFrameworkSlotBase:

[legend]

Public Member Functions
void	OnObjectDamage (EDamageState state)

void	OnInventoryParentChanged (InventoryStorageSlot oldSlot, InventoryStorageSlot newSlot)
	Method changes inventory parent slot and sets dynamic despawn exclusion for an entity.

void	OnCompartmentEntered (IEntity vehicle, BaseCompartmentManagerComponent mgr, IEntity occupant, int managerId, int slotID)
	Excludes vehicle from dynamic despawning when entering a component.

string	GetOverriddenObjectDisplayName ()

void	SetOverriddenObjectDisplayName (string name)

string	GetSpawnedEntityDisplayName ()

SCR_ScenarioFrameworkArea	GetAreaWB ()

string	GetSpawnedObjectName ()

ResourceName	GetObjectToSpawn ()

ResourceName	GetSelectedObjectToSpawn ()
	First attempts to get get teh Fction Switched Object for the provided faciton key, then falls back to m_sObjectToSpawn.

ResourceName	GetRandomlySpawnedObject ()

void	SetRandomlySpawnedObject (ResourceName name)

override void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Restores default settings, clears random object, resets position, calls superclass method.

override void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	//! Dynamically despawns this layer.

override bool	InitAlreadyHappened ()
	Initializes whether an init has already happened, but for slots it always returns false.

bool	InitRepeatableSpawn ()
	Checks if object already exists, disables repetition and logs error.

bool	InitEntitySpawnCheck ()
	Checks if entity is spawned, if not, waits for all children to spawn then checks again.

bool	InitEntitySpawn ()
	Spawns entity if not existing or queries objects in range, checks initiation success.

override bool	InitOtherThings ()
	Initializes selected object, repeatable spawn, and entity spawn.

override void	FinishInit ()
	Finishes initialization, assigns unique ID, sets up damage manager, event handlers, inventory, and garbage system if applicable.

override void	Init (SCR_ScenarioFrameworkArea area=null, SCR_ScenarioFrameworkEActivationType activation=SCR_ScenarioFrameworkEActivationType.SAME_AS_PARENT)
	Initializes scenario framework slot.

override void	AfterAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer)
	Initializes plugins, actions, and checks if parent layer has all children spawned after all children have spawned in scenario framework.

override void	SpawnChildren (bool previouslyRandomized=false)
	Slot cannot have children.

ResourceName	GetRandomAsset (out ResourceName prefab)
	Randomly selects an entity from a catalog based on provided parameters, handles error cases, and returns the prefab of the.

IEntity	SpawnAsset ()
	Spawns random asset, sets position, ignores terrain orientation, requests navmesh rebuild, adds to spawned entities.

override void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)
	Draws debug shape based on m_bShowDebugShapesInWorkbench setting in Workbench after world update.

override void	_WB_SetTransform (IEntity owner, inout vector mat[4], IEntitySource src)
	Sets preview entity's transform or teleports it if it's a BaseGameEntity.

void	SpawnEntityPreview (IEntity owner, Resource resource)
	Spawns preview entity for given resource at owner's position.

override void	_WB_OnInit (IEntity owner, inout vector mat[4], IEntitySource src)
	Initializes preview entity, deletes previous one, loads resource, and spawns entity preview if resource is valid.

override bool	_WB_OnKeyChanged (IEntity owner, BaseContainer src, string key, BaseContainerList ownerContainers, IEntity parent)
	Manages key changes for debug shapes, object spawning, and entity deletion in Workbench.

void	SCR_ScenarioFrameworkSlotBase (IEntityComponentSource src, IEntity ent, IEntity parent)

void	~SCR_ScenarioFrameworkSlotBase ()
	Deletes preview entity in workbench mode, returns if in edit mode, otherwise despawns scenario slot base.

Public Member Functions inherited from SCR_ScenarioFrameworkLayerBase
string	GetName ()

void	SetEntity (IEntity entity)

bool	GetIsTerminated ()

void	SetIsTerminated (bool state)

void	SetRandomlySpawnedChildren (array< string > randomlySpawnedChildren)

void	AddRandomlySpawnedChild (SCR_ScenarioFrameworkLayerBase child)
	Adds child to list if not already present, ensuring uniqueness.

array< SCR_ScenarioFrameworkLayerBase >	GetRandomlySpawnedChildren ()

int	GetPlayersCount (FactionKey factionName="")
	Counts players in specified faction.

int	GetMaxPlayersForGameMode (FactionKey factionName="")
	Determines maximum players for a mission based on its mode, returns 4 if mission header is invalid.

SCR_ScenarioFrameworkArea	GetParentArea ()

void	GetAllLayers (out notnull array< SCR_ScenarioFrameworkLayerBase > layers)
	Gathers all layers from child entities and their siblings, adding them to the provided array.

void	GetAllLayers (out notnull array< SCR_ScenarioFrameworkLayerBase > layers, SCR_ScenarioFrameworkEActivationType activationType)
	Gathers all layers from child entities and their siblings, adding them to the provided array, filtered by activation type.

void	GetAllLayerTasks (out notnull array< SCR_ScenarioFrameworkLayerTask > layerTasks)
	Gathers all layer tasks from child entities and their siblings, adding them to the provided array.

void	GetAllSlotTasks (out notnull array< SCR_ScenarioFrameworkSlotTask > slotTasks)
	Gets all slot tasks from all layers in the hierarchy of the owner entity, including sibling layers' tasks.

SCR_ScenarioFrameworkLayerTask	GetLayerTask ()

SCR_ScenarioFrameworkSlotTask	GetSlotTask (array< SCR_ScenarioFrameworkLayerBase > aLayers)
	Retrieves slot task from layer child entities.

void	SetParentLayer (SCR_ScenarioFrameworkLayerBase parentLayer)

SCR_ScenarioFrameworkLayerBase	GetParentLayer ()

SCR_EScenarioFrameworkSpawnChildrenType	GetSpawnChildrenType ()

bool	GetEnableRepeatedSpawn ()

void	SetEnableRepeatedSpawn (bool value)

SCR_ScenarioFrameworkEActivationType	GetActivationType ()

void	SetActivationType (SCR_ScenarioFrameworkEActivationType activationType)

bool	GetIsInitiated ()

bool	GetDynamicDespawnExcluded ()

void	SetDynamicDespawnExcluded (bool excluded)

array< IEntity >	GetSpawnedEntities ()

array< SCR_ScenarioFrameworkLayerBase >	GetChildrenEntities ()

SCR_ScenarioFrameworkLayerBase	GetRandomChildren ()

void	GetChildren (out array< SCR_ScenarioFrameworkLayerBase > children)
	Reverses and inserts children layers into an array.

void	GetChildren (out array< SCR_ScenarioFrameworkLayerBase > children, SCR_ScenarioFrameworkEActivationType activationType)
	Reverses and inserts children layers into an array, filtered by activation type.

void	GetLogics (out array< SCR_ScenarioFrameworkLogic > logics)
	Retrieves all child scenario framework logic entities from owner entity and adds them to logics array if not already present.

array< SCR_ScenarioFrameworkLogic >	GetSpawnedLogics ()

array< ref SCR_ScenarioFrameworkPlugin >	GetSpawnedPlugins ()

int	GetRepeatedSpawnNumber ()

void	SetRepeatedSpawnNumber (int number)

ScriptInvokerScenarioFrameworkLayer	GetOnAllChildrenSpawned ()

void	InvokeAllChildrenSpawned ()
	Spawns all children and triggers invoker on completion.

void	CalculateSupposedSpawnedChildren (bool previouslyRandomized=false)
	Calculates supposed spawned children based on activation type, termination, initiation, and conditions.

void	CheckAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer=null)
	Checks if all children layers have spawned or spawns one randomly if specified.

void	SpawnChildren (bool previouslyRandomized=false)
	Spawns children based on scenario settings, either all at once or randomly.

void	SpawnPreviouslyRandomizedChildren ()
	Spawns children with delay based on their index.

void	SpawnRandomOneChild (bool previouslyRandomized=false)
	Spawns random child object if not previously randomized, else spawns previously randomized children.

void	SpawnRandomMultipleChildren (bool previouslyRandomized=false)
	Spawns random children based on player count, if previously randomized, uses previous children, otherwise selects from available children.

void	InitChild (SCR_ScenarioFrameworkLayerBase child)
	Initializes child layer, sets parent layer, and initializes child with parent area and action type.

IEntity	GetSpawnedEntity ()

void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Restores default settings, clears children, removes spawned entities, optionally reinitializes after restoration.

void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	Dynamically despawns this layer.

void	DynamicReinit ()
	Reinitializes this layer.

bool	InitAlreadyHappened ()
	Initialization check if already happened.

bool	InitParentLayer ()
	Initializes parent layer.

bool	InitNotTerminated ()
	Checks if layer is not terminated, spawns children if parent exists, returns false if terminated or children not spawnned.

bool	InitDynDespawnAndActivation (SCR_ScenarioFrameworkEActivationType activation)
	Checks if object is not dynamically despawned, then verifies if activation type matches, spawns all children if.

bool	InitActivationConditions (bool calledFromInit=false)
	Checks activation conditions for scenario layer, sets condition status based on logic operator, checks parent layer if needed.

bool	InitArea (SCR_ScenarioFrameworkArea area)
	Initializes area for scenario framework layer.

bool	InitFactionSettings ()
	Handles inheritance of faction settings from parents.

bool	InitOtherThings ()
	For situations where some other logic is to be appended in these checks and is to be performed before FinishInit.

void	FinishInitChildrenInsert ()
	For situations where some other logic is needed to be performed before or after this Insert.

void	FinishInit ()
	Initializes children, retrieves them, and spawns them.

void	Init (SCR_ScenarioFrameworkArea area=null, SCR_ScenarioFrameworkEActivationType activation=SCR_ScenarioFrameworkEActivationType.SAME_AS_PARENT)
	Initializes scenario framework layer.

void	AfterAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer)
	Initializes logic, plugins and actions.

override void	EOnFrame (IEntity owner, float timeSlice)
	Draws debug shapes during runtime if enabled.

override void	OnPostInit (IEntity owner)

void	SetDebugShapeSize (float fSize)

override void	_WB_OnCreate (IEntity owner, IEntitySource src)
	Renames all entities in the owner's children hierarchy.

void	RenameOwnerEntity (IEntity owner)
	Rename entity owner with default name if not restoring undo/redo.

void	SCR_ScenarioFrameworkLayerBase (IEntityComponentSource src, IEntity ent, IEntity parent)

void	~SCR_ScenarioFrameworkLayerBase ()
	Removes object in edit mode or despawns it if not in edit mode.

Public Attributes
ResourceName	m_sObjectToSpawn

ref array< ref SCR_ScenarioFrameworkFactionSwitchedObject >	m_aFactionSwitchedObjects

string	m_sID

bool	m_bUseExistingWorldAsset

string	m_sOverrideObjectDisplayName

bool	m_bCanBeGarbageCollected

bool	m_bRandomizePerFaction

EEntityCatalogType	m_eEntityCatalogType

ref array< EEditableEntityLabel >	m_aIncludedEditableEntityLabels

ref array< EEditableEntityLabel >	m_aExcludedEditableEntityLabels

bool	m_bIncludeOnlySelectedLabels

bool	m_bIgnoreOrientChildrenToTerrain

ref EntitySpawnParams	m_SpawnParams = new EntitySpawnParams()

vector	m_Size

ResourceName	m_sRandomlySpawnedObject

vector	m_vPosition

bool	m_bShowDebugShapesInWorkbench

Public Attributes inherited from SCR_ScenarioFrameworkLayerBase
SCR_EScenarioFrameworkSpawnChildrenType	m_SpawnChildren

FactionKey	m_sFactionKey

int	m_iRandomPercent

bool	m_bEnableRepeatedSpawn

int	m_iRepeatedSpawnNumber

float	m_fRepeatedSpawnTimer

bool	m_bShowDebugShapesDuringRuntime

SCR_ScenarioFrameworkEActivationType	m_eActivationType

ref array< ref SCR_ScenarioFrameworkActivationConditionBase >	m_aActivationConditions

SCR_EScenarioFrameworkLogicOperators	m_eActivationConditionLogic

ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActivationActions

bool	m_bExcludeFromDynamicDespawn

ref array< ref SCR_ScenarioFrameworkPlugin >	m_aPlugins

ref array< SCR_ScenarioFrameworkLayerBase >	m_aChildren = {}

ref array< SCR_ScenarioFrameworkLayerBase >	m_aRandomlySpawnedChildren = {}

ref array< SCR_ScenarioFrameworkLogic >	m_aLogic = {}

ref ScriptInvokerBase< ScriptInvokerScenarioFrameworkLayerMethod >	m_OnAllChildrenSpawned

ref array< IEntity >	m_aSpawnedEntities = {}

IEntity	m_Entity

SCR_ScenarioFrameworkArea	m_Area

SCR_ScenarioFrameworkLayerBase	m_ParentLayer

float	m_fDebugShapeRadius = 0.25

WorldTimestamp	m_fRepeatSpawnTimeStart

WorldTimestamp	m_fRepeatSpawnTimeEnd

int	m_iDebugShapeColor = ARGB(32, 0xFF, 0x00, 0x12)

int	m_iCurrentlySpawnedChildren

int	m_iSupposedSpawnedChildren

bool	m_bInitiated

bool	m_bDynamicallyDespawned

bool	m_bIsTerminated

int	m_iRepeatedSpawnNumberDefault = m_iRepeatedSpawnNumber

SCR_ScenarioFrameworkEActivationType	m_eActivationTypeDefault = m_eActivationType

Protected Member Functions
void	QueryObjectsInRange (float fRange=2.5)
	Queries nearby objects within range for the owner entity.

bool	GetEntity (notnull IEntity entity)
	Checks if entity matches prefab data, if not, checks if it matches object to spawn, if not, returns true.

void	InitSelectedObjectToSpawn ()
	If m_bRandomizePerFaction, then catalog system will ignore m_sObjectToSpawn if it has a catalog match. Otherwise it falls back to m_sObjectToSpawn.

void	InitSelectedObjectToPreview ()
	If m_bRandomizePerFaction, then it will set m_sObjectToSpawn to empty because the the catalog system has not been initialised.

Protected Member Functions inherited from SCR_ScenarioFrameworkLayerBase
void	SetFactionKey (FactionKey factionKey)

FactionKey	GetFactionKey ()

FactionKey	GetParentFactionKeyRecursive ()
	Climbs the hierarchy tree to find a defined FactionKey.

void	RepeatedSpawn ()
	Repetitive spawning with timer.

void	RepeatedSpawnCalled ()
	Repetitive spawning logic with countdown and condition checks.

void	ActivateLogic ()
	Initializes all logic components.

void	DrawDebugShape (bool draw)
	Draws debug shape if draw flag is true, creates sphere shape with specified color, flags, position, and radius.

Protected Attributes
IEntity	m_PreviewEntity

Additional Inherited Members
Static Public Attributes inherited from SCR_ScenarioFrameworkLayerBase
static const int	SPAWN_DELAY = 200

Constructor & Destructor Documentation

◆ SCR_ScenarioFrameworkSlotBase()

void SCR_ScenarioFrameworkSlotBase.SCR_ScenarioFrameworkSlotBase	(	IEntityComponentSource	src,
		IEntity	ent,
		IEntity	parent
	)

Parameters

[in]	src
[in]	ent
[in]	parent

◆ ~SCR_ScenarioFrameworkSlotBase()

void SCR_ScenarioFrameworkSlotBase.~SCR_ScenarioFrameworkSlotBase ( )

Deletes preview entity in workbench mode, returns if in edit mode, otherwise despawns scenario slot base.

Member Function Documentation

◆ _WB_AfterWorldUpdate()

override void SCR_ScenarioFrameworkSlotBase._WB_AfterWorldUpdate	(	IEntity	owner,
		float	timeSlice
	)

Draws debug shape based on m_bShowDebugShapesInWorkbench setting in Workbench after world update.

Parameters

[in]	owner	The owner represents the entity (object) calling the method.
[in]	timeSlice	TimeSlice represents the time interval for which the method is called during each frame update.

◆ _WB_OnInit()

override void SCR_ScenarioFrameworkSlotBase._WB_OnInit	(	IEntity	owner,
		inout vector	mat[4],
		IEntitySource	src
	)

Initializes preview entity, deletes previous one, loads resource, and spawns entity preview if resource is valid.

Parameters

[in]	owner	The owner represents the entity initiating the method call, typically an object in the game world.
[in,out]	mat	Mat represents the world space transformation matrix for the object owner in the method.
[in]	src	Source entity represents the object that triggers the initialization of the preview process in the method.

◆ _WB_OnKeyChanged()

override bool SCR_ScenarioFrameworkSlotBase._WB_OnKeyChanged	(	IEntity	owner,
		BaseContainer	src,
		string	key,
		BaseContainerList	ownerContainers,
		IEntity	parent
	)

Manages key changes for debug shapes, object spawning, and entity deletion in Workbench.

Parameters

[in]	owner	The owner represents the entity invoking the method.
[in]	src	represents the source container for key changes in the method.
[in]	key	represents the workbench attribute

Implemented in SCR_ScenarioFrameworkSlotWaypoint.

◆ _WB_SetTransform()

override void SCR_ScenarioFrameworkSlotBase._WB_SetTransform	(	IEntity	owner,
		inout vector	mat[4],
		IEntitySource	src
	)

Sets preview entity's transform or teleports it if it's a BaseGameEntity.

Parameters

[in]	owner	The owner represents the entity controlling the transformation changes in the method.
[in,out]	mat	Represents transformation matrix for object's position, rotation, and scale.
[in]	src	Source entity representing the object whose transform is being set.

◆ AfterAllChildrenSpawned()

override void SCR_ScenarioFrameworkSlotBase.AfterAllChildrenSpawned ( SCR_ScenarioFrameworkLayerBase layer )

Initializes plugins, actions, and checks if parent layer has all children spawned after all children have spawned in scenario framework.

Parameters

[in] layer Initializes layer, sets up plugins, actions, and checks parent layer spawning status.

Implements SCR_ScenarioFrameworkLayerBase.

Implemented in SCR_ScenarioFrameworkSlotAI, SCR_ScenarioFrameworkSlotClearArea, SCR_ScenarioFrameworkSlotMarker, SCR_ScenarioFrameworkSlotPick, SCR_ScenarioFrameworkSlotTaskAI, and SCR_ScenarioFrameworkSlotTrigger.

◆ DynamicDespawn()

override void SCR_ScenarioFrameworkSlotBase.DynamicDespawn ( SCR_ScenarioFrameworkLayerBase layer )

//! Dynamically despawns this layer.

Parameters

[in] layer Layer represents the scenario framework layer where dynamic despawning occurs.

Implements SCR_ScenarioFrameworkLayerBase.

Implemented in SCR_ScenarioFrameworkSlotAI, SCR_ScenarioFrameworkSlotDefend, SCR_ScenarioFrameworkSlotPick, SCR_ScenarioFrameworkSlotTask, and SCR_ScenarioFrameworkSlotTaskAI.

◆ FinishInit()

override void SCR_ScenarioFrameworkSlotBase.FinishInit ( )

Finishes initialization, assigns unique ID, sets up damage manager, event handlers, inventory, and garbage system if applicable.

Implements SCR_ScenarioFrameworkLayerBase.

Implemented in SCR_ScenarioFrameworkSlotClearArea, SCR_ScenarioFrameworkSlotExtraction, SCR_ScenarioFrameworkSlotTask, and SCR_ScenarioFrameworkSlotTrigger.

◆ GetAreaWB()

SCR_ScenarioFrameworkArea SCR_ScenarioFrameworkSlotBase.GetAreaWB ( )

Returns: the ScenarioFrameworkArea component from the parent entity or owner, or null if not found.

◆ GetEntity()

bool SCR_ScenarioFrameworkSlotBase.GetEntity ( notnull IEntity entity )

protected

Checks if entity matches prefab data, if not, checks if it matches object to spawn, if not, returns true.

Parameters

[in] entity to be outed

Returns: whether the provided entity matches the expected entity based on prefab data or object name.

◆ GetObjectToSpawn()

ResourceName SCR_ScenarioFrameworkSlotBase.GetObjectToSpawn ( )

Returns: spawned object ResourceName.

◆ GetOverriddenObjectDisplayName()

string SCR_ScenarioFrameworkSlotBase.GetOverriddenObjectDisplayName ( )

Returns: the display name for an overridden object.

◆ GetRandomAsset()

ResourceName SCR_ScenarioFrameworkSlotBase.GetRandomAsset ( out ResourceName prefab )

Randomly selects an entity from a catalog based on provided parameters, handles error cases, and returns the prefab of the.

Parameters

[out] prefab Randomly selected prefab from entity catalog for randomized spawning.

Returns: The return value represents a randomly selected prefab from the entity catalog based on the applied labels and filters.

◆ GetRandomlySpawnedObject()

ResourceName SCR_ScenarioFrameworkSlotBase.GetRandomlySpawnedObject ( )

Returns: Randomly spawned object ResourceName.

◆ GetSelectedObjectToSpawn()

ResourceName SCR_ScenarioFrameworkSlotBase.GetSelectedObjectToSpawn ( )

First attempts to get get teh Fction Switched Object for the provided faciton key, then falls back to m_sObjectToSpawn.

Init does not include Catalog entities as the catalog manager has not been initialised yet. If m_bRandomizePerFaction, then catalog system will ignore m_sObjectToSpawn if it has a catalog match. Otherwise it falls back to m_sObjectToSpawn.

◆ GetSpawnedEntityDisplayName()

string SCR_ScenarioFrameworkSlotBase.GetSpawnedEntityDisplayName ( )

Returns: the display name of the spawned entity or overridden display name if provided, otherwise returns an empty string.

◆ GetSpawnedObjectName()

string SCR_ScenarioFrameworkSlotBase.GetSpawnedObjectName ( )

Returns: The spawned object's unique identifier as a string.

◆ Init()

override void SCR_ScenarioFrameworkSlotBase.Init	(	SCR_ScenarioFrameworkArea	area = `null`,
		SCR_ScenarioFrameworkEActivationType	activation = `SCR_ScenarioFrameworkEActivationType::SAME_AS_PARENT`
	)

Initializes scenario framework slot.

Parameters

[in]	area	that this slot is nested into.
[in]	activation	Activates scenario framework action type, sets up for children spawning.

Implements SCR_ScenarioFrameworkLayerBase.

◆ InitAlreadyHappened()

override bool SCR_ScenarioFrameworkSlotBase.InitAlreadyHappened ( )

Initializes whether an init has already happened, but for slots it always returns false.

Returns: false, indicating that the init has not yet occurred.

Implements SCR_ScenarioFrameworkLayerBase.

◆ InitEntitySpawn()

bool SCR_ScenarioFrameworkSlotBase.InitEntitySpawn ( )

Spawns entity if not existing or queries objects in range, checks initiation success.

Returns: true if entity spawning is successful.

◆ InitEntitySpawnCheck()

bool SCR_ScenarioFrameworkSlotBase.InitEntitySpawnCheck ( )

Checks if entity is spawned, if not, waits for all children to spawn then checks again.

Returns: true if all children entities have been spawned, false otherwise.

Implemented in SCR_ScenarioFrameworkSlotTask.

◆ InitOtherThings()

override bool SCR_ScenarioFrameworkSlotBase.InitOtherThings ( )

Initializes selected object, repeatable spawn, and entity spawn.

Returns: true if all initialization steps succeed, false otherwise.

Implements SCR_ScenarioFrameworkLayerBase.

Implemented in SCR_ScenarioFrameworkQRFSlotAI, SCR_ScenarioFrameworkSlotAI, and SCR_ScenarioFrameworkSlotTaskAI.

◆ InitRepeatableSpawn()

bool SCR_ScenarioFrameworkSlotBase.InitRepeatableSpawn ( )

Checks if object already exists, disables repetition and logs error.

Returns: true if the object can be respawned, false otherwise.

◆ InitSelectedObjectToPreview()

void SCR_ScenarioFrameworkSlotBase.InitSelectedObjectToPreview ( )

protected

If m_bRandomizePerFaction, then it will set m_sObjectToSpawn to empty because the the catalog system has not been initialised.

It would be incorect to show the manually set object or the faction switched object because the catalog will take preference at runtime.

◆ InitSelectedObjectToSpawn()

void SCR_ScenarioFrameworkSlotBase.InitSelectedObjectToSpawn ( )

protected

If m_bRandomizePerFaction, then catalog system will ignore m_sObjectToSpawn if it has a catalog match. Otherwise it falls back to m_sObjectToSpawn.

◆ OnCompartmentEntered()

void SCR_ScenarioFrameworkSlotBase.OnCompartmentEntered	(	IEntity	vehicle,
		BaseCompartmentManagerComponent	mgr,
		IEntity	occupant,
		int	managerId,
		int	slotID
	)

Excludes vehicle from dynamic despawning when entering a component.

Parameters

[in]	vehicle	Excludes vehicle from dynamic despawning when entering a component.
[in]	mgr	BaseCompartmentManagerComponent represents an entity component managing cargo, passengers, and other objects in a vehicle.
[in]	occupant	Occupant represents the entity currently inside the vehicle when the method is called.
[in]	managerId	ManagerId represents the unique identifier for the comparment manager in the vehicle.
[in]	slotID	SlotID represents the specific seat.

◆ OnInventoryParentChanged()

void SCR_ScenarioFrameworkSlotBase.OnInventoryParentChanged	(	InventoryStorageSlot	oldSlot,
		InventoryStorageSlot	newSlot
	)

Method changes inventory parent slot and sets dynamic despawn exclusion for an entity.

Parameters

[in]	oldSlot	Represents previous inventory slot where item was before being moved.
[in]	newSlot	Represents new inventory slot for item transfer.

◆ OnObjectDamage()

void SCR_ScenarioFrameworkSlotBase.OnObjectDamage ( EDamageState state )

Parameters

[in] state Checks if object is destroyed, removes damage state change listener, and terminates object if repeated spawn is not enabled and run out of numbers

◆ QueryObjectsInRange()

void SCR_ScenarioFrameworkSlotBase.QueryObjectsInRange ( float fRange = 2::5 )

protected

Queries nearby objects within range for the owner entity.

Parameters

[in] fRange Represents search radius for objects in range query.

◆ RestoreToDefault()

override void SCR_ScenarioFrameworkSlotBase.RestoreToDefault	(	bool	includeChildren = `false`,
		bool	reinitAfterRestoration = `false`,
		bool	affectRandomization = `true`
	)

Restores default settings, clears random object, resets position, calls superclass method.

Parameters

[in]	includeChildren	Includes children objects in default restoration process.
[in]	reinitAfterRestoration	Restores object state after restoration, resetting internal variables.
[in]	affectRandomization	Affects randomization during object restoration.

Implements SCR_ScenarioFrameworkLayerBase.

Implemented in SCR_ScenarioFrameworkSlotAI, SCR_ScenarioFrameworkSlotMarker, SCR_ScenarioFrameworkSlotTask, SCR_ScenarioFrameworkSlotTaskAI, and SCR_ScenarioFrameworkSlotTrigger.

◆ SetOverriddenObjectDisplayName()

void SCR_ScenarioFrameworkSlotBase.SetOverriddenObjectDisplayName ( string name )

Parameters

[in] name Sets object display name override.

◆ SetRandomlySpawnedObject()

void SCR_ScenarioFrameworkSlotBase.SetRandomlySpawnedObject ( ResourceName name )

Parameters

[in] name Represents an object to spawn randomly in the world.

◆ SpawnAsset()

IEntity SCR_ScenarioFrameworkSlotBase.SpawnAsset ( )

Spawns random asset, sets position, ignores terrain orientation, requests navmesh rebuild, adds to spawned entities.

Returns: an entity spawned from the specified resource.

Implemented in SCR_ScenarioFrameworkSlotWaypoint.

◆ SpawnChildren()

override void SCR_ScenarioFrameworkSlotBase.SpawnChildren ( bool previouslyRandomized = false )

Slot cannot have children.

Parameters

[in] previouslyRandomized PreviouslyRandomized: Boolean indicating if children were previously randomized before spawning.

Implements SCR_ScenarioFrameworkLayerBase.

◆ SpawnEntityPreview()

void SCR_ScenarioFrameworkSlotBase.SpawnEntityPreview	(	IEntity	owner,
		Resource	resource
	)

Spawns preview entity for given resource at owner's position.

Parameters

[in]	owner	The owner represents the entity that spawns the preview entity in the method.
[in]	resource	Resource represents an object or entity prefab to spawn as preview for the owner entity.

Member Data Documentation

◆ m_aExcludedEditableEntityLabels

ref array<EEditableEntityLabel> SCR_ScenarioFrameworkSlotBase.m_aExcludedEditableEntityLabels

◆ m_aFactionSwitchedObjects

ref array<ref SCR_ScenarioFrameworkFactionSwitchedObject> SCR_ScenarioFrameworkSlotBase.m_aFactionSwitchedObjects

◆ m_aIncludedEditableEntityLabels

ref array<EEditableEntityLabel> SCR_ScenarioFrameworkSlotBase.m_aIncludedEditableEntityLabels

◆ m_bCanBeGarbageCollected

bool SCR_ScenarioFrameworkSlotBase.m_bCanBeGarbageCollected

◆ m_bIgnoreOrientChildrenToTerrain

bool SCR_ScenarioFrameworkSlotBase.m_bIgnoreOrientChildrenToTerrain

◆ m_bIncludeOnlySelectedLabels

bool SCR_ScenarioFrameworkSlotBase.m_bIncludeOnlySelectedLabels

◆ m_bRandomizePerFaction

bool SCR_ScenarioFrameworkSlotBase.m_bRandomizePerFaction

◆ m_bShowDebugShapesInWorkbench

bool SCR_ScenarioFrameworkSlotBase.m_bShowDebugShapesInWorkbench

◆ m_bUseExistingWorldAsset

bool SCR_ScenarioFrameworkSlotBase.m_bUseExistingWorldAsset

◆ m_eEntityCatalogType

EEntityCatalogType SCR_ScenarioFrameworkSlotBase.m_eEntityCatalogType

◆ m_PreviewEntity

IEntity SCR_ScenarioFrameworkSlotBase.m_PreviewEntity

protected

◆ m_sID

string SCR_ScenarioFrameworkSlotBase.m_sID

◆ m_Size

vector SCR_ScenarioFrameworkSlotBase.m_Size

◆ m_sObjectToSpawn

ResourceName SCR_ScenarioFrameworkSlotBase.m_sObjectToSpawn

◆ m_sOverrideObjectDisplayName

string SCR_ScenarioFrameworkSlotBase.m_sOverrideObjectDisplayName

◆ m_SpawnParams

ref EntitySpawnParams SCR_ScenarioFrameworkSlotBase.m_SpawnParams = new EntitySpawnParams()

◆ m_sRandomlySpawnedObject

ResourceName SCR_ScenarioFrameworkSlotBase.m_sRandomlySpawnedObject

◆ m_vPosition

vector SCR_ScenarioFrameworkSlotBase.m_vPosition

The documentation for this interface was generated from the following file:

Game/ScenarioFramework/Components/SCR_ScenarioFrameworkSlotBase.c

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ SCR_ScenarioFrameworkSlotBase()

◆ ~SCR_ScenarioFrameworkSlotBase()

Member Function Documentation

◆ _WB_AfterWorldUpdate()

◆ _WB_OnInit()

◆ _WB_OnKeyChanged()

◆ _WB_SetTransform()

◆ AfterAllChildrenSpawned()

◆ DynamicDespawn()

◆ FinishInit()

◆ GetAreaWB()

◆ GetEntity()

◆ GetObjectToSpawn()

◆ GetOverriddenObjectDisplayName()

◆ GetRandomAsset()

◆ GetRandomlySpawnedObject()

◆ GetSelectedObjectToSpawn()

◆ GetSpawnedEntityDisplayName()

◆ GetSpawnedObjectName()

◆ Init()

◆ InitAlreadyHappened()

◆ InitEntitySpawn()

◆ InitEntitySpawnCheck()

◆ InitOtherThings()

◆ InitRepeatableSpawn()

◆ InitSelectedObjectToPreview()

◆ InitSelectedObjectToSpawn()

◆ OnCompartmentEntered()

◆ OnInventoryParentChanged()

◆ OnObjectDamage()

◆ QueryObjectsInRange()

◆ RestoreToDefault()

◆ SetOverriddenObjectDisplayName()

◆ SetRandomlySpawnedObject()

◆ SpawnAsset()

◆ SpawnChildren()

◆ SpawnEntityPreview()

Member Data Documentation

◆ m_aExcludedEditableEntityLabels

◆ m_aFactionSwitchedObjects

◆ m_aIncludedEditableEntityLabels

◆ m_bCanBeGarbageCollected

◆ m_bIgnoreOrientChildrenToTerrain

◆ m_bIncludeOnlySelectedLabels

◆ m_bRandomizePerFaction

◆ m_bShowDebugShapesInWorkbench

◆ m_bUseExistingWorldAsset

◆ m_eEntityCatalogType

◆ m_PreviewEntity

◆ m_sID

◆ m_Size

◆ m_sObjectToSpawn

◆ m_sOverrideObjectDisplayName

◆ m_SpawnParams

◆ m_sRandomlySpawnedObject

◆ m_vPosition
