SCR_ScenarioFrameworkSlotTaskAI Interface Reference

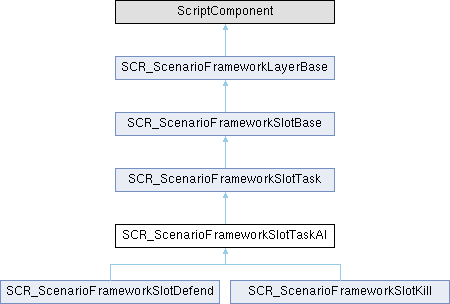

Inheritance diagram for SCR_ScenarioFrameworkSlotTaskAI:

Public Member Functions
void	SetAIPrefabsForRemoval (array< ResourceName > arrayForRemoval)
array< ResourceName >	GetAIPrefabsForRemoval ()
override void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Restores default settings, clears waypoints, AI group, prefabs, slots, and initializes randomization.
override void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	Dynamically despawns this layer.
override bool	InitOtherThings ()
	Clears cached values and handles Waypoint Sets.
override void	AfterAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer)
	Initializes AI after all children spawned, removes event handler.
void	AfterAllAgentsSpawned ()
	Initializes plugins, actions, and checks for parent layer spawn completion, then sets waypoints for AI if not initialized.
void	ActivateAI ()
	Activates AI group, removes unwanted prefabs, balances units count, sets on agent remove and add events,.
void	OnAgentAdded (AIAgent child)
void	DecreaseAIGroupMemberCount (SCR_AIGroup group, AIAgent agent)
	Decreases AI group member count, handles termination if group empty, adds removed AI entity prefab to removal list.
Public Member Functions inherited from SCR_ScenarioFrameworkSlotTask
void	OnTaskStateChanged (SCR_TaskState newState)
void	SetTaskResolvedBeforeLoad (bool state)
LocalizedString	GetTaskTitle (int iState=0)
	Returns localized string for task title based on current state.
LocalizedString	GetTaskExecutionBriefing ()
string	GetTaskDescription (int iState=0)
	Returns the description of the current task based on its state.
SCR_TaskState	GetTaskState ()
SCR_ScenarioFrameworkLayerTask	GetParentTaskLayer ()
override void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Resets all action activations, cancels task, and restores default settings.
override void	DynamicReinit ()
	Initializes scenario with same activation type as parent.
override void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	Removes self from dynamic despawn list, if not already spawned, initiates despawn, removes inventory change event.
override bool	InitNotTerminated ()
	Checks if layer is not terminated, spawns children if parent exists, returns false if terminated or children not spawnned.
override bool	InitEntitySpawnCheck ()
	Spawn check for entity initiation, handles termination if no entity, returns true if entity exists, false otherwise.
override void	FinishInit ()
	Finishes initialization, sets termination flag, and calls base class FinishInit.
void	~SCR_ScenarioFrameworkSlotTask ()
	Removes current task from support entity if in scenario mode, otherwise despawns self.
Public Member Functions inherited from SCR_ScenarioFrameworkSlotBase
void	OnObjectDamage (EDamageState state)
void	OnInventoryParentChanged (InventoryStorageSlot oldSlot, InventoryStorageSlot newSlot)
	Method changes inventory parent slot and sets dynamic despawn exclusion for an entity.
void	OnCompartmentEntered (IEntity vehicle, BaseCompartmentManagerComponent mgr, IEntity occupant, int managerId, int slotID)
	Excludes vehicle from dynamic despawning when entering a component.
string	GetOverriddenObjectDisplayName ()
void	SetOverriddenObjectDisplayName (string name)
string	GetSpawnedEntityDisplayName ()
SCR_ScenarioFrameworkArea	GetAreaWB ()
string	GetSpawnedObjectName ()
ResourceName	GetObjectToSpawn ()
ResourceName	GetSelectedObjectToSpawn ()
	First attempts to get get teh Fction Switched Object for the provided faciton key, then falls back to m_sObjectToSpawn.
ResourceName	GetRandomlySpawnedObject ()
void	SetRandomlySpawnedObject (ResourceName name)
override void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Restores default settings, clears random object, resets position, calls superclass method.
override void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	//! Dynamically despawns this layer.
override bool	InitAlreadyHappened ()
	Initializes whether an init has already happened, but for slots it always returns false.
bool	InitRepeatableSpawn ()
	Checks if object already exists, disables repetition and logs error.
bool	InitEntitySpawnCheck ()
	Checks if entity is spawned, if not, waits for all children to spawn then checks again.
bool	InitEntitySpawn ()
	Spawns entity if not existing or queries objects in range, checks initiation success.
override bool	InitOtherThings ()
	Initializes selected object, repeatable spawn, and entity spawn.
override void	FinishInit ()
	Finishes initialization, assigns unique ID, sets up damage manager, event handlers, inventory, and garbage system if applicable.
override void	Init (SCR_ScenarioFrameworkArea area=null, SCR_ScenarioFrameworkEActivationType activation=SCR_ScenarioFrameworkEActivationType.SAME_AS_PARENT)
	Initializes scenario framework slot.
override void	AfterAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer)
	Initializes plugins, actions, and checks if parent layer has all children spawned after all children have spawned in scenario framework.
override void	SpawnChildren (bool previouslyRandomized=false)
	Slot cannot have children.
ResourceName	GetRandomAsset (out ResourceName prefab)
	Randomly selects an entity from a catalog based on provided parameters, handles error cases, and returns the prefab of the.
IEntity	SpawnAsset ()
	Spawns random asset, sets position, ignores terrain orientation, requests navmesh rebuild, adds to spawned entities.
override void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)
	Draws debug shape based on m_bShowDebugShapesInWorkbench setting in Workbench after world update.
override void	_WB_SetTransform (IEntity owner, inout vector mat[4], IEntitySource src)
	Sets preview entity's transform or teleports it if it's a BaseGameEntity.
void	SpawnEntityPreview (IEntity owner, Resource resource)
	Spawns preview entity for given resource at owner's position.
override void	_WB_OnInit (IEntity owner, inout vector mat[4], IEntitySource src)
	Initializes preview entity, deletes previous one, loads resource, and spawns entity preview if resource is valid.
override bool	_WB_OnKeyChanged (IEntity owner, BaseContainer src, string key, BaseContainerList ownerContainers, IEntity parent)
	Manages key changes for debug shapes, object spawning, and entity deletion in Workbench.
void	SCR_ScenarioFrameworkSlotBase (IEntityComponentSource src, IEntity ent, IEntity parent)
void	~SCR_ScenarioFrameworkSlotBase ()
	Deletes preview entity in workbench mode, returns if in edit mode, otherwise despawns scenario slot base.
Public Member Functions inherited from SCR_ScenarioFrameworkLayerBase
string	GetName ()
void	SetEntity (IEntity entity)
bool	GetIsTerminated ()
void	SetIsTerminated (bool state)
void	SetRandomlySpawnedChildren (array< string > randomlySpawnedChildren)
void	AddRandomlySpawnedChild (SCR_ScenarioFrameworkLayerBase child)
	Adds child to list if not already present, ensuring uniqueness.
array< SCR_ScenarioFrameworkLayerBase >	GetRandomlySpawnedChildren ()
int	GetPlayersCount (FactionKey factionName="")
	Counts players in specified faction.
int	GetMaxPlayersForGameMode (FactionKey factionName="")
	Determines maximum players for a mission based on its mode, returns 4 if mission header is invalid.
SCR_ScenarioFrameworkArea	GetParentArea ()
void	GetAllLayers (out notnull array< SCR_ScenarioFrameworkLayerBase > layers)
	Gathers all layers from child entities and their siblings, adding them to the provided array.
void	GetAllLayers (out notnull array< SCR_ScenarioFrameworkLayerBase > layers, SCR_ScenarioFrameworkEActivationType activationType)
	Gathers all layers from child entities and their siblings, adding them to the provided array, filtered by activation type.
void	GetAllLayerTasks (out notnull array< SCR_ScenarioFrameworkLayerTask > layerTasks)
	Gathers all layer tasks from child entities and their siblings, adding them to the provided array.
void	GetAllSlotTasks (out notnull array< SCR_ScenarioFrameworkSlotTask > slotTasks)
	Gets all slot tasks from all layers in the hierarchy of the owner entity, including sibling layers' tasks.
SCR_ScenarioFrameworkLayerTask	GetLayerTask ()
SCR_ScenarioFrameworkSlotTask	GetSlotTask (array< SCR_ScenarioFrameworkLayerBase > aLayers)
	Retrieves slot task from layer child entities.
void	SetParentLayer (SCR_ScenarioFrameworkLayerBase parentLayer)
SCR_ScenarioFrameworkLayerBase	GetParentLayer ()
SCR_EScenarioFrameworkSpawnChildrenType	GetSpawnChildrenType ()
bool	GetEnableRepeatedSpawn ()
void	SetEnableRepeatedSpawn (bool value)
SCR_ScenarioFrameworkEActivationType	GetActivationType ()
void	SetActivationType (SCR_ScenarioFrameworkEActivationType activationType)
bool	GetIsInitiated ()
bool	GetDynamicDespawnExcluded ()
void	SetDynamicDespawnExcluded (bool excluded)
array< IEntity >	GetSpawnedEntities ()
array< SCR_ScenarioFrameworkLayerBase >	GetChildrenEntities ()
SCR_ScenarioFrameworkLayerBase	GetRandomChildren ()
void	GetChildren (out array< SCR_ScenarioFrameworkLayerBase > children)
	Reverses and inserts children layers into an array.
void	GetChildren (out array< SCR_ScenarioFrameworkLayerBase > children, SCR_ScenarioFrameworkEActivationType activationType)
	Reverses and inserts children layers into an array, filtered by activation type.
void	GetLogics (out array< SCR_ScenarioFrameworkLogic > logics)
	Retrieves all child scenario framework logic entities from owner entity and adds them to logics array if not already present.
array< SCR_ScenarioFrameworkLogic >	GetSpawnedLogics ()
array< ref SCR_ScenarioFrameworkPlugin >	GetSpawnedPlugins ()
int	GetRepeatedSpawnNumber ()
void	SetRepeatedSpawnNumber (int number)
ScriptInvokerScenarioFrameworkLayer	GetOnAllChildrenSpawned ()
void	InvokeAllChildrenSpawned ()
	Spawns all children and triggers invoker on completion.
void	CalculateSupposedSpawnedChildren (bool previouslyRandomized=false)
	Calculates supposed spawned children based on activation type, termination, initiation, and conditions.
void	CheckAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer=null)
	Checks if all children layers have spawned or spawns one randomly if specified.
void	SpawnChildren (bool previouslyRandomized=false)
	Spawns children based on scenario settings, either all at once or randomly.
void	SpawnPreviouslyRandomizedChildren ()
	Spawns children with delay based on their index.
void	SpawnRandomOneChild (bool previouslyRandomized=false)
	Spawns random child object if not previously randomized, else spawns previously randomized children.
void	SpawnRandomMultipleChildren (bool previouslyRandomized=false)
	Spawns random children based on player count, if previously randomized, uses previous children, otherwise selects from available children.
void	InitChild (SCR_ScenarioFrameworkLayerBase child)
	Initializes child layer, sets parent layer, and initializes child with parent area and action type.
IEntity	GetSpawnedEntity ()
void	RestoreToDefault (bool includeChildren=false, bool reinitAfterRestoration=false, bool affectRandomization=true)
	Restores default settings, clears children, removes spawned entities, optionally reinitializes after restoration.
void	DynamicDespawn (SCR_ScenarioFrameworkLayerBase layer)
	Dynamically despawns this layer.
void	DynamicReinit ()
	Reinitializes this layer.
bool	InitAlreadyHappened ()
	Initialization check if already happened.
bool	InitParentLayer ()
	Initializes parent layer.
bool	InitNotTerminated ()
	Checks if layer is not terminated, spawns children if parent exists, returns false if terminated or children not spawnned.
bool	InitDynDespawnAndActivation (SCR_ScenarioFrameworkEActivationType activation)
	Checks if object is not dynamically despawned, then verifies if activation type matches, spawns all children if.
bool	InitActivationConditions (bool calledFromInit=false)
	Checks activation conditions for scenario layer, sets condition status based on logic operator, checks parent layer if needed.
bool	InitArea (SCR_ScenarioFrameworkArea area)
	Initializes area for scenario framework layer.
bool	InitFactionSettings ()
	Handles inheritance of faction settings from parents.
bool	InitOtherThings ()
	For situations where some other logic is to be appended in these checks and is to be performed before FinishInit.
void	FinishInitChildrenInsert ()
	For situations where some other logic is needed to be performed before or after this Insert.
void	FinishInit ()
	Initializes children, retrieves them, and spawns them.
void	Init (SCR_ScenarioFrameworkArea area=null, SCR_ScenarioFrameworkEActivationType activation=SCR_ScenarioFrameworkEActivationType.SAME_AS_PARENT)
	Initializes scenario framework layer.
void	AfterAllChildrenSpawned (SCR_ScenarioFrameworkLayerBase layer)
	Initializes logic, plugins and actions.
override void	EOnFrame (IEntity owner, float timeSlice)
	Draws debug shapes during runtime if enabled.
override void	OnPostInit (IEntity owner)
void	SetDebugShapeSize (float fSize)
override void	_WB_OnCreate (IEntity owner, IEntitySource src)
	Renames all entities in the owner's children hierarchy.
void	RenameOwnerEntity (IEntity owner)
	Rename entity owner with default name if not restoring undo/redo.
void	SCR_ScenarioFrameworkLayerBase (IEntityComponentSource src, IEntity ent, IEntity parent)
void	~SCR_ScenarioFrameworkLayerBase ()
	Removes object in edit mode or despawns it if not in edit mode.

Public Attributes
ref SCR_ScenarioFrameworkWaypointSet	m_WaypointSet
bool	m_bSpawnAIOnWPPos
ResourceName	m_sWPToSpawn
bool	m_bBalanceOnPlayersCount
int	m_iMinUnitsInGroup
bool	m_bExcludeFromDynamicDespawnOnVehicleEntered
SCR_EAIGroupFormation	m_eAIGroupFormation
EAISkill	m_eAISkill
EAICombatType	m_eAICombatType
float	m_fPerceptionFactor
ResourceName	m_sGroupPrefab
ref array< AIWaypoint >	m_aWaypoints = {}
SCR_AIGroup	m_AIGroup
ref array< ResourceName >	m_aAIPrefabsForRemoval = {}
ref array< SCR_ScenarioFrameworkSlotWaypoint >	m_aSlotWaypoints = {}
int	m_iCurrentlySpawnedWaypoints
bool	m_bWaypointsInitialized
Public Attributes inherited from SCR_ScenarioFrameworkSlotTask
LocalizedString	m_sTaskTitle
LocalizedString	m_sTaskDescription
LocalizedString	m_sTaskExecutionBriefing
string	m_sTaskIntroVoiceline
ref array< ref SCR_ScenarioFrameworkActivationConditionBase >	m_aFinishConditions
SCR_EScenarioFrameworkLogicOperators	m_eFinishConditionLogic
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActionsOnFinished
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActionsOnCreated
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActionsOnFailed
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActionsOnProgress
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActionsOnUpdated
SCR_ScenarioFrameworkLayerTask	m_TaskLayer
bool	m_bTaskResolvedBeforeLoad
bool	m_bTempIsTerminated
Public Attributes inherited from SCR_ScenarioFrameworkSlotBase
ResourceName	m_sObjectToSpawn
ref array< ref SCR_ScenarioFrameworkFactionSwitchedObject >	m_aFactionSwitchedObjects
string	m_sID
bool	m_bUseExistingWorldAsset
string	m_sOverrideObjectDisplayName
bool	m_bCanBeGarbageCollected
bool	m_bRandomizePerFaction
EEntityCatalogType	m_eEntityCatalogType
ref array< EEditableEntityLabel >	m_aIncludedEditableEntityLabels
ref array< EEditableEntityLabel >	m_aExcludedEditableEntityLabels
bool	m_bIncludeOnlySelectedLabels
bool	m_bIgnoreOrientChildrenToTerrain
ref EntitySpawnParams	m_SpawnParams = new EntitySpawnParams()
vector	m_Size
ResourceName	m_sRandomlySpawnedObject
vector	m_vPosition
bool	m_bShowDebugShapesInWorkbench
Public Attributes inherited from SCR_ScenarioFrameworkLayerBase
SCR_EScenarioFrameworkSpawnChildrenType	m_SpawnChildren
FactionKey	m_sFactionKey
int	m_iRandomPercent
bool	m_bEnableRepeatedSpawn
int	m_iRepeatedSpawnNumber
float	m_fRepeatedSpawnTimer
bool	m_bShowDebugShapesDuringRuntime
SCR_ScenarioFrameworkEActivationType	m_eActivationType
ref array< ref SCR_ScenarioFrameworkActivationConditionBase >	m_aActivationConditions
SCR_EScenarioFrameworkLogicOperators	m_eActivationConditionLogic
ref array< ref SCR_ScenarioFrameworkActionBase >	m_aActivationActions
bool	m_bExcludeFromDynamicDespawn
ref array< ref SCR_ScenarioFrameworkPlugin >	m_aPlugins
ref array< SCR_ScenarioFrameworkLayerBase >	m_aChildren = {}
ref array< SCR_ScenarioFrameworkLayerBase >	m_aRandomlySpawnedChildren = {}
ref array< SCR_ScenarioFrameworkLogic >	m_aLogic = {}
ref ScriptInvokerBase< ScriptInvokerScenarioFrameworkLayerMethod >	m_OnAllChildrenSpawned
ref array< IEntity >	m_aSpawnedEntities = {}
IEntity	m_Entity
SCR_ScenarioFrameworkArea	m_Area
SCR_ScenarioFrameworkLayerBase	m_ParentLayer
float	m_fDebugShapeRadius = 0.25
WorldTimestamp	m_fRepeatSpawnTimeStart
WorldTimestamp	m_fRepeatSpawnTimeEnd
int	m_iDebugShapeColor = ARGB(32, 0xFF, 0x00, 0x12)
int	m_iCurrentlySpawnedChildren
int	m_iSupposedSpawnedChildren
bool	m_bInitiated
bool	m_bDynamicallyDespawned
bool	m_bIsTerminated
int	m_iRepeatedSpawnNumberDefault = m_iRepeatedSpawnNumber
SCR_ScenarioFrameworkEActivationType	m_eActivationTypeDefault = m_eActivationType

Protected Member Functions
void	OnAgentCompartmentEntered (AIAgent agent, IEntity targetEntity, BaseCompartmentManagerComponent manager, int mgrID, int slotID, bool move)
void	OnAgentCompartmentLeft (AIAgent agent, IEntity targetEntity, BaseCompartmentManagerComponent manager, int mgrID, int slotID, bool move)
void	InitGroupComponents ()
	Initializes AI group components, sets formation, and combat parameters for agents in the group.
void	InitWaypoints ()
	Initializes waypoints by finding them in specified layers, adding them to list, and processing them after initialization.
void	CheckWaypointsAfterInit (SCR_ScenarioFrameworkLayerBase layer)
	Checks waypoints after init, adds/removes event handler for all waypoints spawned, increments spawned way.
void	ProcessWaypoints (SCR_ScenarioFrameworkLayerBase layer)
	Initializes waypoints for AI if scenario is initiated, otherwise waits for all children to spawn before setting waypoints.
void	SetWaypointToAI (SCR_ScenarioFrameworkLayerBase layer)
AIWaypoint	CreateDefaultWaypoint ()
	Creates default waypoint for AI entity, spawns it in world space, adds it to list.
bool	CreateAIGroup ()
	Creates an AI group, sets its faction, adds entity to group, and optionally sets entity's position.
Protected Member Functions inherited from SCR_ScenarioFrameworkSlotTask
void	StoreTaskSubjectToParentTaskLayer ()
	Binds current task to parent task layer if available, else logs error.
Protected Member Functions inherited from SCR_ScenarioFrameworkSlotBase
void	QueryObjectsInRange (float fRange=2.5)
	Queries nearby objects within range for the owner entity.
bool	GetEntity (notnull IEntity entity)
	Checks if entity matches prefab data, if not, checks if it matches object to spawn, if not, returns true.
void	InitSelectedObjectToSpawn ()
	If m_bRandomizePerFaction, then catalog system will ignore m_sObjectToSpawn if it has a catalog match. Otherwise it falls back to m_sObjectToSpawn.
void	InitSelectedObjectToPreview ()
	If m_bRandomizePerFaction, then it will set m_sObjectToSpawn to empty because the the catalog system has not been initialised.
Protected Member Functions inherited from SCR_ScenarioFrameworkLayerBase
void	SetFactionKey (FactionKey factionKey)
FactionKey	GetFactionKey ()
FactionKey	GetParentFactionKeyRecursive ()
	Climbs the hierarchy tree to find a defined FactionKey.
void	RepeatedSpawn ()
	Repetitive spawning with timer.
void	RepeatedSpawnCalled ()
	Repetitive spawning logic with countdown and condition checks.
void	ActivateLogic ()
	Initializes all logic components.
void	DrawDebugShape (bool draw)
	Draws debug shape if draw flag is true, creates sphere shape with specified color, flags, position, and radius.

Additional Inherited Members
Static Public Attributes inherited from SCR_ScenarioFrameworkLayerBase
static const int	SPAWN_DELAY = 200
Protected Attributes inherited from SCR_ScenarioFrameworkSlotBase
IEntity	m_PreviewEntity

Member Function Documentation

ActivateAI()

void SCR_ScenarioFrameworkSlotTaskAI.ActivateAI

(

)

Activates AI group, removes unwanted prefabs, balances units count, sets on agent remove and add events,.

AfterAllAgentsSpawned()

void SCR_ScenarioFrameworkSlotTaskAI.AfterAllAgentsSpawned

(

)

Initializes plugins, actions, and checks for parent layer spawn completion, then sets waypoints for AI if not initialized.

AfterAllChildrenSpawned()

override void SCR_ScenarioFrameworkSlotTaskAI.AfterAllChildrenSpawned

(

SCR_ScenarioFrameworkLayerBase

layer

)

Initializes AI after all children spawned, removes event handler.

Parameters

[in]

layer

for which this is called

Implements SCR_ScenarioFrameworkSlotBase.

CheckWaypointsAfterInit()

void SCR_ScenarioFrameworkSlotTaskAI.CheckWaypointsAfterInit ( SCR_ScenarioFrameworkLayerBase  layer )

protected

Checks waypoints after init, adds/removes event handler for all waypoints spawned, increments spawned way.

Parameters

[in]

layer

for which this is called

CreateAIGroup()

bool SCR_ScenarioFrameworkSlotTaskAI.CreateAIGroup ( )

protected

Creates an AI group, sets its faction, adds entity to group, and optionally sets entity's position.

Returns

true if AI group creation is successful, false otherwise.

CreateDefaultWaypoint()

AIWaypoint SCR_ScenarioFrameworkSlotTaskAI.CreateDefaultWaypoint ( )

protected

Creates default waypoint for AI entity, spawns it in world space, adds it to list.

Returns

an AIWaypoint object if successful, otherwise null.

DecreaseAIGroupMemberCount()

void SCR_ScenarioFrameworkSlotTaskAI.DecreaseAIGroupMemberCount	(	SCR_AIGroup	group,
		AIAgent	agent
	)

Decreases AI group member count, handles termination if group empty, adds removed AI entity prefab to removal list.

Parameters

[in]	group	Decreases AI group member count, checks for termination conditions, adds removed AI entity prefab to removal list.
[in]	agent	Agent represents an AI entity in the game world, controlled by AI group, which is decreased from the group count in this

DynamicDespawn()

override void SCR_ScenarioFrameworkSlotTaskAI.DynamicDespawn

(

SCR_ScenarioFrameworkLayerBase

layer

)

Dynamically despawns this layer.

Parameters

[in]

layer

Layer represents the scenario framework layer for dynamic despawning entities in the method.

Implements SCR_ScenarioFrameworkSlotTask.

Implemented in SCR_ScenarioFrameworkSlotDefend.

GetAIPrefabsForRemoval()

array< ResourceName > SCR_ScenarioFrameworkSlotTaskAI.GetAIPrefabsForRemoval

(

)

Returns

Array of AI prefab names for removal.

InitGroupComponents()

void SCR_ScenarioFrameworkSlotTaskAI.InitGroupComponents ( )

protected

Initializes AI group components, sets formation, and combat parameters for agents in the group.

InitOtherThings()

override bool SCR_ScenarioFrameworkSlotTaskAI.InitOtherThings

(

)

Clears cached values and handles Waypoint Sets.

Returns

true if all initialization steps succeed, false otherwise.

Implements SCR_ScenarioFrameworkSlotBase.

InitWaypoints()

void SCR_ScenarioFrameworkSlotTaskAI.InitWaypoints ( )

protected

Initializes waypoints by finding them in specified layers, adding them to list, and processing them after initialization.

OnAgentAdded()

void SCR_ScenarioFrameworkSlotTaskAI.OnAgentAdded

(

AIAgent

child

)

Parameters

[in]

child

Child is an AI Agent added to the group, triggers group component initialization and waypoint setting if necessary.

OnAgentCompartmentEntered()

void SCR_ScenarioFrameworkSlotTaskAI.OnAgentCompartmentEntered ( AIAgent  agent, IEntity  targetEntity, BaseCompartmentManagerComponent  manager, int  mgrID, int  slotID, bool  move  )

protected

OnAgentCompartmentLeft()

void SCR_ScenarioFrameworkSlotTaskAI.OnAgentCompartmentLeft ( AIAgent  agent, IEntity  targetEntity, BaseCompartmentManagerComponent  manager, int  mgrID, int  slotID, bool  move  )

protected

ProcessWaypoints()

void SCR_ScenarioFrameworkSlotTaskAI.ProcessWaypoints ( SCR_ScenarioFrameworkLayerBase  layer )

protected

Initializes waypoints for AI if scenario is initiated, otherwise waits for all children to spawn before setting waypoints.

Parameters

[in]

layer

for which this is called

RestoreToDefault()

override void SCR_ScenarioFrameworkSlotTaskAI.RestoreToDefault	(	bool	includeChildren = false,
		bool	reinitAfterRestoration = false,
		bool	affectRandomization = true
	)

Restores default settings, clears waypoints, AI group, prefabs, slots, and initializes randomization.

Parameters

[in]	includeChildren	Includes restoring default settings for child objects as well.
[in]	reinitAfterRestoration	Resets object state after restoration, allowing for fresh initialization.
[in]	affectRandomization	Affects whether randomization is reset during default restoration.

Implements SCR_ScenarioFrameworkSlotTask.

SetAIPrefabsForRemoval()

void SCR_ScenarioFrameworkSlotTaskAI.SetAIPrefabsForRemoval

(

array< ResourceName >

arrayForRemoval

)

Parameters

[in]

arrayForRemoval

Array of resource names for AI prefab removal.

SetWaypointToAI()

void SCR_ScenarioFrameworkSlotTaskAI.SetWaypointToAI ( SCR_ScenarioFrameworkLayerBase  layer )

protected

Parameters

[in]

layer

Initializes waypoints for AI group in scenario framework layer.

Member Data Documentation

m_aAIPrefabsForRemoval

ref array<ResourceName> SCR_ScenarioFrameworkSlotTaskAI.m_aAIPrefabsForRemoval = {}

m_AIGroup

SCR_AIGroup SCR_ScenarioFrameworkSlotTaskAI.m_AIGroup

m_aSlotWaypoints

ref array<SCR_ScenarioFrameworkSlotWaypoint> SCR_ScenarioFrameworkSlotTaskAI.m_aSlotWaypoints = {}

m_aWaypoints

ref array<AIWaypoint> SCR_ScenarioFrameworkSlotTaskAI.m_aWaypoints = {}

m_bBalanceOnPlayersCount

bool SCR_ScenarioFrameworkSlotTaskAI.m_bBalanceOnPlayersCount

m_bExcludeFromDynamicDespawnOnVehicleEntered

bool SCR_ScenarioFrameworkSlotTaskAI.m_bExcludeFromDynamicDespawnOnVehicleEntered

m_bSpawnAIOnWPPos

bool SCR_ScenarioFrameworkSlotTaskAI.m_bSpawnAIOnWPPos

m_bWaypointsInitialized

bool SCR_ScenarioFrameworkSlotTaskAI.m_bWaypointsInitialized

m_eAICombatType

EAICombatType SCR_ScenarioFrameworkSlotTaskAI.m_eAICombatType

m_eAIGroupFormation

SCR_EAIGroupFormation SCR_ScenarioFrameworkSlotTaskAI.m_eAIGroupFormation

m_eAISkill

EAISkill SCR_ScenarioFrameworkSlotTaskAI.m_eAISkill

m_fPerceptionFactor

float SCR_ScenarioFrameworkSlotTaskAI.m_fPerceptionFactor

m_iCurrentlySpawnedWaypoints

int SCR_ScenarioFrameworkSlotTaskAI.m_iCurrentlySpawnedWaypoints

m_iMinUnitsInGroup

int SCR_ScenarioFrameworkSlotTaskAI.m_iMinUnitsInGroup

m_sGroupPrefab

ResourceName SCR_ScenarioFrameworkSlotTaskAI.m_sGroupPrefab

m_sWPToSpawn

ResourceName SCR_ScenarioFrameworkSlotTaskAI.m_sWPToSpawn

m_WaypointSet

ref SCR_ScenarioFrameworkWaypointSet SCR_ScenarioFrameworkSlotTaskAI.m_WaypointSet

---

The documentation for this interface was generated from the following file:

• Game/ScenarioFramework/Components/SCR_ScenarioFrameworkSlotTaskAI.c
