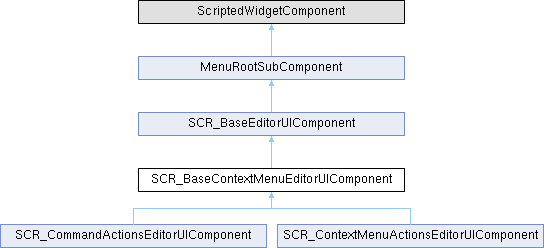

Inheritance diagram for SCR_BaseContextMenuEditorUIComponent:

[legend]

Public Member Functions
void	CloseContextMenu ()

ScriptInvoker	GetOnContextMenuToggle ()

bool	IsContextMenuOpen ()

override void	HandlerAttachedScripted (Widget w)
	Event called when subcomponent is initialized.

override void	HandlerDeattached (Widget w)

Public Member Functions inherited from MenuRootSubComponent
Widget	GetWidget ()
	Get widget to which the component belongs to.

MenuRootBase	GetMenu ()
	Get menu of which the widget is part of.

MenuRootComponent	GetRootComponent ()
	Get root component of this subcomponent,.

void	HandlerAttachedScripted (Widget w)
	Event called when subcomponent is initialized.

override void	HandlerAttached (Widget w)

override void	HandlerDeattached (Widget w)

Protected Member Functions
void	OnInputDeviceIsGamepad (bool isGamepad)

void	PopulateContextMenu (vector cursorWorldPosition)

void	OpenContextMenu ()

vector	GetCursorWorldPos ()

void	RemoveButtonWidgets ()

void	OnMouseLeftDown ()

void	OnOpenActionsMenuDown ()

void	OnContextMenuOptionClicked (Widget widget, float value, EActionTrigger reason)

void	OnEditorModeChanged ()

Protected Member Functions inherited from SCR_BaseEditorUIComponent
vector	OnCancelDown ()

bool	OnCancelUp ()

void	OnCancelExpired ()

Protected Member Functions inherited from MenuRootSubComponent
bool	IsUnique ()
	Is the component to exist only in one instance? If so, it will be registered in the list of components and can be searched for.

Protected Attributes
ResourceName	m_ButtonPath

string	m_VLayoutWidgetName

string	m_sBottomBarName

int	m_ButtonPrefabSizeX

int	m_ButtonPrefabSizeY

float	m_fMenuMouseOffsetX

float	m_fFadeDelayNextButton

float	m_fButtonFadeSpeed

InputManager	m_InputManager

WorkspaceWidget	m_WorkSpace

Widget	m_ContextMenu

Widget	m_VLayout

SCR_FadeUIComponent	m_BottomBarFadeUI

vector	m_MouseDownScreenPos

vector	m_MouseDownWorldPos

ref map< Widget, SCR_BaseEditorAction >	m_ButtonActions = new map<Widget, SCR_BaseEditorAction>

SCR_BaseActionsEditorComponent	m_EditorActionsComponent

SCR_EditorManagerEntity	m_EditorManager

SCR_CursorEditorUIComponent	m_CursorComponent

SCR_MouseAreaEditorUIComponent	m_MouseArea

int	m_ActionFlagsOnOpen

ref ScriptInvoker	m_OnContextMenuToggle = new ScriptInvoker()

Protected Attributes inherited from SCR_BaseEditorUIComponent
vector	m_vClickPosCancel

Additional Inherited Members
Static Public Attributes inherited from SCR_BaseEditorUIComponent
const int	CANCEL_CLICK_MAX_DIS = 5

const int	CANCEL_CLICK_MAX_TIME = 500

Member Function Documentation

◆ CloseContextMenu()

void SCR_BaseContextMenuEditorUIComponent.CloseContextMenu ( )

Implemented in SCR_ContextMenuActionsEditorUIComponent.

◆ GetCursorWorldPos()

vector SCR_BaseContextMenuEditorUIComponent.GetCursorWorldPos ( )

protected

◆ GetOnContextMenuToggle()

ScriptInvoker SCR_BaseContextMenuEditorUIComponent.GetOnContextMenuToggle ( )

◆ HandlerAttachedScripted()

override void SCR_BaseContextMenuEditorUIComponent.HandlerAttachedScripted ( Widget w )

Event called when subcomponent is initialized.

Called only after all other subcomponents were registered as well and can be searched for. To be overwritten by inherited classes.

Parameters

Widget

Implements MenuRootSubComponent.

Implemented in SCR_CommandActionsEditorUIComponent, and SCR_ContextMenuActionsEditorUIComponent.

◆ HandlerDeattached()

override void SCR_BaseContextMenuEditorUIComponent.HandlerDeattached ( Widget w )

Implements MenuRootSubComponent.

Implemented in SCR_CommandActionsEditorUIComponent, and SCR_ContextMenuActionsEditorUIComponent.

◆ IsContextMenuOpen()

bool SCR_BaseContextMenuEditorUIComponent.IsContextMenuOpen ( )

◆ OnContextMenuOptionClicked()

void SCR_BaseContextMenuEditorUIComponent.OnContextMenuOptionClicked	(	Widget	widget,
		float	value,
		EActionTrigger	reason
	)

protected

◆ OnEditorModeChanged()

void SCR_BaseContextMenuEditorUIComponent.OnEditorModeChanged ( )

protected

Implemented in SCR_ContextMenuActionsEditorUIComponent.

◆ OnInputDeviceIsGamepad()

void SCR_BaseContextMenuEditorUIComponent.OnInputDeviceIsGamepad ( bool isGamepad )

protected

◆ OnMouseLeftDown()

void SCR_BaseContextMenuEditorUIComponent.OnMouseLeftDown ( )

protected

◆ OnOpenActionsMenuDown()

void SCR_BaseContextMenuEditorUIComponent.OnOpenActionsMenuDown ( )

protected

Implemented in SCR_ContextMenuActionsEditorUIComponent.

◆ OpenContextMenu()

void SCR_BaseContextMenuEditorUIComponent.OpenContextMenu ( )

protected

Implemented in SCR_ContextMenuActionsEditorUIComponent.

◆ PopulateContextMenu()

void SCR_BaseContextMenuEditorUIComponent.PopulateContextMenu ( vector cursorWorldPosition )

protected

Implemented in SCR_ContextMenuActionsEditorUIComponent.

◆ RemoveButtonWidgets()

void SCR_BaseContextMenuEditorUIComponent.RemoveButtonWidgets ( )

protected

Member Data Documentation

◆ m_ActionFlagsOnOpen

int SCR_BaseContextMenuEditorUIComponent.m_ActionFlagsOnOpen

protected

◆ m_BottomBarFadeUI

SCR_FadeUIComponent SCR_BaseContextMenuEditorUIComponent.m_BottomBarFadeUI

protected

◆ m_ButtonActions

ref map<Widget, SCR_BaseEditorAction> SCR_BaseContextMenuEditorUIComponent.m_ButtonActions = new map<Widget, SCR_BaseEditorAction>

protected

◆ m_ButtonPath

ResourceName SCR_BaseContextMenuEditorUIComponent.m_ButtonPath

protected

◆ m_ButtonPrefabSizeX

int SCR_BaseContextMenuEditorUIComponent.m_ButtonPrefabSizeX

protected

◆ m_ButtonPrefabSizeY

int SCR_BaseContextMenuEditorUIComponent.m_ButtonPrefabSizeY

protected

◆ m_ContextMenu

Widget SCR_BaseContextMenuEditorUIComponent.m_ContextMenu

protected

◆ m_CursorComponent

SCR_CursorEditorUIComponent SCR_BaseContextMenuEditorUIComponent.m_CursorComponent

protected

◆ m_EditorActionsComponent

SCR_BaseActionsEditorComponent SCR_BaseContextMenuEditorUIComponent.m_EditorActionsComponent

protected

◆ m_EditorManager

SCR_EditorManagerEntity SCR_BaseContextMenuEditorUIComponent.m_EditorManager

protected

◆ m_fButtonFadeSpeed

float SCR_BaseContextMenuEditorUIComponent.m_fButtonFadeSpeed

protected

◆ m_fFadeDelayNextButton

float SCR_BaseContextMenuEditorUIComponent.m_fFadeDelayNextButton

protected

◆ m_fMenuMouseOffsetX

float SCR_BaseContextMenuEditorUIComponent.m_fMenuMouseOffsetX

protected

◆ m_InputManager

InputManager SCR_BaseContextMenuEditorUIComponent.m_InputManager

protected

◆ m_MouseArea

SCR_MouseAreaEditorUIComponent SCR_BaseContextMenuEditorUIComponent.m_MouseArea

protected

◆ m_MouseDownScreenPos

vector SCR_BaseContextMenuEditorUIComponent.m_MouseDownScreenPos

protected

◆ m_MouseDownWorldPos

vector SCR_BaseContextMenuEditorUIComponent.m_MouseDownWorldPos

protected

◆ m_OnContextMenuToggle

ref ScriptInvoker SCR_BaseContextMenuEditorUIComponent.m_OnContextMenuToggle = new ScriptInvoker()

protected

◆ m_sBottomBarName

string SCR_BaseContextMenuEditorUIComponent.m_sBottomBarName

protected

◆ m_VLayout

Widget SCR_BaseContextMenuEditorUIComponent.m_VLayout

protected

◆ m_VLayoutWidgetName

string SCR_BaseContextMenuEditorUIComponent.m_VLayoutWidgetName

protected

◆ m_WorkSpace

WorkspaceWidget SCR_BaseContextMenuEditorUIComponent.m_WorkSpace

protected

The documentation for this interface was generated from the following file:

Game/Editor/UI/Components/Common/SCR_BaseContextMenuEditorUIComponent.c
