SCR_DestructionMultiPhaseComponent Interface Reference

Multi-Phase destruction component, for objects that go through several destruction states. More...

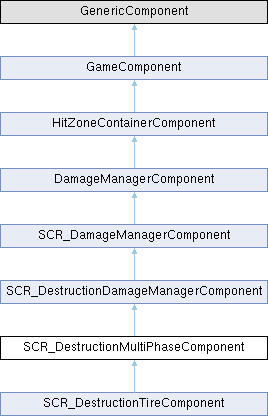

Inheritance diagram for SCR_DestructionMultiPhaseComponent:

Public Member Functions
SCR_DamagePhaseData	GetDamagePhaseData (int damagePhase)
	Returns the input damage phase data (null = initial)
override bool	GetDisablePhysicsOnDestroy ()
	Returns whether the object should disable physics on destruction (before being deleted or changed)
bool	GetIsInInitialDamagePhase ()
	Returns if the object is in the initial damage phase.
int	GetDamagePhase ()
	Returns which damage phase the object is currently in (0 = initial)
int	GetNumDamagePhases ()
	Returns the amount of damage phases (including initial)
int	CalculateDamagePhase (int damagePhase, float health, float damage)
	Returns the target damage stage for the input current health, current phase and damage.
float	GetDestructibleSize ()
void	GoToDamagePhase (int damagePhase, bool delayMeshChange)
	Switches to the input damage phase (or deletes if past last phase)
void	ApplyDamagePhaseData (SCR_DamagePhaseData damagePhaseData, bool delayMeshChange)
override void	PlaySound ()
	Plays sounds upon destruction.
override bool	GetCanBeDamaged ()
	Called when the object receives damage, return false if damage should be ignored.
override void	SpawnDestroyObjects (SCR_HitInfo hitInfo)
	Spawns objects that are meant to be created when the object is destroyed (particles, debris, etc)
override void	QueueDestroy ()
	Called when the object should be destroyed and various effects or other things need to be performed (actual destruction handled HandleDestruction())
override void	HandleDestruction ()
	Handle destruction.
override void	UpdateResponseIndex ()
override void	ReplicateDestructibleState (bool forceUpdate=false)
override void	OnPostInit (IEntity owner)
	Called after all components are initialized.
Public Member Functions inherited from SCR_DestructionDamageManagerComponent
ScriptInvoker	GetOnDamageInvoker ()
	Returns the on damage script invoker if one exists, otherwise creates one and returns it.
SCR_DestructionHitInfo	GetDestructionHitInfo (bool createNew=false)
bool	ShouldDestroyParent ()
bool	GetDisablePhysicsOnDestroy ()
bool	GetUndamaged ()
bool	GetDestroyed ()
void	RPC_DoSpawnAllDestroyEffects ()
	Spawns destroy objects of children as well as own.
void	DeleteParentWithEffects ()
void	DeleteDestructible ()
	Used in cases where we don't care about effects or anything, e. g. building destruction.
void	SetHitZoneHealth (float baseHealth, bool clearDamage=true)
	Sets the base health value of the hit zone (does not trigger destruction)
void	SetHitZoneDamage (float damage)
	Sets damage of the hit zone (does not trigger destruction)
void	CreateDestructionHitInfo (bool totalDestruction, float lastHealth, float hitDamage, EDamageType damageType, vector hitPosition, vector hitDirection, vector hitNormal)
	Creates and fills destruction hit info for the object.
bool	GetCanBeDamaged ()
	Called when the object receives damage, return false if damage should be ignored.
void	QueueDestroy ()
	Called when the object should be destroyed and various effects or other things need to be performed (actual destruction handled HandleDestruction())
void	SpawnDestroyObjects (SCR_HitInfo hitInfo)
	Spawns objects that are meant to be created when the object is destroyed (particles, debris, etc)
void	RegenerateNavmeshDelayed ()
void	HandleDestruction ()
	Handle destruction.
void	InitDestruction ()
	Initialise destruction.
void	NetReceiveHitData (int hitIndex, EDamageType damageType, float damage, vector hitPosition, vector hitDirection)
	Receive encoded hit data from server.
void	NetReadInit (ScriptBitReader reader)
	Called when Item is initialized from replication stream.
void	NetWriteInit (ScriptBitWriter writer)
	Called when Item is getting replicated from Master to Slave connection.
void	PlaySound ()
	Plays sounds upon destruction.
void	SetModel (ResourceName model)
	Sets the model of the object.
void	ReplicateDestructibleState (bool forceUpdate=false)
bool	IsProxy ()
	Checks if this entity is locally owned.
void	UpdateResponseIndex ()
override bool	FilterContact (IEntity owner, IEntity other, Contact contact)
	No contacts for chimeraCharacters.
override void	OnFilteredContact (IEntity owner, IEntity other, Contact contact)
	Only called if FilterContact returned true.
override void	OnDamage (notnull BaseDamageContext damageContext)
bool	IsDestructionQueued ()
float	GetTotalDestructionThreshold ()
override void	OnPostInit (IEntity owner)
	Called after all components are initialized.
void	~SCR_DestructionDamageManagerComponent ()
Public Member Functions inherited from SCR_DamageManagerComponent
bool	IsRplReady ()
	Check if replication loading is completed. Important for join in progress and when streaming entities in.
HitZone	GetHitZoneByName (string hitZoneName, bool caseSensitive=false)
	Get the HitZone that matches the provided name.
void	GetPhysicalHitZones (out notnull array< HitZone > physicalHitZones)
	Return hit zones with colliders assigned.
void	GetRegeneratingHitZones (out notnull array< SCR_RegeneratingHitZone > regeneratingHitZones)
	Return hit zones with passive regeneration enabled.
void	RpcDo_SetFireState (int hitZoneIndex, SCR_EBurningState fireState)
	Set fire rate of a flammable hitzone.
override bool	FilterContact (IEntity owner, IEntity other, Contact contact)
	No contacts for destroyed entities.
float	CalculateMomentum (Contact contact, float ownerMass, float otherMass)
int	GetSurroundingHitzones (vector origin, Physics physics, float maxDistance, out array< HitZone > outHitzones)
float	GetMinDestroyDamage (EDamageType damageType, array< HitZone > hitzones, int count)
ScriptInvoker	GetOnDamage ()
ScriptInvoker	GetOnDamageOverTimeAdded ()
ScriptInvoker	GetOnDamageOverTimeRemoved ()
ScriptInvoker	GetOnDamageStateChanged ()
void	~SCR_DamageManagerComponent ()
int	GetHitZonesOfGroup (EHitZoneGroup hitZoneGroup, out notnull array< HitZone > groupHitZones, bool clearArray=true)
	Get a list of all hitzones of specific hitzone group.
int	GetHitZonesOfGroups (notnull array< EHitZoneGroup > hitZoneGroups, out notnull array< HitZone > groupHitZones)
	Get a list of all hitzones of specific hitzone group.
float	GetGroupDamageOverTime (ECharacterHitZoneGroup hitZoneGroup, EDamageType damageType)
	Get total damage over time of given hitzone group.
void	Kill (notnull Instigator instigator)
	Neutralize the entity with a specific damage type, registering the killer entity.
void	DamageRandomHitZones (float damage, EDamageType type, notnull Instigator instigator, bool onlyPhysical=true, vector outMat[3]={}, bool damageDefault=false)
	Damage random physical hit zones up to damage amount.
bool	CanBeHealed (bool ignoreHealingDOT=true)
	Return true if there is damage that can be repaired.
void	FullHeal (bool ignoreHealingDOT=true)
	Fix all the damage.
float	HealHitZones (float healthToDistribute, bool sequential=false, float maxHealThresholdScaled=1, array< HitZone > alternativeHitZones=null)
	Partially heal the hitZones of an entity.
void	ReduceSmoke ()
	Reduce smoke output based on the total health of hit zones.
float	GetHitZonesDamage (float untilThresholdScaled=1, array< HitZone > alternativeHitZones=null)
	Get all damage dealt to hitzones.
float	GetHitZonesHealthScaled (array< HitZone > alternativeHitZones=null)
	Get Health scaled of all hitzones.
float	GetSingleHitZonesHealthScaled (array< HitZone > alternativeHitZones=null, bool getLowestHealth=true)
	Get single Health scaled from hitzones.
ResourceName	GetSecondaryExplosion (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES, bool fire=false)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.
SCR_SecondaryExplosion	GetSecondaryExplosionForScale (SCR_ESecondaryExplosionScale scale, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion scale, type and resource type if defined.
SCR_ESecondaryExplosionScale	GetSecondaryExplosionScale (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.
ResourceName	GetSecondaryFireParticle (float value, SCR_ESecondaryExplosionType explosionType, EResourceType resourceType=EResourceType.SUPPLIES)
	Determine secondary explosion prefab based on explosion value, type and resource type if defined.
bool	IsOnFire (HitZone hitZone=null)
	Determine if provided or any hit zone from this damage manager is on fire.
bool	IsOnFire (notnull array< HitZone > hitZones)
	Determine if any hit zone from this damage manager is on fire.
void	SecondaryExplosion (ResourceName prefabName, notnull Instigator instigator, notnull EntitySpawnParams spawnParams)
	Spawn secondary explosion.
SCR_ResourceEncapsulator	GetResourceEncapsulator (EResourceType suppliesType=EResourceType.SUPPLIES)
void	SupplySecondaryExplosion (notnull Instigator instigator)
	Spawn supply secondary explosion when vehicle becomes destroyed.
vector	GetSecondaryExplosionPosition (TypeName hitZoneType, out float totalWeight=0)
	Get weighed average position of explosion for hitzones of specified type.
void	FuelSecondaryExplosion (notnull Instigator instigator)
	Spawn fuel secondary explosion when vehicle becomes destroyed.
void	UpdateFireDamage (float timeSlice)
void	UpdateFireParticles (vector position, out ParticleEffectEntity particles, SCR_ESecondaryExplosionScale state, SCR_ESecondaryExplosionType fireType, EResourceType resourceType=EResourceType.SUPPLIES)
	Update visual effects and store result in particles variable.
override void	OnDamageOverTimeAdded (EDamageType dType, float dps, HitZone hz)
	Invoked every time the DoT is added to certain hitzone.
override void	OnDamageOverTimeRemoved (EDamageType dType, HitZone hz)
	Invoked when provided damage type is removed from certain hitzone.
override bool	HijackDamageHandling (notnull BaseDamageContext damageContext)
Public Member Functions inherited from DamageManagerComponent
proto external int	ComputeStruckHitZones (out notnull array< HitZone > struckHitZones, notnull BaseDamageContext damageContext)
	Clears and fills struckHitZones array with all HZs that should get damaged by this BaseDamageContext.
proto external void	EnableDamageHandling (bool enable)
proto external bool	IsDamageHandlingEnabled ()
proto external float	GetMovementDamage ()
proto external float	GetAimingDamage ()
proto external void	SetMovementDamage (float damage)
proto external void	SetAimingDamage (float damage)
proto external float	GetHealthScaled ()
proto external bool	SetHealthScaled (float health)
proto external float	GetHealth ()
proto external float	GetMaxHealth ()
proto external EDamageState	GetState ()
proto external bool	IsDestroyed ()
proto external void	SetInstigatorEntity (IEntity instigator)
proto external void	SetInstigator (notnull Instigator instigator)
proto external notnull Instigator	GetInstigator ()
proto external int	GetAttachedColliderIDs (out notnull array< int > outAttachedColliderIDs)
	Fills colliderIDs with all the colliders attached to hitzones this dmg manager owns.
proto external void	HandleDamage (notnull BaseDamageContext damageContext)
proto external bool	IsDamagedOverTime (EDamageType dType)
proto external float	GetDamageOverTime (EDamageType dType)
proto external void	RemoveDamageOverTime (EDamageType dType)
	Removes DOT of provided damageType from all currently affected HitZones.
bool	ShouldOverrideInstigator (notnull Instigator currentInstigator, notnull Instigator newInstigator)
	Called whenever an instigator is going to be set.
GameMaterial	OverrideHitMaterial (HitZone struckHitzone)
	Not all armors are physical so the surface that gets struck by projectiles will not be the one the armor, but the hitzone.
bool	FilterContact (IEntity owner, IEntity other, Contact contact)
	Event when physics engine registered contact with other RigidBody.
bool	HijackDamageHandling (notnull BaseDamageContext damageContext)
	Called when this DamageManager is about to handle damage.
bool	ShouldCountAsHit (notnull BaseDamageContext damageContext)
	Called after HijackDamageHandling.
Public Member Functions inherited from HitZoneContainerComponent
proto external IEntity	GetOwner ()
proto external HitZone	GetDefaultHitZone ()
proto external HitZone	GetHitZoneByColliderID (int colliderID)
proto external int	GetHitZonesByColliderIDs (out notnull array< HitZone > outHitZones, notnull array< int > colliderIDs)
	Clears and fills the specified outHitZones array with all HZs that are attached to colliderIDs.
proto external HitZone	GetHitZone (string colliderName)
proto external int	GetAllHitZones (out notnull array< HitZone > outHitZones)
	Clears and fills the specified outHitZones array with all HZs in this entity Returns the count of elements that were filled into the array.
proto external int	GetAllHitZonesInHierarchy (out notnull array< HitZone > outHitZones)
	Clears and fills the specified outHitZones array with all HZs in this entity and its children.
proto external HitZoneContainerComponent	GetParentHitZoneContainer ()
Public Member Functions inherited from GameComponent
bool	OnTicksOnRemoteProxy ()

Static Public Attributes
static const string	DAMAGE_PHASE_SIGNAL_NAME = "DamagePhase"
Static Public Attributes inherited from SCR_DamageManagerComponent
static const int	MAX_DESTRUCTION_RESPONSE_INDEX = 10
static const string	MAX_DESTRUCTION_RESPONSE_INDEX_NAME = "HugeDestructible"
static const ref array< EDamageType >	HEALING_DAMAGE_TYPES = {EDamageType.HEALING, EDamageType.REGENERATION}
static const float	KM_PER_H_TO_M_PER_S = 0.277777

Protected Member Functions
notnull SCR_DestructionMultiPhaseData	GetDestructionMultiPhaseData ()
void	SetDamagePhaseSignal ()
void	SetOriginalResourceName (ResourceName originalResourceName)
ResourceName	GetOriginalResourceName ()
int	GetTargetDamagePhase ()
void	SetTargetDamagePhase (int targetDamagePhase)
void	SetDamagePhase (int damagePhase)
void	RPC_ReplicateMultiPhaseDestructionState (int phase)
override bool	OnRplSave (ScriptBitWriter writer)
override bool	OnRplLoad (ScriptBitReader reader)
Protected Member Functions inherited from SCR_DestructionDamageManagerComponent
notnull SCR_DestructionBaseData	GetDestructionBaseData ()
RplComponent	FindParentRplComponent ()
void	PassDamageToChildren (notnull BaseDamageContext damageContext)
Protected Member Functions inherited from SCR_DamageManagerComponent
override bool	OnRplSave (ScriptBitWriter writer)
override bool	OnRplLoad (ScriptBitReader reader)
notnull SCR_DamageManagerData	GetScriptedDamageManagerData ()
override void	OnDamage (notnull BaseDamageContext damageContext)
override bool	ShouldOverrideInstigator (notnull Instigator currentInstigator, notnull Instigator newInstigator)
	Called whenever an instigator is going to be set.
float	HealHitZonesInSequence (float healthToDistribute, float maxHealThresholdScaled, array< HitZone > targetHitZones)
float	HealHitZonesInParallel (float healthToDistribute, float maxHealThresholdScaled, array< HitZone > targetHitZones)
void	ConnectToFireDamageSystem ()
void	DisconnectFromFireDamageSystem ()
override void	OnDamageStateChanged (EDamageState state)
	Invoked when damage state changes.
override void	_WB_AfterWorldUpdate (IEntity owner, float timeSlice)
Protected Member Functions inherited from DamageManagerComponent
void	OnDamageOverTimeAdded (EDamageType dType, float dps, HitZone hz)
	Invoked every time the DoT is added to certain hitzone.
void	OnDamageOverTimeRemoved (EDamageType dType, HitZone hz)
	Invoked when provided damage type is removed from certain hitzone.
void	OnDamageStateChanged (EDamageState state)
	Called when the damagestate changes.
void	OnPostInit (IEntity owner)
	Called after all components are initialized.
void	OnInit (IEntity owner)
	Called during EOnInit.
void	OnDelete (IEntity owner)
void	OnFrame (IEntity owner, float timeSlice)
	Called during EOnFrame.
void	OnFilteredContact (IEntity owner, IEntity other, Contact contact)
	Only called if FilterContact returned true.
void	OnDiag (IEntity owner, float timeSlice)
	Called during EOnDiag.
void	OnDamage (notnull BaseDamageContext damageContext)
bool	OnRplSave (ScriptBitWriter writer)
bool	OnRplLoad (ScriptBitReader reader)

Protected Attributes
int	m_iOriginalHealth
Protected Attributes inherited from SCR_DamageManagerComponent
int	m_iTimetickInstigator = System.GetTickCount()
int	m_iTimeThresholdInstigatorReplacement = 180000
int	m_iPlayerId = 0
int	m_iDamageManagerDataIndex = -1
bool	m_bRplReady

Additional Inherited Members
Static Public Member Functions inherited from SCR_DestructionDamageManagerComponent
static ScriptInvoker	GetOnDestructibleDestroyedInvoker ()
static bool	GetReadingInit (bool readingInit)
static void	SetReadingInit (bool readingInit)
Static Public Member Functions inherited from SCR_DamageManagerComponent
static SCR_DamageManagerComponent	GetDamageManager (notnull IEntity owner)
	Get damage manager from given owner.
Static Protected Attributes inherited from SCR_DestructionDamageManagerComponent
static ref ScriptInvoker	s_OnDestructibleDestroyed = new ScriptInvoker()
static bool	s_bReadingInit = false
static bool	s_bPrintMissingComponent
static bool	s_bPrintMissingPlayerController
static bool	s_bPrintInitializationFailed
Static Protected Attributes inherited from SCR_DamageManagerComponent
static const int	MIN_MOMENTUM_RESPONSE_INDEX = 1
static const int	MAX_MOMENTUM_RESPONSE_INDEX = 5
static const int	MIN_DESTRUCTION_RESPONSE_INDEX = 6
const float	SIMULATION_IMPRECISION_MULTIPLIER = 1.1
static ref array< ref SCR_DamageManagerData >	s_aDamageManagerData = {}

Detailed Description

Multi-Phase destruction component, for objects that go through several destruction states.

Member Function Documentation

ApplyDamagePhaseData()

void SCR_DestructionMultiPhaseComponent.ApplyDamagePhaseData	(	SCR_DamagePhaseData	damagePhaseData,
		bool	delayMeshChange
	)

CalculateDamagePhase()

int SCR_DestructionMultiPhaseComponent.CalculateDamagePhase	(	int	damagePhase,
		float	health,
		float	damage
	)

Returns the target damage stage for the input current health, current phase and damage.

GetCanBeDamaged()

override bool SCR_DestructionMultiPhaseComponent.GetCanBeDamaged

(

)

Called when the object receives damage, return false if damage should be ignored.

Implements SCR_DestructionDamageManagerComponent.

GetDamagePhase()

int SCR_DestructionMultiPhaseComponent.GetDamagePhase

(

)

Returns which damage phase the object is currently in (0 = initial)

GetDamagePhaseData()

SCR_DamagePhaseData SCR_DestructionMultiPhaseComponent.GetDamagePhaseData

(

int

damagePhase

)

Returns the input damage phase data (null = initial)

GetDestructibleSize()

float SCR_DestructionMultiPhaseComponent.GetDestructibleSize

(

)

GetDestructionMultiPhaseData()

notnull SCR_DestructionMultiPhaseData SCR_DestructionMultiPhaseComponent.GetDestructionMultiPhaseData ( )

protected

GetDisablePhysicsOnDestroy()

override bool SCR_DestructionMultiPhaseComponent.GetDisablePhysicsOnDestroy

(

)

Returns whether the object should disable physics on destruction (before being deleted or changed)

Implements SCR_DestructionDamageManagerComponent.

GetIsInInitialDamagePhase()

bool SCR_DestructionMultiPhaseComponent.GetIsInInitialDamagePhase

(

)

Returns if the object is in the initial damage phase.

GetNumDamagePhases()

int SCR_DestructionMultiPhaseComponent.GetNumDamagePhases

(

)

Returns the amount of damage phases (including initial)

GetOriginalResourceName()

ResourceName SCR_DestructionMultiPhaseComponent.GetOriginalResourceName ( )

protected

GetTargetDamagePhase()

int SCR_DestructionMultiPhaseComponent.GetTargetDamagePhase ( )

protected

GoToDamagePhase()

void SCR_DestructionMultiPhaseComponent.GoToDamagePhase	(	int	damagePhase,
		bool	delayMeshChange
	)

Switches to the input damage phase (or deletes if past last phase)

Implemented in SCR_DestructionTireComponent.

HandleDestruction()

override void SCR_DestructionMultiPhaseComponent.HandleDestruction

(

)

Handle destruction.

Implements SCR_DestructionDamageManagerComponent.

OnPostInit()

override void SCR_DestructionMultiPhaseComponent.OnPostInit

(

IEntity

owner

)

Called after all components are initialized.

Parameters

owner

Entity this component is attached to.

Implements SCR_DestructionDamageManagerComponent.

Implemented in SCR_DestructionTireComponent.

OnRplLoad()

override bool SCR_DestructionMultiPhaseComponent.OnRplLoad ( ScriptBitReader  reader )

protected

Implements SCR_DamageManagerComponent.

OnRplSave()

override bool SCR_DestructionMultiPhaseComponent.OnRplSave ( ScriptBitWriter  writer )

protected

Implements SCR_DamageManagerComponent.

PlaySound()

override void SCR_DestructionMultiPhaseComponent.PlaySound

(

)

Plays sounds upon destruction.

Implements SCR_DestructionDamageManagerComponent.

QueueDestroy()

override void SCR_DestructionMultiPhaseComponent.QueueDestroy

(

)

Called when the object should be destroyed and various effects or other things need to be performed (actual destruction handled HandleDestruction())

Implements SCR_DestructionDamageManagerComponent.

ReplicateDestructibleState()

override void SCR_DestructionMultiPhaseComponent.ReplicateDestructibleState

(

bool

forceUpdate = false

)

Parameters

[in]

forceUpdate

Implements SCR_DestructionDamageManagerComponent.

RPC_ReplicateMultiPhaseDestructionState()

void SCR_DestructionMultiPhaseComponent.RPC_ReplicateMultiPhaseDestructionState ( int  phase )

protected

SetDamagePhase()

void SCR_DestructionMultiPhaseComponent.SetDamagePhase ( int  damagePhase )

protected

SetDamagePhaseSignal()

void SCR_DestructionMultiPhaseComponent.SetDamagePhaseSignal ( )

protected

SetOriginalResourceName()

void SCR_DestructionMultiPhaseComponent.SetOriginalResourceName ( ResourceName  originalResourceName )

protected

SetTargetDamagePhase()

void SCR_DestructionMultiPhaseComponent.SetTargetDamagePhase ( int  targetDamagePhase )

protected

SpawnDestroyObjects()

override void SCR_DestructionMultiPhaseComponent.SpawnDestroyObjects

(

SCR_HitInfo

hitInfo

)

Spawns objects that are meant to be created when the object is destroyed (particles, debris, etc)

Implements SCR_DestructionDamageManagerComponent.

UpdateResponseIndex()

override void SCR_DestructionMultiPhaseComponent.UpdateResponseIndex

(

)

Implements SCR_DestructionDamageManagerComponent.

Member Data Documentation

DAMAGE_PHASE_SIGNAL_NAME

const string SCR_DestructionMultiPhaseComponent.DAMAGE_PHASE_SIGNAL_NAME = "DamagePhase"

static

m_iOriginalHealth

int SCR_DestructionMultiPhaseComponent.m_iOriginalHealth

protected

---

The documentation for this interface was generated from the following file:

• Game/Destruction/SCR_DestructionMultiPhaseComponent.c
